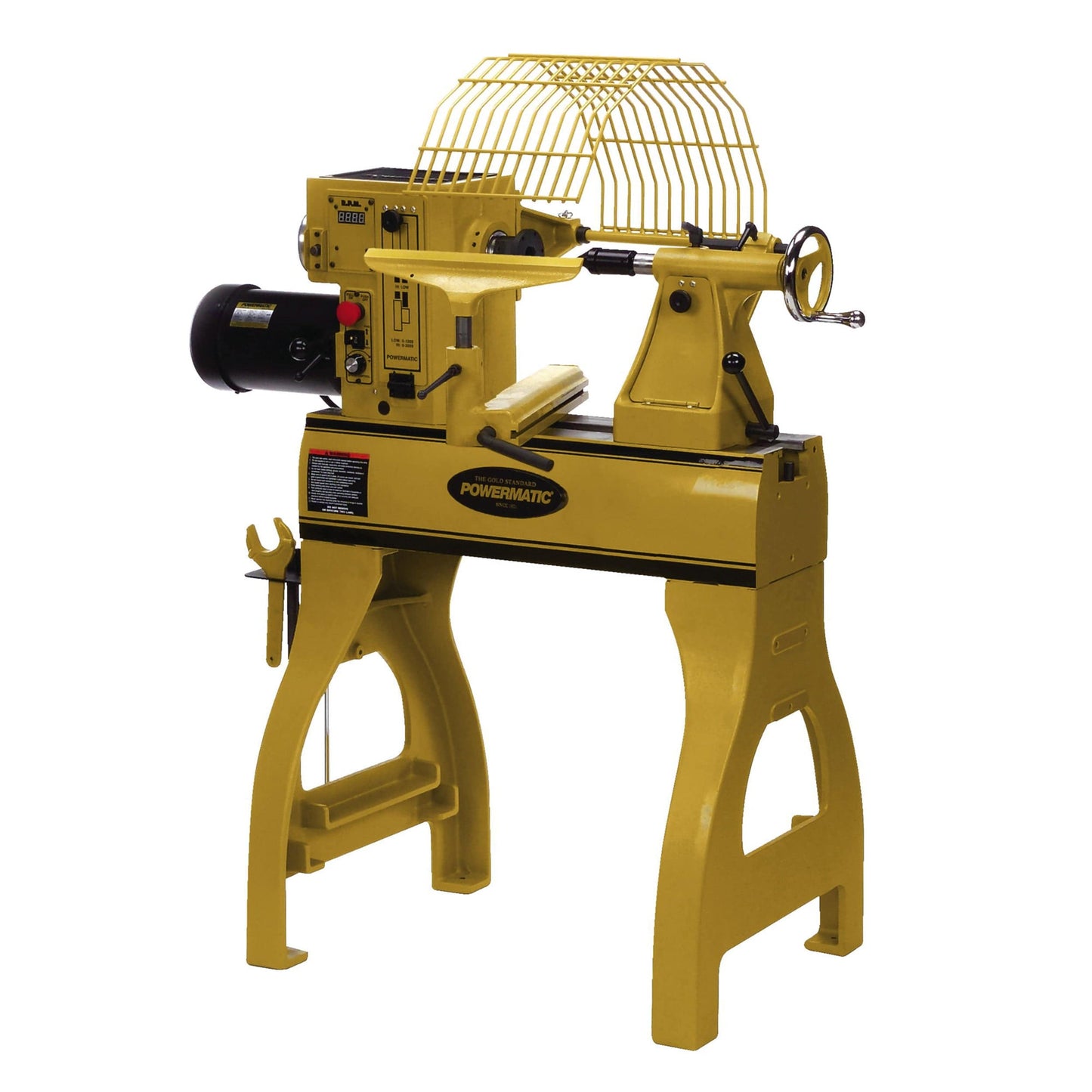

View a Larger Image of Short Bed Lathe, Model PM2020
View a Larger Image of Short Bed Lathe, Model PM2020

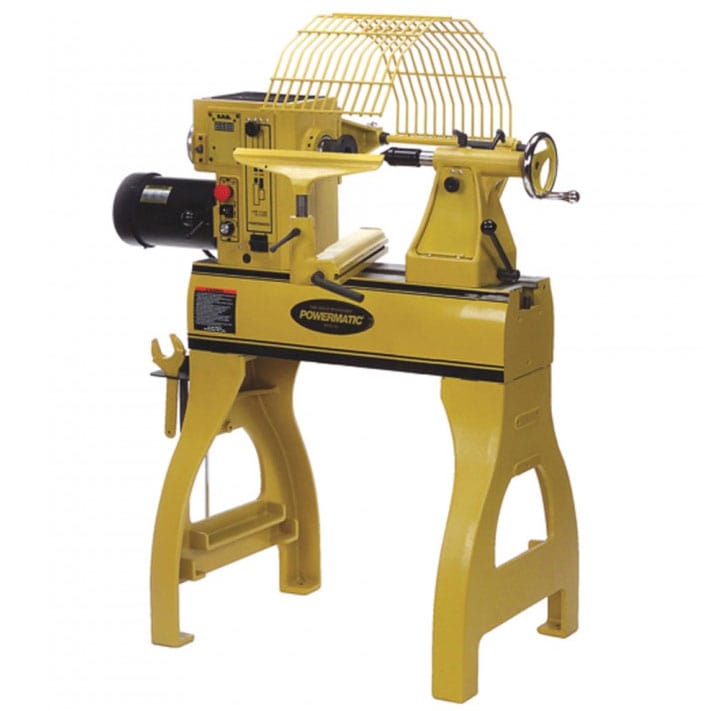

  • View a Different Image of Short Bed Lathe, Model PM2020
  • View a Different Image of Short Bed Lathe, Model PM2020

Powermatic

Short Bed Lathe, Model PM2020

Item 862951
Model 1792020

$4,899.99

Shipping Fee of $99.00

  • Contiguous 48 States Shipping Only
  • Ships from Manufacturer, Expedited Shipping Unavailable
  • Freight Shipments Deliver to Curbside Only
  • Not Available for Express and Overnight Shipping.
  • - Ships in approximately 7-10 business days
  • You can have the features you love on the 3520B lathe but in a smaller footprint. The PM2020 lathe is perfect for you if you’re short on space, or for your projects where a short bed is convenient. Like the 3520B, the PM2020 features a sliding headstock, electronic variable speed with...

    Items You May Need

    Details

    You can have the features you love on the 3520B lathe but in a smaller footprint. The PM2020 lathe is perfect for you if you’re short on space, or for your projects where a short bed is convenient. Like the 3520B, the PM2020 features a sliding headstock, electronic variable speed with low and high speed ranges, and the spindle lock. The enhanced features include a digital RPM readout, built in spindle indexing on the head stock, and a re-designed tailstock with internal storage, chrome trimmed handwheels, and a laser etched quill which is self-ejecting. Extra features include a sliding hammer knockout rod with brass tip, two position mount for optional bed extension, and a metal shelf and attached tool caddy for tool storage.
    Specifications:
    • Motor: 2HP, 3Ph, 230V, 6.2A
    • Swing Over Bed (In.): 20
    • Swing Over Tool Rest Base (In.): 17
    • Distance Between Centers (In.): 20
    • Headstock Movement: Full Length of Bed
    • Spindle Bore: 5/8
    • Tailstock Bore: 3/8
    • Spindle Taper: MT-2
    • Quill Taper: MT-2
    • Ram Travel Quill Travel: 4-1/2
    • Spindle Threads (In. x TPI): 1-1/4 x 8
    • Outboard External Threads (In. x TPI): 1-3/16-18 UNC
    • Spindle Speeds: High 125-3200/Low 50-1200
    • Speed Range: 50-3200
    • Number of Indexing Positions: 48
    • Centerline of Spindle to Floor (In.): 44 (adjustable)
    • Outboard Turning: 88
    • Bed Construction: Cast Iron
    • Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments
    • Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other equally spaced features
    • Redesigned tool rest geometry allows for better chisel movement along the tool rest
    • Laser etched quill is self-ejecting.
    • Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
    • Attached tool caddy allows convenient access to centers, wrenches, etc.
    • Tailstock has internal storage for additional accessories
    • Chrome trimmed handwheels are ergonomic for a comfortable feel
    • Standard Equipment: 2HP TEFC Motor, Safety shield, 3" face plate and face plate wrench, 14" tool rest,
    • Multiple ball-bearing live center, Brass tipped knockout rod
