Powermatic

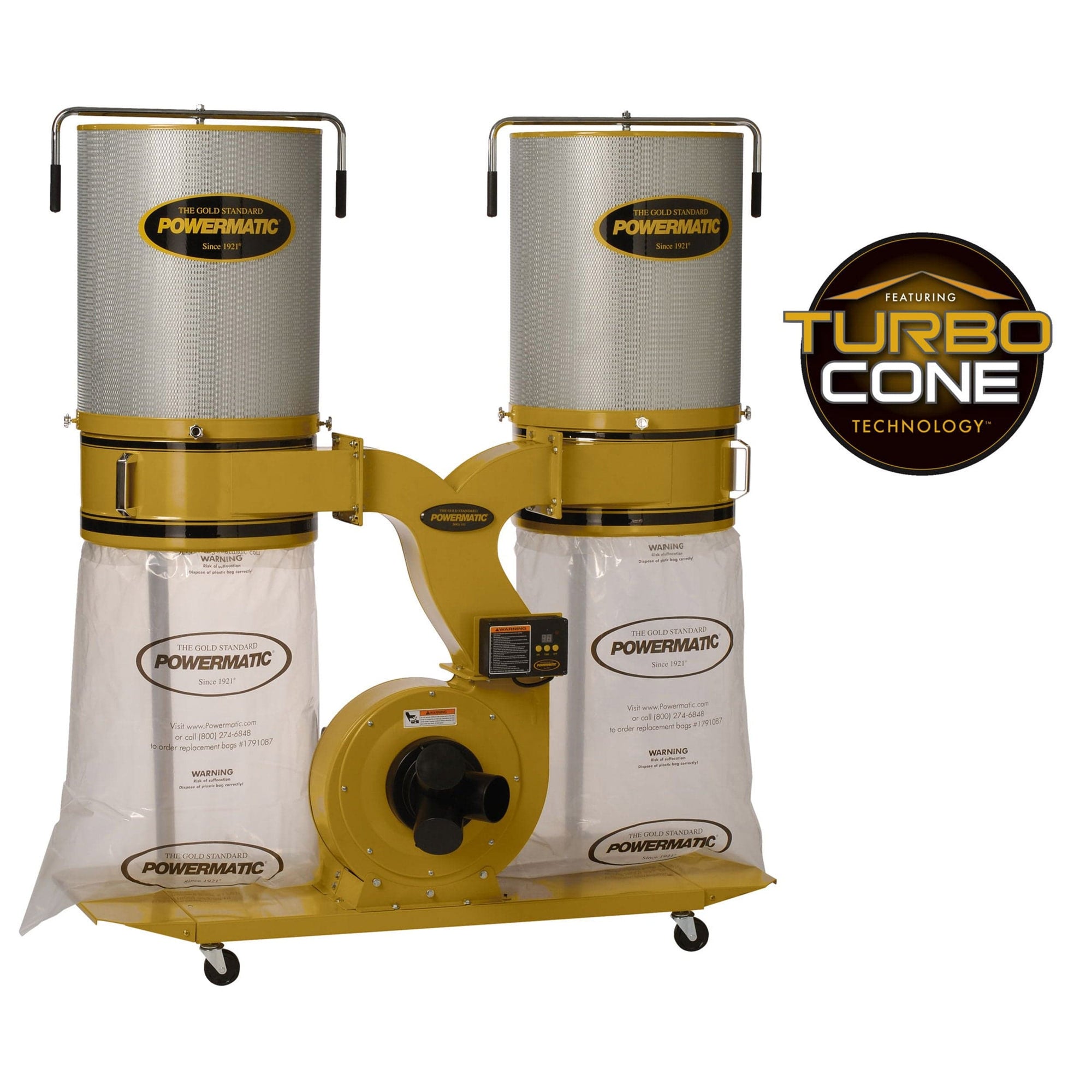

TurboCone Dust Collector with 2-Micron Canister Kit - 3 HP 1 Ph 230V - PM1900TX-CK1
This item has an additional shipping charge
Powermatic
TurboCone Dust Collector with 2-Micron Canister Kit - 3 HP 1 Ph 230V - PM1900TX-CK1
This item has an additional shipping charge
Details
Prevention: Prevents the central airflow from floating chips into the filter chamber decreasing rapid performance drop due to premature clogging
Efficiency: Chips are better contained for increased packing density requiring fewer collection bag changes
Features:
TurboCone improves chip separation and collector bag packing efficiency
The cone eliminates premature filter clogging for sustained performance
Remote-controlled digital timer can be programmed for up to 99 minutes
All-metal duct construction for rigidity and improved air flow
2-micron canister filters offer over six times filtering surface area of standard bags
The large impeller is powered by a 3HP motor for peak performance
Triple 4” dust ports allow for several hoses to be attached at the same time
Collection bags use a snap ring for rapid installation/removal
10 cubic feet collection bag capacity reduces number of bag changes.
Tall filter bags require less cleaning due to the larger surface area
Four swivel casters for shop maneuverability
Specifications:
Length : 46 inch
Model Number: 1792072K
Overall Dimensions: 61" x 30" x 72"
Height: 45"
Width: 23"
Length: 46"
Net Weight: 268 lbs
Remote Control: Yes
Sound Rating: 75-90 dB
1-Hose Connection Diameter: 8"
2-Hoses Connection Diameter: 4"
3-Hoses Connection Diameter: 4"
Bag Diameter: 20"
Filter Bag/Canister Length: 26"
Collection Bag Capacity: 10 cubic foot
Collection Bag Length: 30"
Air Flow @ 4": 236 cu.ft/min
Air Flow @ 8": 1,782 cu.ft/min
Static Pressure: 11.31 inch of water
Particle Size (Micron): 98% of 2 micron
particles 86% of 1 micron particles
Velocity @ 4": 5,200 foot per minute
Air Inlet: (1) at 8" or (3) at 4"
Impeller Diameter: 14"
Impeller Fins: 7
Impeller Material: Steel
Separator Tank Diameter: 20"
Separator Tank Height: 10"
Motor Power: 3 HP
Motor Phase: 1 Ph
Motor Voltage: 230V
Prewired Voltage: 230V
Motor Current: 15A
