Powermatic

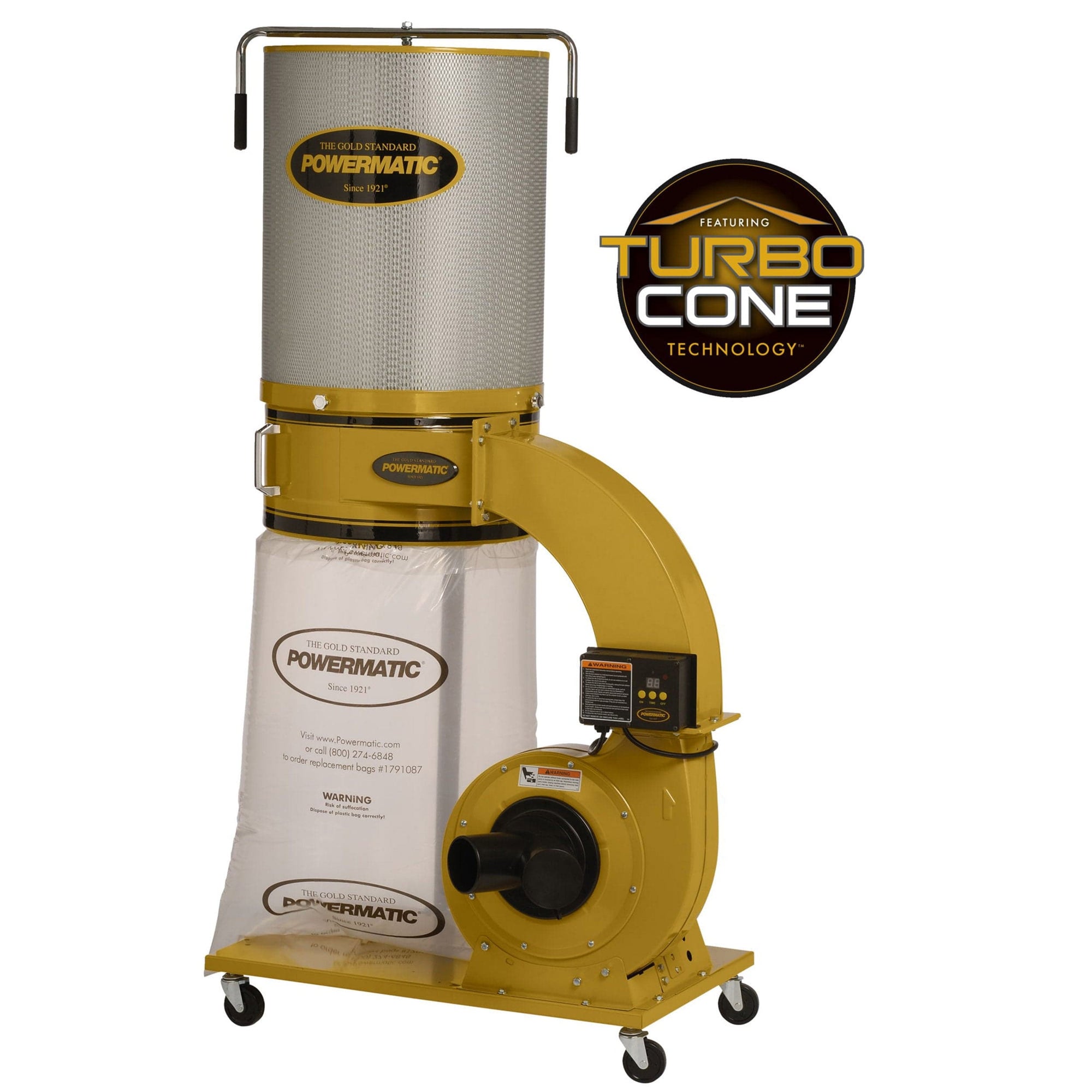

TurboCone Dust Collector with 2-Micron Canister Kit - 1-3/4 HP 1 Ph 115/230V - PM1300TX-CK
This item has an additional shipping charge
Powermatic
TurboCone Dust Collector with 2-Micron Canister Kit - 1-3/4 HP 1 Ph 115/230V - PM1300TX-CK
This item has an additional shipping charge
Details
Prevention: Prevents the central airflow from floating chips into the filter chamber decreasing rapid performance drop due to premature clogging
Efficiency: Chips are better contained for increased packing density requiring fewer collection bag changes
Features:
• TurboCone improves chip separation and collector bag packing efficiency
• The cone eliminates premature filter clogging for sustained performance
• Remote-controlled digital timer can be programmed for up to 99 minutes
• Canister filter offers over six times filtering surface area of standard bags
• All-metal duct construction for rigidity and improved air flow
• Dual 4" dust ports for simultaneous collection from two machines
• 1-3/4HP motor offers plenty of power for effective air movement
• Collection bag uses a snap ring for rapid installation and removal
• 10 cubic feet capacity collection bag reduces number of bag changes.
• Four swivel casters for shop maneuverabilty
Specifications:
Length : 45 inch
Model Number: 1791079K
Overall Dimensions: 37" x 29" x 72"
Height: 30"
Width: 23"
Length: 45"
Net Weight: 154 lbs
Sound Rating: 75-90 dB
1-Hose Connection Diameter: 6"
2-Hoses Connection Diameter: 4"
Bag Diameter: 20"
Filter Bag/Canister Length: 26"
Collection Bag Capacity: 10 cubic foot
Collection Bag Length: 30"
Air Flow @ 6" 1,300 cu.ft/min
Static Pressure: 11.31 inch of water
Particle Size (Micron): 98% of 2
Micron particles: 86% of 1 micron particles
Velocity @ 6": 5,374 foot per minute
Air Inlet: (1) at 6" or (2) at 4"
Impeller Diameter: 12"
Impeller Fins: 6
Impeller Material: Steel
Separator Tank Diameter: 20"
Separator Tank Height: 10"
Motor Power: 1-3/4 HP
Motor Phase: 1 Ph
Motor Voltage: 115/230V
Prewired Voltage: 115V
Motor Current: 15/7.5A
