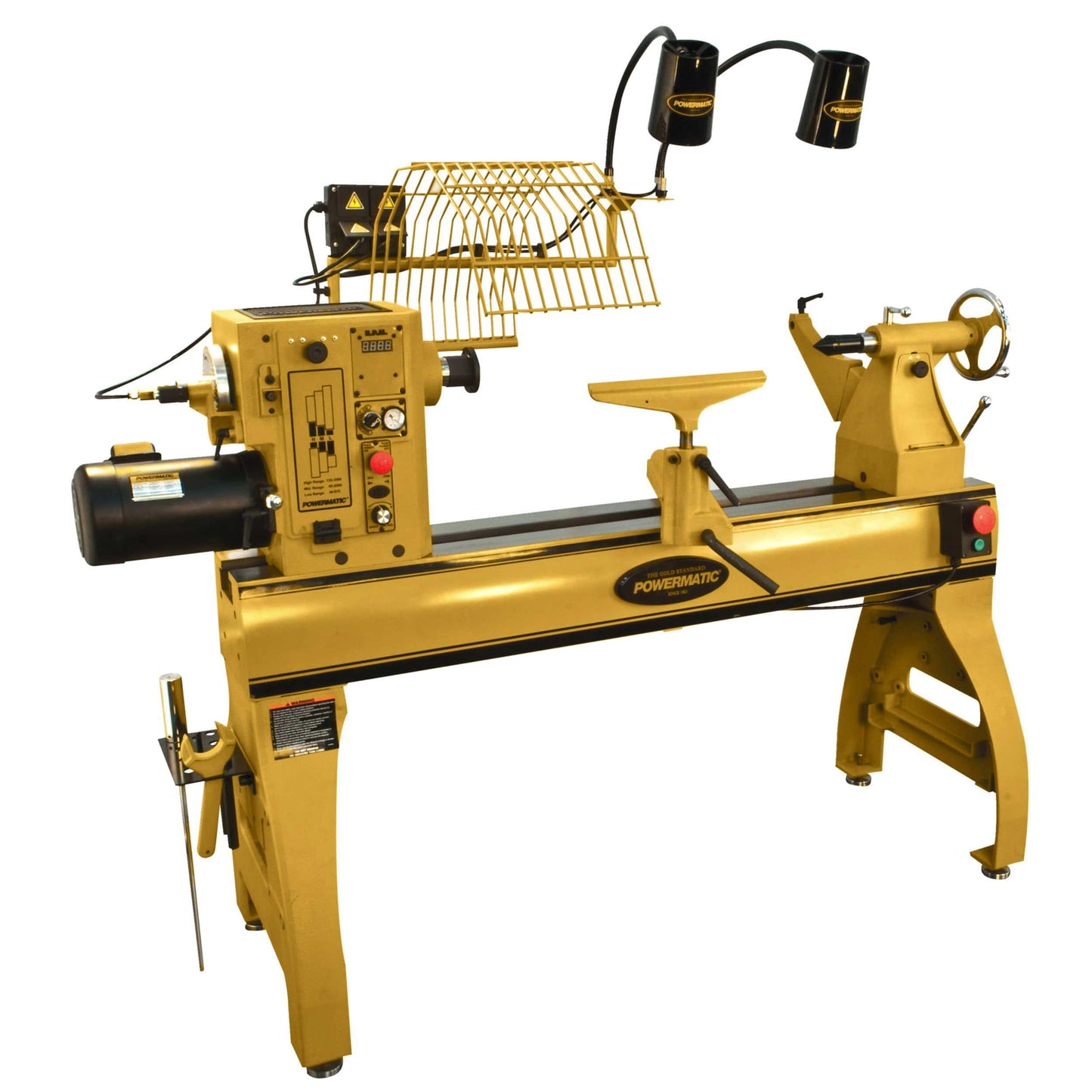

Powermatic - Lathe with Lamp Kit Model 4224B
Expand the limits of your creative possibility, and take your passion to a whole new level with the Powermatic 4224B - the newest member of the industry-leading family of lathes. With newly...
Item 424072Model 1353001
Item 861606Model 719400K
Item 861605Model 719400
• Two position mount for the optional bed extension
• Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
• Attached tool caddy allows convenient access to centers, wrenches, etc.
• Tailstock has internal storage for additional accessories
• Chrome trimmed handwheels are ergonomic for a comfortable feel
• Magnetic-backed remote on/off switch can be moved anywhere on the machine
Lamp kit included
Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments
Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other equally spaced features
Vacuum system provides quick method of chucking bowl blanks
15-amp quad receptacle for easy reach of powered accessories
Two 100W task lamps provide ideal lighting
Air nozzle with quick connect for clearing dust/chips
Set of dead centers which hold a spindle for visual comparison
Laser etched quill is self ejecting
31.5”H x 27”W x 68”L
Shipping Weight 960 lbs
Swing Over Bed: 24"
Swing Over Tool Rest Base: 21"
Distance Between Centers: 42"
Outboard Turning: 88"
Speeds: 40-3500 RPM
Headstock Taper: MT-2
Spindle Nose: 1 1/4 " x 8 TPI
Hole Through Spindle: 5/8"
Tailstock Taper: MT-2
Hole Through Tailstock: 3/8"
Ram Travel: 4-1/2"
Centerline of Spindle to Floor: 44"
Spindle Taper: MT-2
Headstock Movement: full length of bed
Indexing Positions: 98
Bed Construction: cast iron
Spindle Speeds: 40 - 3500
Motor: 3HP, 220V, Prewired 220V, 3Ph
