WoodRiver

#91 Small Shoulder Plane

Item #159001 Model 159001W
Regular price $ 159 . 99
Sale price $ 159 . 99 Was $159.99
Skip to product information
1 of 9

WoodRiver

#91 Small Shoulder Plane

Item #159001 Model 159001W
Regular price $ 159 . 99
Sale price $ 159 . 99 Was $159.99
The WoodRiver® No. 91 Small Shoulder Plane combines the best of the Edward Preston and Sons’ plane designs with modern WoodRiver® features to create a “new. . . View More Details
In Stock Online Shipping Info
Items you may need
  • #92 Medium Shoulder Plane

    Regular price $ 169 . 99
    Sale price $ 169 . 99 Was $169.99
    #92 Medium Shoulder Plane alt 0
  • No. 91 Small Shoulder Plane Spare Blade

    Regular price $ 17 . 99
    Sale price $ 17 . 99 Was $17.99
    No. 91 Small Shoulder Plane Spare Blade alt 0
  • #93 Large Shoulder Plane

    Regular price $ 239 . 99
    Sale price $ 239 . 99 Was $239.99
    #93 Large Shoulder Plane alt 0
  • Using a Hand Plane with Ian Kirby: Tuning, Setting the Blade and Planing Techniques

    Regular price $ 21 . 95
    Sale price $ 21 . 95 Was $21.95
    Using a Hand Plane with Ian Kirby: Tuning, Setting the Blade and Planing Techniques alt 0
  • Hand Planes in the Modern Shop

    Regular price $ 39 . 99
    Sale price $ 39 . 99 Was $39.99
    Hand Planes in the Modern Shop alt 0
  • Getting Started with Handplanes

    Regular price $ 19 . 99
    Sale price $ 19 . 99 Was $19.99
    Getting Started with Handplanes alt 0
  • Shooting Board for Hand Planes

    Regular price $ 119 . 99
    Sale price $ 119 . 99 Was $144.99 Save $25.00 (17% off)
    Shooting Board for Hand Planes

Details

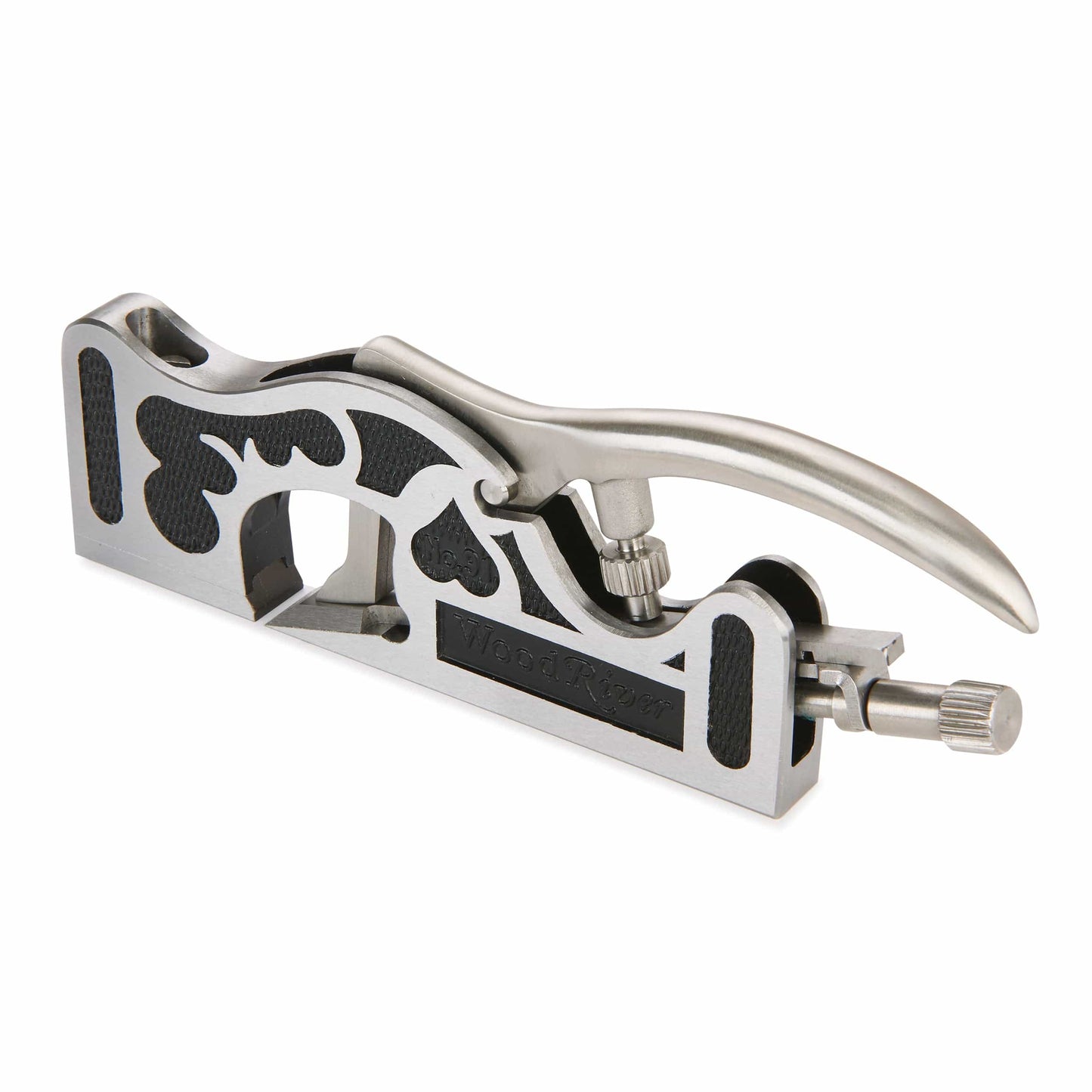

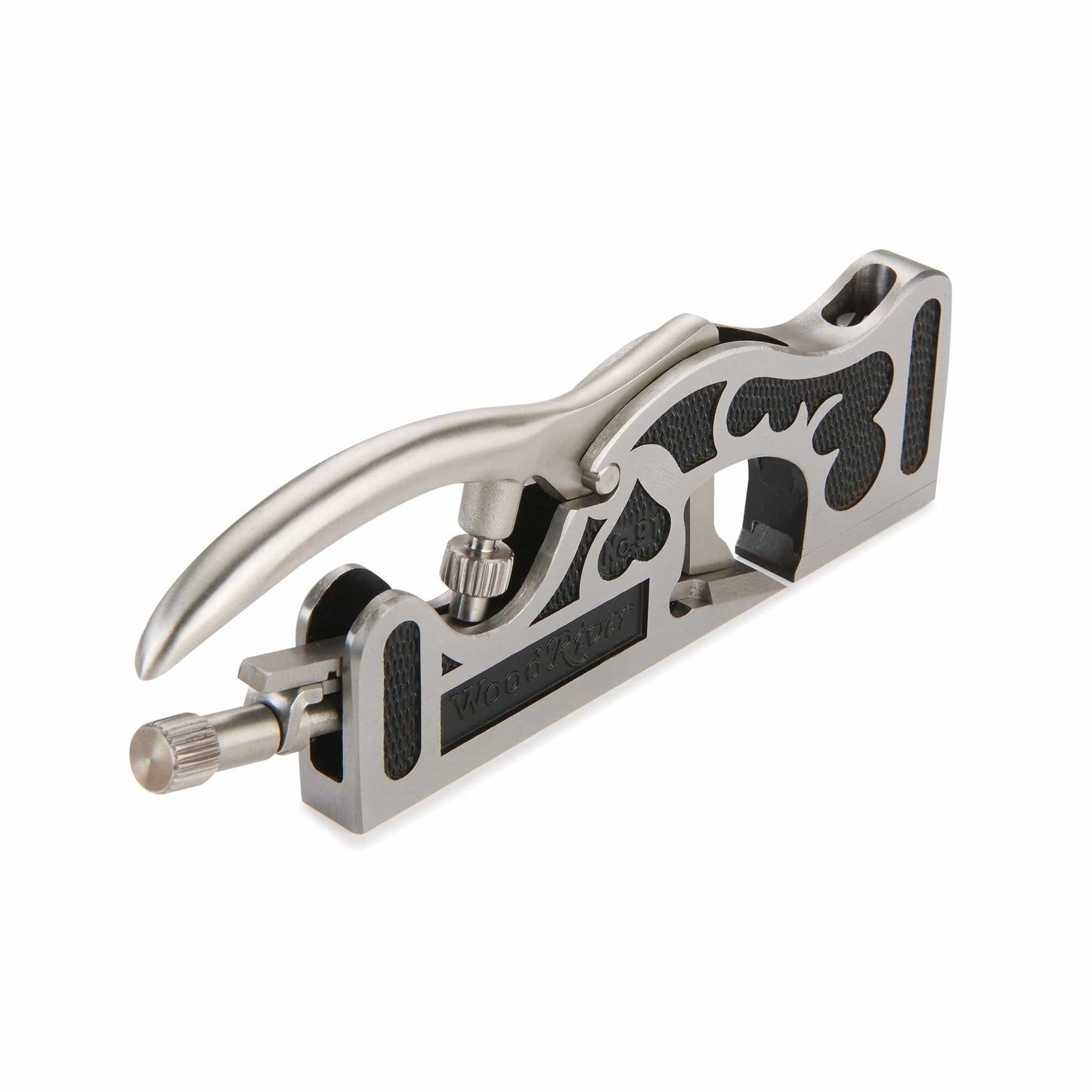

The WoodRiver® No. 91 Small Shoulder Plane combines the best of the Edward Preston and Sons’ plane designs with modern WoodRiver® features to create a “new classic” with the look and feel of a shiny antique but the body of shoulder plane equipped for serious shopwork, whether cleaning up tenons, rabbets and dadoes or creating joints. The WoodRiver® No. 91 is the result of over two years of extensive prototyping and testing to develop a classic look for a plane that works as good as it looks. The classic shoulder plane features were retained – narrow body, slightly proud blade (to clean corners), sides square to the sole, flat bottom and a necessary robustness—but a major new feature was added, an adjustable toe used to control the throat opening and help to minimize tear-out on end grain. The body of the No. 91 is Cr40 stress-relieved ductile steel, machined square and flat, and the blade is Mn65 tool steel hardened to HRC60-64 which combines toughness with the ability to take a keen edge.

Features:

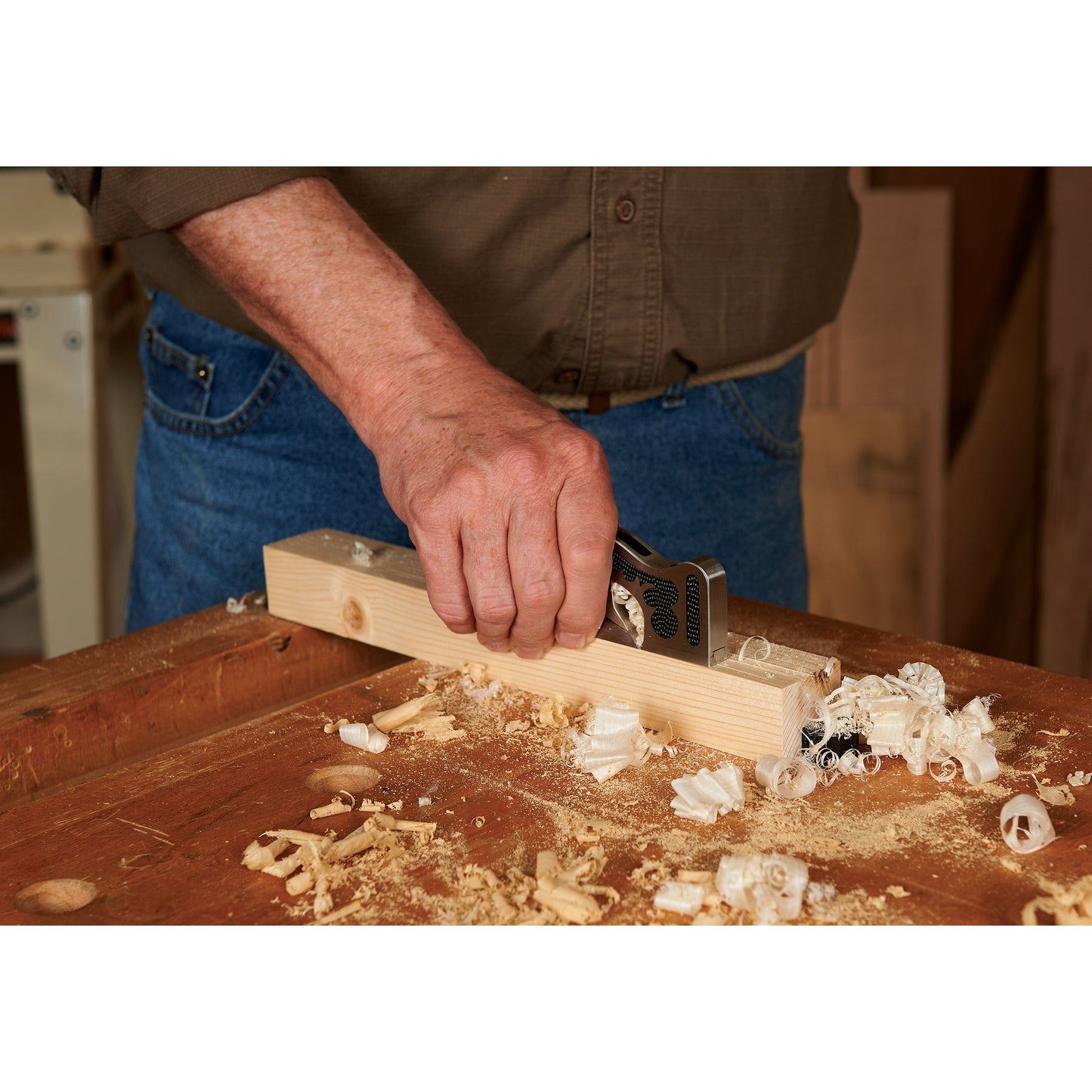

  • Ideal for tweaking tenons, rabbets and dadoes
  • Blade advancement mechanism is smooth and precise
  • Adjustable toe controls throat opening and aids in minimizing tear-out on end grain
  • Sides are square to the sole
  • Classic look and feel

Specifications:

  • Plane Body Dimensions (W x L x H): 1/2" x 5-3/4" x 1-7/8"
  • Overall Plane Length: 6-1/2"
  • Overall Plane Height: 2-3/8"
  • Body Material: Cr40 stress-relieved ductile steel
  • Blade Material: Mn65 tool steel
  • Blade Hardness: HRC 60-64
  • Bedded Angle: 15°
  • Blade Angle: 25°
  • Weight: 12.4 oz.

What's Included:

  • (1) WoodRiver® - No. 91 Small Shoulder Plane

Notes:

  • Get A FREE 3-Month Subscription to Rob Cosman's All-in-One Workshop! Learn fine woodworking in a Rob Cosman online workshop free for three months with purchase of a high quality WoodRiver® Hand Plane – Over $100 Value! Additional information: directions on signing up and accessing your account will ship with your purchase.
