WoodRiver

#93 Large Shoulder Plane

Item #159004 Model 159004W
Regular price $239.99
Sale price $239.99 Regular price $239.99

SPECIAL OFFER - Learn fine woodworking in a Rob Cosman Online Workshop FREE FOR THREE MONTHS with purchase!

Skip to product information
1 of 3

WoodRiver

#93 Large Shoulder Plane

Item #159004 Model 159004W
Regular price $239.99
Sale price $239.99 Regular price $239.99

SPECIAL OFFER - Learn fine woodworking in a Rob Cosman Online Workshop FREE FOR THREE MONTHS with purchase!

The WoodRiver® No. 93 Large Shoulder Plane combines the best of the Edward Preston and Sons’ plane designs with modern WoodRiver® features to create a “new. . . View More Details

In Stock

Shipping Info

Items you may need

  • Using a Hand Plane with Ian Kirby: Tuning, Setting the Blade and Planing Techniques

    Regular price $18.65
    Sale price $18.65 Regular price $21.95
    Using a Hand Plane alt 0

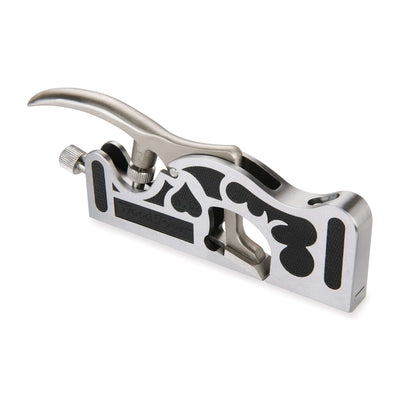

  • #92 Medium Shoulder Plane

    Regular price $169.99
    Sale price $169.99 Regular price $169.99
    WR No 92 Med Shoulder Plane alt 0
  • No. 93 Large Shoulder Plane Spare Blade

    Regular price $20.99
    Sale price $20.99 Regular price $20.99
    WR No 93 Shoulder Plane Blade alt 0

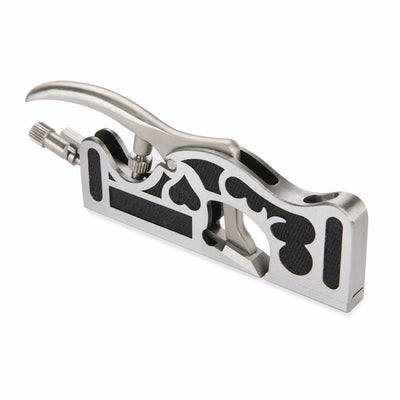

  • #91 Small Shoulder Plane

    Regular price $159.99
    Sale price $159.99 Regular price $159.99
    WR No 91 Sm Shoulder Plane alt 0
  • Getting Started with Handplanes

    Regular price $16.99
    Sale price $16.99 Regular price $19.99
    Getting Started with Handplanes alt 0

Details

The WoodRiver® No. 93 Large Shoulder Plane combines the best of the Edward Preston and Sons’ plane designs with modern WoodRiver® features to create a “new classic” with the look and feel of a shiny antique but the body of shoulder plane equipped for serious shopwork, whether cleaning up tenons, rabbets and dadoes or creating joints.

The WoodRiver No. 93 is the result of over two years of extensive prototyping and testing to develop a classic look for a plane that works as good as it looks. The classic shoulder plane features were retained – narrow body, slightly proud blade (to clean corners), sides square to the sole, flat bottom and a necessary robustness—but a major new feature was added, an adjustable toe used to control the throat opening and help to minimize tear-out on end grain. The body of the No. 93 is Cr40 stress-relieved ductile steel, machined square and flat, and the blade is Mn65 tool steel hardened to HRC60-64 which combines toughness with the ability to take a keen edge.

Features:


  • Ideal for tweaking tenons, rabbets and dadoes
  • Blade advancement mechanism is smooth and precise
  • Adjustable toe controls throat opening and aids in minimizing tear-out on end grain
  • Sides are square to the sole
  • Classic look and feel

Specifications:

  • Plane Body Dimensions (W x L x H): 1" x 8-1/4" x 3"
  • Overall Plane Length: 10-7/16"
  • Overall Plane Height: 3-7/8"
  • Body Material: Cr40 stress-relieved ductile steel
  • Blade Material: Mn65 tool steel
  • Blade Hardness: HRC 60-64
  • Bedded Angle: 15°
  • Blade Angle: 25°
  • Weight: 3 lbs., 12.8 oz.

What's Included:

  • (1) WoodRiver - #93 Large Shoulder Plane

Notes:

  • Get A FREE 3-Month Subscription to Rob Cosman's All-in-One Workshop! Learn fine woodworking in a Rob Cosman online workshop free for three months with purchase of a high quality WoodRiver® Hand Plane – Over $100 Value! Additional information: directions on signing up and accessing your account will ship with your purchase.
