WoodRiver

Deluxe Coping Sled

Item 164579
Model 164579
6 Reviews
Write a Review

$104.54 Clearance

$122.99

Ships Today!
Shipping Info
Check Local Store for Immediate Availability

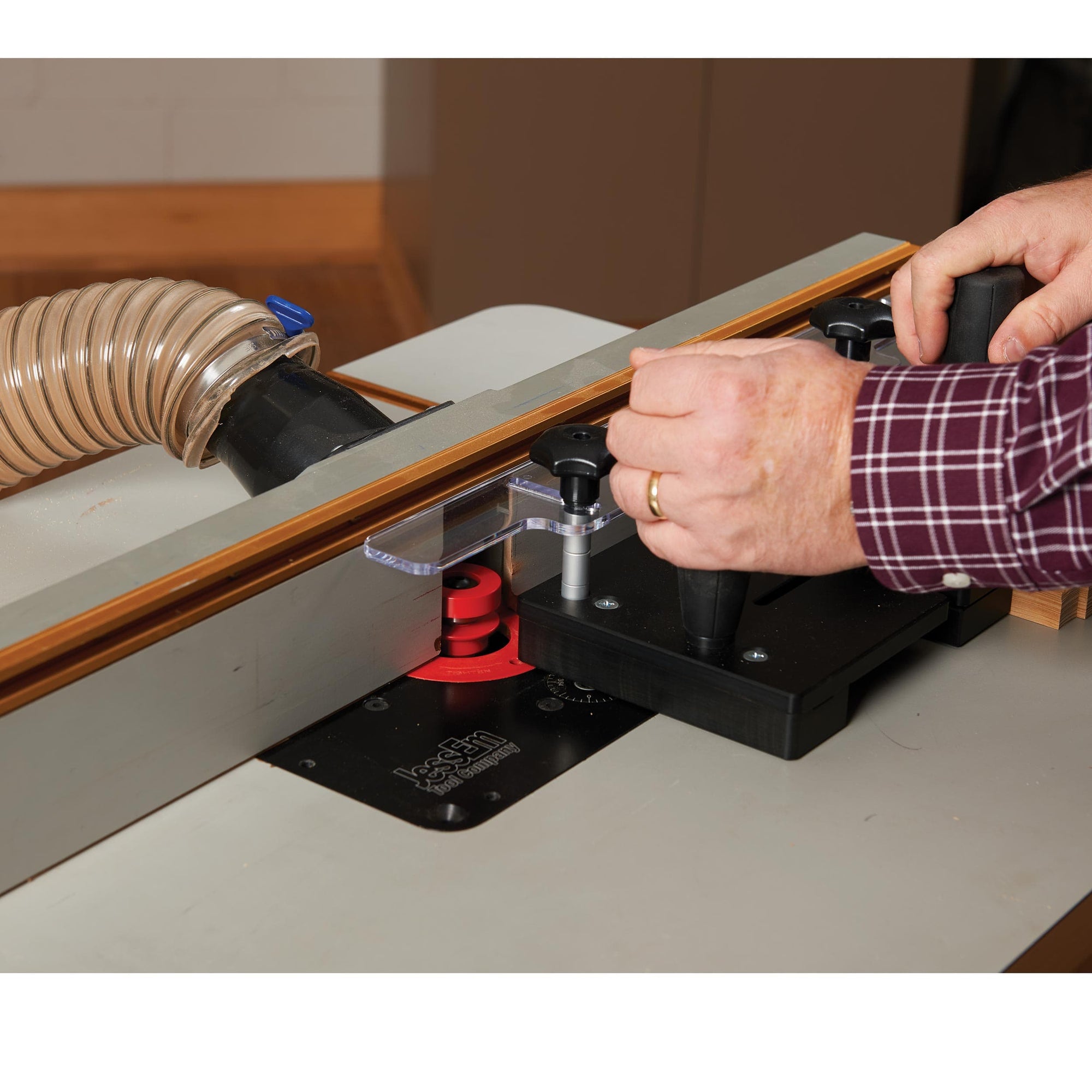

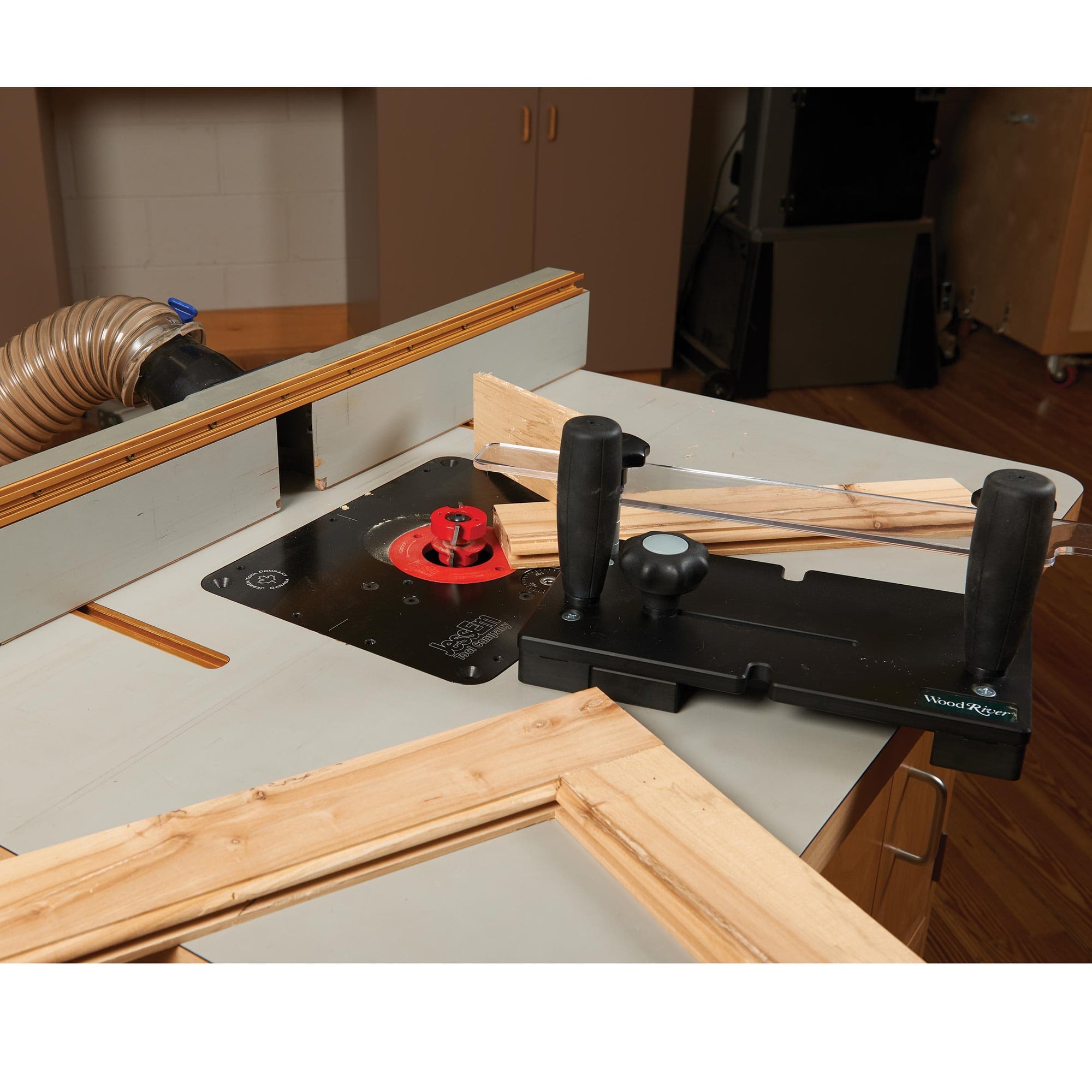

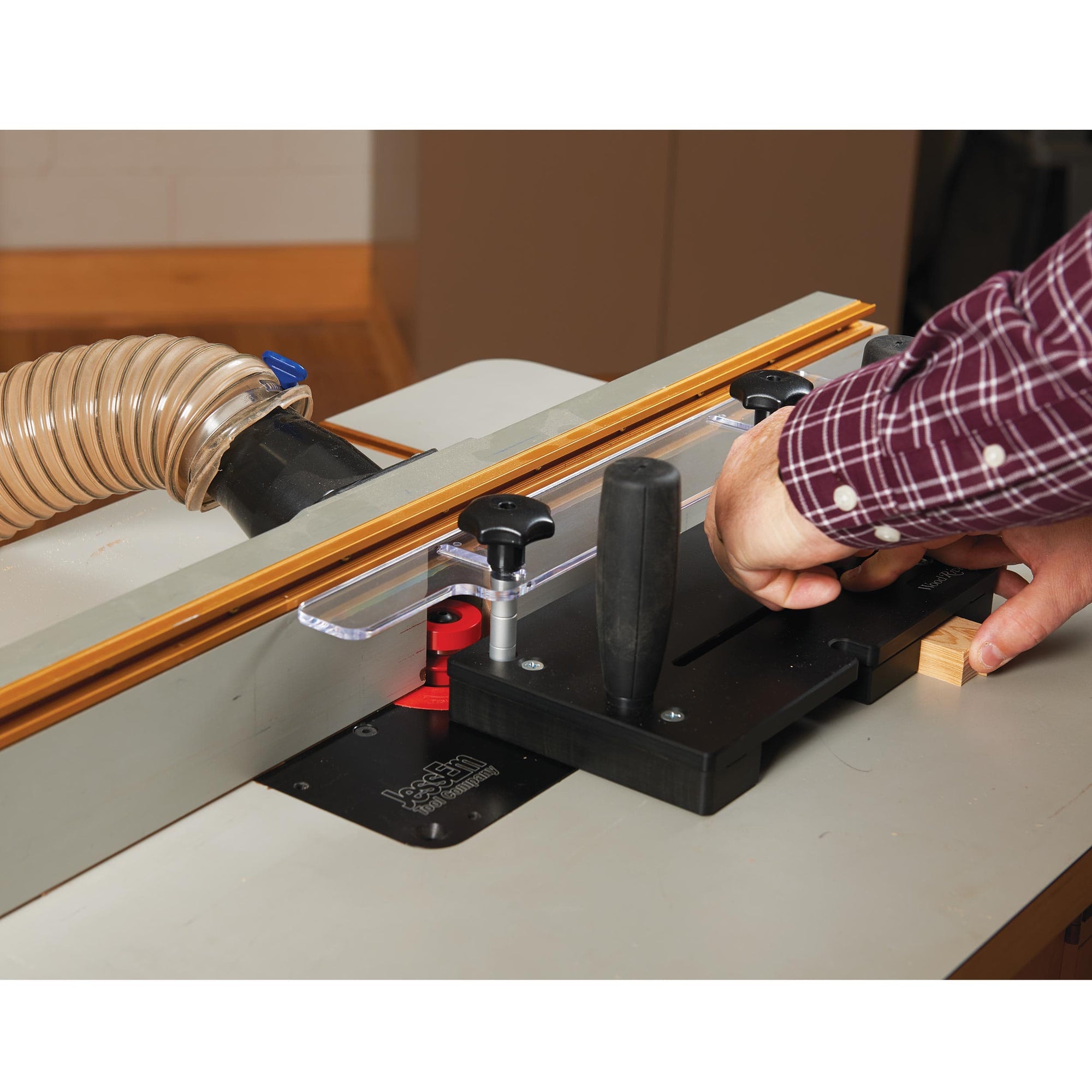

The WoodRiver Deluxe Coping Sled is the safest way to hold narrow material when routing end-grain such as stile or coping cuts on the router table. The work piece is held captive beneath the jig to minimize splintering of the wood and keep hands at a safe distance. A clear fence guide...

More Details

Details

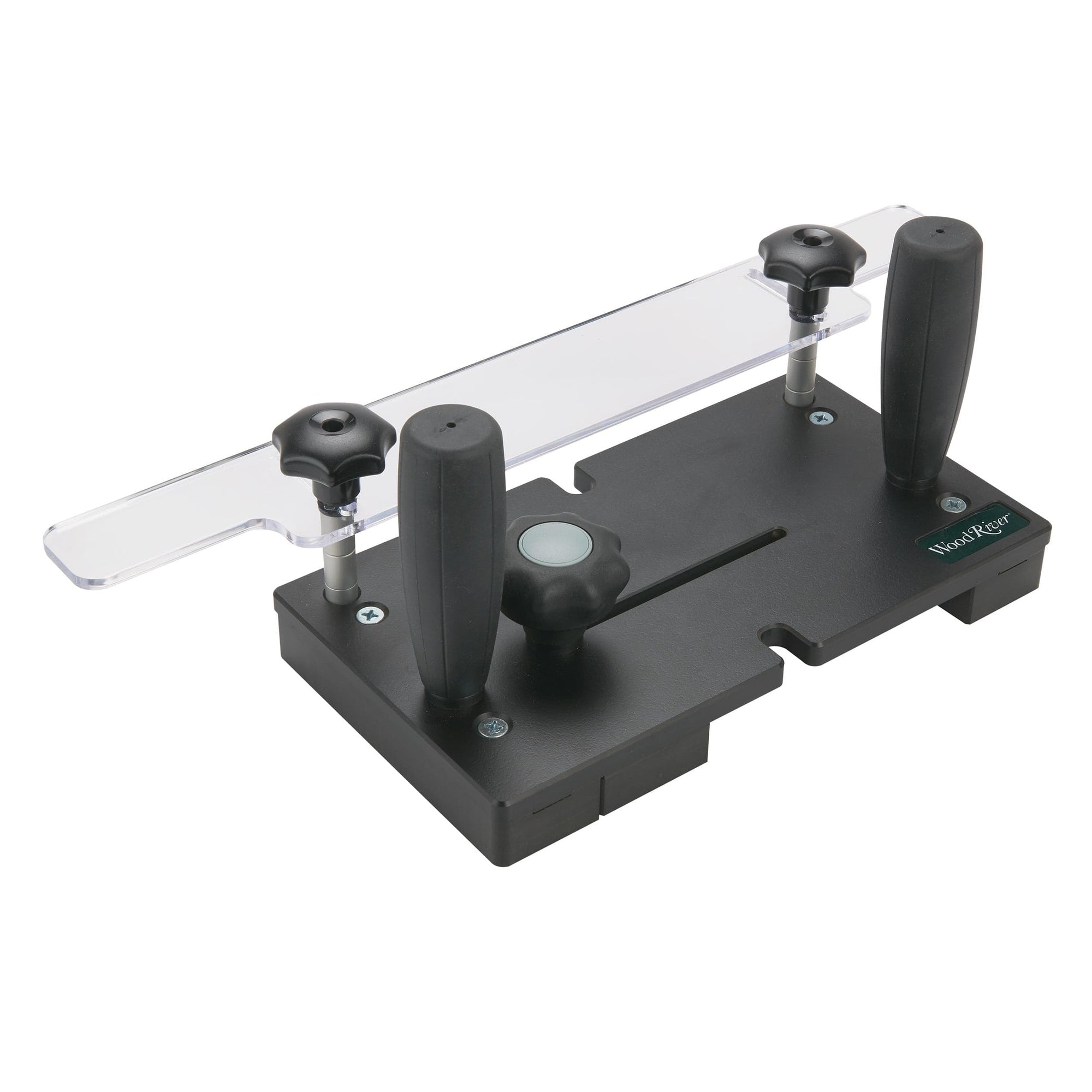

The WoodRiver Deluxe Coping Sled is the safest way to hold narrow material when routing end-grain such as stile or coping cuts on the router table. The work piece is held captive beneath the jig to minimize splintering of the wood and keep hands at a safe distance. A clear fence guide has three positions – 1-3/8", 1" and slotted for small miters or custom offsets. The fence also has a set of three spacers to match up to your router table fence. The clamping block will accommodate material up to 5-1/4" wide and 13/16" thickness and a pair of large handles are positioned on each side of the work piece to maintain control and keep hands away from the spinning router bit.

Features:

• Material up to 13/16" thick rides directly on table surface below jig base

• Easily adjusts for material up to 5-1/4" wide including backer board

• Fence guide tracks along router table fence rather than miter slot

• Includes spacers to adjust for router table fence height

• Large handles are positioned on each side of work piece for precise control


Instructions / MSDS

Articles & Blogs

The WoodRiver Deluxe Coping Sled is the safest way to hold narrow material when routing end-grain such as stile or coping cuts on the router table.

Read More >

Reviews

6 Reviews
Write a Review
  1. by on

    Coping sled worked as intended

    Apparently reviews are usually written by frustrated customers, but I want to add a favorable review. The clamp that holds the workpiece in place is slippery, and if not for the sandpaper strips that came with the product, I would have a similar experience. I discovered that on my first use of the sled in many months, I had clamped the workpiece on the wrong side of the clamp, where there was no sandpaper. Once everything was in place, it held very well and turned out to be a safe and stable way to hold a workpiece for endgrain routing. I can recommend this item for that purpose.

  2. by on

    Coping Sled no good

    No matter how tightly I turn the hold down the wood will not stay in place. The router pushes it right out. Worthless and a waste of money.

  3. by on

    Some times a deal is not a deal

    I thought it was a real deal! Once it was used, I was greatly disappointed. It will not hold the rail in place! I tried sandpaper and a few other tricks to make it work. The only thing to do is to screw the rail to the sled. I finally gave up and made my own.

  4. by on

    Buy this if you need Aggravation and frustration in your shop

    If you need accurate cuts this is not the product, unless the thickness of the wood is the exact same as the jig it will not work with out making a jig to hold the wood on the sled. They should not sell this product and call it a loss. It ruined my project and I had to mill all new wood. Please done buy this!!!

  5. by on

    Lacks hold down clamp

    They needed 2 go 1 more step and added a clamp 2 hold the piece down. The 1 adjustable side clamp just isn't enuf. Tried 2 find a solution, but it just wasn't worth it. Returned.

  6. by on

    Works well, with a little help from a bar clamp

    This sled keeps the work piece on the router table, unlike most designs that put the work piece on top of the sled. This is a major advantage. You don't have to reset the bit height after routing long pieces that won't fit on a sled. This saves time, and makes it certain that the long and short edges will match. But putting the work piece under the sled makes it hard to apply enough pressure on the clamp to keep the work piece from moving when it passes the bit without the support of the router fence. The self-adhesive sandpaper strips provided don't help much. But I worked out a simple fix. I used one-handed bar clamp to draw the clamping knob toward the rear handle. The added pressure keeps the workpiece from jumping around as it passes the bit.
