Milescraft

HingeMate350 Entry and Passage Door Hinge Jig

$42.99

Increase security and privacy in your home by replacing interior and exterior doors without damaging the jamb or door frame with the Milescraft® HingeMate350 Door Mortise Kit. Door Mortise Kit includes templates for 2-1/2", 3", 3-1/2", 4" and 4-1/2" hinges; 1-1/8" x 2-3/4", 1-1/2" x...

Details

Increase security and privacy in your home by replacing interior and exterior doors without damaging the jamb or door frame with the Milescraft® HingeMate350 Door Mortise Kit. Door Mortise Kit includes templates for 2-1/2", 3", 3-1/2", 4" and 4-1/2" hinges; 1-1/8" x 2-3/4", 1-1/2" x 2-1/4" strike plates; 1" x 2-1/4", 1-1/8" x 2-1/4", and 1-1/8" x 2-3/4" latch plates. Sturdy steel frame adjusts from 1-3/8" to 1-3/4" doors and jambs. Includes durable carbide-tipped 1/2" router bit with bearing that eliminates the need for guide bushings, spring-loaded corner chisel for squaring routed corners and self-centering hinge bit.

Features:

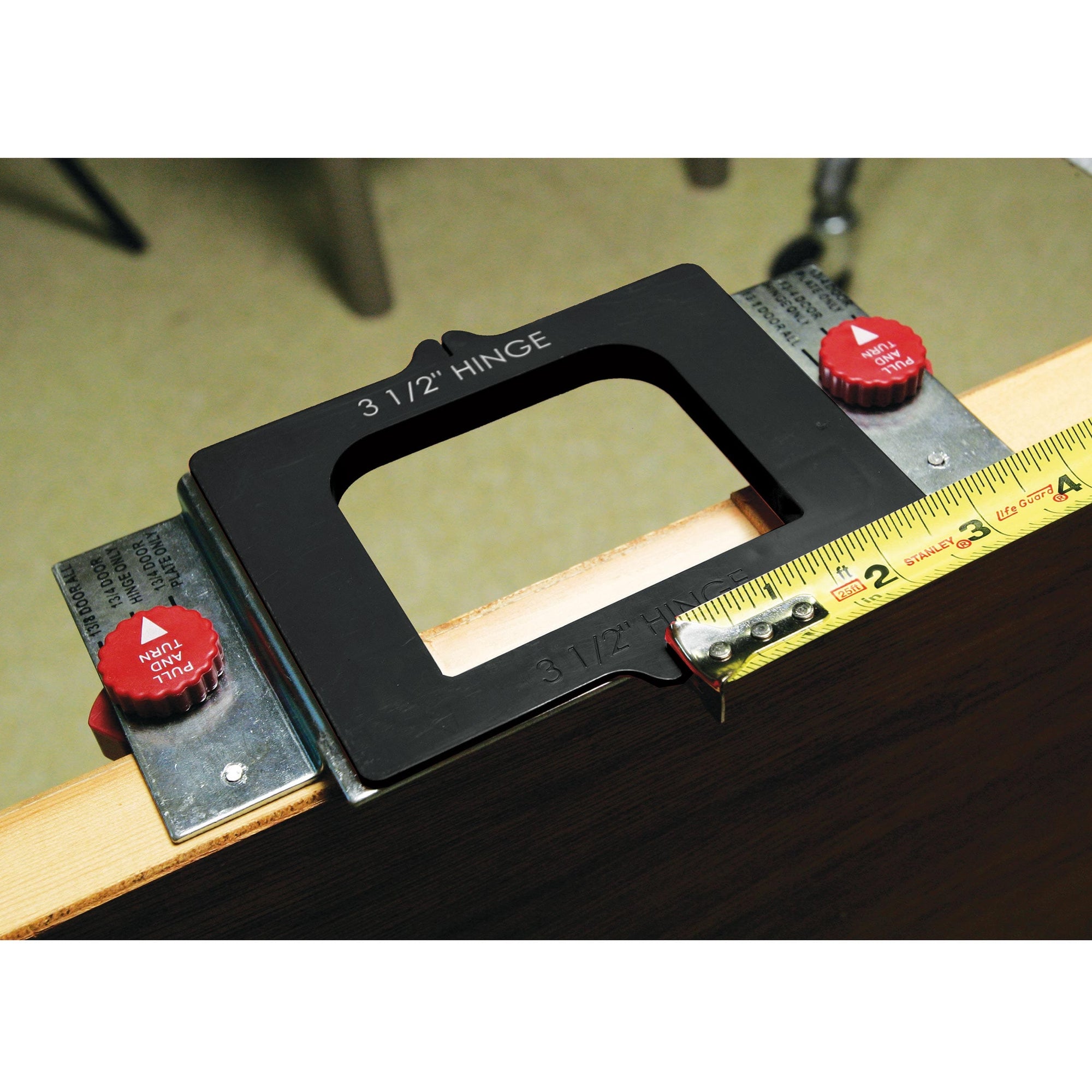

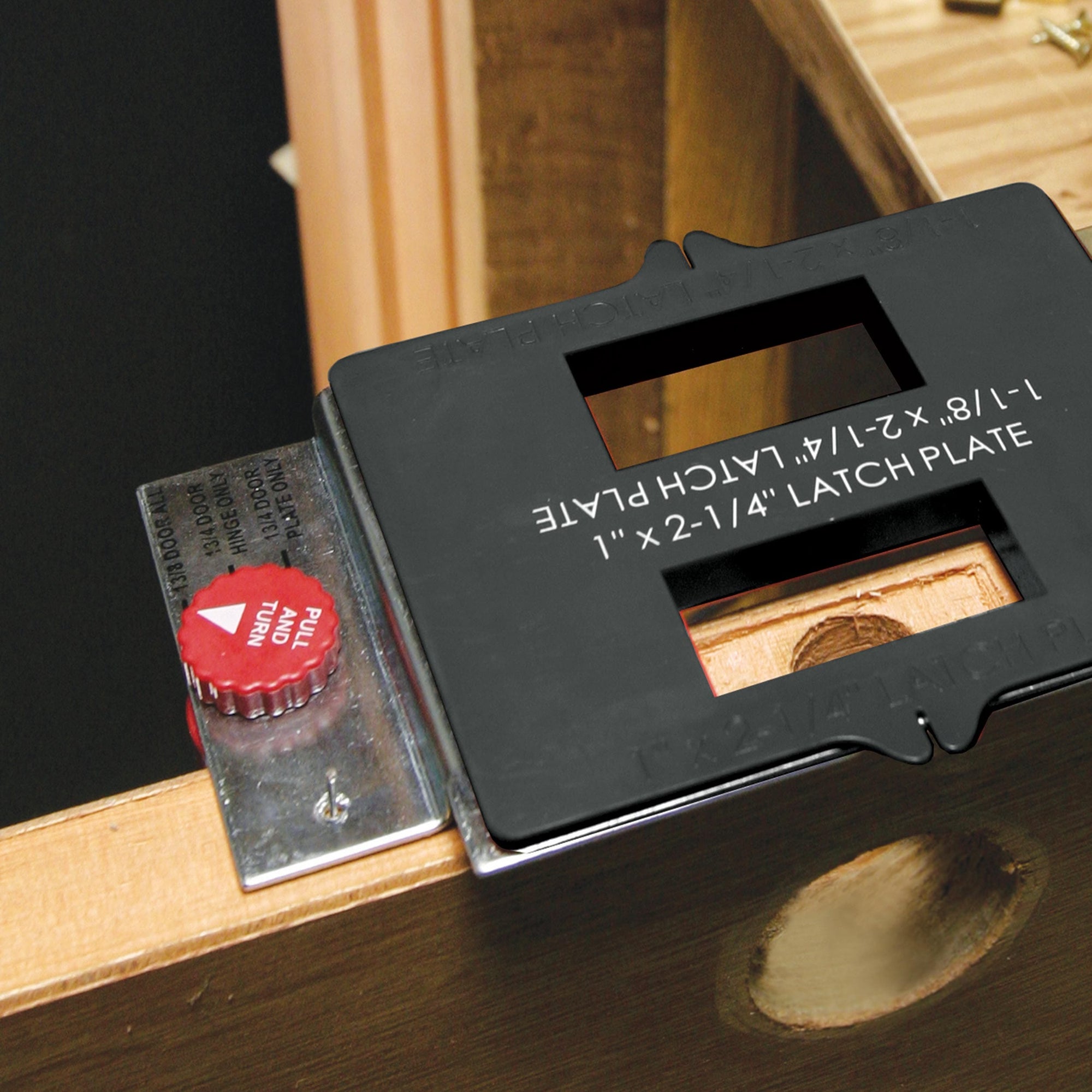

  • Templates needed to rout hinge, strike plate and latch plate mortises
  • Centered tabs on each template ensure complete accuracy
  • Sturdy steel frame adjusts from 1-3/8" to 1-3/4" doors and jambs
  • Template frame can be mounted to both the door and the jamb
  • Router bit with guide bearing eliminates the need for a bushing
  • Self-aligning chisel included for mortising 90° hinges, strikes and latches
  • Pre-drill perfectly centered holes for proper alignment of hinges with this spring-loaded, self-centering drill bit
  • Easy Measure Guide is included to simplify standard industry placement of your door hardware

Specifications:

  • Template Frame Material: Steel
  • Template Material: ABS plastic
  • Hinge Template Sizes:
  • Strike Plate Template Sizes:
  • Latch Plate Template Sizes:
  • Router Bit Type: Tungsten carbide tipped 1/2" straight router bit w/ bearing
  • Router Bit Bearing Outer Diameter: 5/8"
  • Router Bit Shank Size: 1/4"

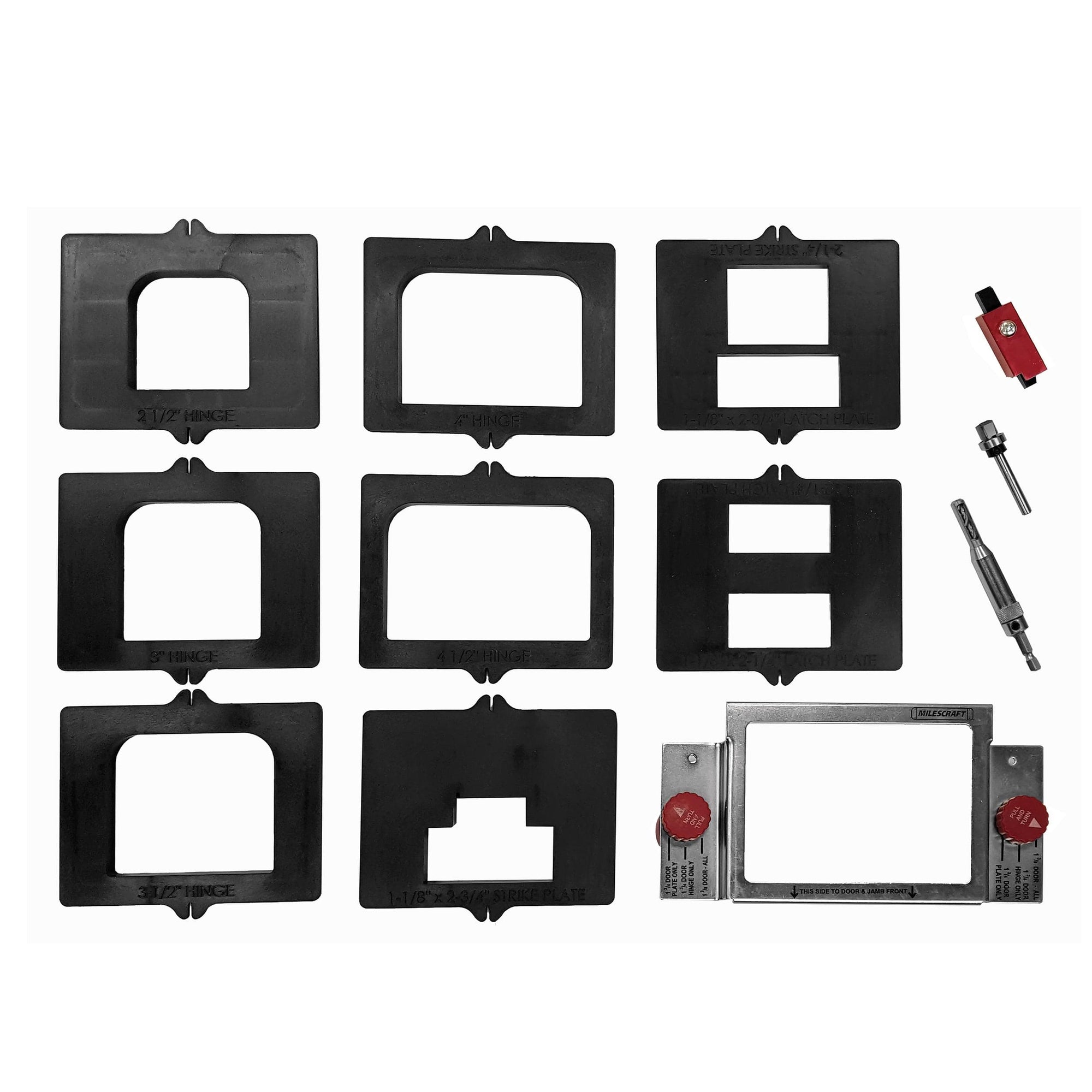

What's Included:

  • (1) Steel Template Frame
  • (1) 1/2˝ Router Bit w/Bearing
  • (1) 3.5˝ Hinge Template
  • (1) 2.5˝ Hinge Template
  • (1) 3˝ Hinge Template
  • (1) 4˝ Hinge Template
  • (1) 4.5˝ Hinge Template
  • (1) Latch Plate Template
  • (1) Strike Plate & Latch Plate Template
  • (1) T-Strike Plate Template
  • (2) Mounting Screws
  • (1) #8 (9/64˝) Hinge Bit
  • (1) – Corner Chisel

Reviews

5.0 out of 5 stars
1 Review
  1. 5.0 out of 5 stars
    by on

    Worked great

    Used this set to route for hinges on seven door slabs recently. Worked really well. Appreciated the included router bit. I didn’t need all the sizes supplied but maybe someday they’ll get use. Word of caution, don’t lift the router out until it’s stopped spinning. I didn’t wait and one time the bit caught the edge of the plastic template and almost knocked router out of my hand. Well worth the price, big jump up in price for the pro level sets.
