WoodRiver

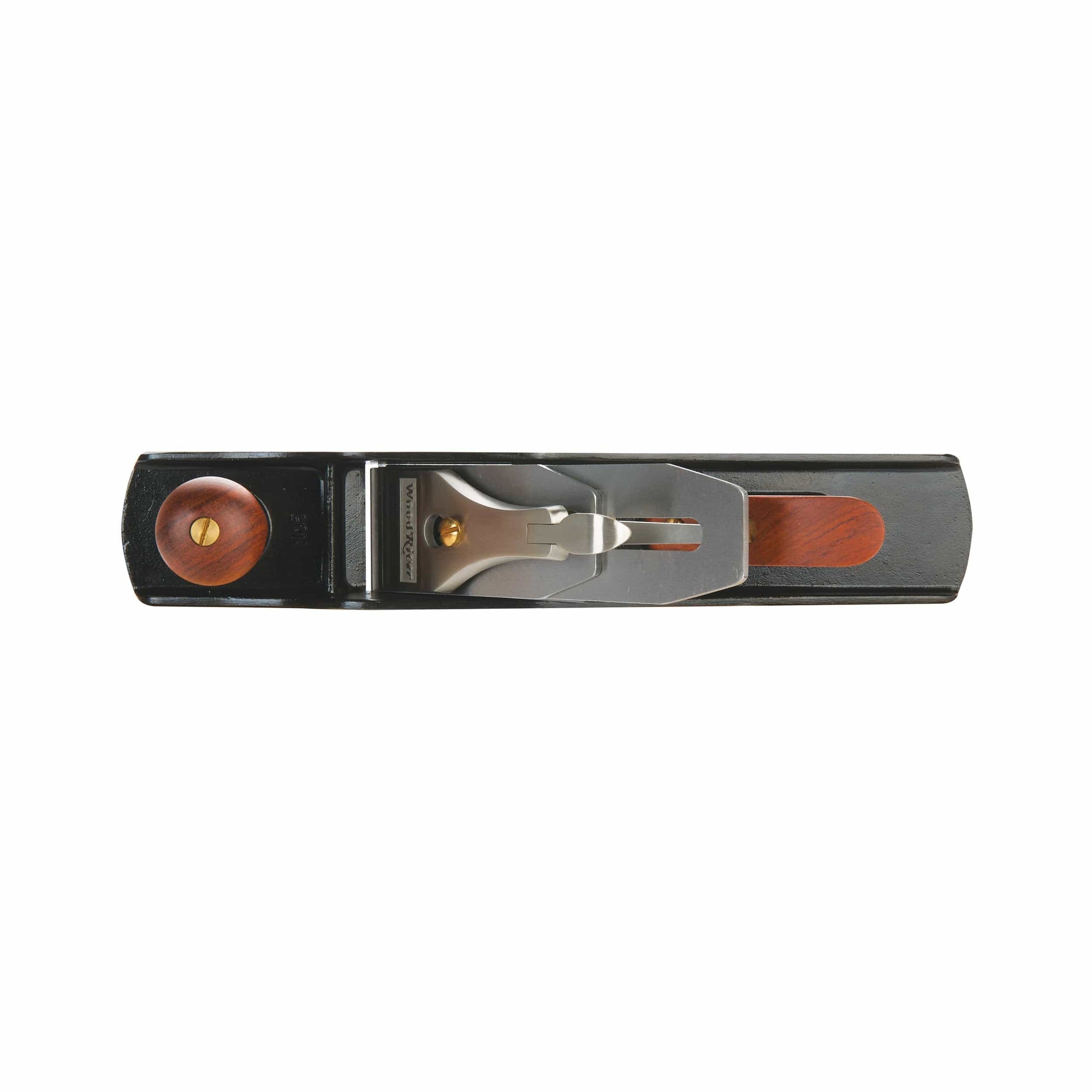

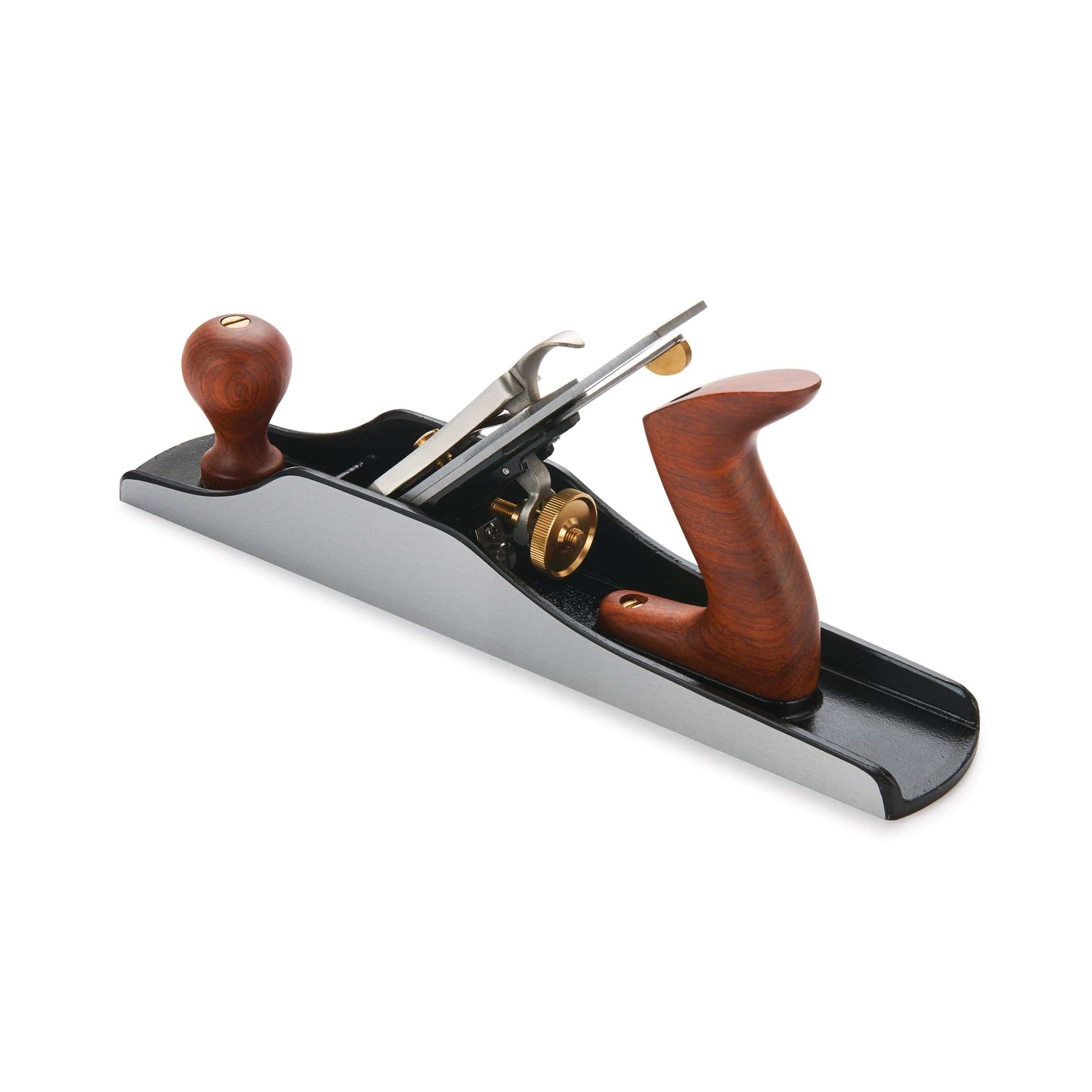

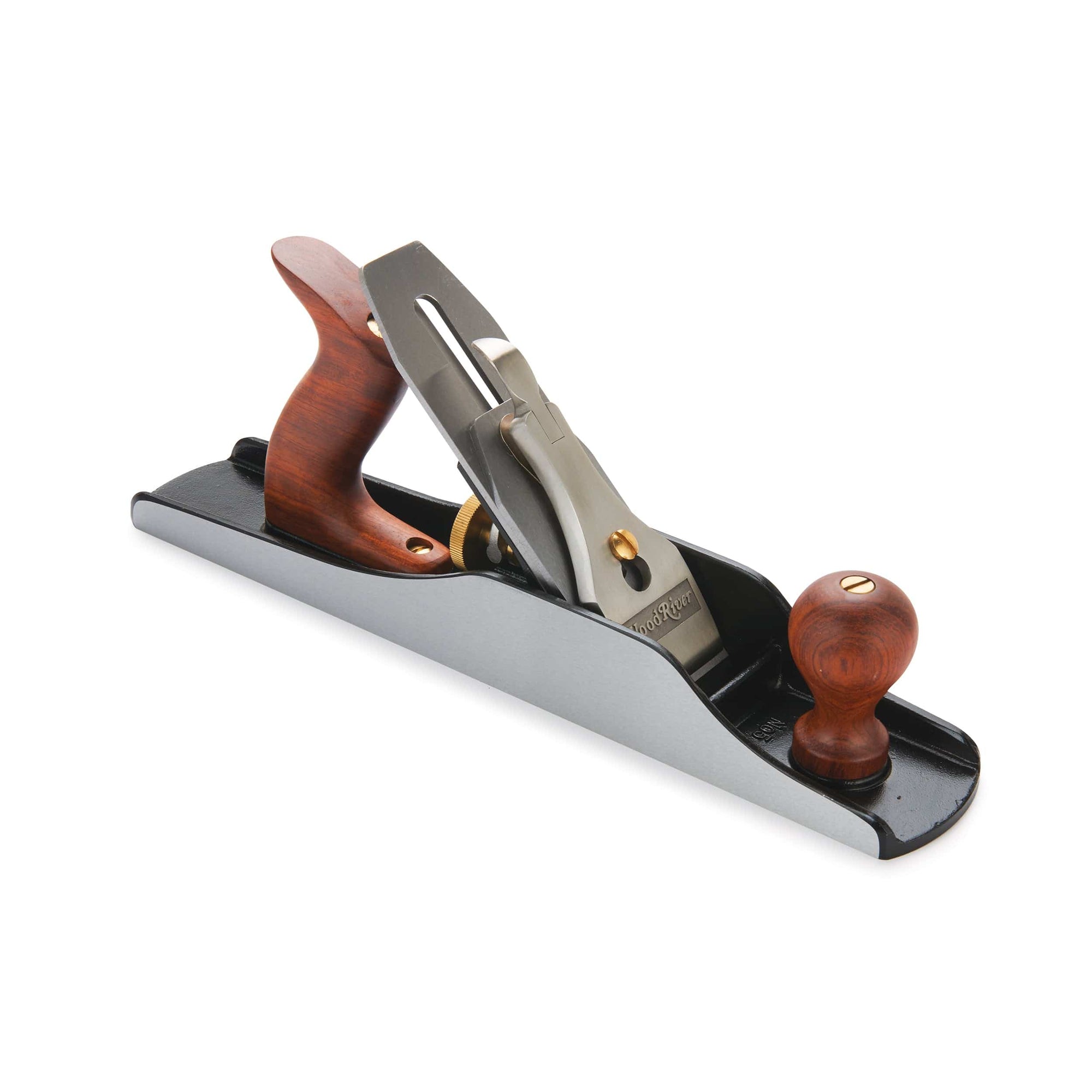

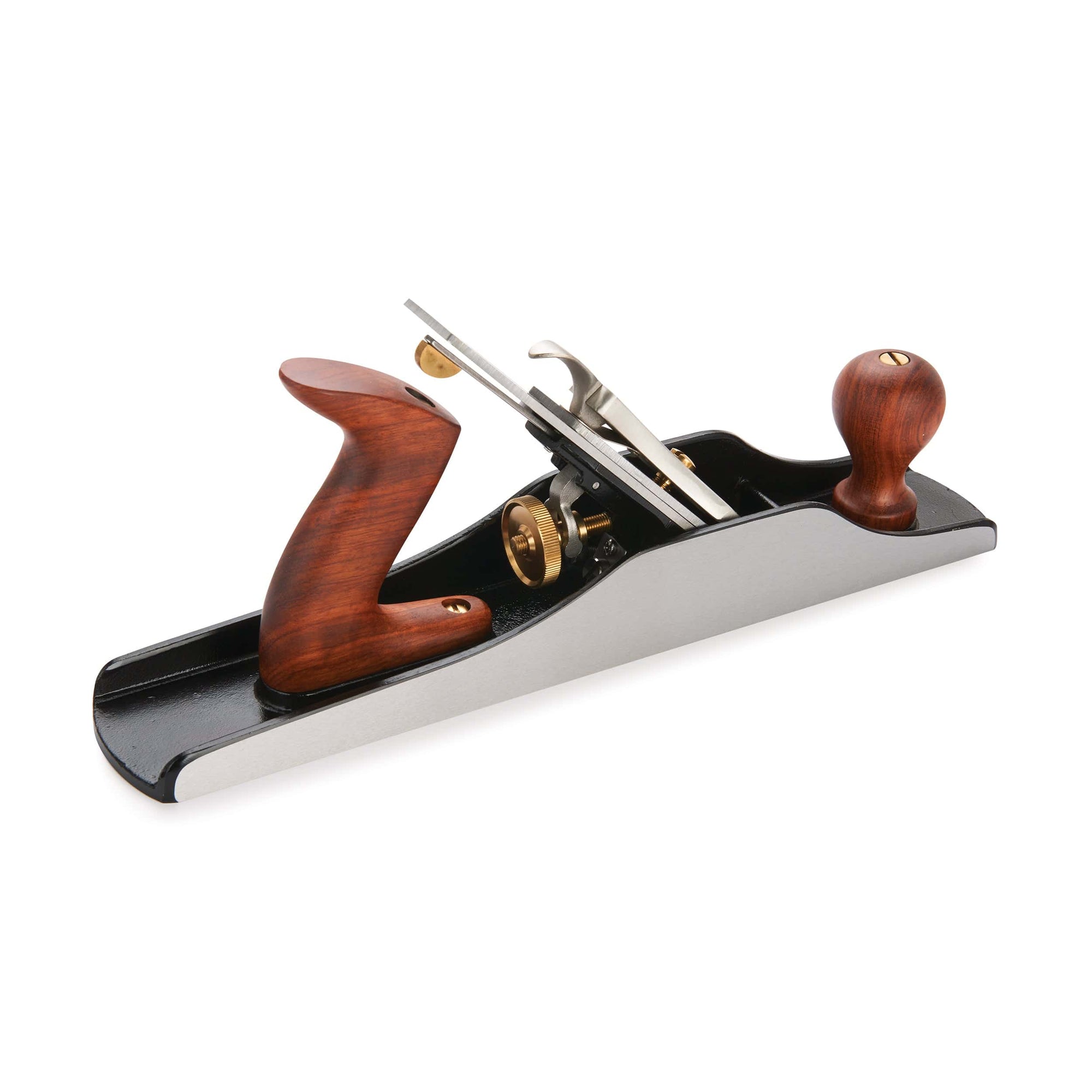

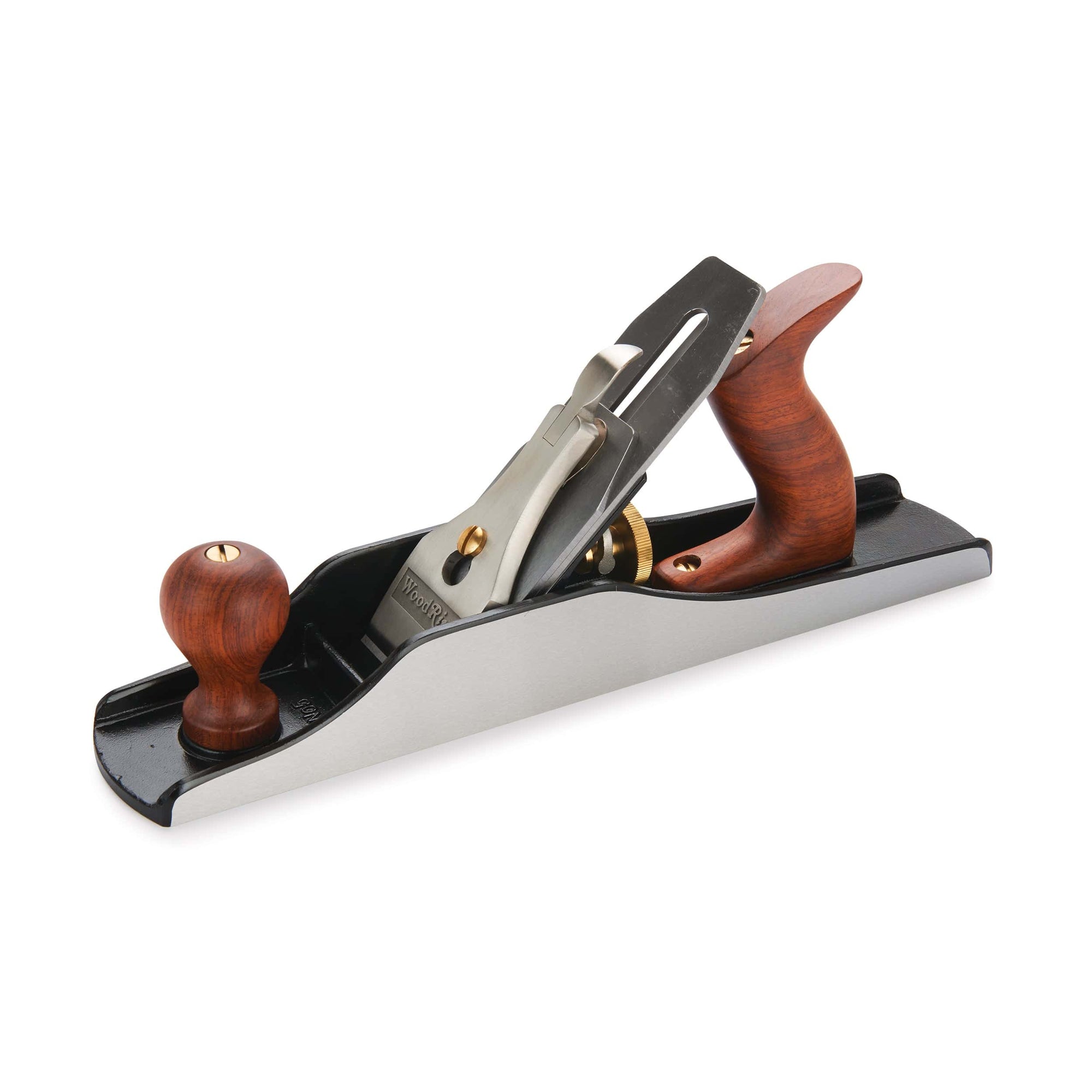

#5 Bench Hand Plane - Jack Plane - V3

Item #150875 Model 150875W
Regular price $183.99
Sale price $183.99 Regular price $229.99

Save 20% - December 13-15 Only!

An all-purpose hand plane, the No. 5, or jack, plane will perform almost any job you might need done, while providing you with experience and feed bac. . . View More Details

In Stock

Shipping Info

Items you may need

  • Shooting Board for Hand Planes

    Regular price $115.99
    Sale price $115.99 Regular price $144.99
    Shooting Board for Hand Planes
  • Using a Hand Plane with Ian Kirby: Tuning, Setting the Blade and Planing Techniques

    Regular price $21.95
    Sale price $21.95 Regular price $21.95
    Using a Hand Plane with Ian Kirby: Tuning, Setting the Blade and Planing Techniques alt 0
  • Jack Plane Sack-Up

    Regular price $11.99
    Sale price $11.99 Regular price $14.99
    Jack Plane Sack-Up alt 0
  • V3 Replacement Blade for No. 4/No. 5 Bench Plane

    Regular price $19.99
    Sale price $19.99 Regular price $24.99
    V3 Replacement Blade for No. 4/No. 5 Bench Plane alt 0
  • Getting Started with Handplanes

    Regular price $19.99
    Sale price $19.99 Regular price $19.99
    Getting Started with Handplanes alt 0
  • #4 Plane Blade Guard - 2 Pack

    Regular price $2.25
    Sale price $2.25 Regular price $6.99
    #4 Plane Blade Guard - 2 Pack alt 0

Details

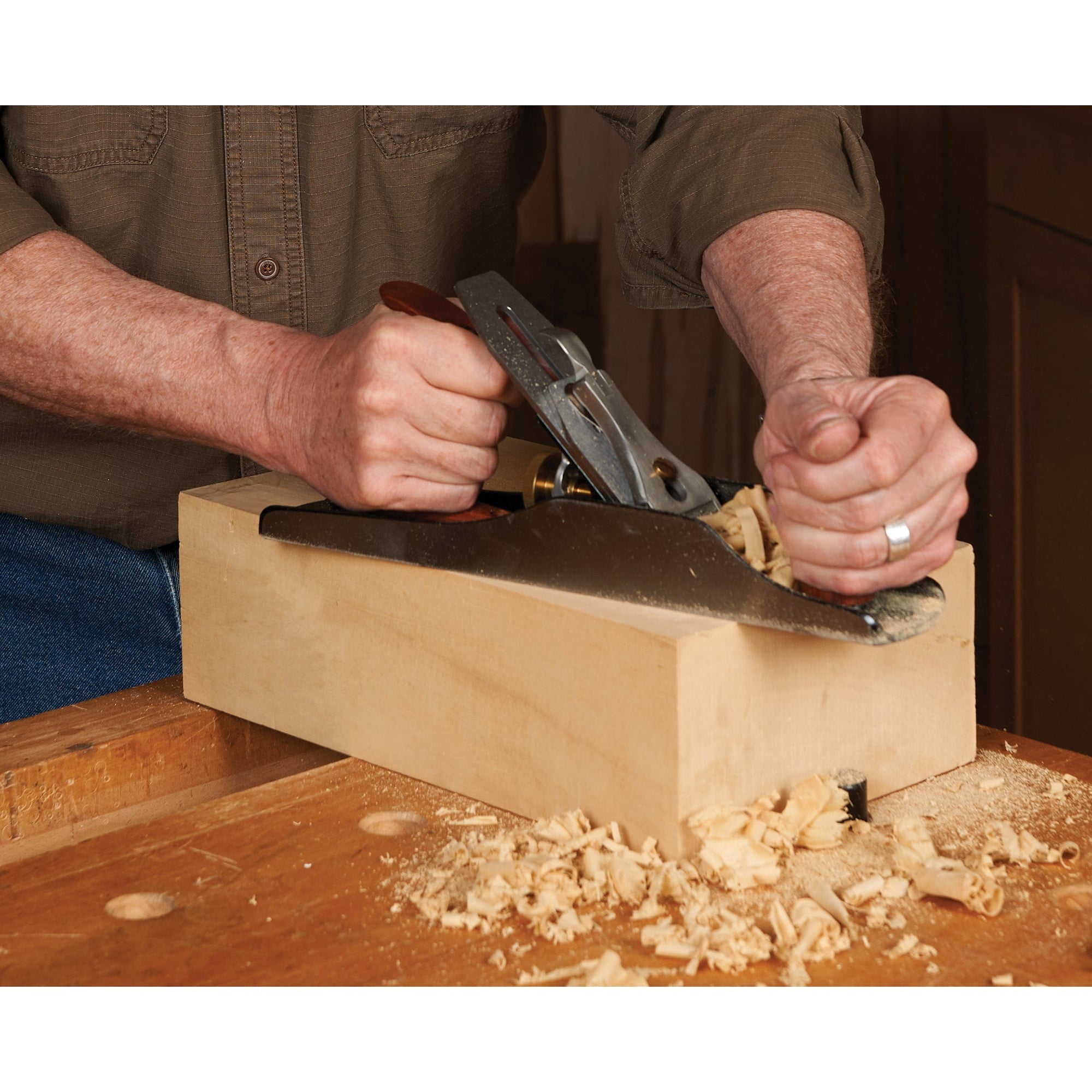

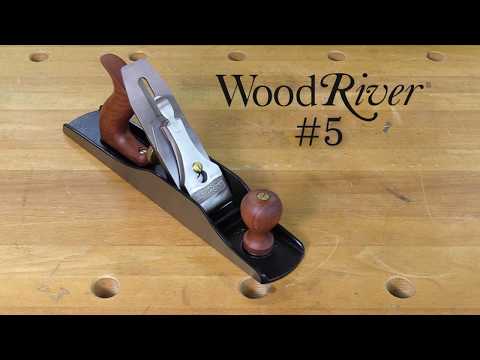

An all-purpose hand plane, the No. 5, or jack, plane will perform almost any job you might need done, while providing you with experience and feed back to help you pick your next plane. The 14” length makes the No. 5 useful for stock removal, smoothing, shooting miters, and jointing smaller work.

V3: Like our previous WoodRiver® Bench Hand Planes, our version 3 is based on the reliable Bedrock design and feature heavy, stress-relieved ductile iron castings, fully machined adjustable frogs and high carbon steel blades but we took the opportunity between manufacturing runs to do a critical review and make a few improvements. We’ve changed the shape of the rear tote and increased the diameter of the blade adjustment wheel to make advancing the blade a bit easier. We improved the lateral adjustment lever and added a traditional style bearing for better control of the blade. We’ve made numerous changes to the castings that result in better “feedback” and a solid feel to the user. Working closely with our own manufacturer, we’ve continued to make improvements in machining, finish and functionality which we feel have yielded hand planes that are meant to be used and offer an extraordinary value.

Features:


  • Commonly known as a “jack” plane
  • Useful for stock removal, smoothing, shooting miters, and jointing smaller work
  • Modeled after the Bedrocks, Stanley Tool's very best line
  • Heavy castings (6 lbs.) and fully machined frogs

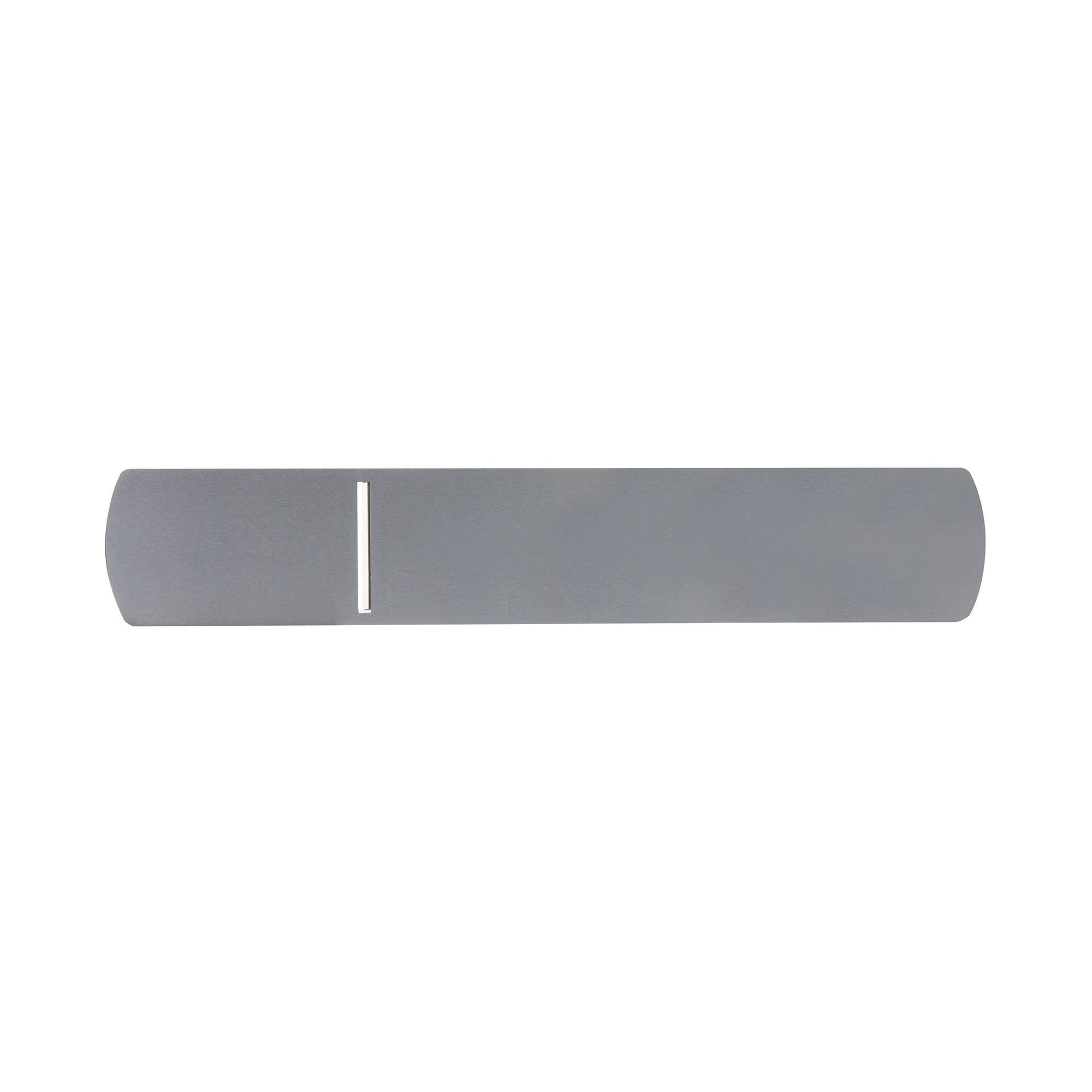

  • Soles and sides are machined flat and square within tightly held tolerances
  • Lightly finished hardwood handles provide comfort and control
  • Tools require minimal tune-up prior to use

Specifications:

  • Plane Dimensions (W x L): 2-7/16" x 13-7/8"
  • Blade Width: 2"
  • Weight: 6 lbs.
  • Body Material: Stress-relieved ductile iron castings
  • Blade Material: High carbon steel

What's Included:

  • (1) WoodRiver #5 Bench Hand Plane - Jack Plane - Version 3

Notes:

  • Get A FREE 3-Month Subscription to Rob Cosman's All-in-One Workshop! Learn fine woodworking in a Rob Cosman online workshop free for three months with purchase of a high quality WoodRiver® Hand Plane – Over $100 Value! Additional information: directions on signing up and accessing your account will ship with your purchase.
