Jet - Jet Lathe Model 1221VS
With a variable speed range of 60-3600 RPM, digital RPM readout, and forward and reverse operation, the Jet Lathe 1221VS Lathe focuses on one main concept… Control.SpecificationsMotor: 1HP, 1Ph,...
Items You May Need
Item 423637Model 719203A
Item 861605Model 719400
Item 861606Model 719400K
Item 862951Model 1792020
- Motor: 1HP, 1Ph, 115V, 6A
- Recommended Circuit Size: 10A
- Spindle Bore: 3/8”
- Spindle Taper: MT2
- Tailstock Quill Taper: MT2
- Stock Number: 719200
- Machine Dimensions (in): 33-3/5 L x 11 W x 17-7/10 H
- Spindle Speed Range (RPM): 60-3600
- Swing Over Bed: 12-1/2”
- Speed Ranges (RPM): 60-900, 110-1800, 220-3600
- Swing Over Tool Rest Base: 9-9/20”
- Number of Indexing Positions: 24
- Distance Between Centers: 20-1/2”
- Tailstock Quill Travel: 2-1/4”
- Spindle Thread: 1” / 8TPI

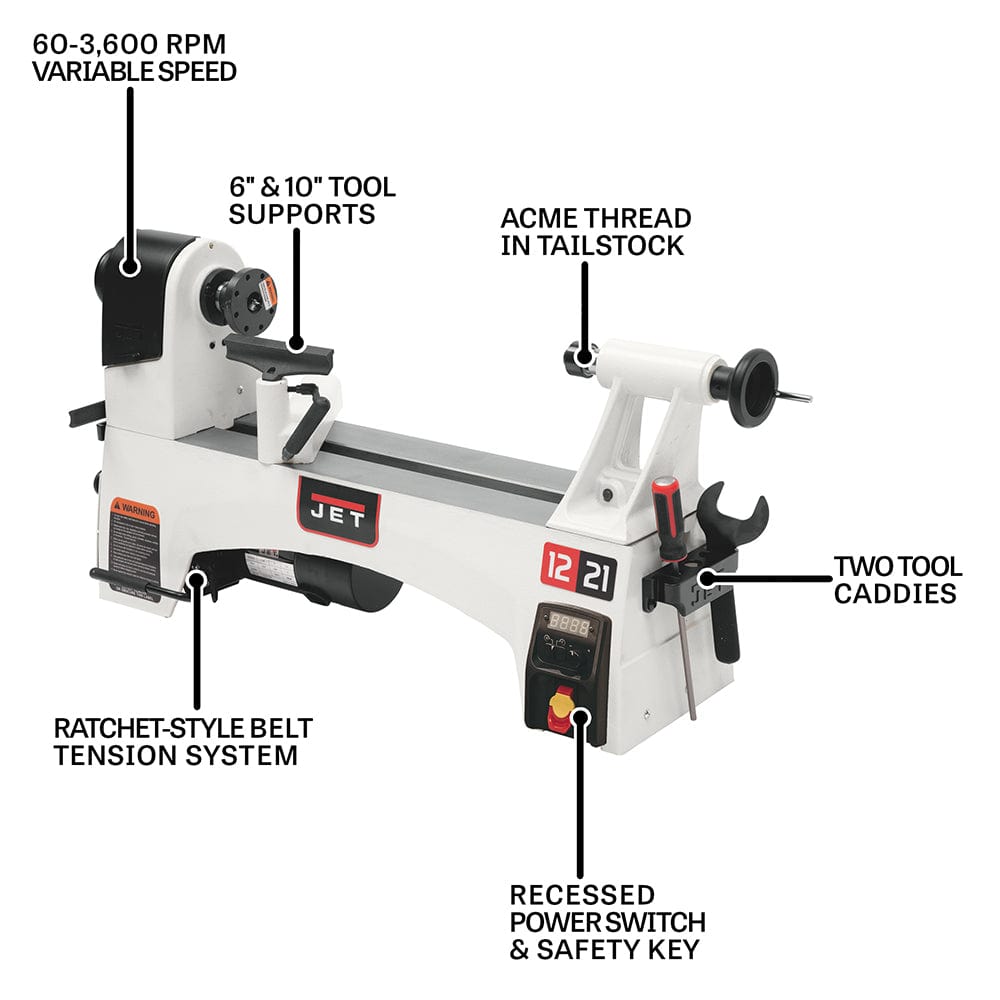

- Digital RPM Readout
- Forward and Reverse Operation

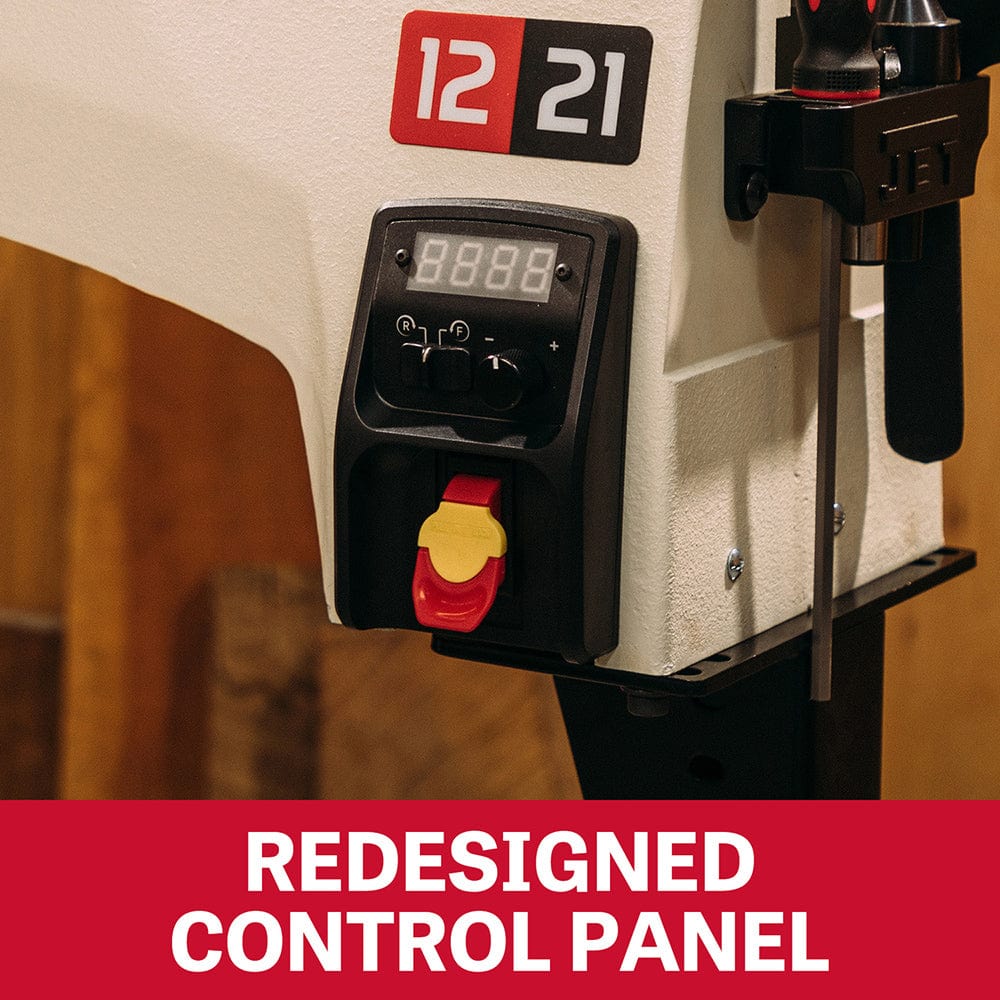

- Controls are Conveniently Located
- Patent-Pending Belt Tension System
- Easy Access to Belts
- Spindle Designed with Industrial-Style Pre loaded Bearing

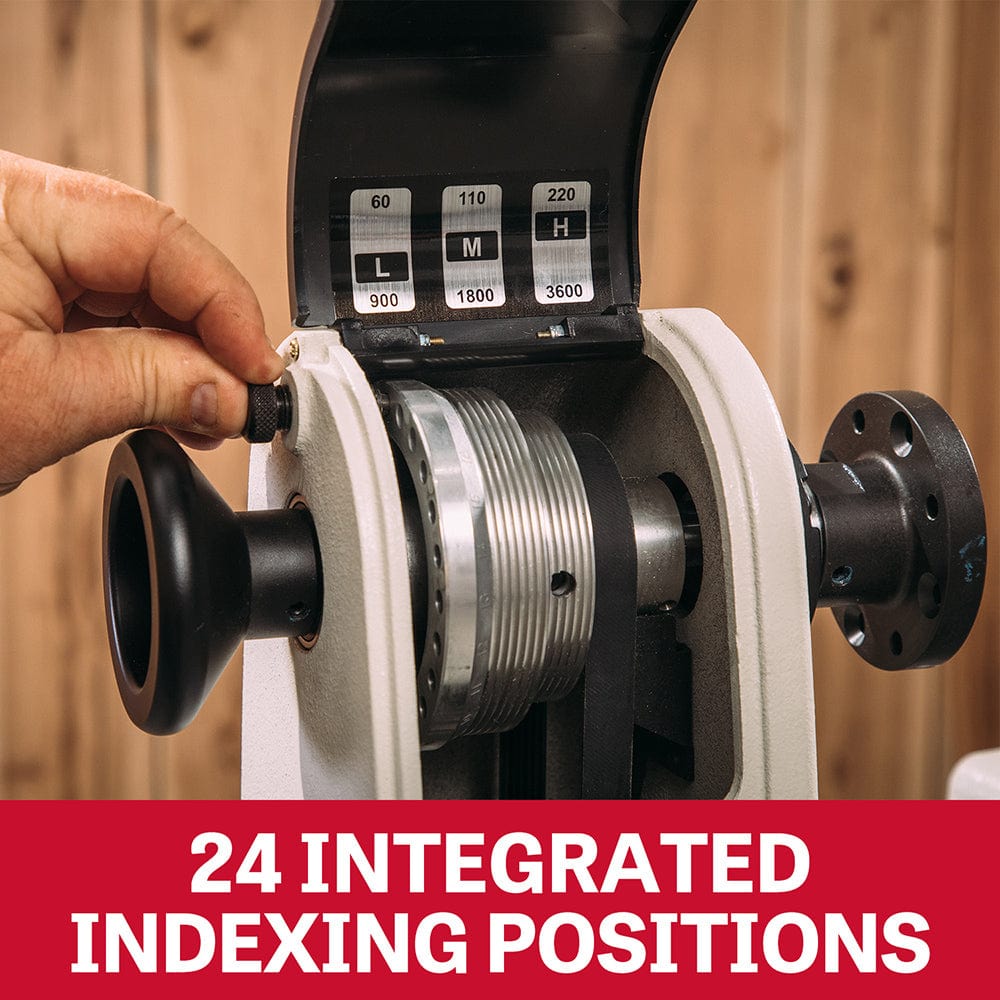

- 24 Integrated Indexing Positions

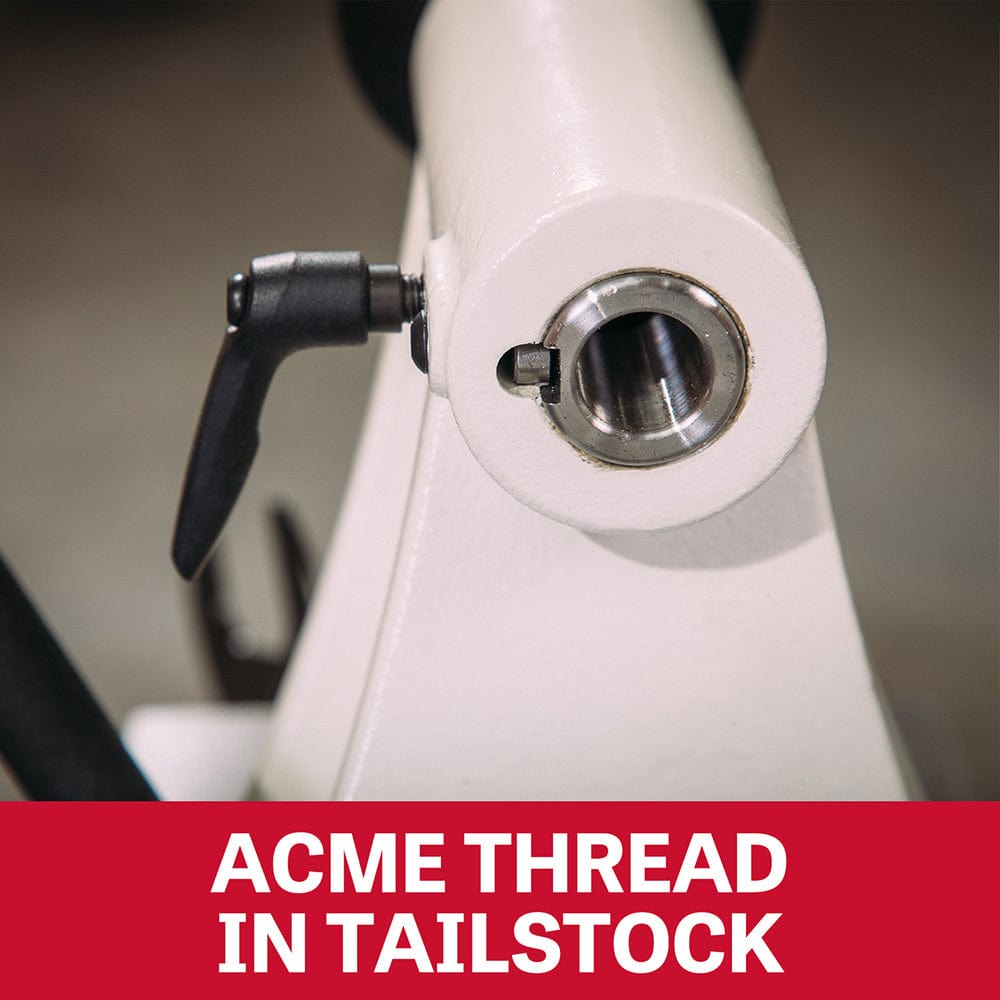

- Acme Thread on Tailstock Quill
Shipping / Billing Information
All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:
- Your order will ship in 5 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Instructions / MSDS
Articles & Blogs
The Easy Wood Tools & Woodcraft judges have conferred and the Super “Wood” Bowl Winners results are in! After 20 entries, we had many people try to enter after the deadline because they forgot! So remember us when you think about next year’s Super Bowl. Start turning now and mark your calendars!
Turning has become quite a growing art with new and different innovations hitting the market in recent years. It is an art that dates back to around 1300 BC when a two-person lathe was developed by the Egyptians. One person would turn the wood with a rope while the other used a sharp tool to cut shapes in the wood. I guess you could say we’ve come a long way in technology. But with the decline of industrial arts programs in our schools, the education of hands-on woodshop activity has seemingly been left to one organization which has taken on the responsibility of making sure the art of woodturning lives on. That organization is the American Association of Woodtuners (AAW). This organization is an international, nonprofit 501(c)(3) organization with over 15,000 members in the United States and throughout 33 different countries with 350 AAW Chapters. These chapters are independent organizations of local enthusiasts who come together to learn more about the craft and enjoy fellowship with other turners. Their voluntary mission is to provide education, information, and organization to those interested in the art and craft of woodturning.
After 21,961 de-duped entrees to the Gold Rush Sweepstakes sponsored by Woodcraft, Powermatic and Woodcraft Magazine, we have our winners list to share with you. The contest promotion ran from August 1 to September 30th, 2013 where there were 5,552 store entries and 16,409 online & mail-in entries. Winners were selected on October 10, 2013.
From the workshop of Ernie Conover comes some new added classes for 2015. His classes are so informative and useful that craftsman have asked for more, and Ernie has obliged.
As part of our Mother’s Day series, we will introduce you to several superstar moms (and grandmothers!) who combine their love of family with their love of woodworking. Meet Lucette Jones - she found an old kitchen knife at 10 yrs old and hasn't stopped carving since.
nice mac hine
have owned for a few years, no problems, works great. don't think you are going to turn anything 21 inches long. by the time you add a chuck and tailstock, 17 inches is about all you can do, unless you plunk down another 150 for extension and even more for extended stand. a problem for me i like to turn spindles. live and learn!
After kicking it around for months and looking at powermatic, Nova and others..... I settled on the Jet 1221VS from woodcraft. I could not be happier with this lathe. Solid quality throughout. Very heavy. Never bogs down, no matter what kind of hardwood you turn. Motor is very quiet. And ZERO vibration. Great lathe. My only complaint is I wish the bed was a true "21 inches". Its actually more like 18". Of course this can be remedied by purchasing the extension. But all in all, a great buy and addition to my woodshop.
On 4/6/17 I sent in a review on the jet 1221 . I didnt give it a great review , it was noisy , would not turn a spindle round, door to pulleys didnt match the lathe body , i carried it back to dealer , he gave me a new lathe , same model. It has been a great lathe. I have turned hours on it , little pieces to big as I could fit on it. I guess there is a bummer in every piece of equipment , but it is certainly not this lathe .
I've had this lathe for over a year now and I have pushed it every way I could think of. I've turn 5" stock coffee table legs 16" long. It has had to problem turning a 12" diameter bowl. The reverse on the lathe has been useful for sanding grain in the opposite direction to achieve a smoother finish, and for threading dowels. After purchasing the one way bowl saver mini I've cut bowls out of cherry burls making the most out of my Burl. The slow speed is great for rough turning and the high speed allows me to get the most out of turning pens and bidding them. I've recently ordered the bed extensions and plan on turning 29" long 5" stock table legs and I have no doubt this lathe can't handle it.
Very stable , with good weight . Casting rough , very noisy appears to be coming from pulleys and belt . On/off switch in bad place , making it easy to turn the lathe off while hollowing
Appears to be built strong , weight is good . On off switch is in a bad place , easy to cut lathe off when hollowing . Casting is rough , and very noisy appears to be coming from pullies and belt .
Great Midi Lathe
This was my first midi lathe and after a dozen or so bowls and countless bottle stoppers I still love it. Plenty of power although i think 6-7 inches was the largest diameter bowl I've done so far. Occasionally I have to turn the spindle twice to get the locking pin to engage but no big deal; also the indexing pin is just above the wheel and I did get my fingers caught between them once or twice the first week I had the lathe, but now I avoid it without even thinking about it. I would definitely recommend this lathe for a beginner or experienced turner. Some day I will likely invest in a larger lathe with outboard capability but this will suit my needs for years to come.
works as advertized
love the lathe AFTER I got it assembled. the lathe its self no problems. the stand was a real pain. ALL the nut plates in the legs had to be tapped-out and one of the main large bolts had to be re threaded because of damaged threads. where was quality control ??
This was my first lathe. Mine requires moving the belt to change speeds, but that isn't difficult and it is something I don't change often. Minor consideration. I've made hundreds of items on this lathe and still love using it. Really good value! I most certainly would recommend to a friend of family member, and have done so several times.
forget a big turn, good for little stuff
this machine has a nice design and easy to use. Will be good for small diameter turns but not so much for large diameters. I've been making soda/beer can holders/mugs out of 6x6 red cedar. My old 1/2 hp elcheapo lathe would rough the 6x6 down to a cylinder in just a few minutes. I was very dissapointed when this lathe with a 1 hp motor takes about three times as long to do the same job
Great starting out lathe
This lathe has served me great so far, i was glad I spent a little more money to get this one. Over ten bowls and a dozen pens turned and shes still running strong. when I got her set up i was impressed with the amount of room to the bed of the lathe. forward and reverse has proved useful to me while sanding. i thought that belt changing may be a hassle but most projects i do the middle belt has done the trick. overall a fantastic lathe.
Works great, super turn down.
I'm a beginner turner, so I don't have a lot to compare with, but I've been very happy so far. Tool rests are rock solid, quality construction, soft start, and very quiet. Belt changes are extremely easy and fast, although I don't find that I have to change belts very often as the range on the middle belt is good for most things I've done. The overall wide range of speeds is excellent and I could see the slow speeds coming in handy for other hobbies I've played around with, like sanding handles for fly rods. The digital RPM readout is handy for me since I don't have much experience turning and don't have a feel for speeds yet, so I find myself starting off at speeds based on recommendations from videos and books and adjust from there. The lathe was a bit on the high price end for me, and I definitely couldn't see paying that much for the stand, so I built my own. It's working great and I get no noticable vibration even when turning some small bowls. Only negative I've found is the same as another reviewer, I have trouble matching up the locking pin to the hole in the shaft. Not a big issue, but takes a few aggrevating seconds to get it lined up. Minor issue at most. Overall I'm very happy with the purchase and I'm really enjoying turning with it.
Trust but verify
Lots of good features, between centers distance long enough for chair builders, forward and reverse, digital read out, easy belt changes, variable speed, heavy cast iron, good price point, expandable to longer between center distance. However, the manual writer was dyslexic and there was a big error in the layout page describing where to drill holes in your work bench to bolt down to reduce charter. You should measure the holes on the machine and not trust the manual.
I am impressed with the product
I use the lathe for home use, strickly as a hobby. The machine runs smooth and is easy to use. The only problem so far is the locking pin sometimes is a little difficult to engage.
