RIKON

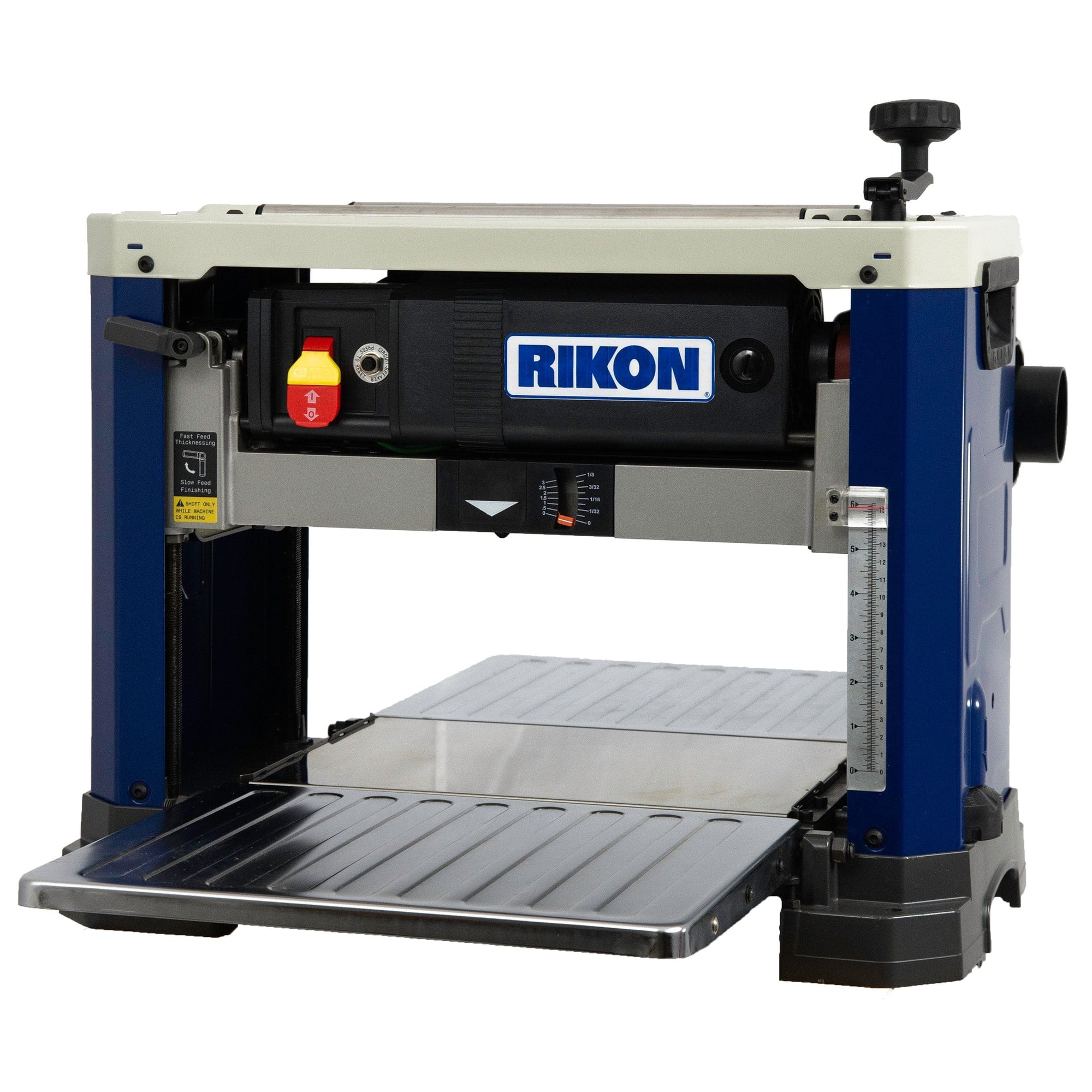

13" Portable Planer with Helical Style Cutter Head and 2-speed Feed

Item 174854
Model 25-135H

$799.99

Estimated Ship Date July 15, 2022

The Rikon 13” 25-135H benchtop planer features a six row helical-style cutter head and 26 HSS insert cutters. Each indexable knife insert is precision sharpened on two edges and can be easily changed/rotated if damaged or worn – just loosen, rotate, and retighten! The alternating cutter...

Items You May Need

Details

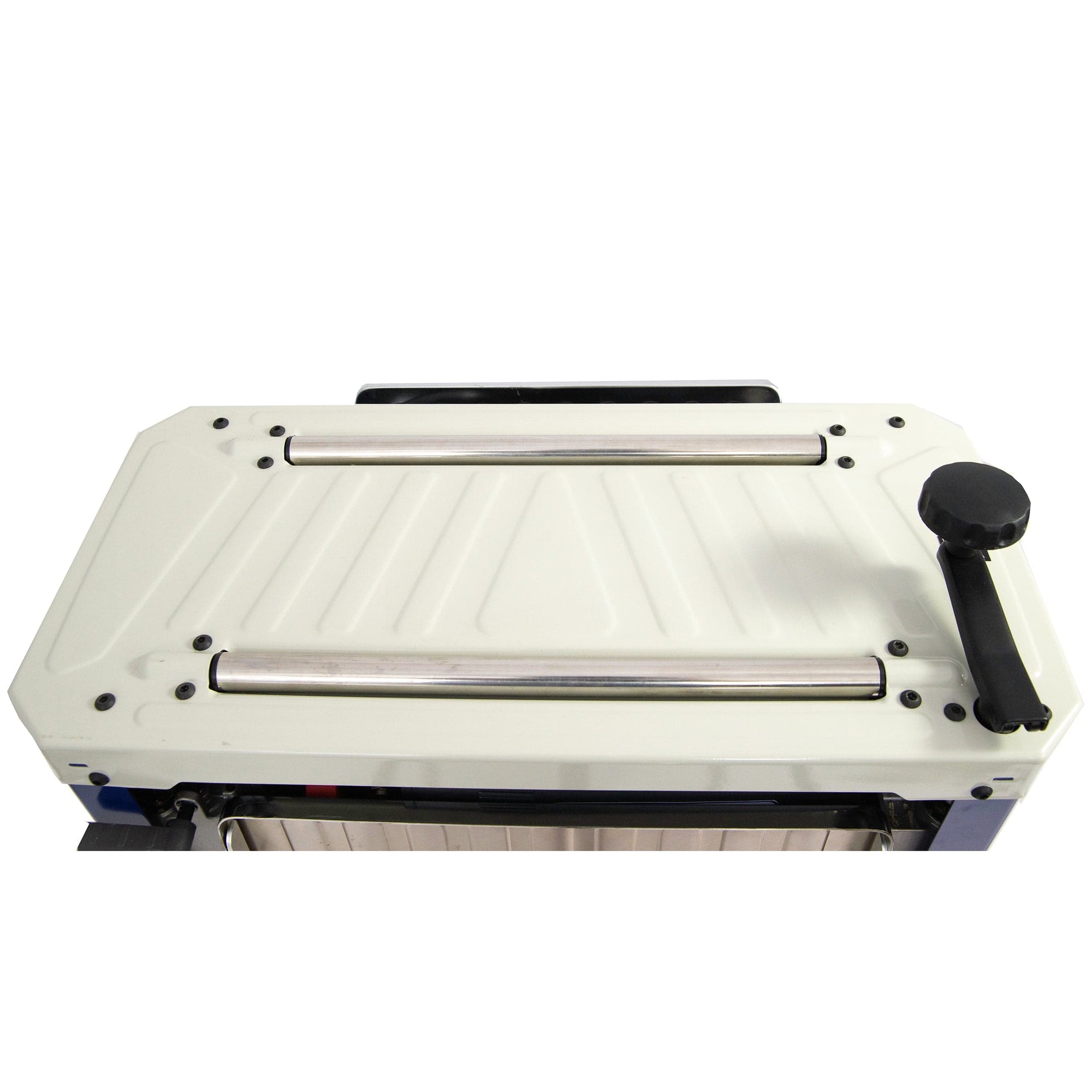

The Rikon 13” 25-135H benchtop planer features a six row helical-style cutter head and 26 HSS insert cutters. Each indexable knife insert is precision sharpened on two edges and can be easily changed/rotated if damaged or worn – just loosen, rotate, and retighten! The alternating cutter pattern in the cutter head is super-efficient, and with a two-speed feed rate, produces a smooth cut surface. Planer features a threaded 4-post housing for extra head stability when running, side handle for quick table height adjustments, repeat cut setting lever, large fold-up extension tables, flat top with rollers for stock returning, and side carry handles.

Specifications
  • Motor: 15 Amp, 115V, 60Hz
  • Motor Speed: 22,000 RPM (no load)
  • Cutterhead: 2" diameter, 10,000 RPM
  • Number of HSS Inserts: 26, 6 rows
  • Max Cut Depth: 1/8"
  • Max Cutting Width: 13"
  • Max Cutting Depth (Height): 6"
  • Min. Length of Stock: 7"
  • Min. Width of Stock: 3/4"
  • Min. Thickness of Stock: 3/16"

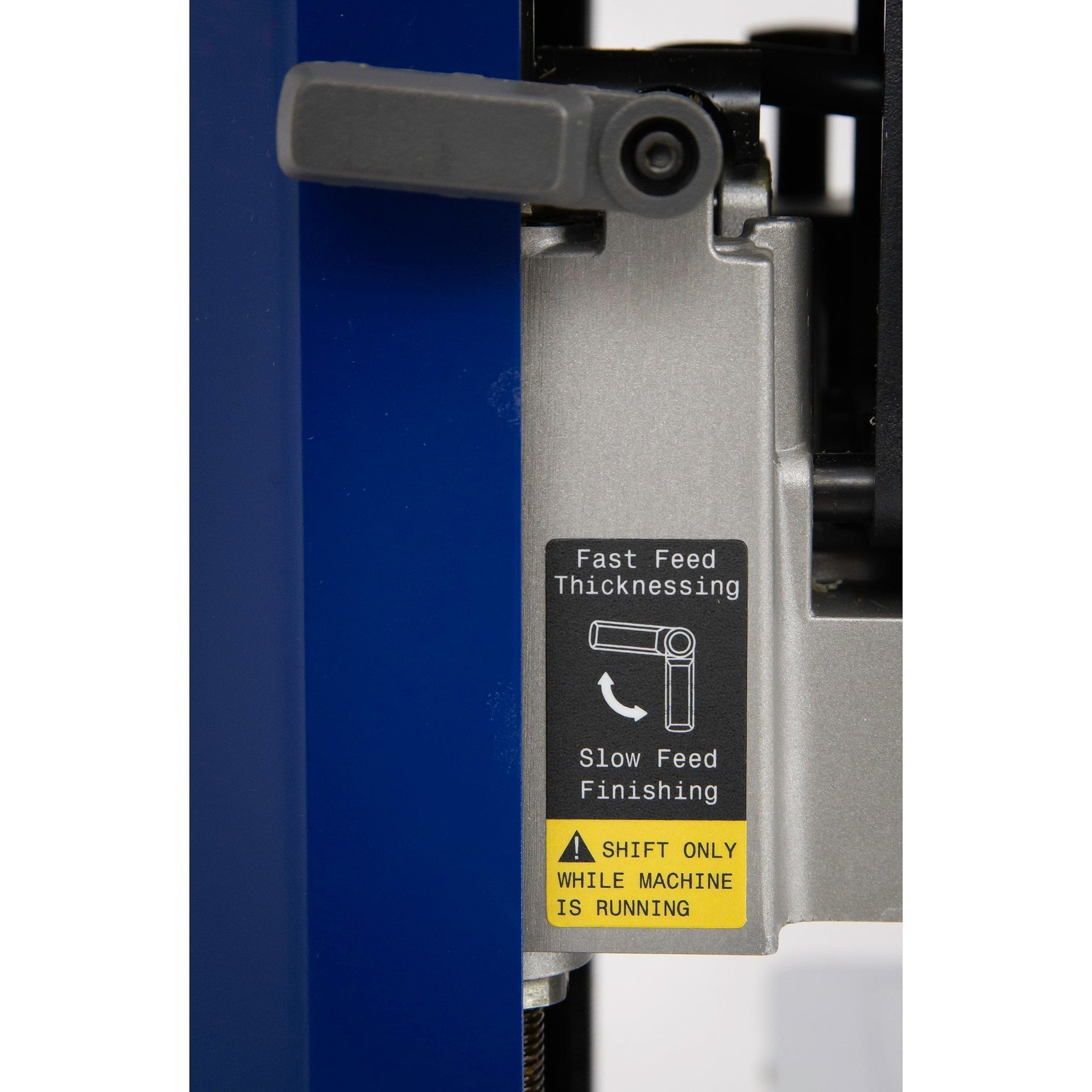

  • Feed Speeds (SF/Min): 16 and 26
  • Table Size: 9-7/16" L x 13-1/16" W
  • Extension Tables (2): 12" L x 14" W
  • Dust Port (OD): 4" or 2-1/2" diameter
  • Dust Collection min CFM: 650
  • Noise Level: 100 dB
  • Unit Height: 19-1/4"
  • Unit Width: 22"
  • Unit Depth: 34-1/4"
  • Base Size: 13-3/8" L x 22" W
  • Net Weight: 68 lbs.
  • Shipping Weight: 76 lbs.
  • Warranty: 5-Year
