Powermatic

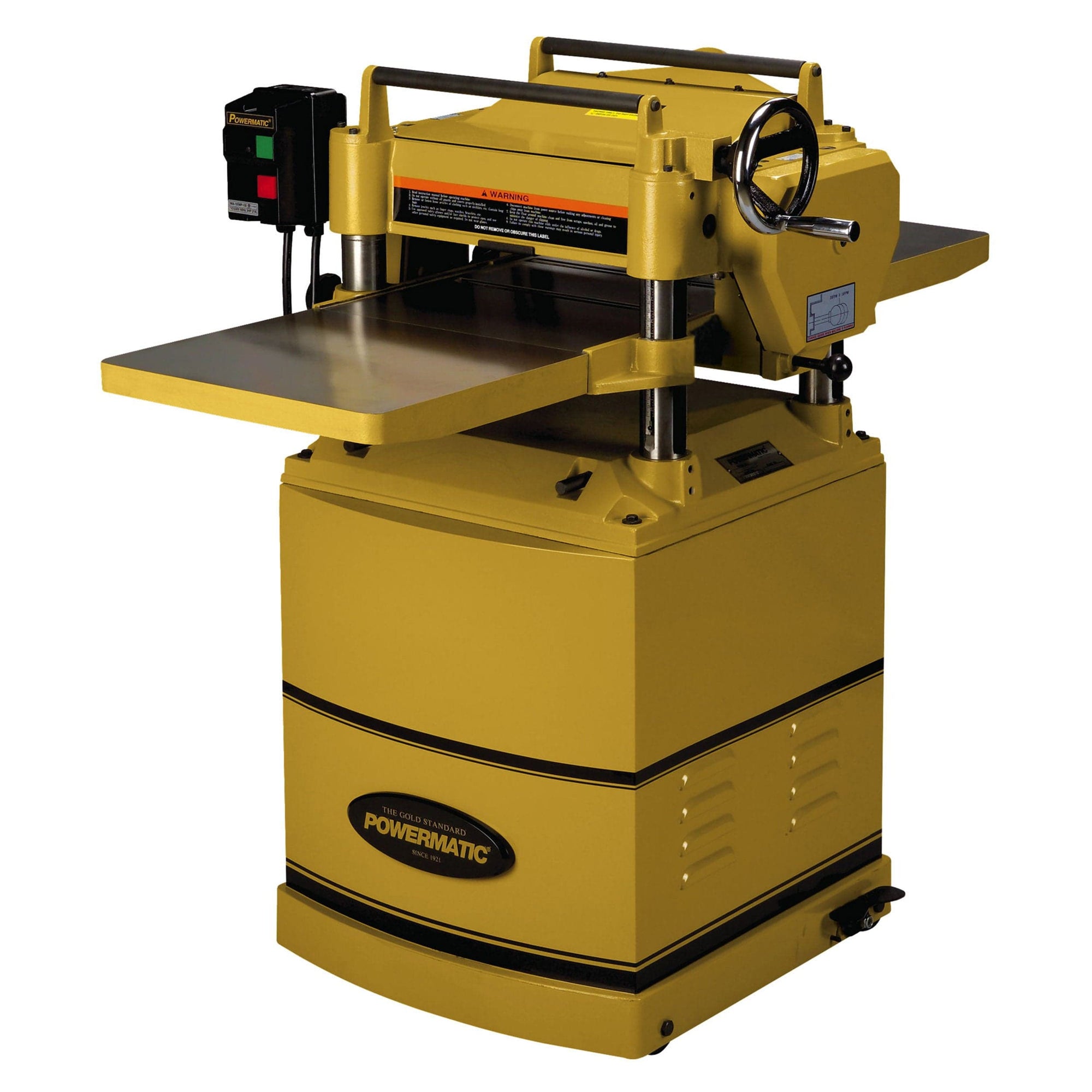

15" Planer - 3 HP 1 Ph 230V - Helical Cutterhead - Model 15HH

Item #835284 Model PM9-1791213
$4,299.99
$4,299.99 $4,299.99

This item has an additional shipping charge

  • 15" Planer - 3 HP 1 Ph 230V - Helical Cutterhead - Model 15HH alt 0
1 1

Powermatic

15" Planer - 3 HP 1 Ph 230V - Helical Cutterhead - Model 15HH

Item #835284 Model PM9-1791213
$4,299.99
$4,299.99 $4,299.99

This item has an additional shipping charge

The helical cutterhead on this planer provides smoother cutting and a finer finish than conventional knives, and the 74 four-sided indexable carbide k. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Remote Planer Readout

    $84.99
    $84.99 $99.99
    Remote Planer Readout alt 0

  • Planer Digital Readout - Height Gauge

    $59.99
    $59.99 $79.99
    Planer Digital Readout - Height Gauge alt 0

Details

The helical cutterhead on this planer provides smoother cutting and a finer finish than conventional knives, and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing. Three V-belts transfer maximum power from the 3HP motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings. The 4" dust port angles the collection hose away from the work area. Stock return rollers atop the machine speed repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for 1/8" maximum depth of cut and trouble-free operation. A 2-speed gearbox features an automatic chain tensioner. The one-piece welded steel stand has built-in lockable casters for easy movement around the shop.
Features

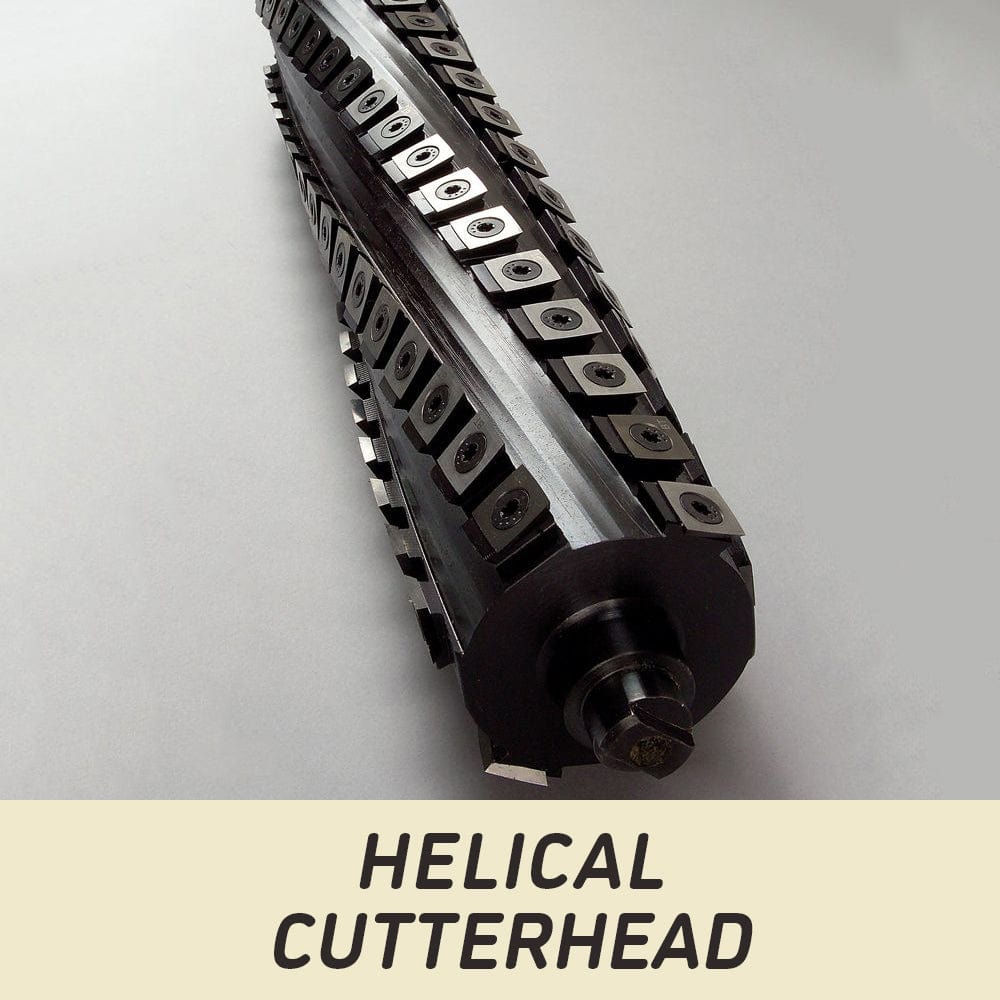

  • The helical cutterhead provides smoother, quieter cutting and finer finish than conventional systems

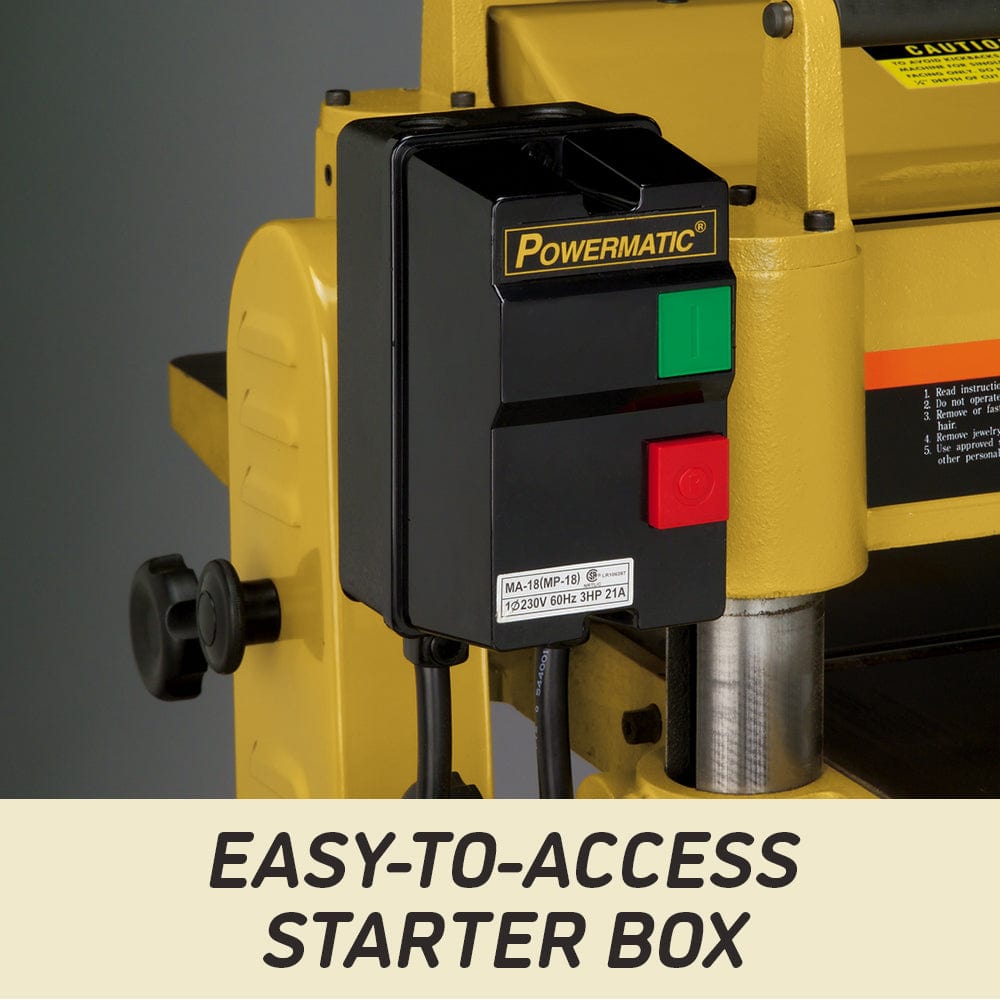

  • Powerful 3HP TEFC motor controlled with a magnetic switch for safety

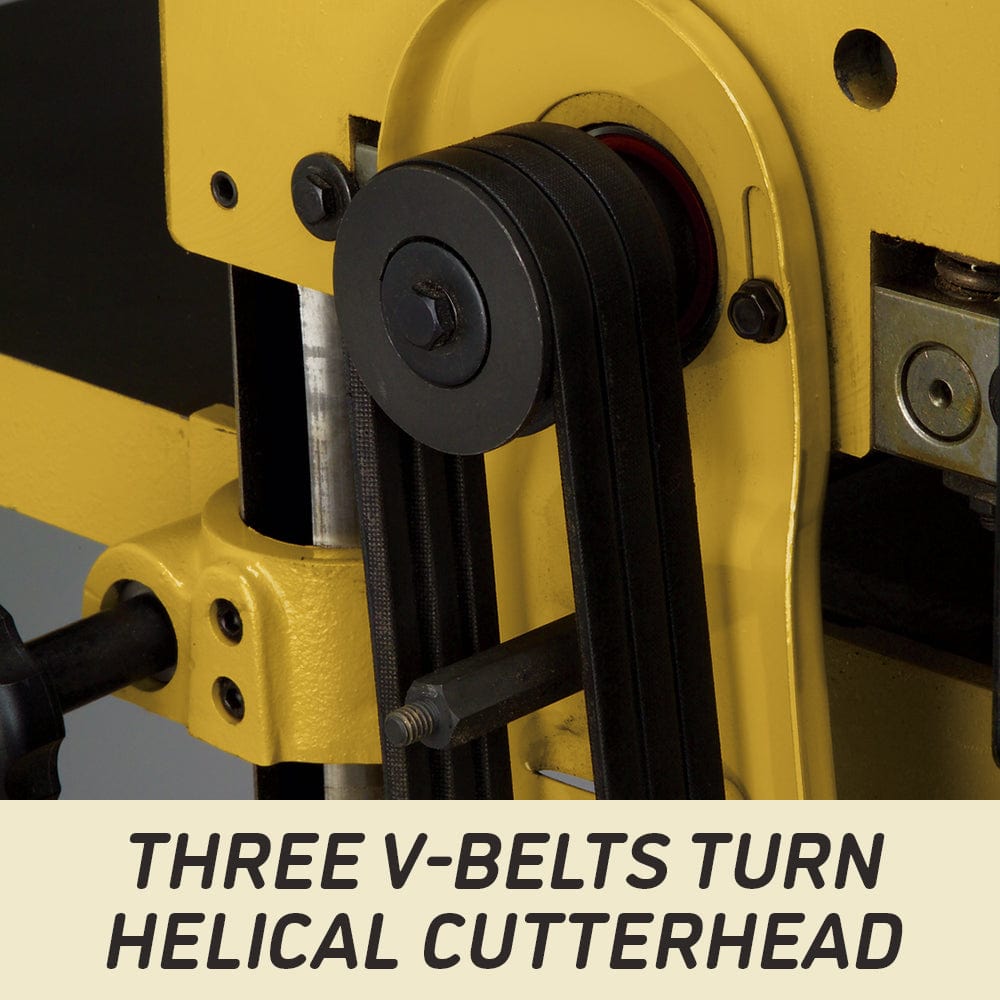

  • Three V-belts transfer maximum power to the cutterhead
  • Serrated steel infeed roller and smooth steel outfeed roller allow for 1/8" maximum depth of cut and trouble free operation
  • Large cast iron handwheel positions table quickly and easily

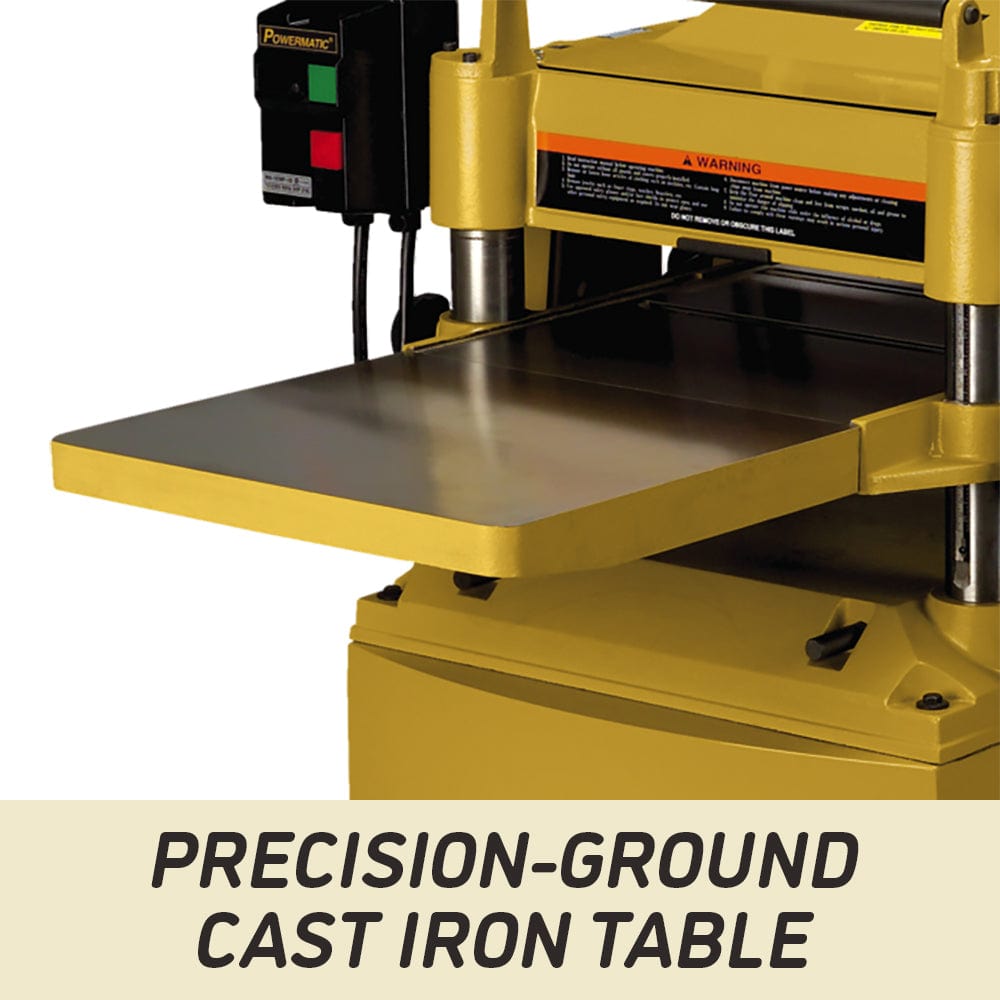

  • Large, precision ground cast iron table and extensions provide maximum workpiece support
  • Two speed gearbox features automatic chain tensioner

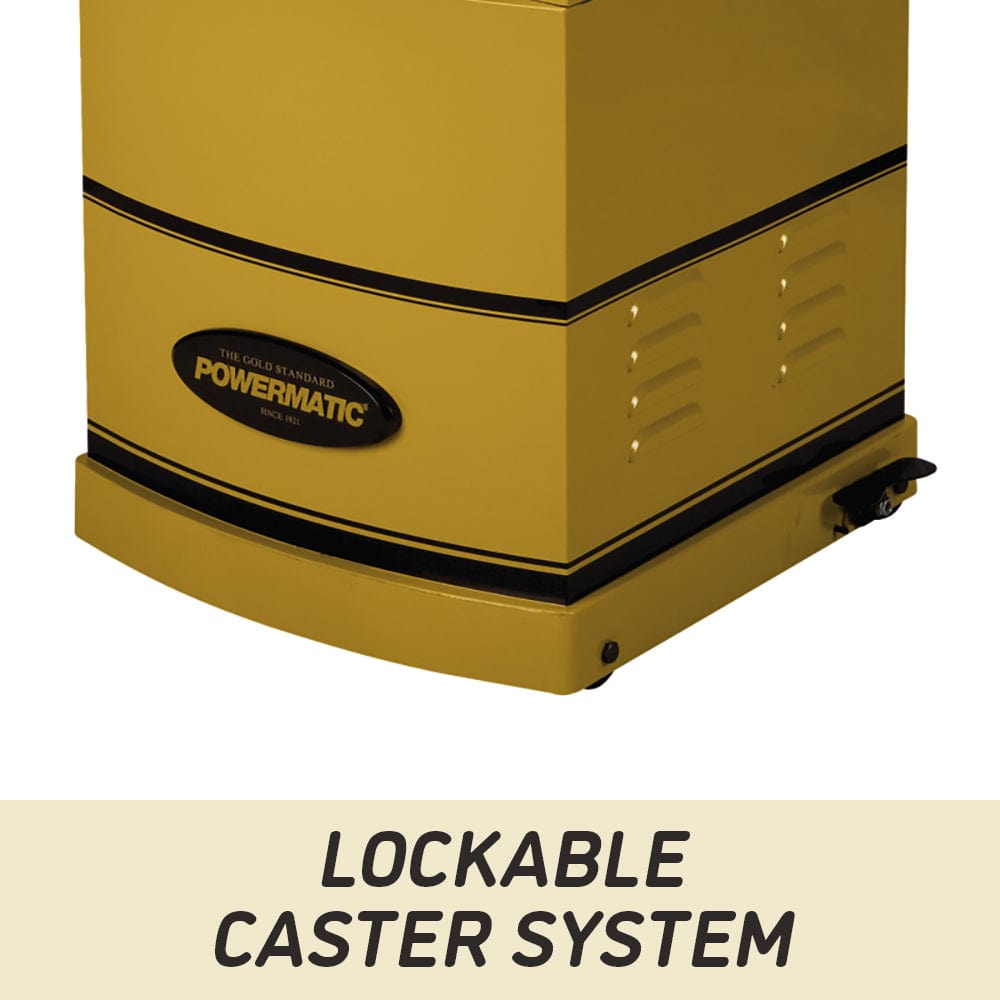

  • One-piece welded steel stand has built-in lockable casters

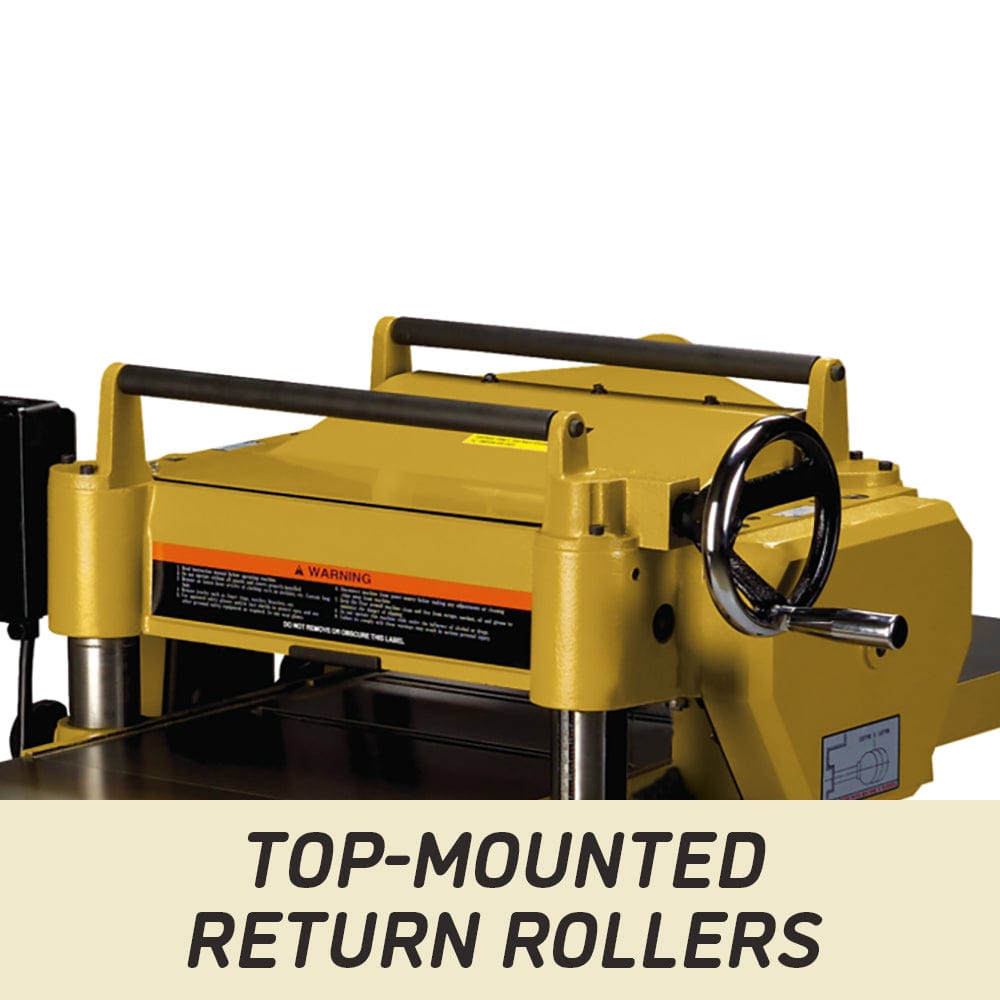

  • Steel top-mounted return rollers speed repetitive cuts
  • Angled dust chute with 4" port positions collection hose away from the work area while providing efficient chip and dust collection
  • Table locks firmly in place, preventing movement during cutting

Specifications
  • 3HP TEFC motor with magnetic controls
  • 4" diameter dust port
  • Cast iron extension tables
  • Closed stand with built-in casters
  • Amps : 15
  • Column Diameter (in) : 2-3/16
  • Dust Collection Minimum CFM Required : 800
  • Dust Port Diameter (OD/in) : 4
  • Feed Rate (FPM) : 16 and 20
  • Height (in): 43.5
  • Infeed Roller Diameter (in) : 2.070
  • Length (in): 48
  • Maximum Depth of Cut (in): 1/4
  • Maximum Full Width Depth of Cut (in): 1/8
  • Maximum Planing Thickness (in): 6
  • Maximum Planing Width (in): 14-7/8
  • Minimum Planing Length (in) : 8
  • Motor HP : 3HP
  • Motor Phase : 1PH
  • Motor Voltage : 230V
  • Net Weight : 502 pound
  • Outfeed Roller Diameter (in) : 2.070
  • Overall Dimensions : 48 x 28 x 43-1/2
  • Part Number : 1791213
  • Readout Scale : inch/metric
  • Rotation (Forward/Reverse) : Fwd
  • Segmented Infeed Roller Diameter (in) : 2.070
  • Table Size (in) : 15 x 48 (w/ extensions)
  • Table Support : 4 column
  • Tool Supplied : yes
  • Width (in): 28
  • Shipping weight 537 lb.
