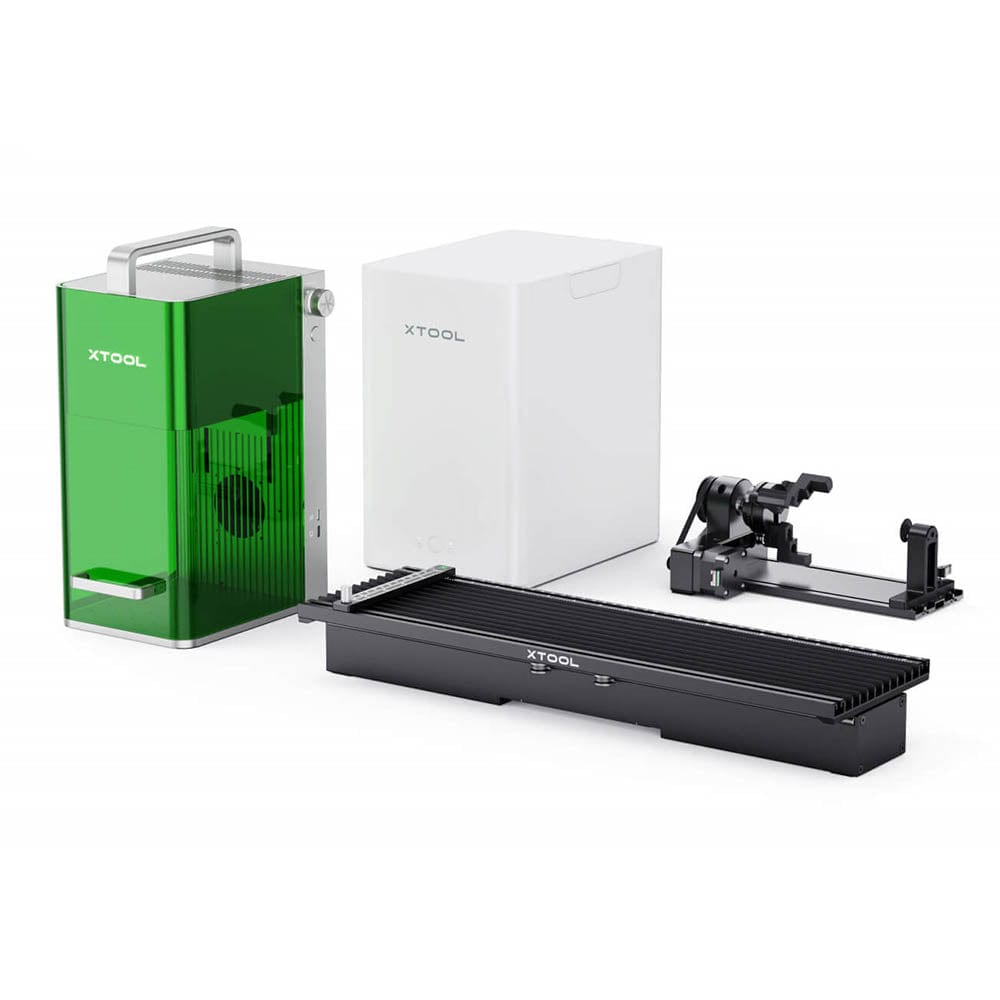

F1 Portable Laser Engraver Deluxe Bundle

This bundle includes the F1 Portable Laser Engraver (#190870), Air Purifier (#190872), RA2 Pro Rotary Attachment (#190871) and the Slide Extension (#190873).

The F1 Portable Laser Engraver is the first in the world to include two powerful lasers in one machine. A 2W infrared laser which allows engraving a variety of acrylic and metals, including gold, silver, aluminum and brass. The 10W diode laser to allow engraving on products such as wood, acrylic, leather and glass as well as cutting through up to 8 mm of wood and 5 mm of acrylic. Accuracy is redefined with the industry-leading Ultra Galvo System, achieving 0.00199 mm motion accuracy. The fully enclosed and locked cover prevents damage to eyes from the powerful laser and safely contains any toxic odors associated with engraving. The xTool F1 comes with free XCS software and is also compatible with the very popular Lightburn laser software. The working area is 115 mm x 115 mm and fully enclosed, with a removable base to allow the laser engraver to be used on larger objects.

Create a clean working environment by removing the smoke and smell from your xTool F1 laser engraver. The air purifier kicks on as the xTool F1 starts working, and will continue to run for a predetermined length of time after the F1 turns off. Three speed settings allow the level of filtration to be adjusted to the task. Upgraded three-stage filtration captures 99.97% of 0.03μm particles while remaining nice and quiet at 54dB. One-way ventilation through air inlets and outlet, along with foam seals, prevents any smoke from leaking out of the purifier. Create a near-silent and safe working environment with this easy-to-use shop upgrade. Compatible with xTool F1 only.

The xTool RA2 Pro is the world’s first 4-in-1 rotary accessory tool for laser engravers. You can now use your xTool P2 laser engraver to customize wine glasses, mugs, balls, rings and more! Increase the variety of projects you can engrave with this clever and dynamic accessory.

The roller tool features a pair of smooth rollers that rotates wine glasses, baseball bats, rolling pins, or any cylindrical object that has extra girth that you want to decorate from 3 to 198 mm. The included level tool keeps objects centered and stable, especially helpful with long cylindrical or irregular objects.

The chuck tool firmly but gently grasps objects from 0 to 100 mm in diameter to engrave mugs, vases, tumblers and even cylindrical speakers. It can also be assembled with the chuck facing outward to increase the length of items that will fit. Soft pad jaws provide a larger friction force and prevent brittle objects from breaking. Comes with double-step and single-step pads, but users can also 3D-print their own pads.

The sphere rotary tool allows for vector engraving of Christmas ornaments, baseballs, golf balls and other spheres from 25 to 100 mm in diameter.

Last but not least, the ring tool has three rods that allow the precise rotation of rings and bangles from 11 to 70 mm in diameter, making it possible to engrave the inside or outside of the jewelry.

Dramatically increase the size of objects you can engrave with your xTool F1 Laser Engraver from 115 mm x 115 mm to 115 mm x 400 mm with the xTool F1 Slide Extension. The Slide Extension comes pre-assembled and is ready to mount directly from the box. Scale rulers allow the user to know the exact coordinates of materials placed on it. The absolute coordinates are designed to make the coordinates in the xTool Creative Space software match exactly with the scale rulers on the extension. The Slide Extension allows the ability to engrave and cut your design with the push of one button.

• Laser type: 10W diode laser + 2W 1064nm infrared laser
• Product size: 179mm x 235 mm x 334 mm
• Product weight: 10.1 lbs (4.6kg)
• Accuracy: Movement accuracy：0.00199 mm, Repeat positioning accuracy：0.000248 mm
• Working area: 115 x 115 mm rounded rectangle
• Expandable to: 400 x 115 mm with F1 Slide Extension (Not Included)
• Preview: Rectangle & Outline
• Preview speed: 12000mm/s
• Outline: 8000 mm/s
• Up to working speed: 4000 mm/s
• Applications: XCS / Lightburn
• Connection: WiFi & USB
• Support file: SVG / DXF / JPG / JPEG / PNG / BMP, etc.
• Support systems: Android / iOS / iPad / Windows / macOS
• Input: 24V 5A

• (1) xTool F1 Laser Engraver
• (1) Triangular prism working panel
• (1) L-shaped positioning piece
• (1) Lint-free cloth
• (1) Material pack
• (1) Slide Extension for F1 Laser Engraver
• (1) Movable ruler
• (1) Screwdriver
• (2) Material clamp 1
• (3) Material clamp 2
• (1) USB cable
• (1) User manual
• (1) Desktop Smoke Purifier for F1 Laser Engraver
• (1) RA2 Pro Rotary Attachment for F1 Laser Engraver
