WoodRiver

Portable Drill Guide

Item #194999 Model 650001-0000-A080
$ 199 99
$ 199 99 Was $199.99
New
  • Portable Drill Guide
  • Portable Drill Guide
  • Portable Drill Guide
  • Portable Drill Guide
  • Portable Drill Guide
  • Portable Drill Guide
  • Portable Drill Guide
  • Portable Drill Guide
1 8

WoodRiver

Portable Drill Guide

Item #194999 Model 650001-0000-A080
$ 199 99
$ 199 99 Was $199.99
Achieve drill press precision with the portability of a hand drill using the WoodRiver® Drill Guide. Engineered for smooth, precise operation with. . . View More Details
In Stock Online Shipping Info
Items you may need

  • F1 Dust Mask Filter (M)

    $ 6 00
    $ 6 00 Was $9.99 Save $3.99 (39% off)
    F1 Dust Mask Filter (M) alt 0

  • Cappture Safety Glasses - Over the Glasses Fit

    $ 15 99
    $ 15 99 Was $15.99
    Cappture Safety Glasses - Over the Glasses Fit alt 0

  • Dry Longlife Automatic Pencil

    $ 16 99
    $ 16 99 Was $16.99
    Dry Longlife Automatic Pencil alt 0

  • Tape Measure - Lefty / Righty

    $ 11 99
    $ 11 99 Was $11.99
    LEFTY/RIGHTY 16' (1) alt 0

  • All Purpose Sandpaper - 9" x 11" - 5 Pack

    $ 6 99
    $ 6 99 Was $6.99
    9X11 ALL PURPOSE 100 GRIT(5) alt 0

Details

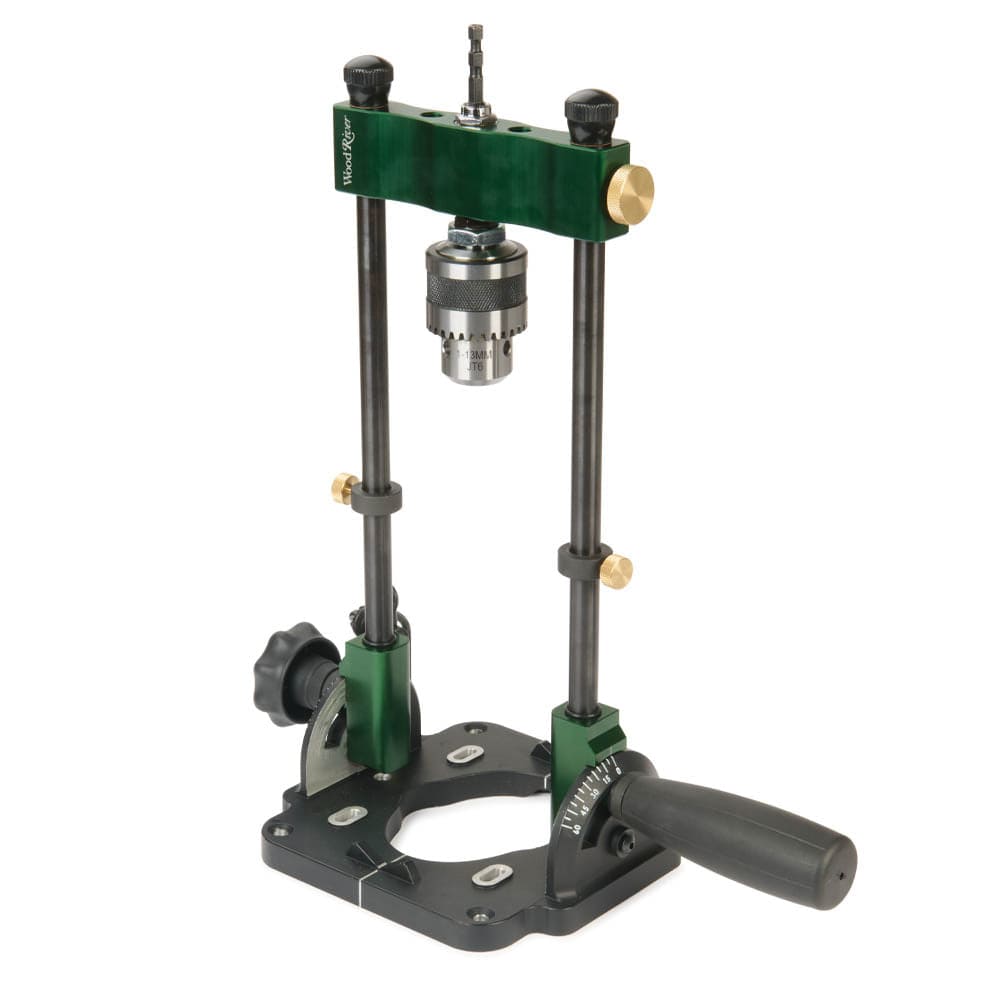

Achieve drill press precision with the portability of a hand drill using the WoodRiver® Drill Guide. Engineered for smooth, precise operation with virtually zero play, this versatile tool delivers exceptional accuracy and control. Simply attach your drill to the 1/4'' hex shank, and you're ready to tackle any project.

The robust handle, with a comfortable rubber casing, provides a substantial feel, while the heavy-duty 1/2'' chuck securely grips large bits with ease. The WoodRiver® Drill Guide delivers unmatched versatility, allowing you to drill at any angle from 0° to 60° with the help of its easy-to-read protractor scale—setting a new standard for precision and control.


For repetitive tasks like shelf pin installation, the built-in depth stop guarantees consistent drilling depth every time. The base features mounting holes for shop-made jigs, and the V-notches make it easy to drill perfectly centered holes in dowels and other round stock.


Features:



  • Smooth sliding plunge action with virtually zero play
  • Smooth ball bearings in chuck housing for efficient transfer of power
  • Large capacity: 9-5/16'' from chuck tip to bottom of base

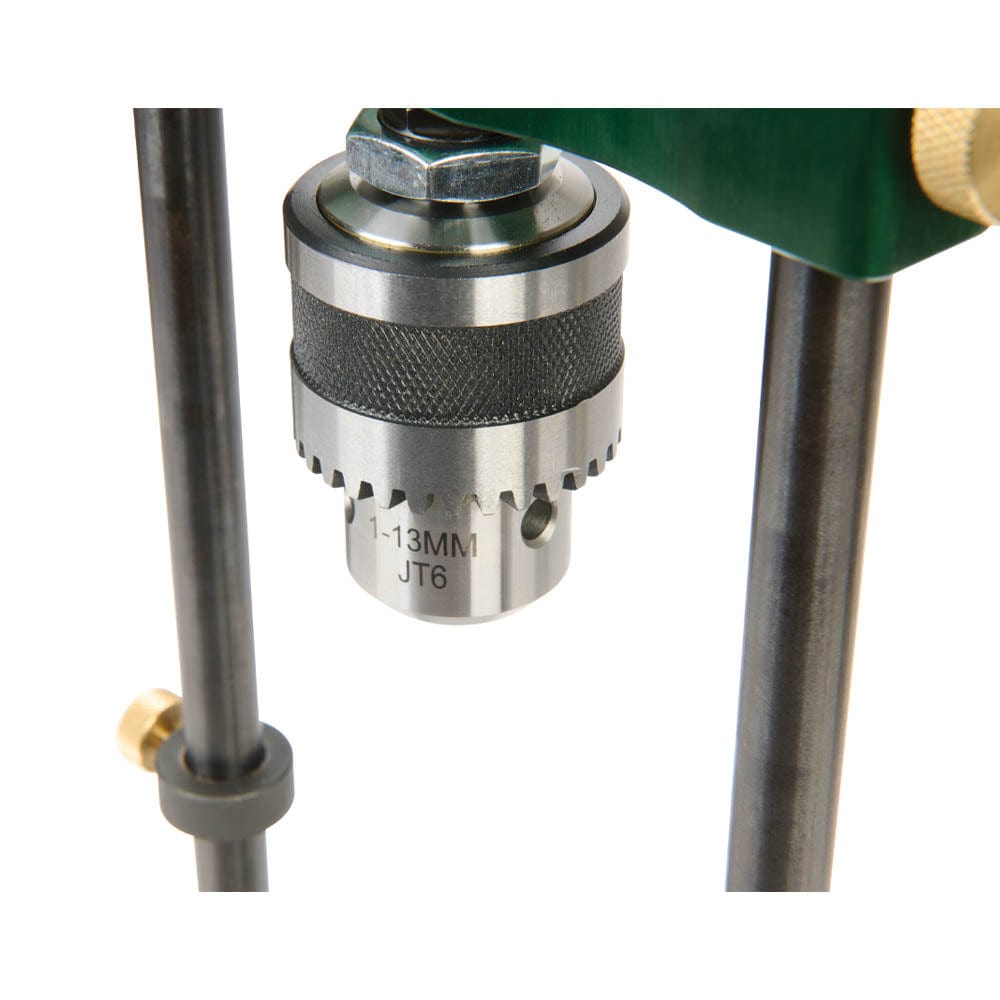

  • Sturdy 1/2'' Jacobs-style chuck—works with bits up to 2-7/8'' in diameter
  • Drill attaches to the quick-change compatible 1/4'' hex shank on top

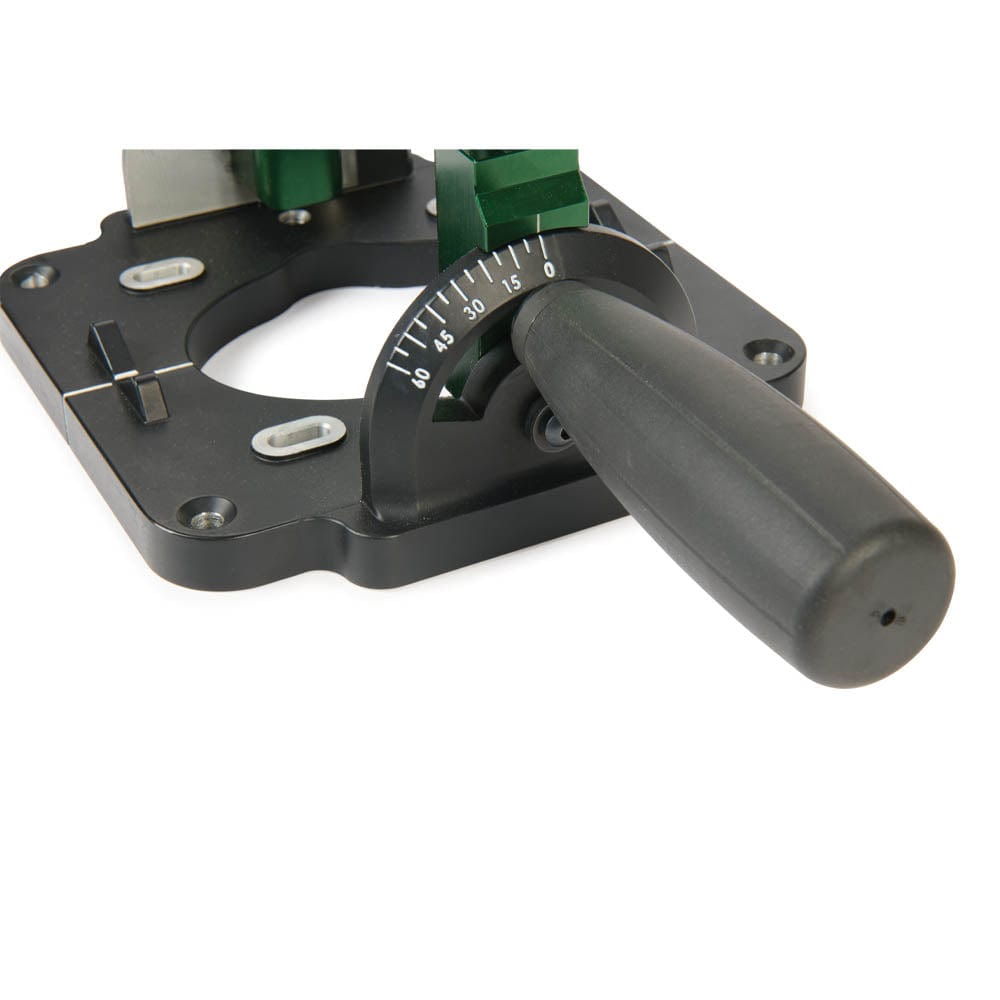

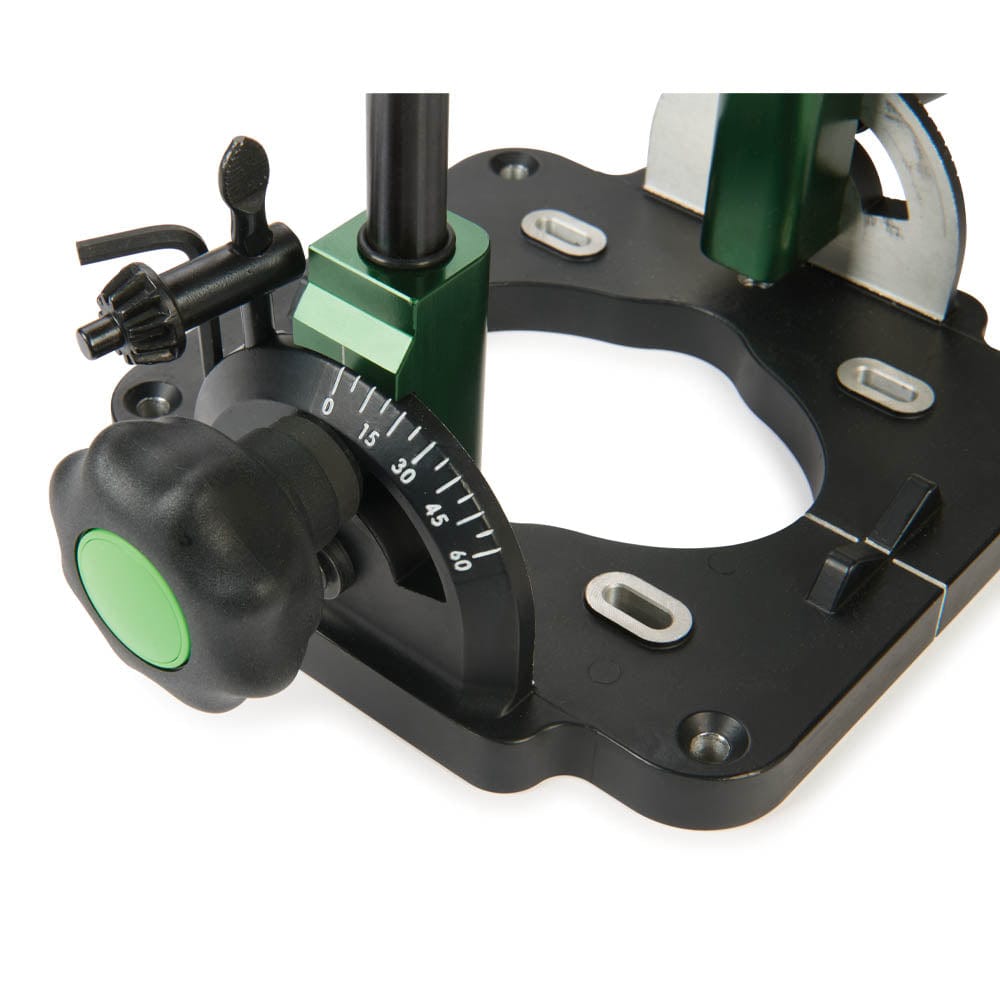

  • Engraved protractor scale for angled drilling from 0° to 60°
  • Integral depth stop for repeatable drilling at a set depth
  • V-notches for drilling center holes in dowels and other round stock
  • Included metal pins attach to base so the Drill Guide can be centered on board edges
  • Mounting holes on base accept a range of shop-made jigs

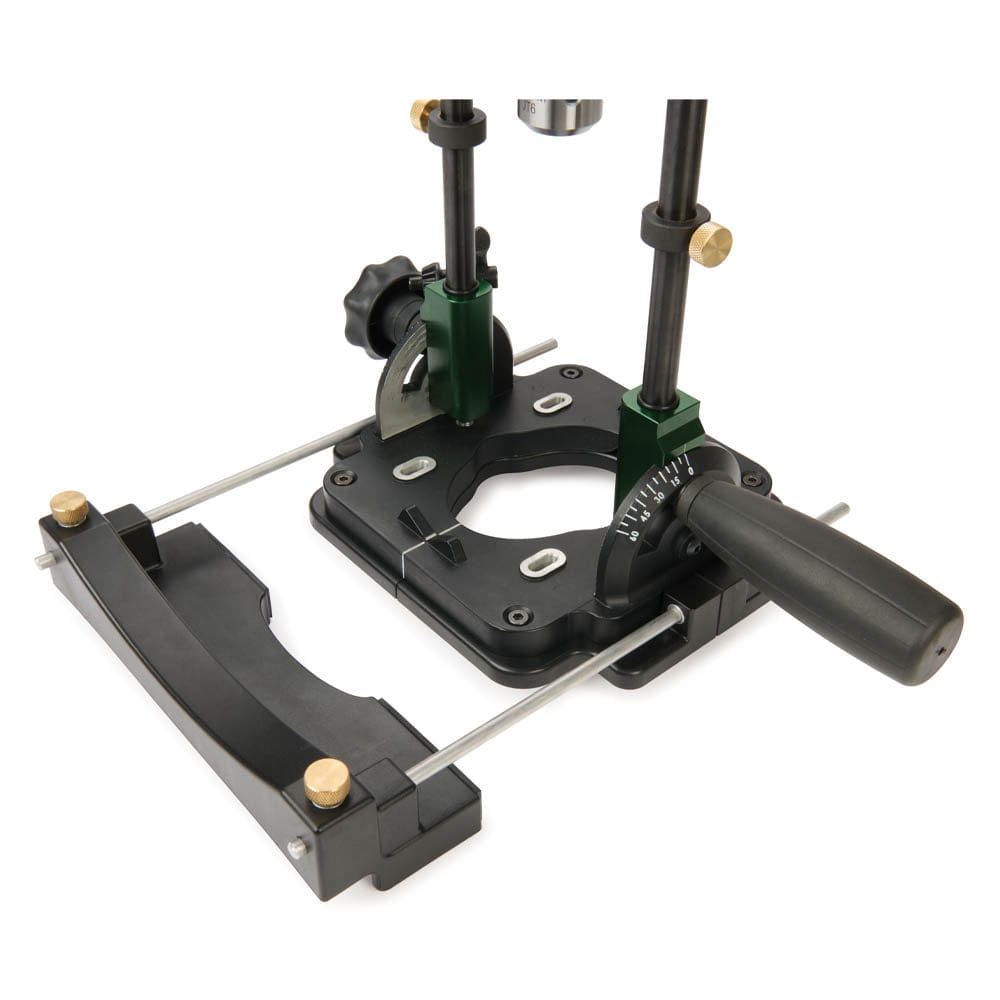

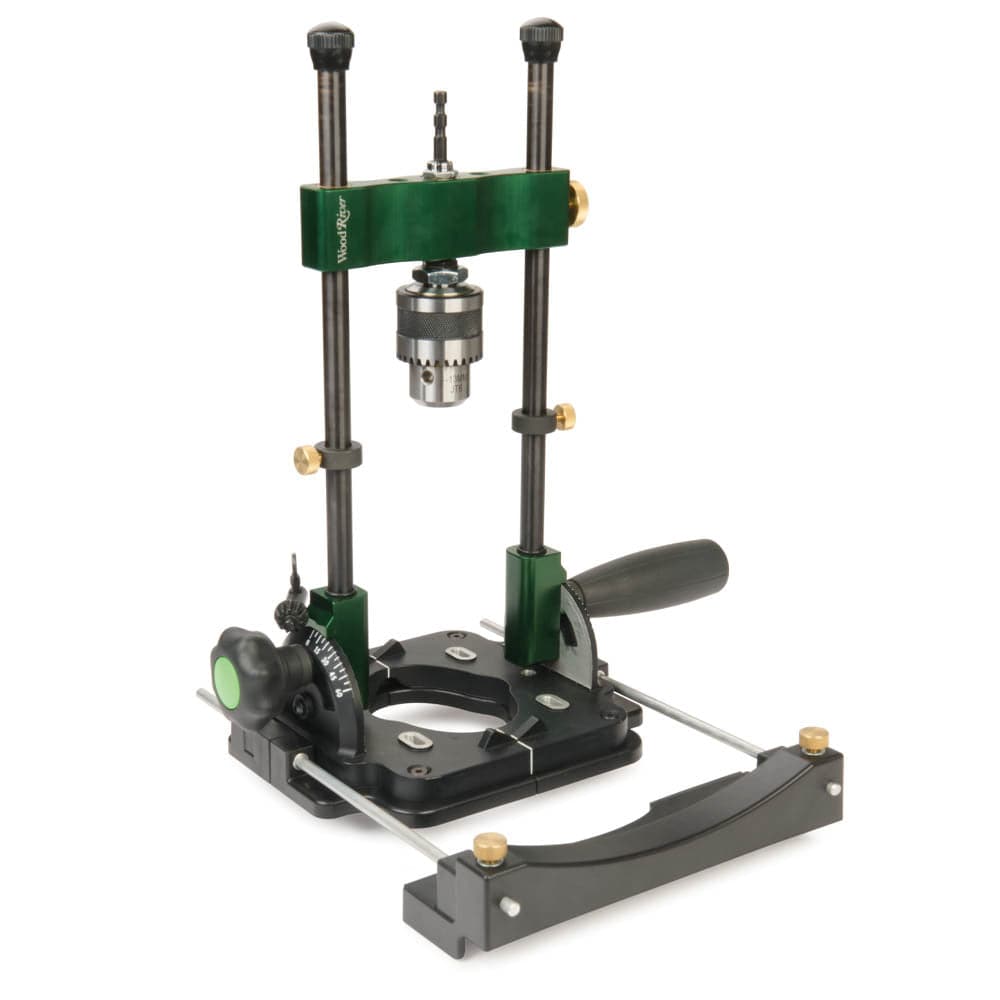

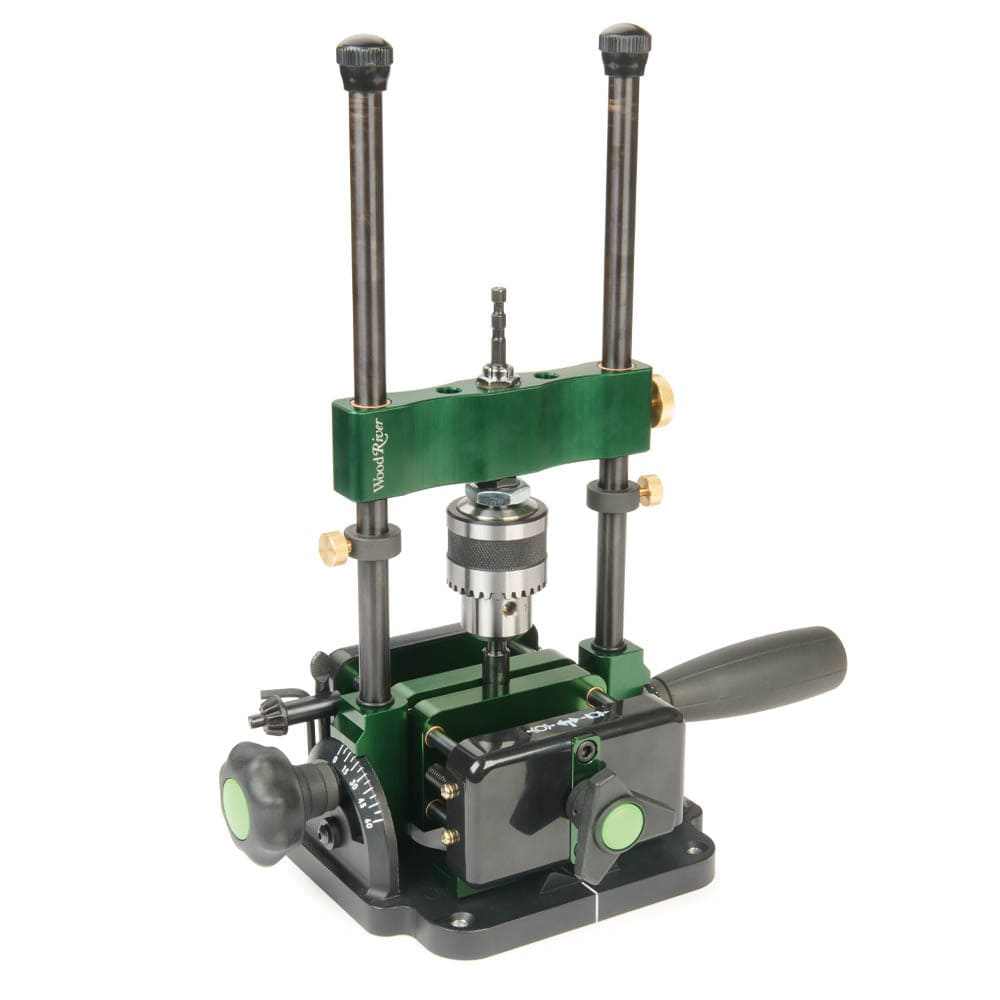

  • Accepts the optional Self-Centering Drill Vise (#195000) and the Edge Guide (#195001)


Specifications:


  • Distance From Chuck Tip to Bottom: 9-5/16''
  • Maximum Drill Shank Diameter: 1/2''
  • Maximum Drill Bit Diameter: 2-7/8''
  • Chuck Type: Jacobs-style 3-jaw
  • Dimensions of Opening in Base: 3'' x 4'' oval


What's Included:


  • (1) WoodRiver® Drill Guide
  • (1) Chuck Key
  • (2) Centering Pins

Note:

  • Hex wrench shown in pictures is not included.
