Wood-Mizer

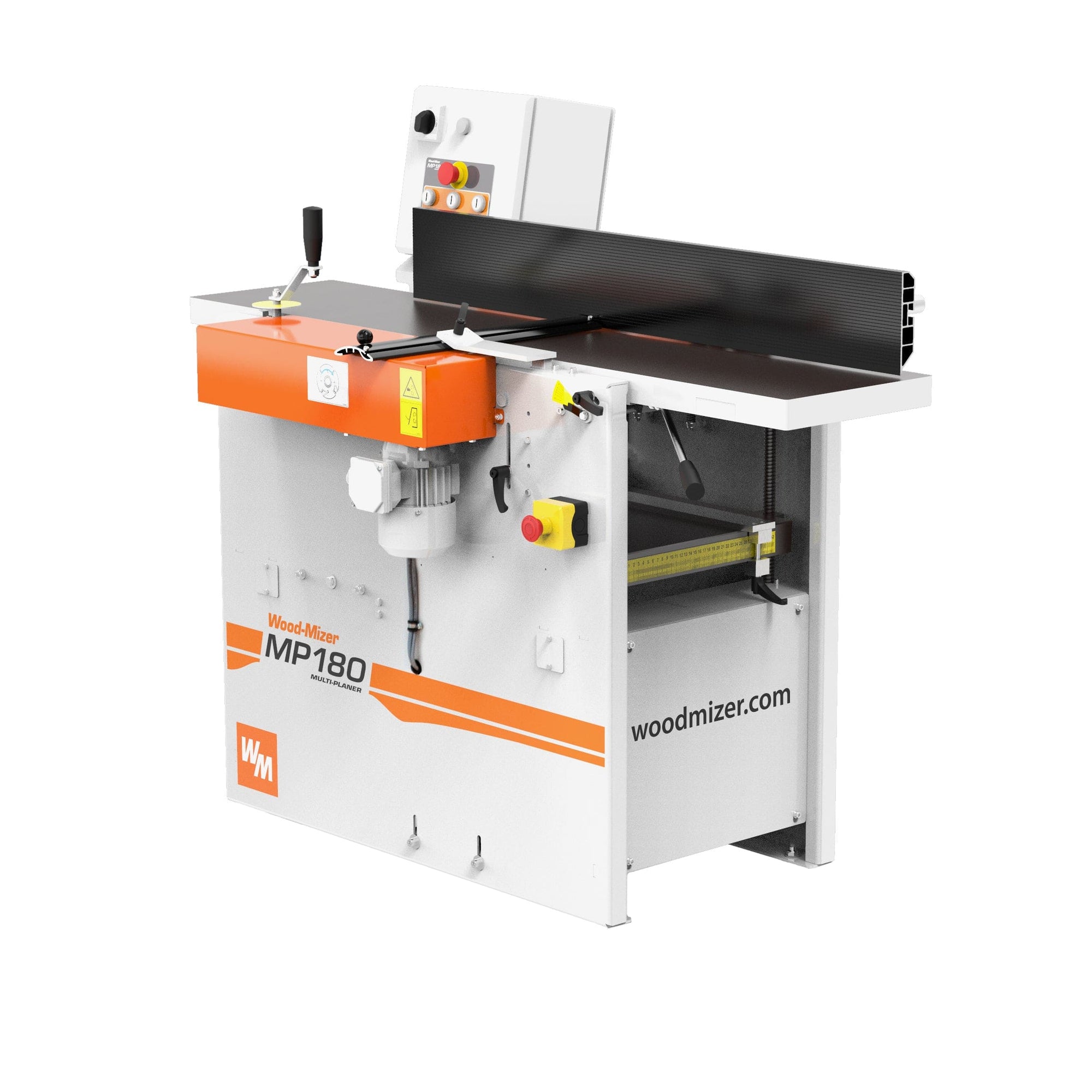

MP180 Planer / Jointer / Moulder - 230v 1Phase with Variable Feed

Item #191172 Model MP180EA6U-V
Regular price $8,995.00
Sale price $8,995.00 Regular price $8,995.00
The Wood-Mizer MP180 is a three-in-one Jointer Planer and Moulder able to produce tongue and groove paneling, shiplap, trim, and more. The MP180 effic. . . View More Details

Ships from Manufacturer

Shipping Info

Details

The Wood-Mizer MP180 is a three-in-one Jointer Planer and Moulder able to produce tongue and groove paneling, shiplap, trim, and more. The MP180 efficiently shares one horizontal cutter between two cast iron tables to produce straight-edged boards with the top jointer table and evenly planed boards with the bottom planer table. Switching between jointing and planing is done easily by moving the board from one table to the other without needing to adjust the table or stop the cutter or extractor. In addition, the MP180 features one vertical side cutter that can be fitted with planning or moulding profile knives. The vertical side cutter moulds material on one side with each pass through the bottom planer table. Profiles like tongue and groove can be completed in two passes.

Features:
  • Joint, Planing & Moulding in one unit
  • Cast Iron Tables
  • 45˚ Adjustable Fence
  • Variable Speed Control
  • Dust Port For Each Cutting head
  • Compact Construction
  • No adjustments need to go from jointing to planing
Specifications:
  • Max Jointer width: 12" (305m)
  • Jointer table length: 55" (1,410mm)
  • Max Jointer chip thickness: 5/16" (8mm)
  • Jointer fence: 6" x 43" (152mm x 1,100mm)
  • Max Planer width: 16" (410mm)
  • Max Planer height: 9-1/2" (241mm)
  • Planer table length: 32-1/2" (826mm)
  • Max Planer chip thickness: 1/8" (4mm)
  • Max Moulder height (standard): 2" (51mm)
  • Max Moulder height (optional): 4" (102mm) with side cutter head extension
  • 2-Sided Planing/Moulding width: 1" (25mm) to 12” (305mm)
  • Power – vertical side cutter: 4HP (3kW) motor
  • Horizontal cutter profile depth: 1/16" (2mm)
  • Horizontal cutter diameter: 2-7/8” (73mm)
  • Horizontal cutter spindle speed: 5600 rpm
  • Power - horizontal cutter: 4HP (3kW) motor
  • Planer knives: 2 horizontal and 2 vertical HSS planer knives included
  • Feed roller diameter: 1-1/4" (32mm)
  • Power - variable feed motor: 3/4HP (0.55kW)
  • Planetary gear for variable feed: 6 - 39 fpm (2 - 12 mpm)
  • Connection requirements: 1-phase, 240V, 60Hz, 38A
  • Shipping weight: 1075 lbs (420kg)
  • Shipping length x width x height: 63" x 42" x 54" (1600mm x 1054mm x 1370mm)
  • Delivery: Pallet
  • Warranty: 2-Year
Included with Product:
  • Straight knives for each cutting head
  • Joint/Planer fencing and safety guards
  • Parts kit and manual
