Knape and Vogt

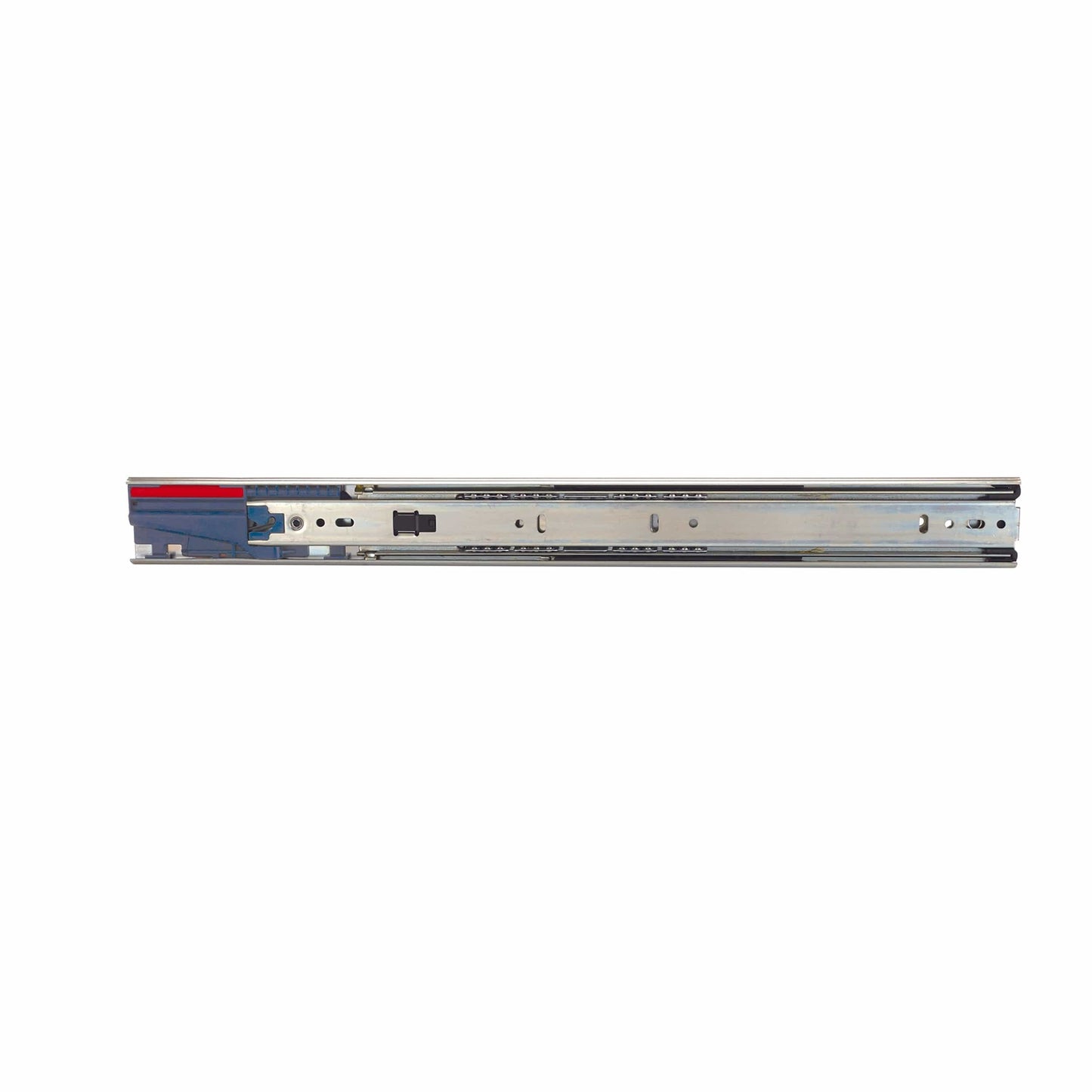

Soft-Close Full Extension Side Mount Drawer Slide - Pair

Item #160592 Model 8450FMRP 16
Regular price $34.99
Sale price $34.99 Regular price $34.99
The new Knape and Vogt® KV 8450FM Series is a step forward in side-mounted ball-bearing drawer slides. The KV8450FM series incorporates state-of-t. . . View More Details
Length

In Stock

Shipping Info

Items you may need

  • Rear Mounting Brackets - Pair

    Regular price From $6.99
    Sale price From $6.99 Regular price $6.99
    160591.0

Details

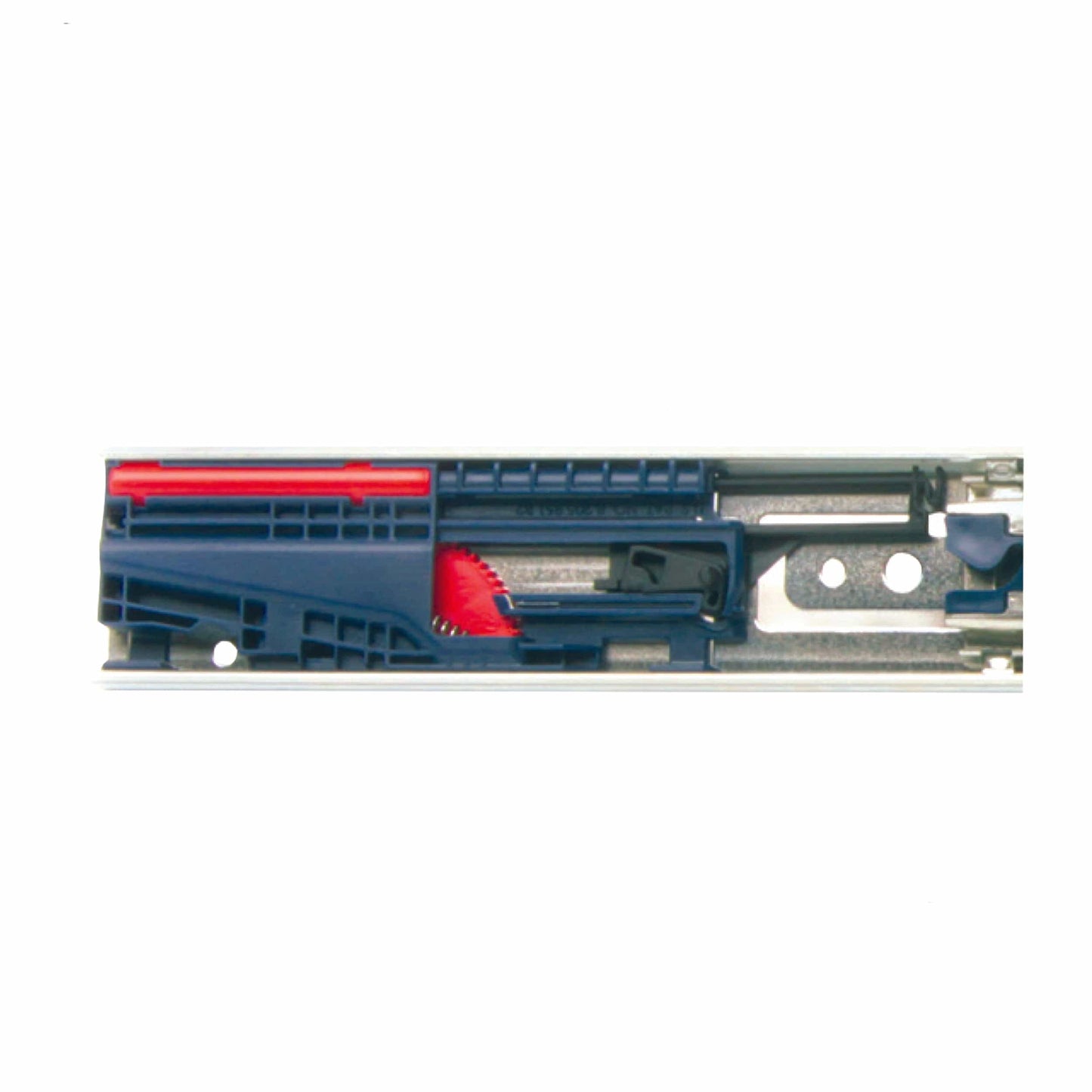

The new Knape and Vogt® KV 8450FM Series is a step forward in side-mounted ball-bearing drawer slides. The KV8450FM series incorporates state-of-the-art, “best of class” soft-close technology. The fully integrated soft close module brings a drawer box to a smooth, quiet and secure closure. Soft-close module is fully integrated into the KV8450-style slide with same side clearance as standard slides, allowing cabinetmakers to migrate directly to KV8450FM series products with no setup changes. All bright chrome finish. Sold in pairs.

Features:


  • Best-of-Class Soft-Close Technology
  • Soft-close module is fully integrated into the KV8450-style slide with same side clearance as standard slides, allowing cabinetmakers to migrate directly to KV8450FM series products with no setup changes
  • Non-handed design
  • Compare to Accuride 3832SC
  • Sold in pairs

Specifications:

  • Model: KV 8450FMRP 16
  • Size: 16"
  • Exceeds KCMA, BHMA and BIFMA standards of performance: over 50,000 cycles including the soft-close module
  • 32 mm Hole pattern with direct access mounting
  • Load Rating: 100 lb

What's Included:

  • (2) Knape and Vogt - 16" Soft-Close Full Extension Side Mount Drawer Slide (1 Pair)

Notes:

  • Face frame brackets available (#160596)
