  Tigra USA Inc.

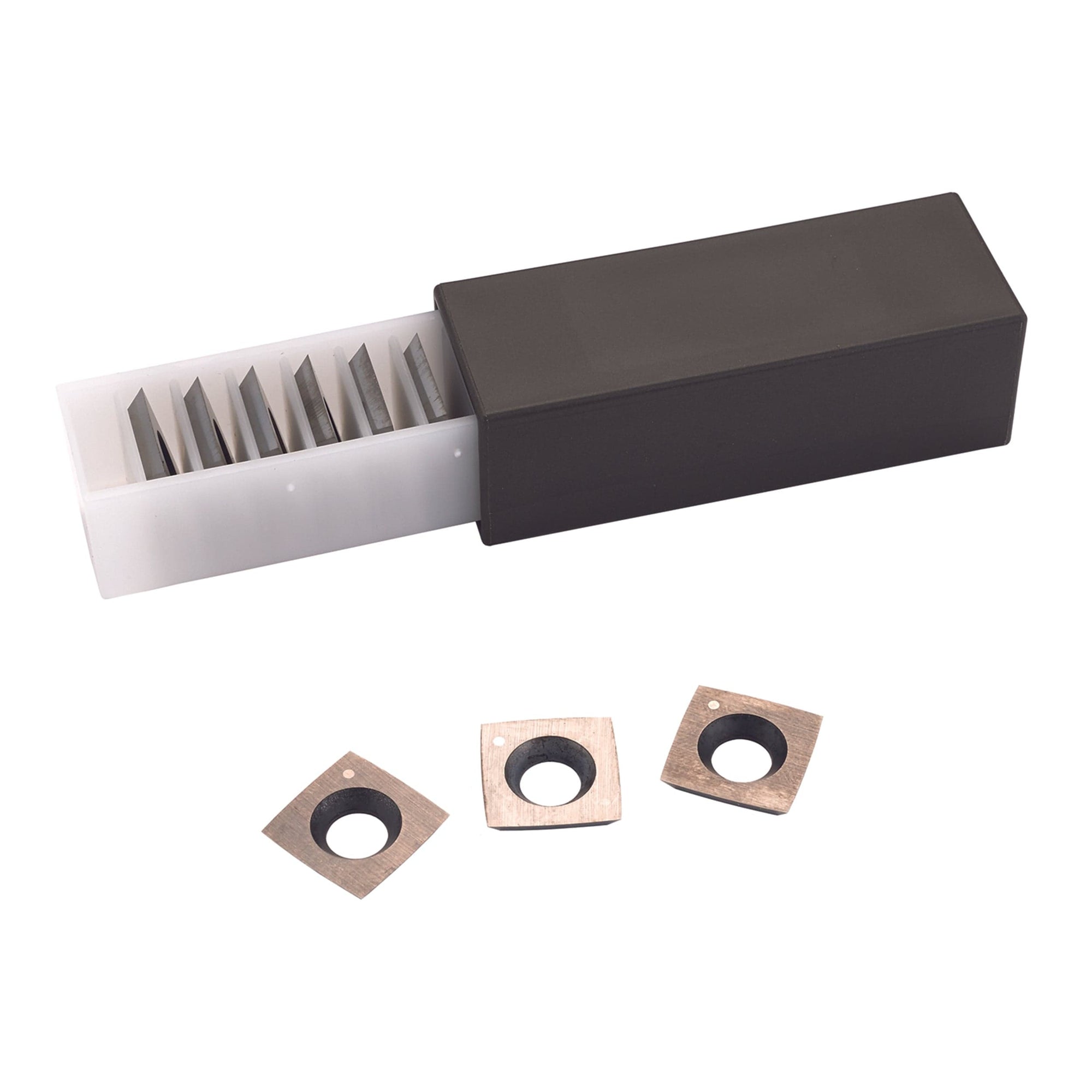

  Replacement Carbide Inserts for Byrd Shelix Cutterheads - 10 Pack

  $78.99
•

  Powermatic

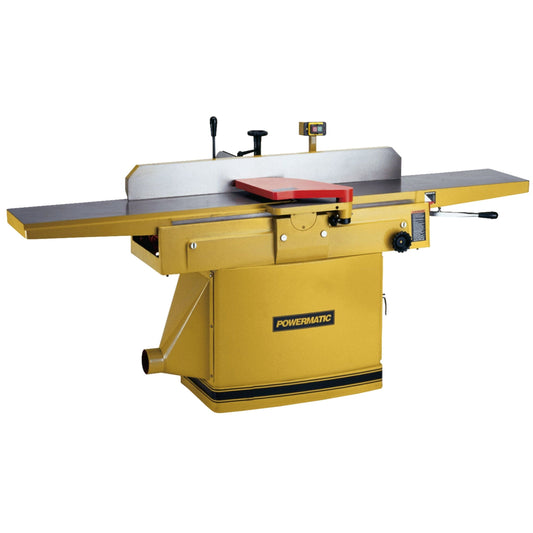

  12" Jointer - 3 HP 3 Ph 230V/460V - Helical Cutterhead - 1285

  +$10,339.00


  Powermatic

  12" Jointer - 3 HP 3 Ph 230V/460V - Helical Cutterhead - 1285

  Item #412086 Model PM9-1791308

  More Info

  This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard three-knife cutterhead or the solid steel Helical cutterhead. The helical system makes fast work of knife changing and never needs adjustment.

  Features:
  • Helical cutterhead with 2-sided carbide inserts for fast knife changes with no adjustments
  • Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
  • Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
  • Large 84" x 12" table surface for heavy-duty work
  • Table "lips" on both sides of cutterhead aid in noise reduction
  Specifications:
  Full size rabbeting ledge supports large workpieces for rabbets up to 3/4" deep
  3HP motor provides plenty of power
  Cutterhead guard
  Heavy duty fence
  Dust port
  Push blocks
  Tool kit
  Cutterhead Speed (RPM) : 5000
  Cutting Capacity (W x D/in) : 11-3/4 x 3/4
  Dust Collection Minimum CFM Required : 800
  Dust Port Diameter (OD/in) : 6
  Fence Positive Stops (deg.) : 45, 90 and -45
  Fence Size (L x H/in) : 47 x 5-1/2
  Fence Tilts (deg.) : 45 right, 45 left
  Height (in): 39
  Length : 89.5 inch
  Model Number : 1285
  Motor HP : 3HP
  Motor Phase : 3Ph
  Motor Voltage : 230V/460V*
  Prewired : 230V, *Requires an optional 460V Mag Switch
  Net Weight : 812 lbs
  Number of Knives (Helical/Standard) : 42 two-sided inserts (30 x 12 x 2mm) with 2 rabbeting inserts
  Overall Dimensions : 89.5 x 28 x 39
  Part Number : 1791308
  Standard Knife Size (L x W x T/in) : 30 x 12 x 2 mm (inserts)
  Table Height (in) : 31-1/2
  Table Size (L x W/in) : 84 x 12
  Width (in): 28
  Shipping weight 880 lb.

  Shipping / Billing Information

  All shipments must be inspected and any damage reported within 3 days of receipt.
  Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
  This product ships direct from the manufacturer:


  • Your order will ship in 4 -7 approximately business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

  Return Information

  All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.

  Warranty Information

  Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft.

•

  Powermatic

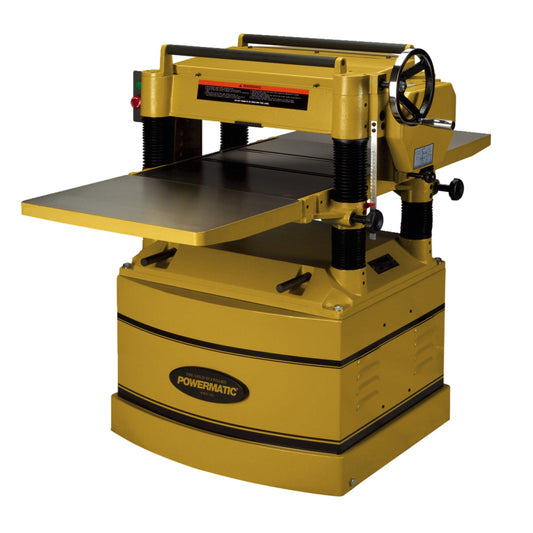

  20" Planer - 5 HP 1 Ph 230V - Helical Cutterhead - 209HH

  +$6,269.00


  Powermatic

  20" Planer - 5 HP 1 Ph 230V - Helical Cutterhead - 209HH

  Item #835285 Model PM9-1791315

  More Info

  This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The helical cutterhead provides quieter operation and finer finishing than conventional systems, and the four-sided knife inserts seat themselves without requiring a set-up gauge. The 5" dust port connects easily to any dust collector. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.




  Features:

  • 5HP motor and 20" planing capacity for heavy duty work
  • Fully enclosed base cabinet with integrated casters for shop mobility
  • Cast iron table with extensions creates a big 55-1/2" x 20" working area
  • Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility
  • Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
  • 5" diameter dust port
  • Cast iron extension tables


  Specifications
• Amps : 21
• Dust Collection Minimum CFM Required : 900
• Dust Port Diameter (OD/in) : 5
• Feed Rate (FPM) : 24 and 31 (16 and 20 with gear change)
• Height (in) : 41.375
• Length (in) : 26
• Maximum Depth of Cut (in) : 3/32
• Maximum Planing Thickness (in) : 8
• Maximum Planing Width (in) : 20
• Minimum Planing Length (in) : 6-3/4
• Net Weight : 800 lb
• Number of Speeds : 4
• Overall Dimensions : 26 x 36-5/8 x 41-3/8
• Readout Scale : in/mm
• Rotation (Forward/Reverse) : Fwd
• Table Size (in) : 20 x 55-1/2
• Table Support : 4 column
• Width (in) : 36.625
• Shipping weight 890 lb.
