Powermatic

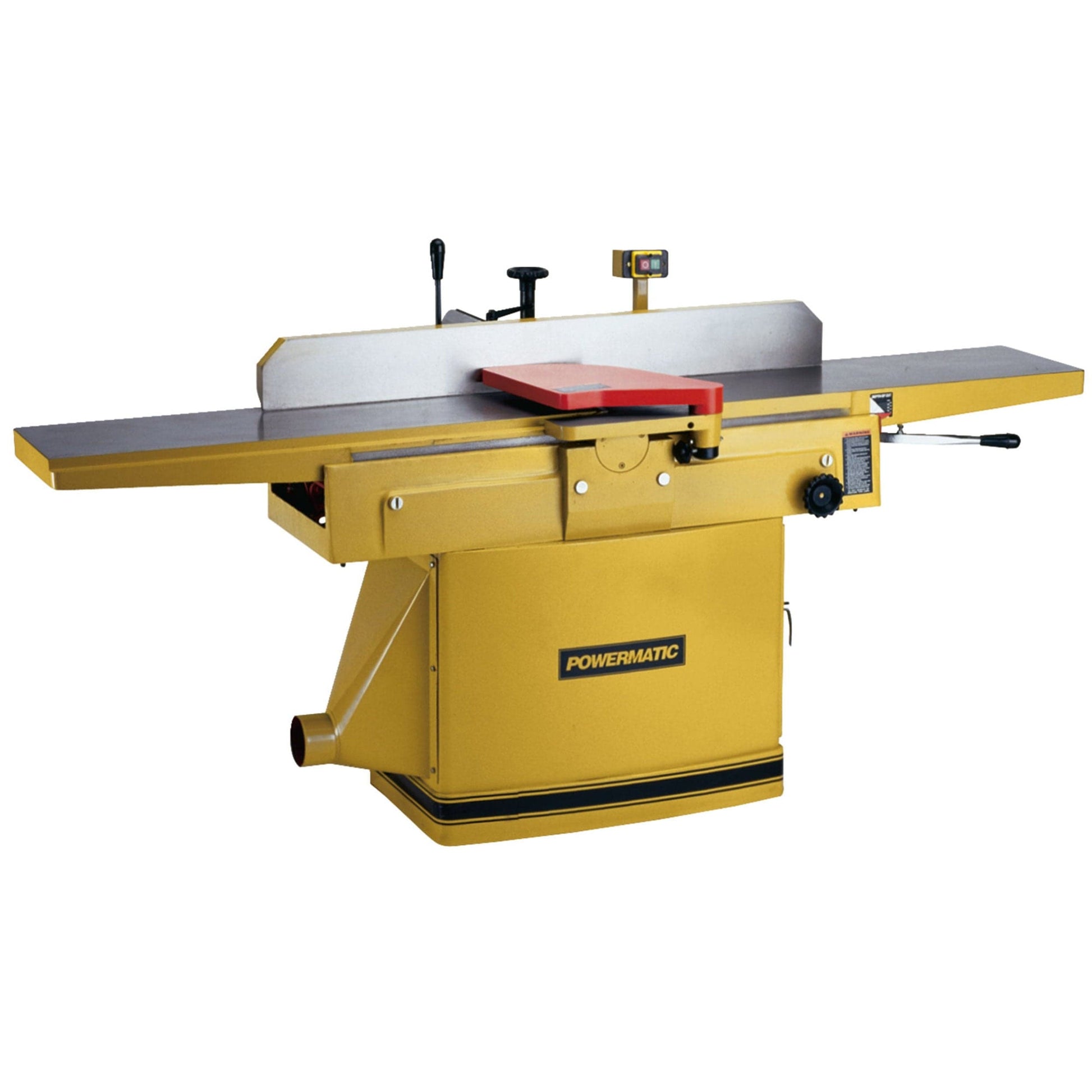

12" Jointer - 3 HP 3 Ph 230V/460V - Helical Cutterhead - 1285
Powermatic
12" Jointer - 3 HP 3 Ph 230V/460V - Helical Cutterhead - 1285
Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.
Details
Features:
• Helical cutterhead with 2-sided carbide inserts for fast knife changes with no adjustments
• Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
• Large 84" x 12" table surface for heavy-duty work
• Table "lips" on both sides of cutterhead aid in noise reduction
Specifications:
Full size rabbeting ledge supports large workpieces for rabbets up to 3/4" deep
3HP motor provides plenty of power
Cutterhead guard
Heavy duty fence
Dust port
Push blocks
Tool kit
Cutterhead Speed (RPM) : 5000
Cutting Capacity (W x D/in) : 11-3/4 x 3/4
Dust Collection Minimum CFM Required : 800
Dust Port Diameter (OD/in) : 6
Fence Positive Stops (deg.) : 45, 90 and -45
Fence Size (L x H/in) : 47 x 5-1/2
Fence Tilts (deg.) : 45 right, 45 left
Height (in): 39
Length : 89.5 inch
Model Number : 1285
Motor HP : 3HP
Motor Phase : 3Ph
Motor Voltage : 230V/460V*
Prewired : 230V, *Requires an optional 460V Mag Switch
Net Weight : 812 lbs
Number of Knives (Helical/Standard) : 42 two-sided inserts (30 x 12 x 2mm) with 2 rabbeting inserts
Overall Dimensions : 89.5 x 28 x 39
Part Number : 1791308
Standard Knife Size (L x W x T/in) : 30 x 12 x 2 mm (inserts)
Table Height (in) : 31-1/2
Table Size (L x W/in) : 84 x 12
Width (in): 28
Shipping weight 880 lb.
