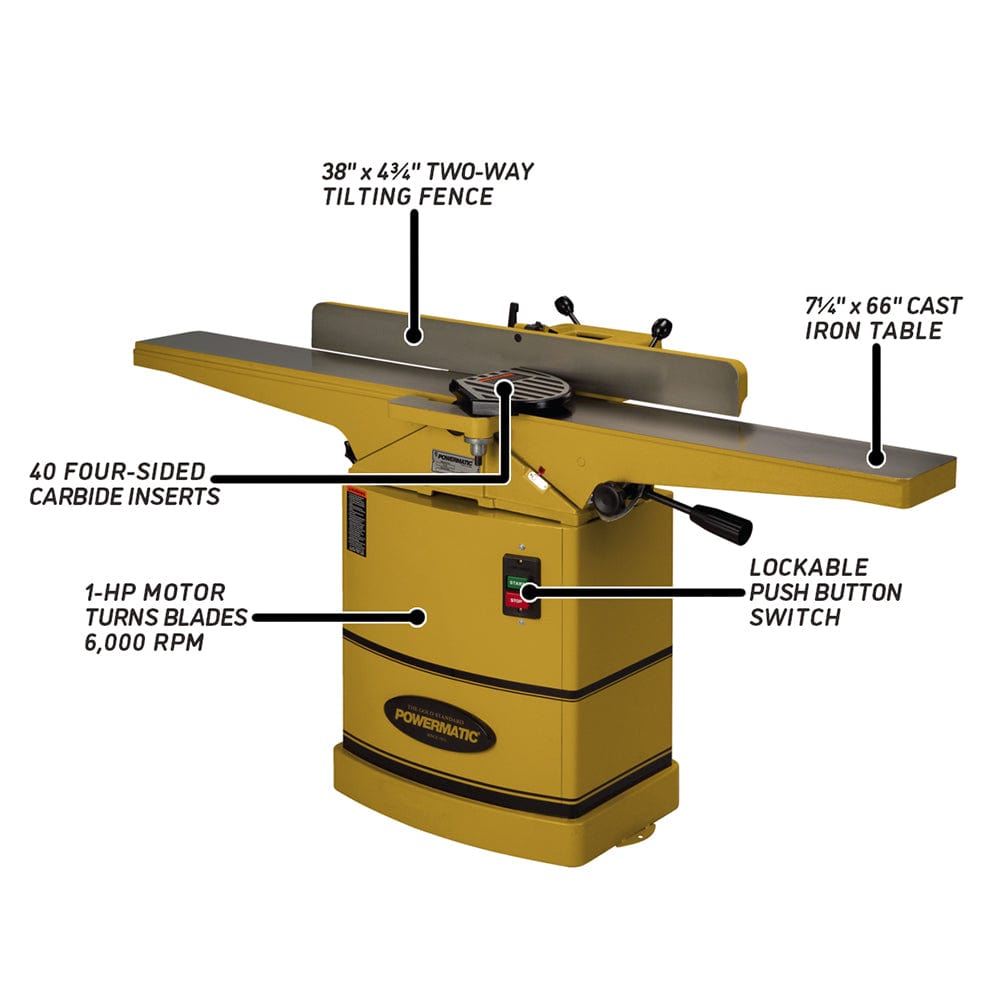

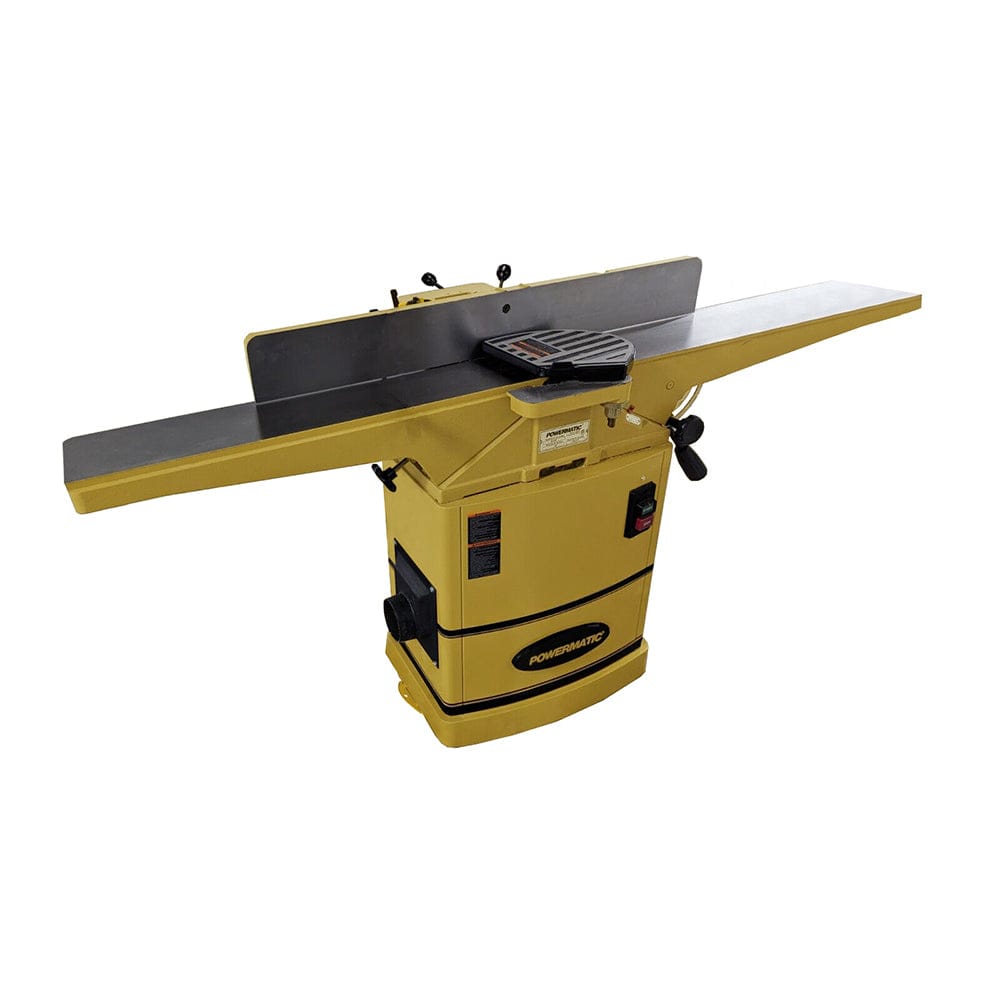

Features:

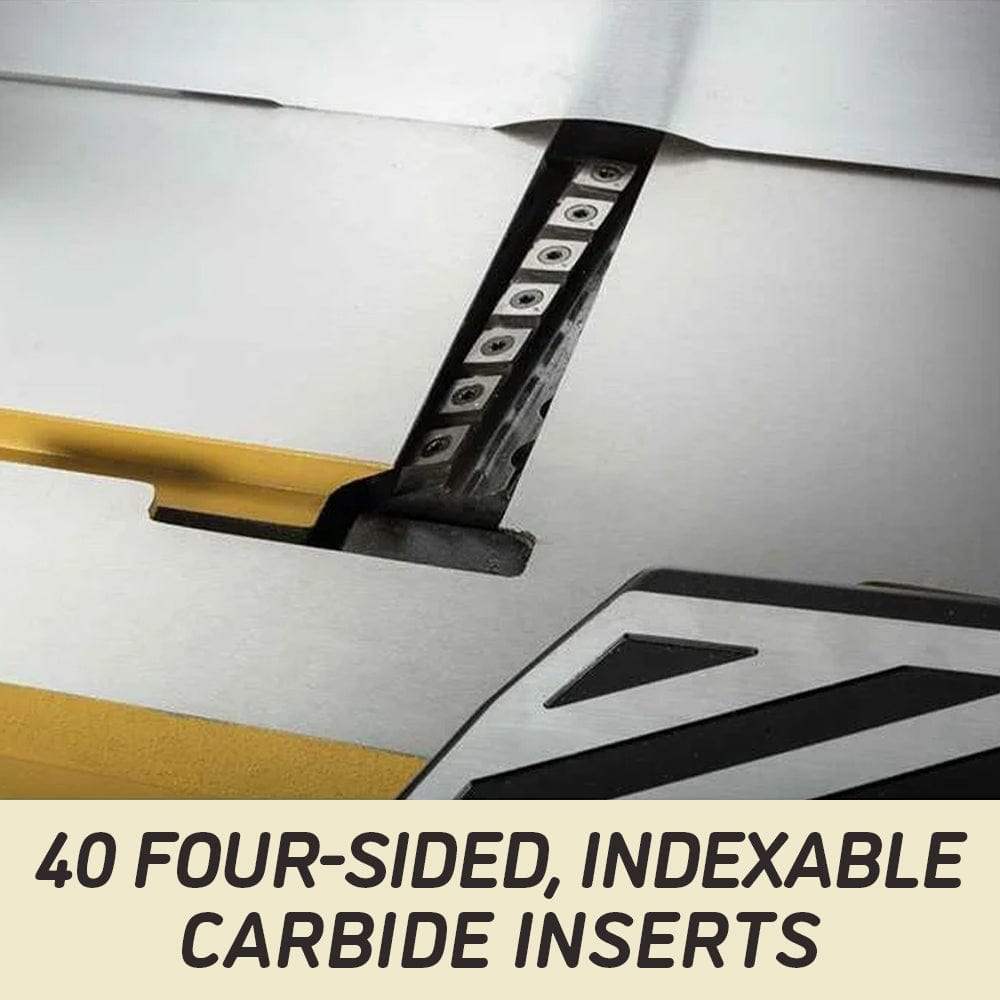

• Helical cutterhead with four-sided knife inserts provides smoother, quieter cutting and finer finish than conventional systems

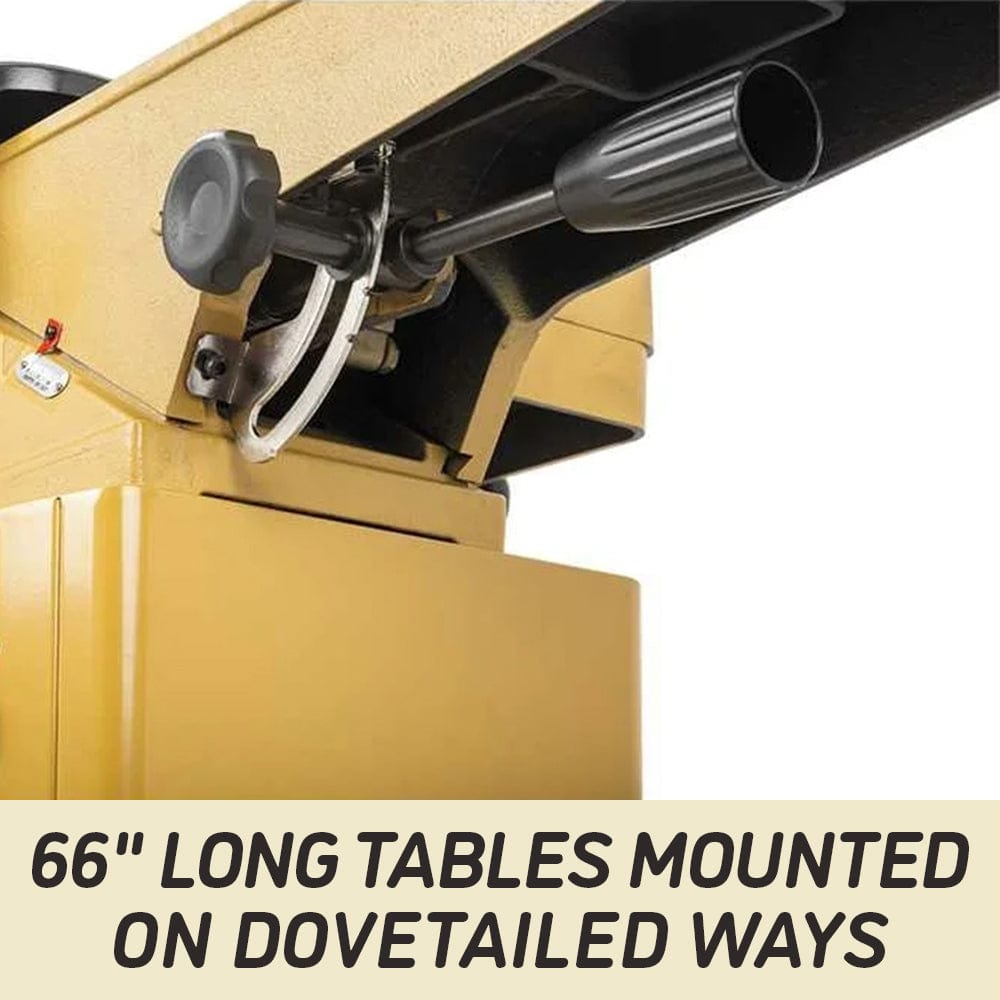

• 66" long adjustable infeed and outfeed tables provide more working surface
• Fine/quick adjustment lever on infeed table for precision cuts
• Extra-long 38" two-way tilting fence with positive stops provides quick positioning for 90° or bevel cuts
• Enlarged sheet metal stand provides a sturdy base
• 1HP motor offers plenty of power

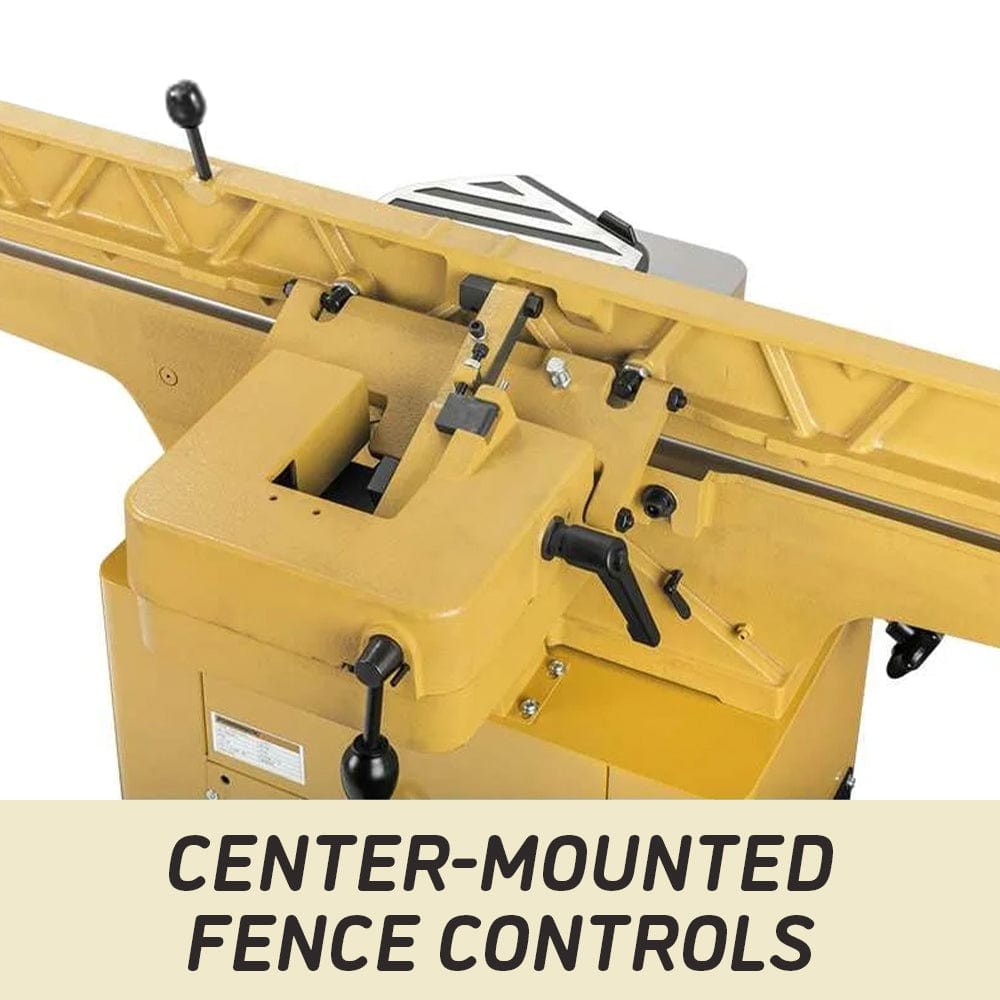

• Fence controls are center-mounted for convenience
• Push button switch is lockable to prevent accidental starting
Specifications:
4" port for dust collection
1HP TEFC Motor
Two push blocks
Dust collection port
Cutterhead guard
Industrial push-button switch
Cutterhead Speed (RPM) : 6000
Cutting Capacity (W x D/in) : 6 x 1/2
Dust Collection Minimum CFM Required : 800
Dust Port Diameter (OD/in) : 4
Fence Positive Stops (deg.) : 45 left, 90, 45 right
Fence Size (L x H/in) : 38 x 4
Fence Tilts (deg.) : 45 left, 45 right
Height (in) : 37.5
Infeed Table Length (in) : 32-1/2
Length (in) : 66
Model Number : 54HH
Motor Amps : 13/6.5
Motor HP : 1HP
Motor Phase : 1PH
Motor Voltage : 115/230V
Net Weight : 328 pound
Number of Knives (Helical/Standard) : 40 four-sided knife inserts
Outfeed Table Length (in) : 32-1/2
Overall Dimensions : 66 x 24 x 37-1/2
Part Number : 1791317K
Prewired : Prewired 115V
Standard Knife Size (L x W x T/in) : 0.59 x 0.59 x 0.10
Table Height (in) : 31-1/2
Table Size (L x W/in) : 66 x 7-1/4
Width (in) : 24
Shipping weight 328 lb.
