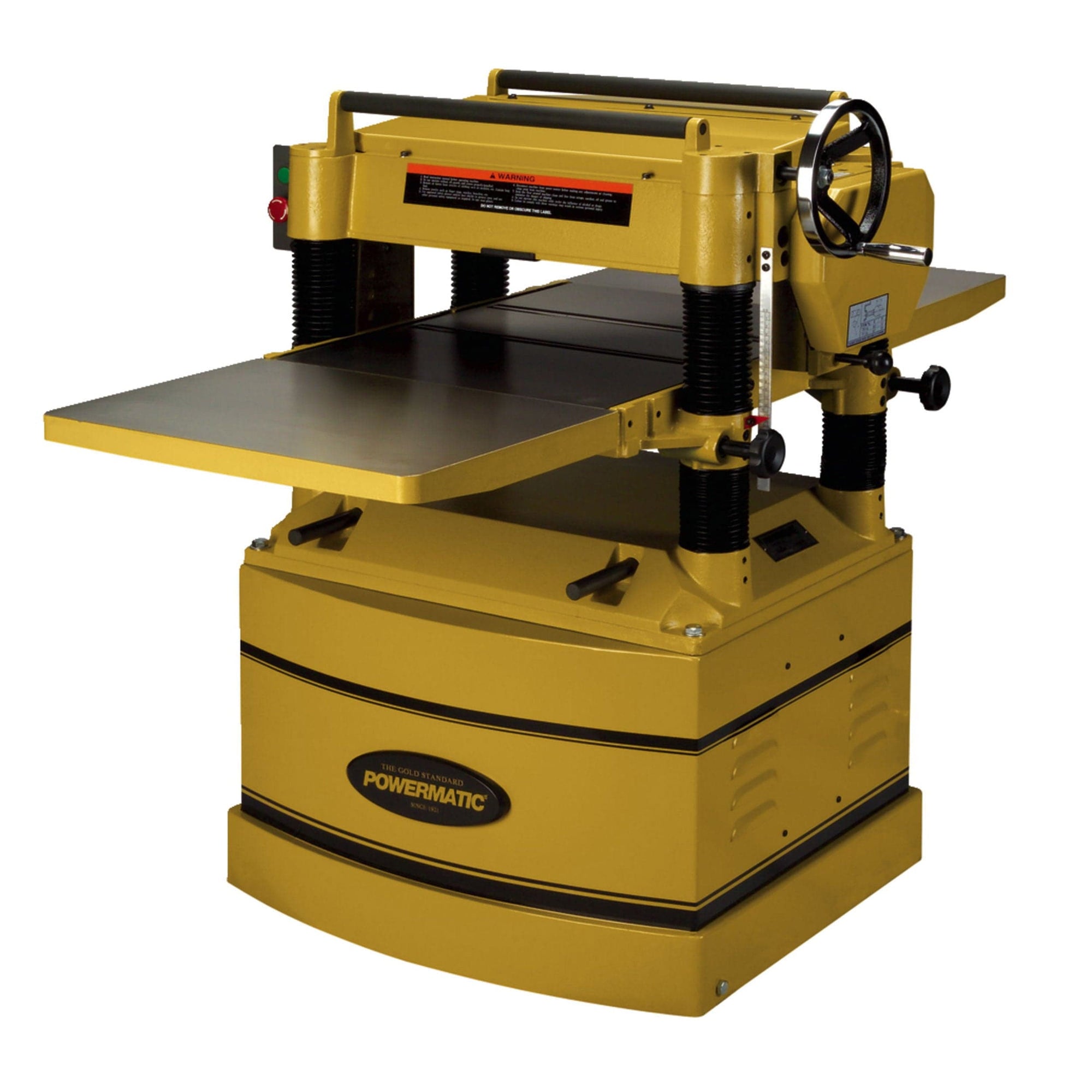

This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The helical cutterhead provides quieter operation and finer finishing than conventional systems, and the four-sided knife inserts seat themselves without requiring a set-up gauge. The 5" dust port connects easily to any dust collector. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.

Features:
5HP motor and 20" planing capacity for heavy duty work
Fully enclosed base cabinet with integrated casters for shop mobility
Cast iron table with extensions creates a big 55-1/2" x 20" working area
Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility
Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
5" diameter dust port
Cast iron extension tables
Specifications:
Amps : 21
Prewired: 230V
Dust Collection Minimum CFM Required : 900
Dust Port Diameter (OD/in) : 5
Feed Rate (FPM) : 24 and 31 (16 and 20 with gear change)
Height (in) : 41.375
Length (in) : 26
Maximum Depth of Cut (in) : 3/32
Maximum Planing Thickness (in) : 8
Maximum Planing Width (in) : 20
Minimum Planing Length (in) : 6-3/4
Net Weight : 800 lb
Number of Speeds : 4
Overall Dimensions : 26 x 36-5/8 x 41-3/8
Readout Scale : in/mm
Rotation (Forward/Reverse) : Fwd
Table Size (in) : 20 x 55-1/2
Table Support : 4 column
Width (in) : 36.625
Shipping weight 890 lb.
