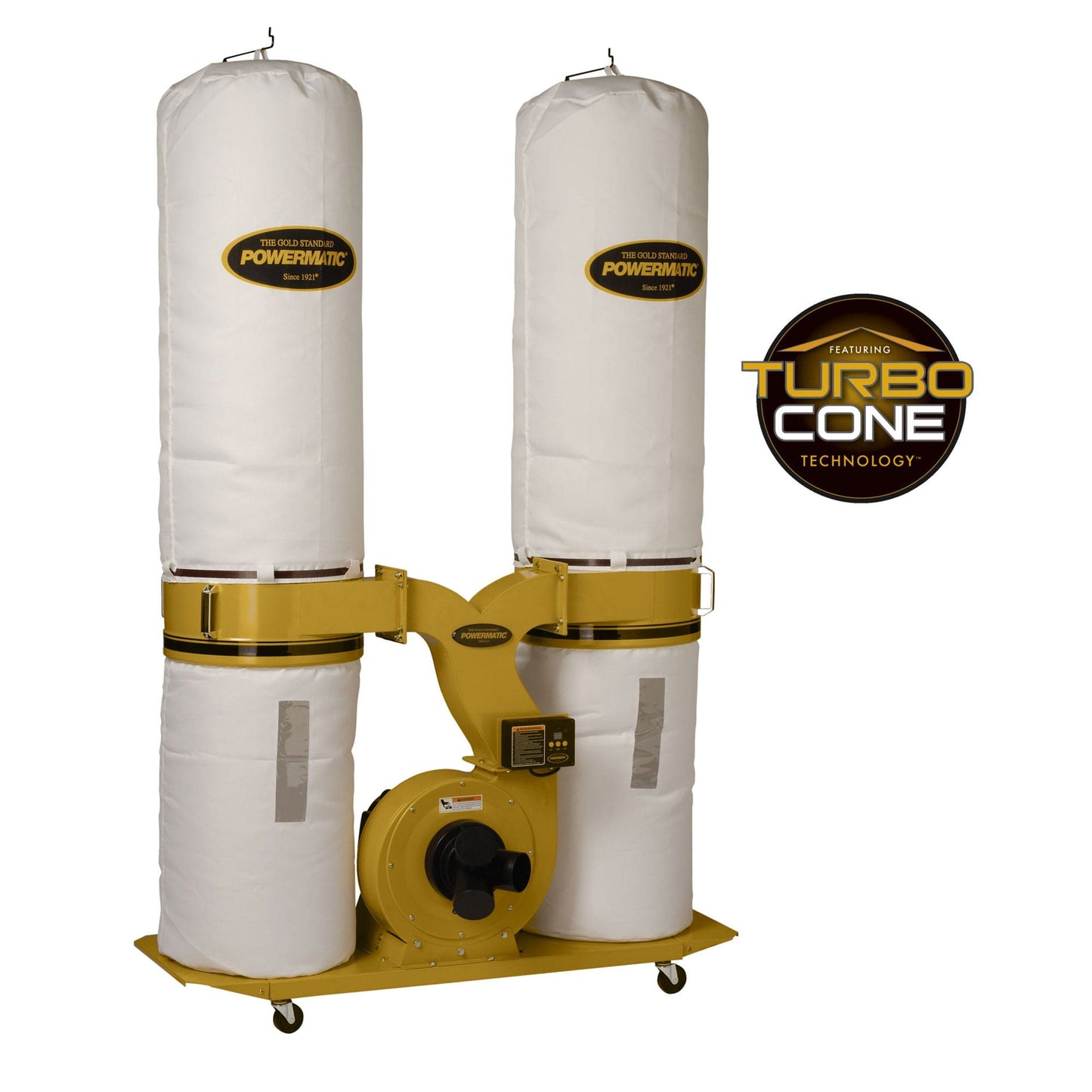

The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone™ improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers over six times the filtering area of standard filter bags, collects 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Multiple connection port capability makes this machine a central dust collection system for the entire woodworking shop. Four swivel casters and conveniently located handles allow for easy mobility.
Performance: Only fine particles move to the filter chamber making manual cleaning easier and decreasing health concerns
Prevention: Prevents the central airflow from floating chips into the filter chamber decreasing rapid performance drop due to premature clogging
Efficiency: Chips are better contained for increased packing density requiring fewer collection bag changes
Features:
TurboCone improves chip separation and collector bag packing efficiency
The cone eliminates premature filter clogging for sustained performance
Remote-controlled digital timer can be programmed for up to 99 minutes
All-metal duct construction for rigidity and improved air flow
30-micron filter bags for improved capture of fine dust particles
The large impeller is powered by a 3HP motor for peak performance
Triple 4” dust ports allow for several hoses to be attached at the same time
Cloth collection bags with view window use a snap ring for rapid installation/removal
10 cubic feet collection bag capacity reduces number of bag changes.
Tall filter bags require less cleaning due to the larger surface area
Four swivel casters for shop maneuverability
Length : 46 inch
Model Number: 1792071K
Specifications:
Overall Dimensions: 61" x 30" x 94"
Height: 28"
Width: 23"
Length: 46"
Net Weight: 211 lbs
Remote Control: Yes
Sound Rating: 75-90 dB
1-Hose Connection Diameter: 8"
2-Hoses Connection Diameter: 4"
3-Hoses Connection Diameter: 4"
Bag Diameter: 20"
Filter Bag/Canister Length: 48"
Collection Bag Capacity: 10 cubic foot
Collection Bag Length: 30"
Air Flow @ 4": 234 cu.ft/min
Air Flow @ 8": 1,754 cu.ft/min
Static Pressure: 11.31 inch of water
Particle Size (Micron): 96% of 30 micron particles
Velocity @ 4": 5,200 foot per minute
Air Inlet: (1) at 8" or (3) at 4"
Impeller Diameter: 14"
Impeller Fins: 7
Impeller Material: Steel
Separator Tank Diameter: 20"
Separator Tank Height: 10"
Motor Power: 3 HP
Motor Phase: 1 Ph
Motor Voltage: 230V
Prewired Voltage: 230V
Motor Current: 15A
