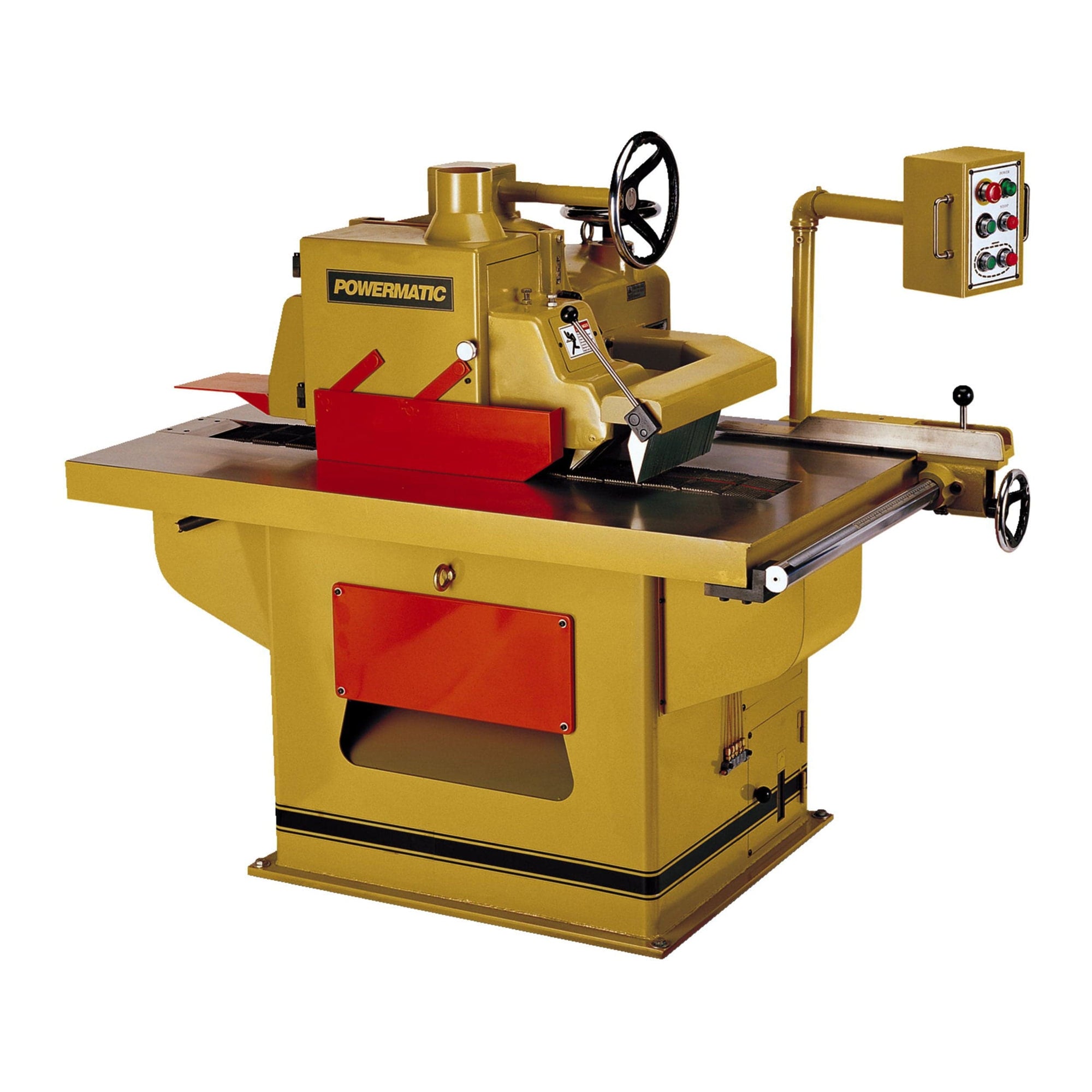

Powermatic - 15HP 3PH 230/460V SLR12 Straight Line Rip Saw
Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.
Item 424394Model PM25350K
Item 424393Model PM25330K
Item 424396Model PM375350K
Item 424395Model PM25350RK
Item 424387Model PM23130K
Item 863611Model 1791801B
Item 424391Model PM25150K
Item 839724Model 1791316
Item 863615Model 1791260B
- Full cast iron construction for rock-solid operation
- 15HP Main Motor, 2HP Feed Motor for large production capacity
- Auto-oiler with shut off ensures long conveyor chain life
- Seven pressure rollers with dual anti-kickback devices help prevent stock discharge
- Variable feed speeds to accommodate different type stock
- Large 18" rip and 3-3/8" depth of cut capacities for virtually any job
- Adjustable position control box for operator convenience
- Anti-Kickback Devices : 2
- Arbor Diameter (in) : 1
- Blade Diameter (in) : 12
- Blade Speed (RPM) : 4500
- Dust Collection Minimum CFM Required : 600
- Dust Port Diameter (OD/in) : 4
- Electric Controls - Magnetic Starter : 24V Magnetic
- Feed Motor HP : 2HP
- Feed Motor Phase : 3PH
- Feed Motor Volt : 230/460V (pre-wired 230V; 460V requires additional mag. switch purchase)
- Feed Speed (FPM) : 30-125 variable
- Height (in): 62
- Length (in): 41
- Maximum Depth of Cut (in) : 4
- Maximum Ripping Width (in) : 18
- Motor HP : 15HP
- Motor Phase : 3Ph
- Motor Voltage : 230/460V
- Net Weight : 2,090 pound
- Overall Dimensions : 62 x 56 x 41
- Part Number : 1791285
- Pressure Rollers : 7
- Prewired : Prewired 230V
- Shipping Dimensions (LxWxH/in) : 62 x 66 x 45
- Table Height (in) : 32
- Table Size (in) : 35 x 55
- Width (in): 56
- Shipping weight 2,530 lb.
