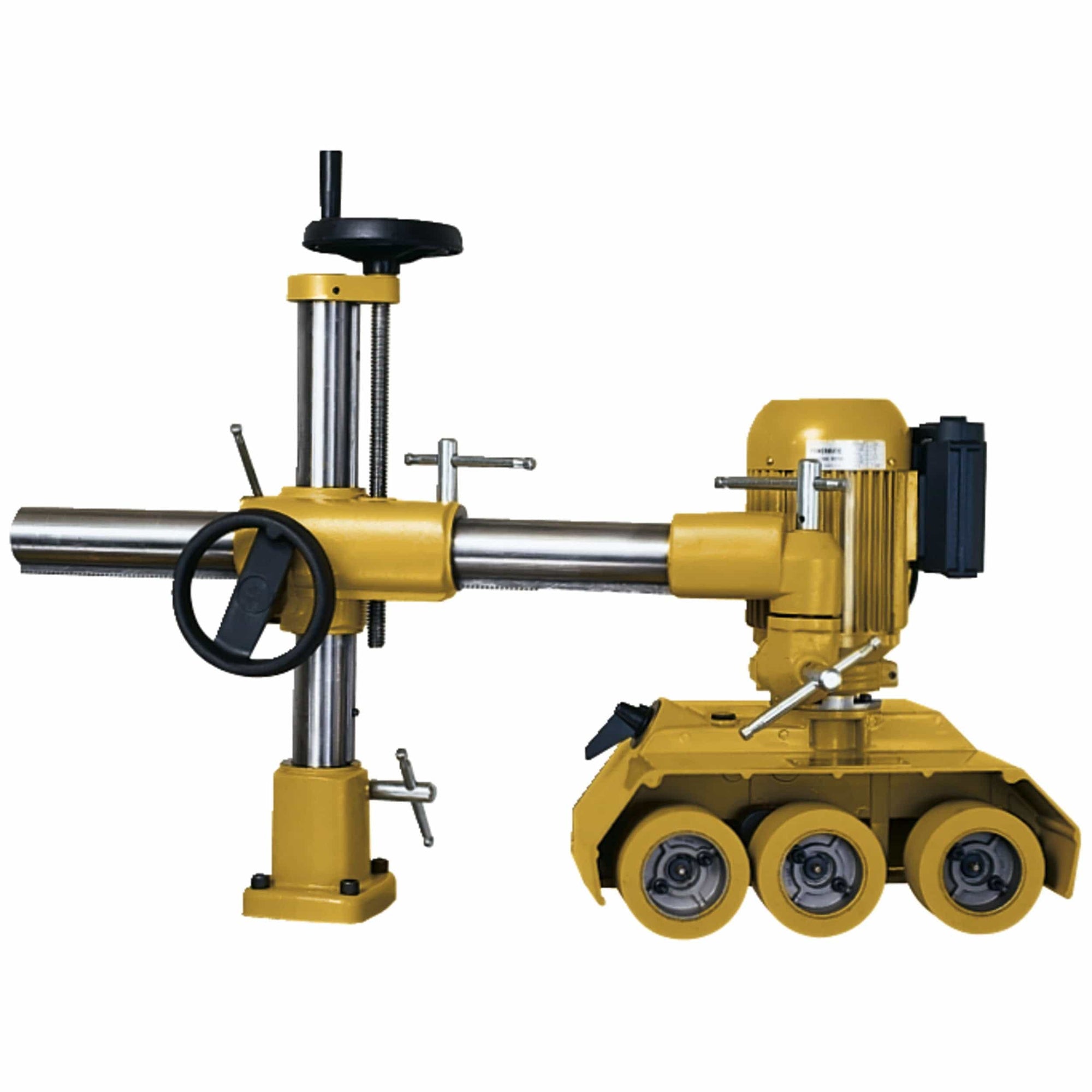

View a Larger Image of PF-33 Powerfeeder, 1HP, 3Ph, 230V, 4-Speed, 3 Wheel
Item 817078
Model 1790800K

Powermatic - PF-33 Powerfeeder, 1HP, 3Ph, 230V, 4-Speed, 3 Wheel


  • Ships for Free
  • - Contiguous 48 States Shipping Only

    Learn More
  • - Ships from Manufacturer, Expedited Shipping Unavailable

    Learn More
  • - Ships in approximately 7-10 business days

Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.

Compare With


These rugged, heavy-duty stock feeders feature continuous-duty motors that transfer power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support columns feature moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of bodies, bases and universal joints provide stability with vibration-free feeding.


• Roller chain and sprockets provide positive feeding for a variety of work

• Support column is fully adjustable for horizontal, vertical or angled feeder position

• Feeder body, column base and joints are cast iron for heavy duty operation

• Rollers can be changed out easily and quickly


Column Diameter (in) : 2.28
Distance Between Rollers - Center to Center (in) : 5.07 - 5.90
Feed Rate (FPM) : variable
Height (in) : 29.5
Length (in) : 43.23
Maximum Height of Rollers Parallel to Tabletop (in) : 8.45
Model Number : PF-33
Motor HP : 1HP
Motor Phase : 3Ph
Motor Voltage : 230V
Movement - Horizontal (in) : 18.07
Movement - Vertical (in) : 9.83
Net Weight : 134 pound
Number of Speeds : 4 speeds
Overall Dimensions : 43.23 x 18.08 x 29.5
Part Number : 1790800K
Range of Speeds (FPM) : 13, 26, 33, 66 FPM
Rollers (in) : 4-3/4 dia x 2-1/4 wide
Rotation (Forward/Reverse) : Forward/Reverse
Swing (deg.) : 360
Width (in) : 18.08
