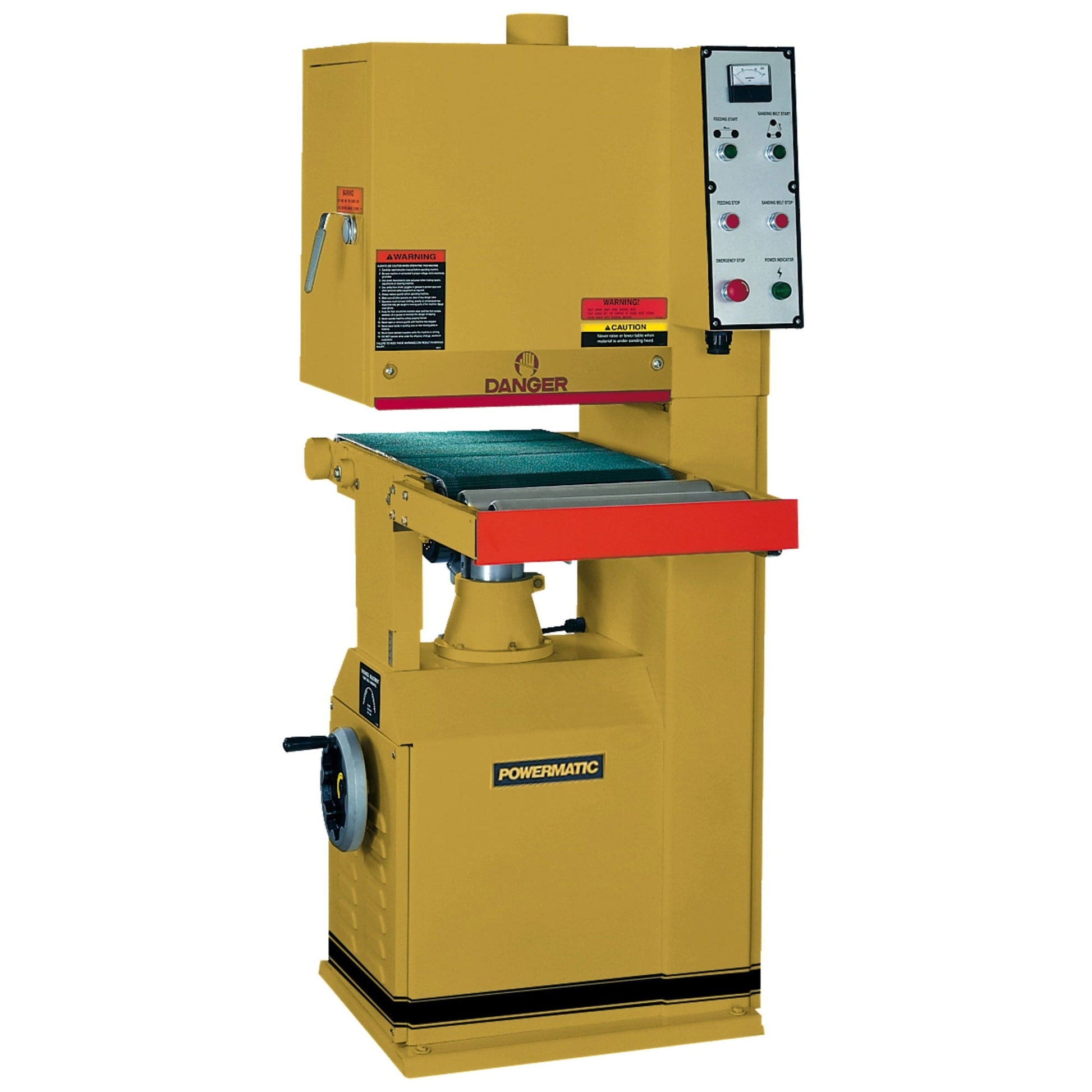

View a Larger Image of Open End Belt Sander, 5HP 1PH 230V, Model 1632

Powermatic

Open End Belt Sander, 5HP 1PH 230V, Model 1632

Item 818246
Model 1791250

$8,899.99

Shipping Fee of $99.00

  • Contiguous 48 States Shipping Only
  • Ships from Manufacturer, Expedited Shipping Unavailable
  • Freight Shipments Deliver to Curbside Only
  • Not Available for Express and Overnight Shipping.
  • - Ships in approximately 7-10 business days
  • The 16" Open-End Sander has front mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and...

    Details

    The 16" Open-End Sander has front mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and pneumatic conveyor belt tracking keeps belts automatically centered.
    Features:
    • The combination head promotes a more consistent finish
    • Pneumatic conveyor belt tracking keeps belt centered
    • Conveniently mounted load meter maintains constant check during operation
    • Limiters will stop sander instantly if belt breakage occurs
    • Side access door for easy belt changes
    Specifications:
    5HP motor
    Emergency rail stop
    Emergency stop button
    Dust collection port
    17" x 54" sanding belt
    Belt Size (in) : 17 x 54
    Belt Speed (SFPM) : 2200
    Compressed Air Requirements @ 5 atm (PSI) : 4 CFM
    Dust Collection Minimum CFM Required : 800
    Dust Port Diameter (OD/in) : 4
    Feed Motor HP : 1/4HP
    Feed Motor Phase : 1PH
    Head Configuration : combination
    Height (in): 66
    Length (in): 40
    Minimum Board Length (in): 13-3/4
    Motor HP : 5HP
    Motor Phase : 1PH
    Motor Voltage : 230V
    Net Weight (lb): 996
    Overall Dimensions : 40 x 29 x 66
    Part Number : 1791250
    Width (in): 29
    Working Thickness (in) : 5
    Working Width (reversing stock/in) : 16 (32)
    Shipping weight 1,106 lb.

    Shipping / Billing Information

    All shipments must be inspected and any damage reported within 3 days of receipt.

    Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.

    This product ships direct from the manufacturer:

    • Your order will ship in 7-10 approximately business days.
    • This product is considered special order. Your account will be charged when you place your order.
    • Express or overnight shipping is not available for this product.
    • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

    Return Information

    All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.

    Warranty Information

    Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft. Click here for Powermatic Warranty
