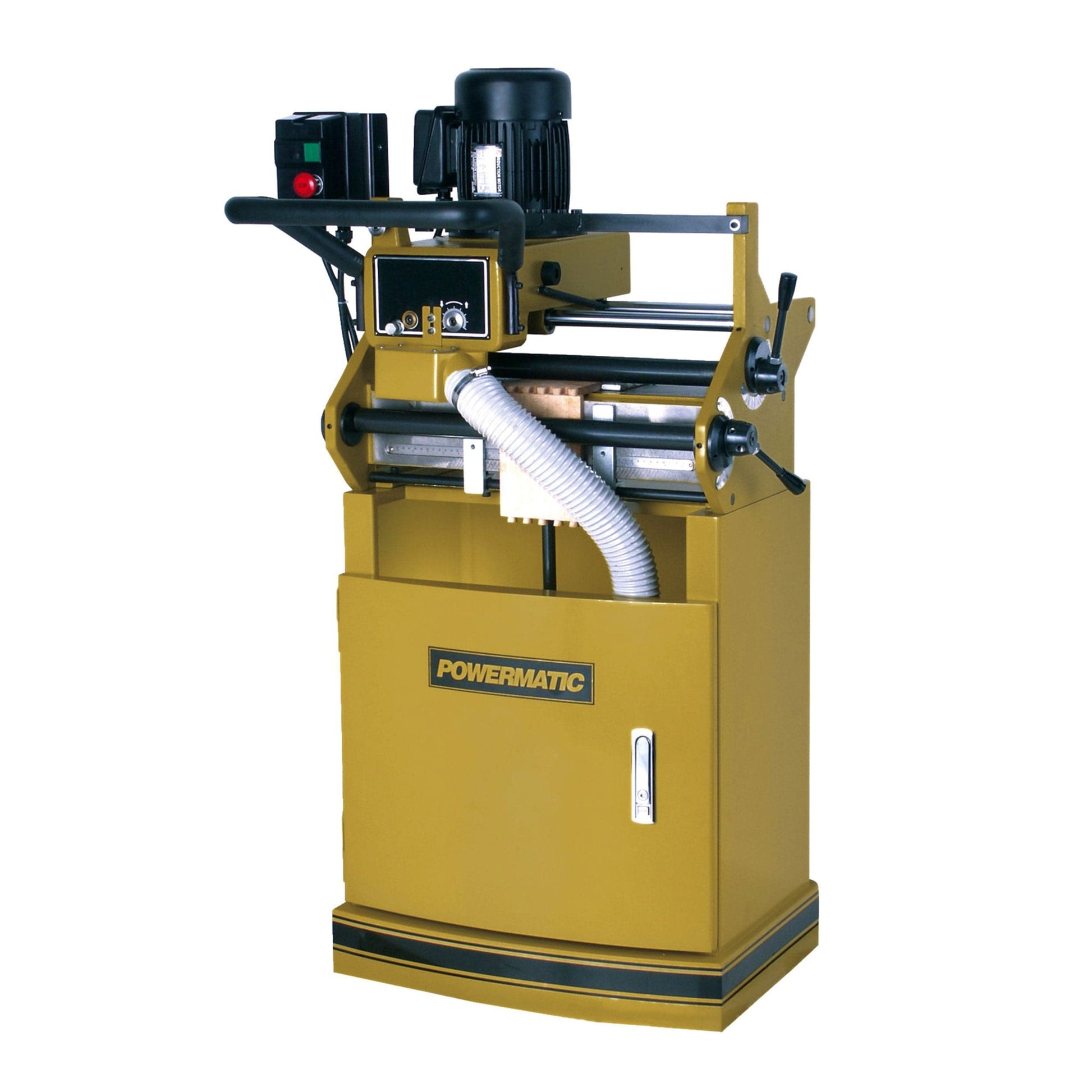

View a Larger Image of Dovetailer with Manual Clamping - 1 HP 1 Ph 230V - DT45

Powermatic

Dovetailer with Manual Clamping - 1 HP 1 Ph 230V - DT45

Item 833586
Model 1791304

$5,599.99

Shipping Fee of $99.00

Estimated Ship Date May 26, 2023
  • Contiguous 48 States Shipping Only
  • Ships from Manufacturer, Expedited Shipping Unavailable
  • Freight Shipments Deliver to Curbside Only
  • Not Available for Express and Overnight Shipping.
  • - Ships in approximately 7-10 business days
  • The POWERMATIC® DT45 manual dovetail machine is used to cut dovetails for drawers and various furniture components. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. The DT45 can machine four types of dovetails with different pitches....

    Details

    The POWERMATIC® DT45 manual dovetail machine is used to cut dovetails for drawers and various furniture components. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. The DT45 can machine four types of dovetails with different pitches. Locking and unlocking of pieces takes place manually by an eccentric clamp.
    Features:
    • Four centerlines - 1", 1-1/2", 2" and 2-1/2" - create a custom appearance
    • Manual eccentric clamping will keep boards firm
    • Eccentric spindle collet for resharpened cutters
    • Spring loaded carriage makes for smooth, effortless dovetail cutting
    • Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
    • Extra large soft grip handle provides positive control and comfort
    • The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
    • Visual stylus and template aid in guiding the carriage
    • Material stops provide convenient positioning of the workpiece
    • Cast iron and steel construction for added stability and durability
    • 1HP motor transfers plenty of power via the drive belt to the spindle
    Specifications:
    Four-sided template
    Workstops
    Tool kit
    Dovetail bit
    Dust chute with hose
    Center to Center Dovetail Spacing (in) : 1, 1-1/2, 2 and 2-1/2
    Dust Collection Minimum CFM Required : 500
    Dust Port Diameter (OD/in) : front 2-1/2, rear 4
    Height (in): 61
    Length (in): 33
    Maximum Dovetail Height (in) : 3/4
    Maximum Front Thickness (in) : 1-3/4
    Maximum Side Thickness (in) : 1-3/16
    Maximum Work Piece Size (L x W/in) : 31 x 11
    Minimum Dovetail Height (in) : 3/16
    Minimum Front Thickness (in) : 9/32
    Minimum Side Thickness (in) : 9/32
    Minimum Work Piece Size (L x W/in) : 7-7/8 x 2-3/8
    Motor HP : 1HP
    Motor Phase : 1Ph
    Motor Voltage : 115/230V
    Net Weight : 424 pound
    Number of Spindles : 1
    Overall Dimensions : 33 x 33 x 61
    Part Number : 1791304
    Prewired : 115V
    Spindle Speed (RPM) : 18500
    Table Height From Floor (in) : 35
    Width (in): 33
    Shipping weight 447 lb
