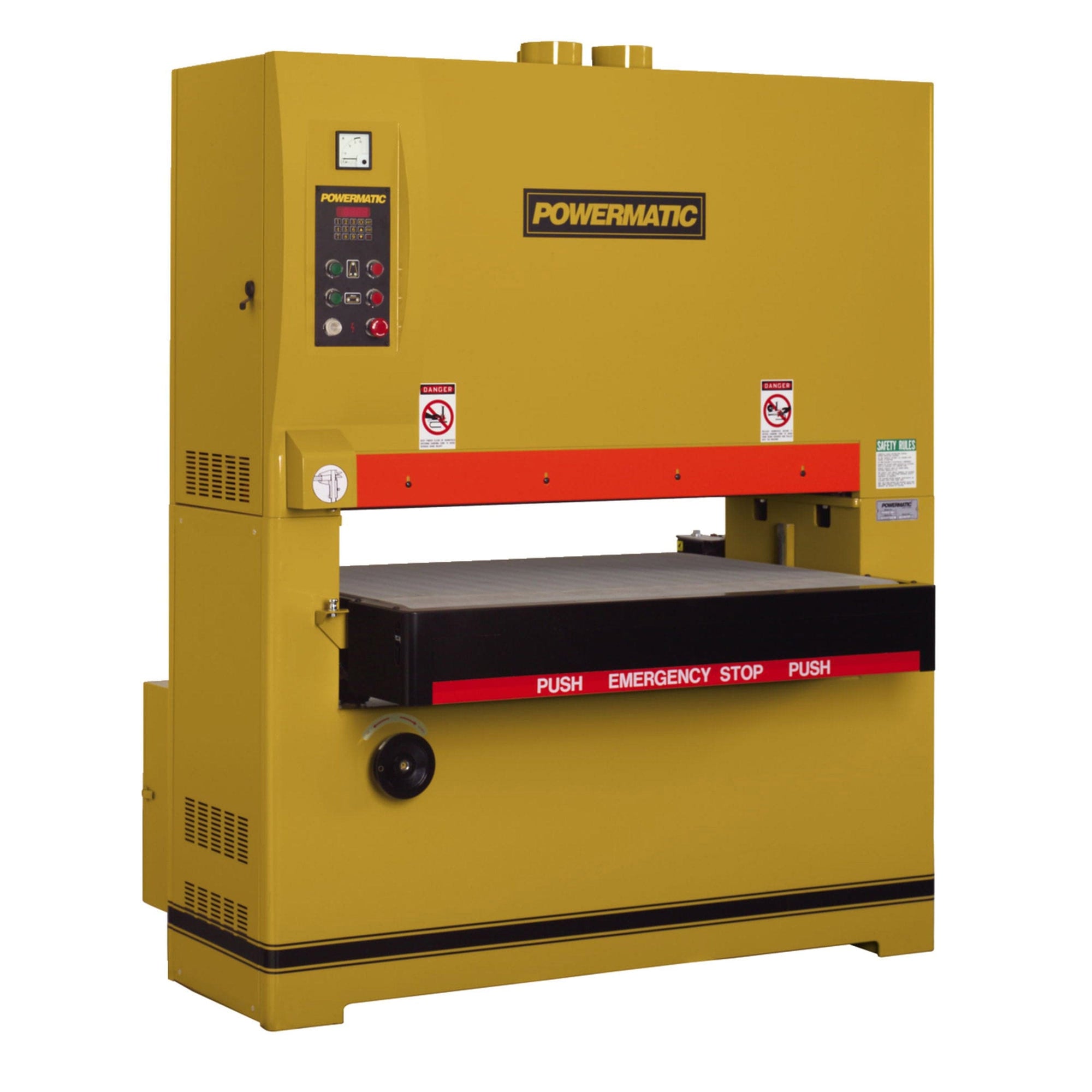

43" Wide Belt Sander with DRO - 25 HP 3 Ph 230/460V - WB-43
Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.
Centralized controls allow you to access all the needed buttons on one simple panelThe auto thicknesser will capture the piece of wood to give the user the exact starting thicknessThe variable speed feed belt allows you to accurately dial in the exact feed speed to best suit your...
- Centralized controls allow you to access all the needed buttons on one simple panel
- The auto thicknesser will capture the piece of wood to give the user the exact starting thickness
- The variable speed feed belt allows you to accurately dial in the exact feed speed to best suit your project
- Digital readout will show the user the exact thickness of the finished piece, or will allow you to preset exactly the thickness you prefer for the finished piece
- The disc brake slows the machine quickly and will activate immediately to stop machine in an emergency
- The electric eye system controls the sanding belt oscillation to prevent the belt from running off the ends of the drums, as well as use the sanding surface more uniformly without leaving sanding lines on the workpiece
- The three motor system allows for maximum horsepower to independently power the drive drums, the variable speed feed belt, and the feed table
- 2 Sanding belts, 100 and 180 Grit
- Graphite platen
- Tool box
- Air Supply Required (CFM/PSI) : 3/60
- Belt Size (in) : 43 x 75
- Belt Speed (SFPM) : 2625
- Dust Collection Minimum CFM Required : 1900
- Dust Port Diameter (OD/in) : 5
- Feed Motor HP : 1HP
- Feed Motor Phase : 3Ph
- Feed Rate (FPM) : 15-60
- Height (in): 84.625
- Length (in): 52.375
- Main Drive Motor HP : 25HP
- Main Drive Motor Phase : 3PH
- Main Drive Motor Voltage : 230/460V
- Net Weight (lb): 2,430
- Overall Dimensions : 52-3/8 x 64-1/2 x 84-5/8
- Part Number : 1790843
- Prewired : Prewired 230V
- Ship Weight (lb): 2,430
- Table Height (in) : 31-3/8 to 37-3/8
- Table Lift Motor HP : 1/4HP
- Web Description : WB-43, 43" Sander, 25HP 3PH 230/460V with DRO
- Width (in): 64.5
- Working Height (in) : 6
- Working Width (in) : 43
- Shipping weight 2,550 lb.
