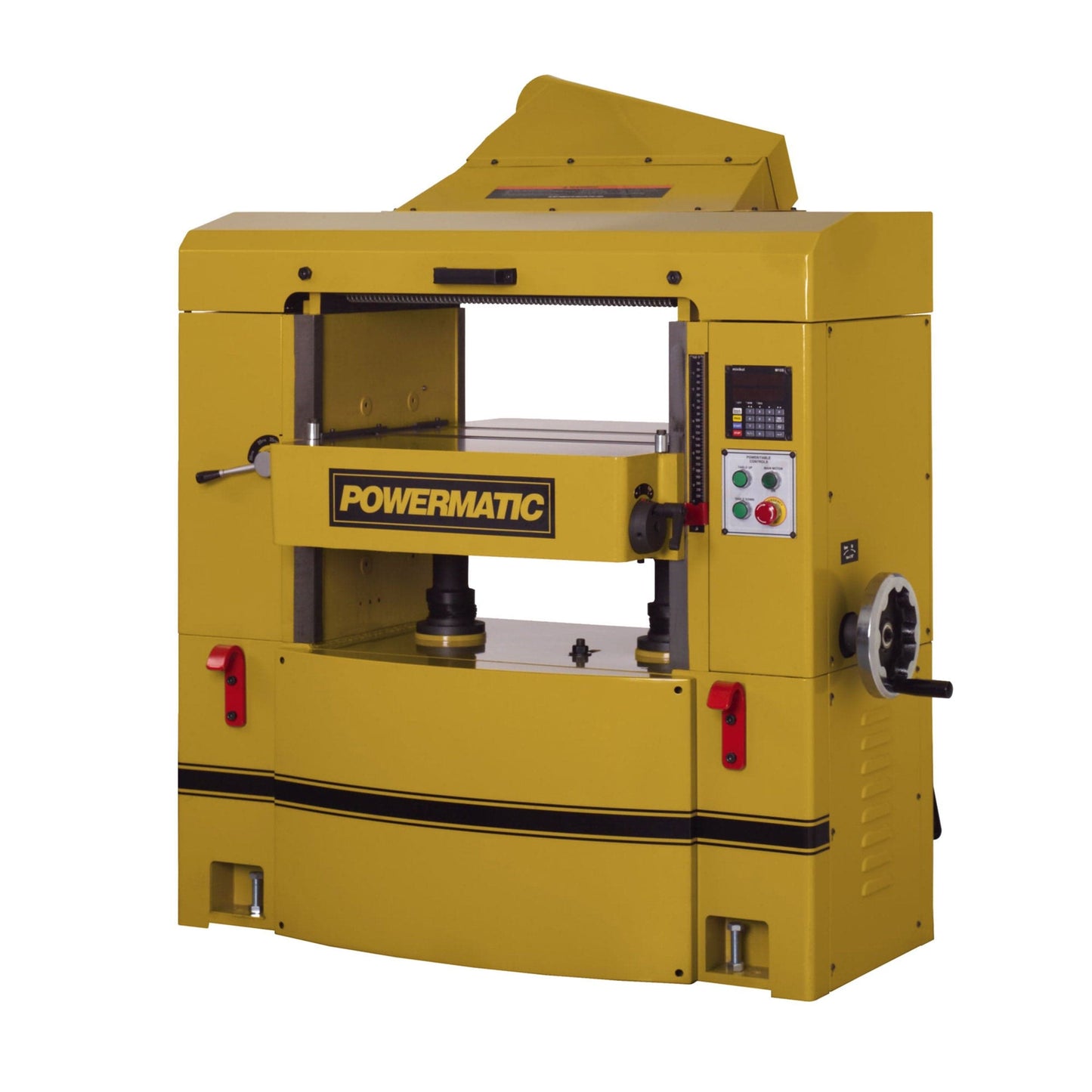

Powermatic - 25" Planer, Model WP2510
Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levelsDigital readout and simple PC controller make quick...
Item 825737Model 1791297
Item 825682Model 1791296
Item 838340Model 1791267
Item 835284Model 1791213
Item 839724Model 1791316
Item 840397Model 1791268
Item 835285Model 1791315
- Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levels
- Digital readout and simple PC controller make quick and easy table height set ups
- Segmented serrated infeed roll with segmented chip breakers has 1/4" independent yield, for planing multiple height stock
- Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers
- 3" diameter infeed and outfeed rollers are supported by four large, sealed, needle bearings for long life
- Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0" to 0.050" at a touch
- Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment
- Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding
- 3 speed feed selector allows you to quickly change feed rates
- Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock
- Dust hood features built-in 5" dust chute for efficient dust collection
- Helical head with four sided inserts
- Dust hood with 5" diameter dust port
- Segmented infeed rollers
- Segmented chip breakers
- Tool kit with pneumatic screwdriver for removing the cutterhead insert blades
- Bed Rollers Adjustable from Front : 0" to 0.05"
- Column Diameter (in) : 2-1/2
- Cuts Per Minute : 30000
- Cutterhead Diameter (in) : 3-3/8
- Cutterhead Speed (RPM) : 5000
- Dust Collection Minimum CFM Required : 600
- Dust Port Diameter (OD/in) : 5
- Feed Rate (FPM) : 30-25-20
- Height (in): 59
- Length (in): 52
- Maximum Depth of Cut (in) : 1/4
- Maximum Full Width Depth of Cut (in) : 1/8
- Maximum Height of Rollers Parallel to Tabletop (in) : 0.05"
- Maximum Planing Thickness (in) : 9
- Maximum Planing Width (in) : 25
- Minimum Planing Length (in) : 10
- Model Number : WP2510
- Motor HP : 15HP
- Motor Phase : 3Ph
- Motor Voltage : 230/460V
- Net Weight (lb): 1,725
- Number of Knives : 168 Four-sided inserts
- Outfeed Roller Diameter (in) : 3
- Overall Dimensions : 52 x 36 x 59
- Part Number : 1791303
- Prewired : Prewired 230V
- Readout Scale : in/mm
- Rollers (in) : (1) infeed, (2) outfeed
- Rotation (Forward/Reverse) : Fwd only
- Segmented Infeed Roller Diameter (in) : 3
- Table Height Adjust Manual : 1 handwheel revolution = 1/32"
- Table Size (in) : 32-3/16 x 26
- Table Support : 2 column
- Tool Supplied : tool kit
- Width (in): 36
- Shipping weight 1,850 lb.
