Powermatic

14" x 20" Woodworking Lathe with Stand - 1 HP 1 Ph 115V - PM2014

Item #172523 Model PM9-1792014AK
Regular price $2,799.99
Sale price $2,799.99 Regular price $2,799.99

This item has an additional shipping charge

Skip to product information
1 of 3

Powermatic

14" x 20" Woodworking Lathe with Stand - 1 HP 1 Ph 115V - PM2014

Item #172523 Model PM9-1792014AK
Regular price $2,799.99
Sale price $2,799.99 Regular price $2,799.99

This item has an additional shipping charge

The Powermatic® PM2014 Lathe was designed with turners in mind. The smaller stance is ideal for those with smaller shops, and it disassembles for easy transport to turning. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Lathe Stand for PM2014 Woodworking Lathe

    Regular price $499.99
    Sale price $499.99 Regular price $499.99
    Lathe Stand for PM2014 Woodworking Lathe alt 0
  • 14" x 20" Benchtop Woodworking Lathe - 1 HP 1 Ph 115V - PM2014

    Regular price $2,399.99
    Sale price $2,399.99 Regular price $2,399.99
    14" x 20" Benchtop Woodworking Lathe - 1 HP 1 Ph 115V - PM2014 alt 0
  • 13" Bed Extension and Post for PM2014 Woodworking Lathe

    Regular price $369.99
    Sale price $369.99 Regular price $369.99
    13" Bed Extension and Post for PM2014 Woodworking Lathe alt 0

Details


The Powermatic® PM2014 Lathe was designed with turners in mind. The smaller stance is ideal for those with smaller shops, and it disassembles for easy transport to turning shows or other events. Plug it into a standard 115V outlet (15 amp circuit recommended), and get 230V of output through the inverter in the motor. The inverter also works to maintain consistent torque when in use. From spindles and table legs to bowls and other hollow forms, the PM2014 is a steadfast, capable performer. The 1 HP motor can turn large work within three variable speed ranges: 15-900 RPM, 30-1,800 RPM and 60-3,600 RPM. The magnetic control box clearly displays your spindle speed (and indexing positions), and is magnetically mounted so you can easily move it to suit your turning operation. The 24 position locking indexing positions let you locate repeated features, such as flutes and inlays, around the perimeter of the turning. This model includes a stand, which offers a full 12'' of height adjustability, from 34'' to 46''.

Features:

  • Motor only requires a 115 volt single phase input to provide a consistent torque with 1 HP/230 volt/3-phase output, using an inverter

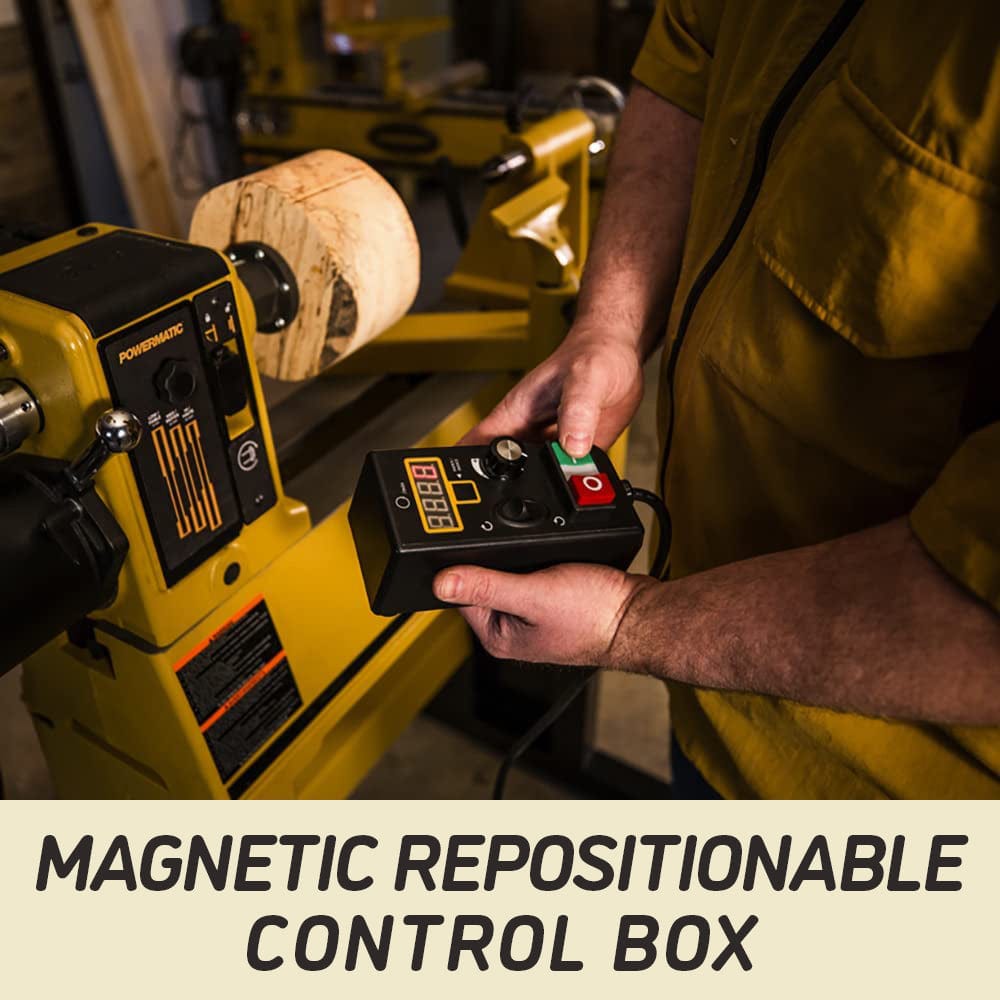

  • Magnetic control box displays both digital speed and indexing and can be relocated for convenience and safety

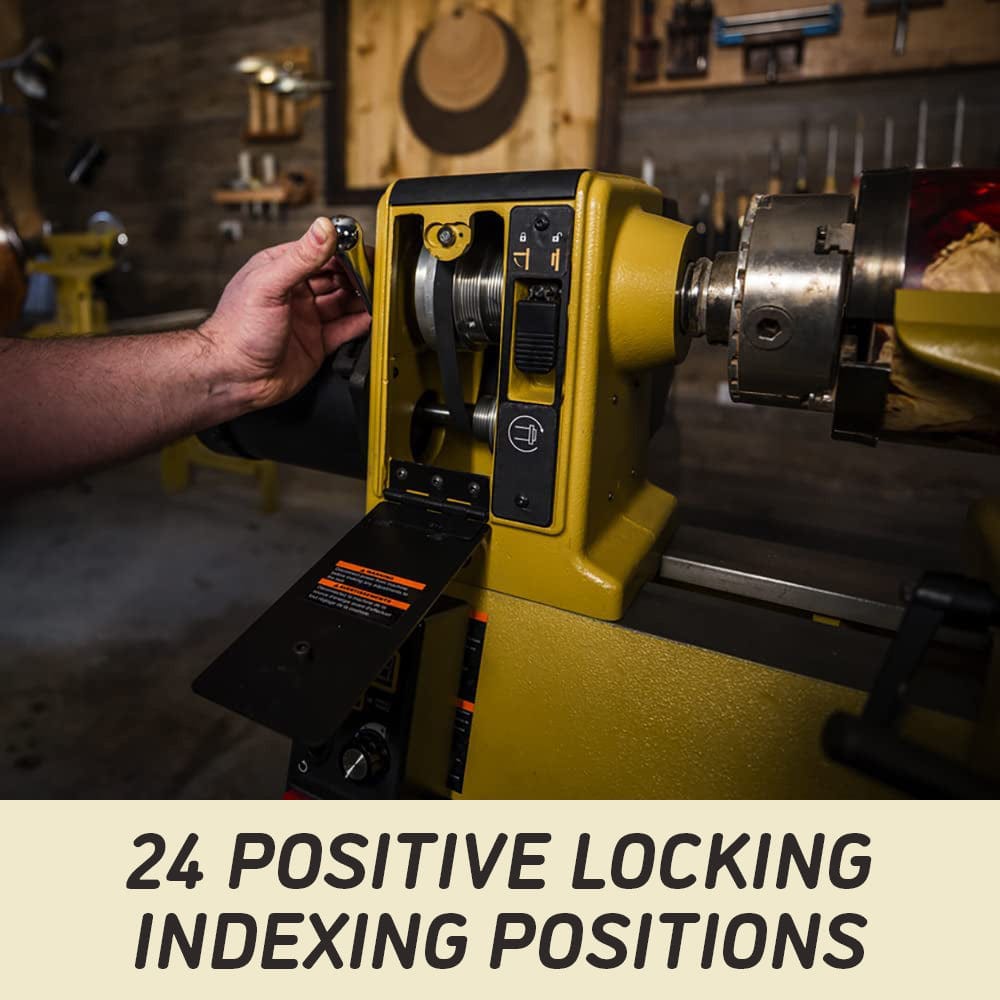

  • 24 positive locking indexing position, displayed on the repositionable magnetic control box, simplifies the indexing process
  • Sliding headstock and removable tailstock make outboard turning easy
  • Cast-iron bed reduces motor vibration for decreased noise and added precision
  • Three variable speed ranges: 15-900 RPM, 30-1,800 RPM and 60-3,600 RPM
  • With constant monitoring of the motor, the inverter keeps torque consistent

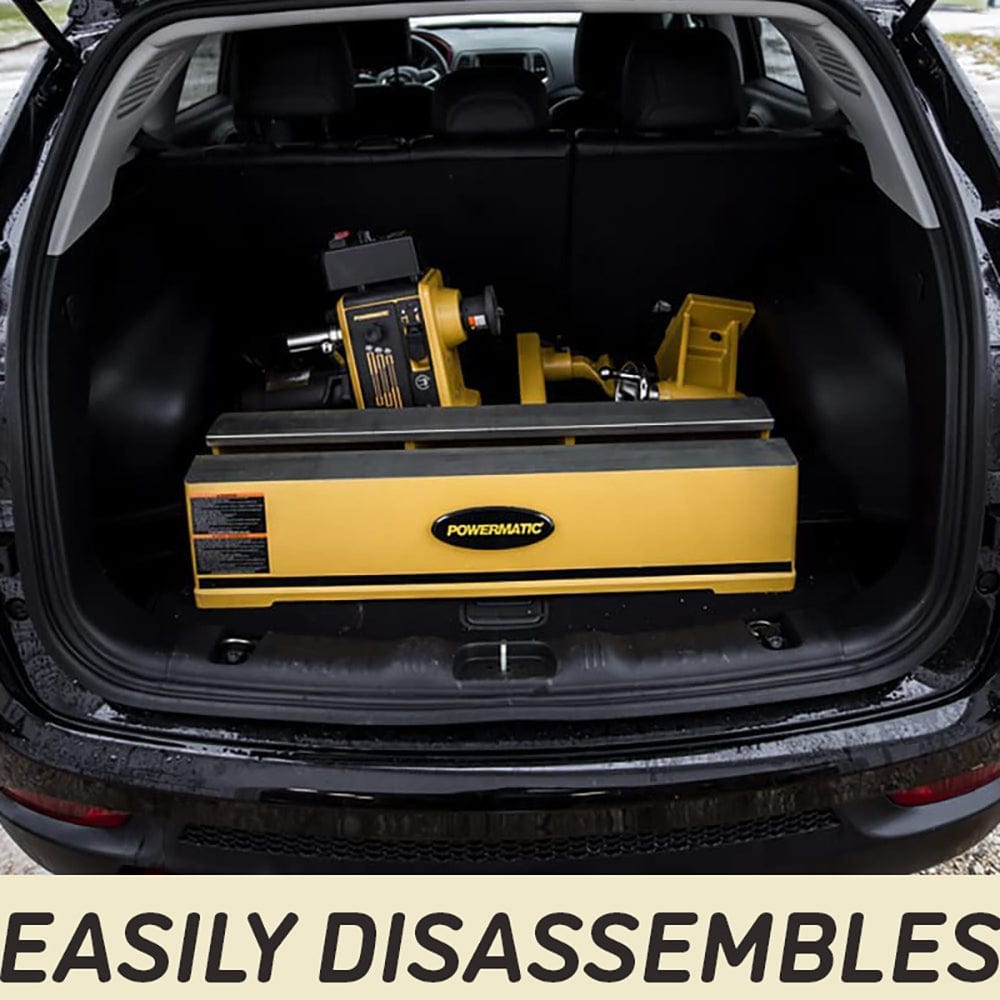

  • Lathe easily disassembles for better transport

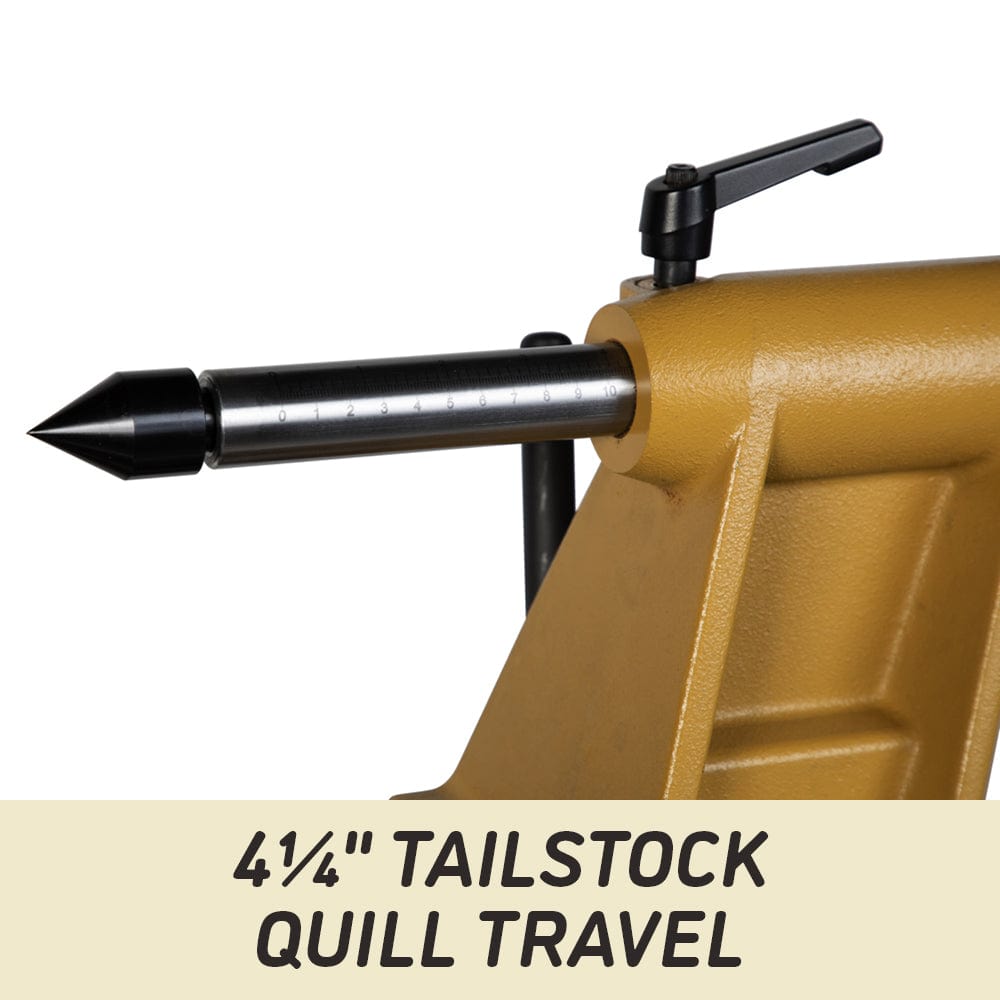

  • Acme threads on tailstock for smoother operation and longevity

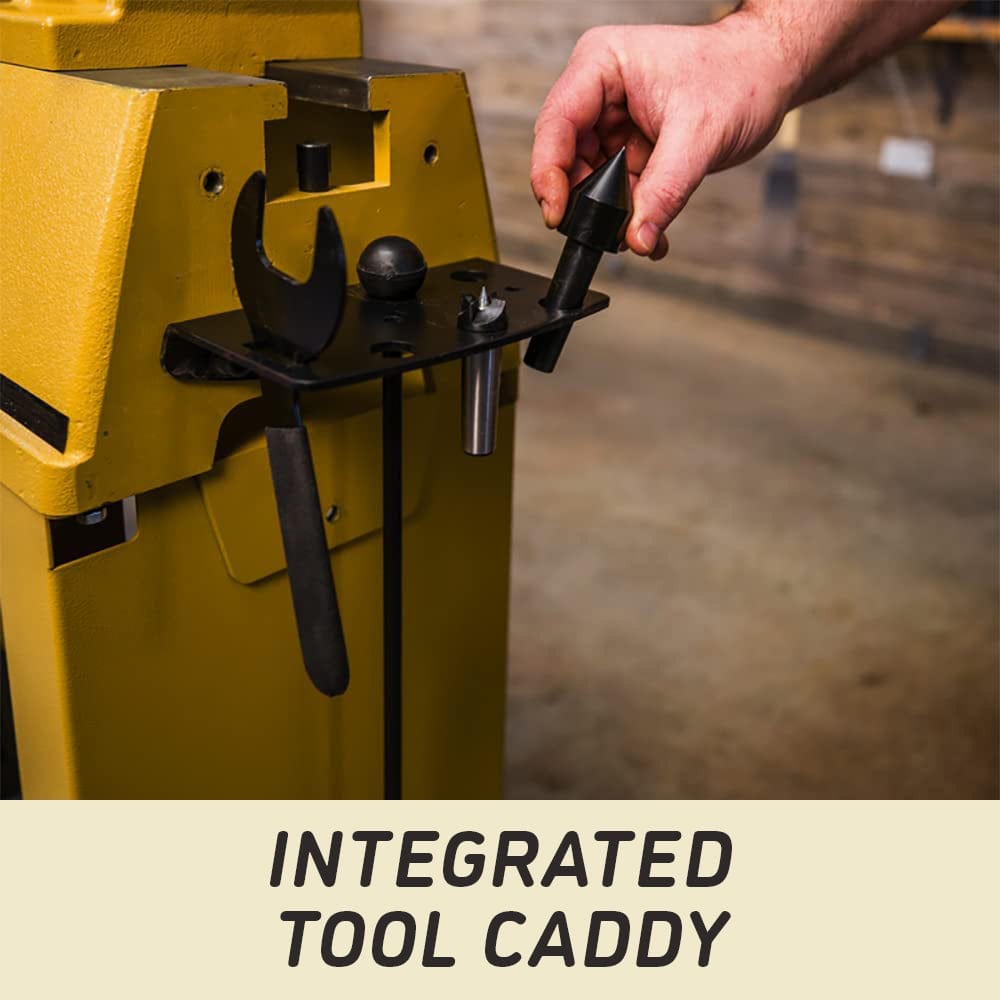

  • Attached tool caddy allows convenient access to centers, wrenches, and accessories
  • Banjo features a non-marring, pinch style clamp for solid tool rest placement
  • Chrome trimmed hand wheels are ergonomic for a comfortable feel
  • Main power disconnect on rear of headstock lock out for safety

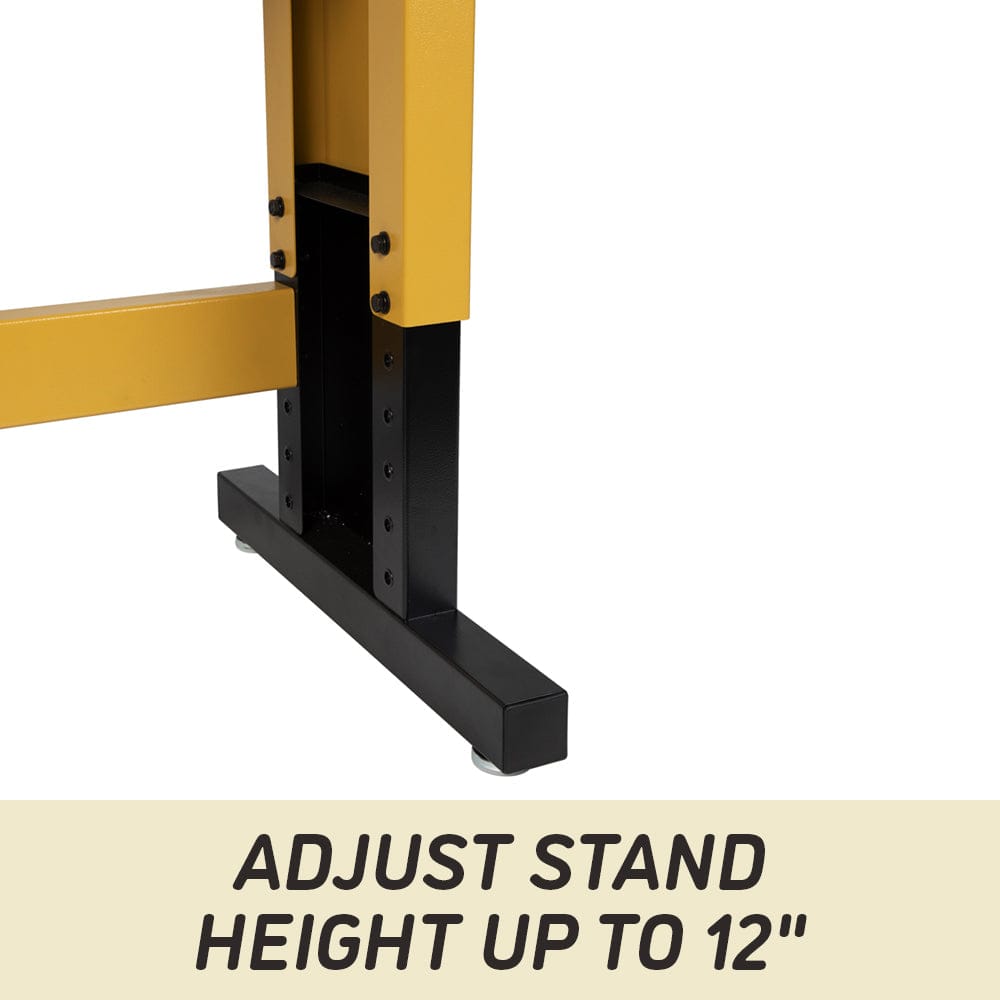

  • Included stand is height-adjustable up to 12'' (from 34'' to 46'', from floor to centerline)
  • Feet can be fine-tuned for leveling
  • If desired, the lathe can be removed from the stand and bench mounted

Specifications:



  • Motor: 1 HP, 3 PH, 230V, 60 HZ
  • Input Power Requirement: 1 PH, 120V
  • Recommended Circuit: 15 Amp
  • Speed Range: 15-3,600 RPM
  • Spindle Thread: 1-1/4" x 8 TPI
  • Spindle/Quill Taper: MT2
  • Index Positions: 24 positive locking
  • Swing Over Bed: 14-1/4"
  • Swing Over Tool Rest Base: 10-3/4"
  • Distance Between Centers: 19-1/4"
  • Bed Gap: 1-3/4"
  • Tool Rest: 1" D post x 8" W
  • Overall Dimensions (highest position): 52" x 24" x 48-1/2"
  • Overall Dimensions (lowest position): 52" x 24" x 38"
  • Stand Height: 34'' to 46'' (to centerline of chuck)
  • Shipping Dimensions: 25.56" x 27.56" x 13.78"
  • Shipping Weight: 277 lb.

What's Included:

  • (1) Powermatic PM 2014 Lathe (1 HP - 115V)
  • (1) Height adjustable stand
  • (1) 3" Faceplate
  • (1) Live cone center
  • (1) Spur center
  • (1) Tool caddy

Notes:

  • For outboard turning, slide the tailstock off and slide the headstock to the end of the machine. An optional 13" bed extension is available (#172525, sold separately).
