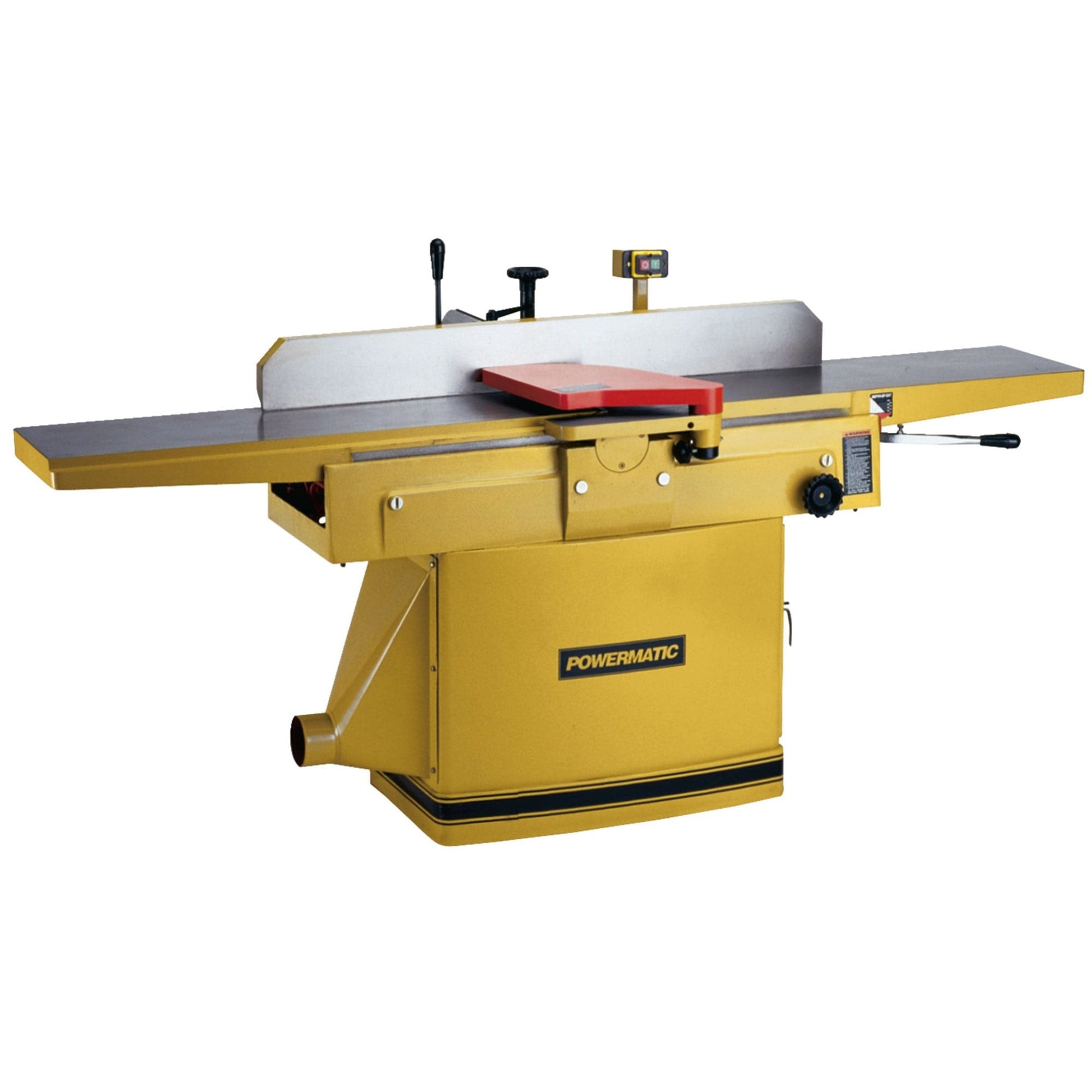

View a Larger Image of 12" Jointer - 3 HP 3 Ph 230V/460V - Helical Cutterhead - 1285

Powermatic

12" Jointer - 3 HP 3 Ph 230V/460V - Helical Cutterhead - 1285

Item 412086
Model 1791308

$8,799.99

Shipping Fee of $99.00

Purchase Note: This machine requires 3-phase power.  Most residential power is single or 1-phase.  Verify your power requirements before ordering.

  • Contiguous 48 States Shipping Only
  • Ships from Manufacturer, Expedited Shipping Unavailable
  • Freight Shipments Deliver to Curbside Only
  • Not Available for Express and Overnight Shipping.
  • - Ships in approximately 7-10 business days
  • This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop...

    Details

    This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard three-knife cutterhead or the solid steel Helical cutterhead. The helical system makes fast work of knife changing and never needs adjustment.
    Features:
    • Helical cutterhead with 2-sided carbide inserts for fast knife changes with no adjustments
    • Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
    • Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
    • Large 84" x 12" table surface for heavy-duty work
    • Table "lips" on both sides of cutterhead aid in noise reduction
    Specifications:
    Full size rabbeting ledge supports large workpieces for rabbets up to 3/4" deep
    3HP motor provides plenty of power
    Cutterhead guard
    Heavy duty fence
    Dust port
    Push blocks
    Tool kit
    Cutterhead Speed (RPM) : 5000
    Cutting Capacity (W x D/in) : 11-3/4 x 3/4
    Dust Collection Minimum CFM Required : 800
    Dust Port Diameter (OD/in) : 6
    Fence Positive Stops (deg.) : 45, 90 and -45
    Fence Size (L x H/in) : 47 x 5-1/2
    Fence Tilts (deg.) : 45 right, 45 left
    Height (in): 39
    Length : 89.5 inch
    Model Number : 1285
    Motor HP : 3HP
    Motor Phase : 3Ph
    Motor Voltage : 230V/460V*
    Prewired : 230V, *Requires an optional 460V Mag Switch
    Net Weight : 812 lbs
    Number of Knives (Helical/Standard) : 42 two-sided inserts (30 x 12 x 2mm) with 2 rabbeting inserts
    Overall Dimensions : 89.5 x 28 x 39
    Part Number : 1791308
    Standard Knife Size (L x W x T/in) : 30 x 12 x 2 mm (inserts)
    Table Height (in) : 31-1/2
    Table Size (L x W/in) : 84 x 12
    Width (in): 28
    Shipping weight 880 lb.
