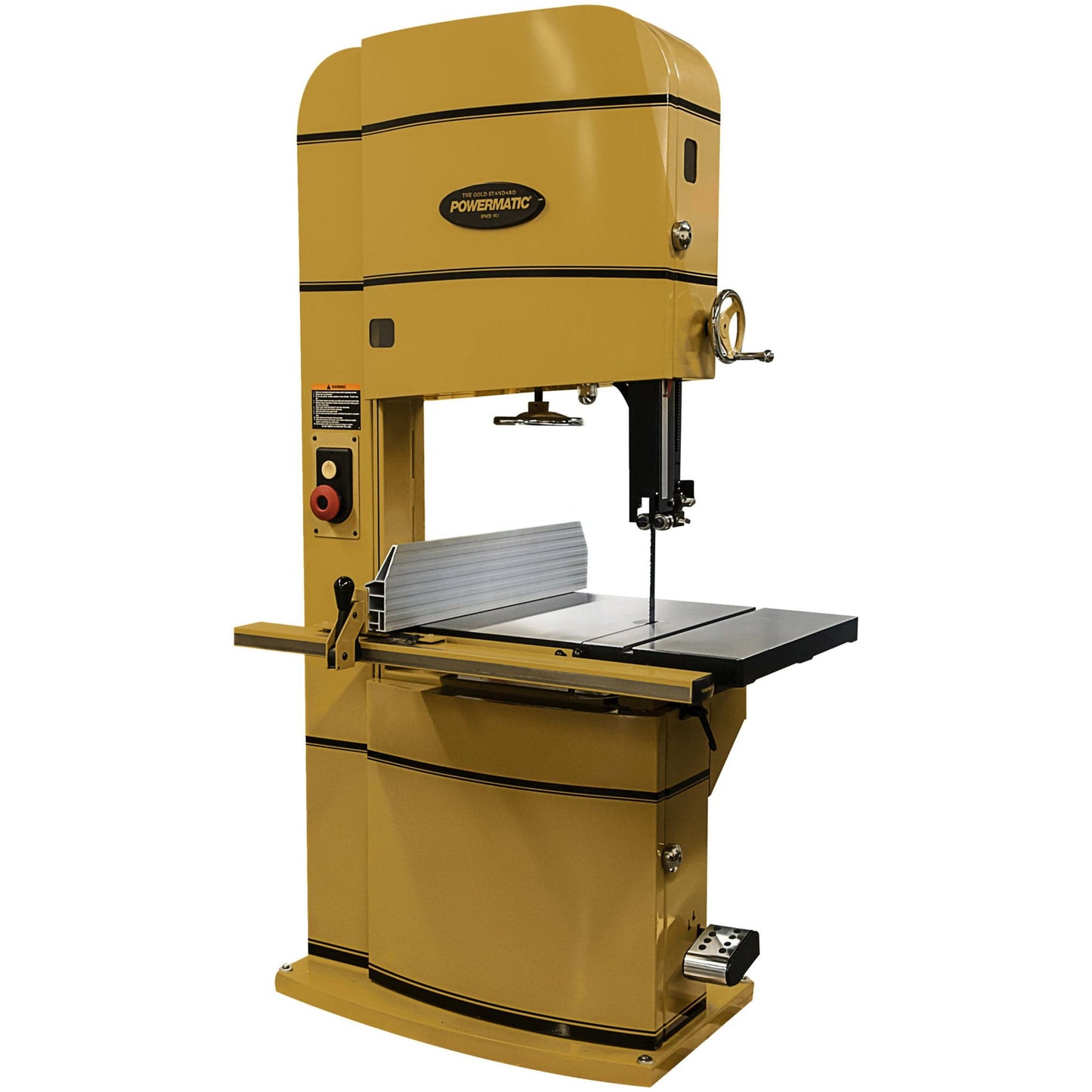

Powermatic - 24" Bandsaw 5HP, 1PH, 230V, PM2415B

Your larger projects and larger workpieces call for more power, more resaw capacity, and more cast iron. This bandsaws features the legendary quality, precision, and attention to detail that has been helping woodworkers expand their ambition for more than 90 years.

Features:

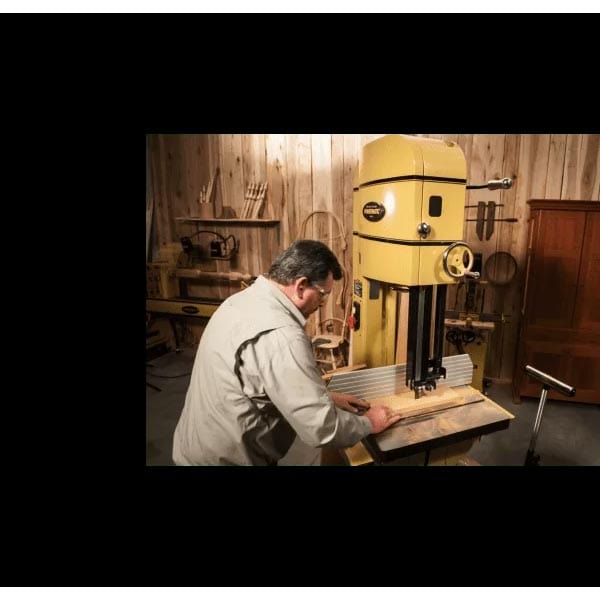

Exclusive Powermatic T-Square style Accu-Fence maximizes accuracy and safety
The Accu-Fence has complete adjustability for aligning to blade and squaring to table

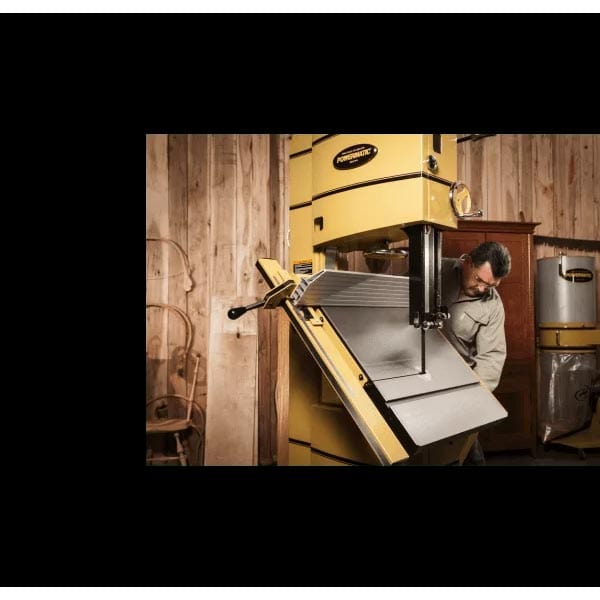

Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
Positive locking cam with pressure adjustment
Oversized side plate can be used in the horizontal or vertical position
Solid steel resaw post for optimum rigidity
Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned (patent pending)

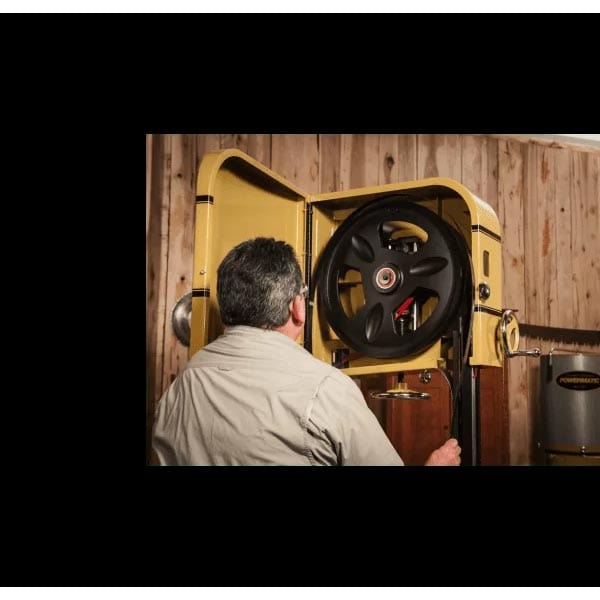

Heavy duty upper wheel support and tracking mechanism for smooth operation

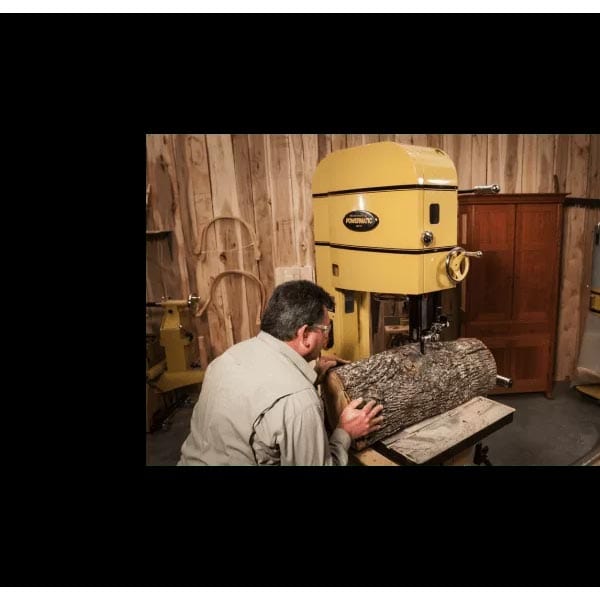

Solid cast iron upper and lower wheels create the momentum needed for heavy resaw

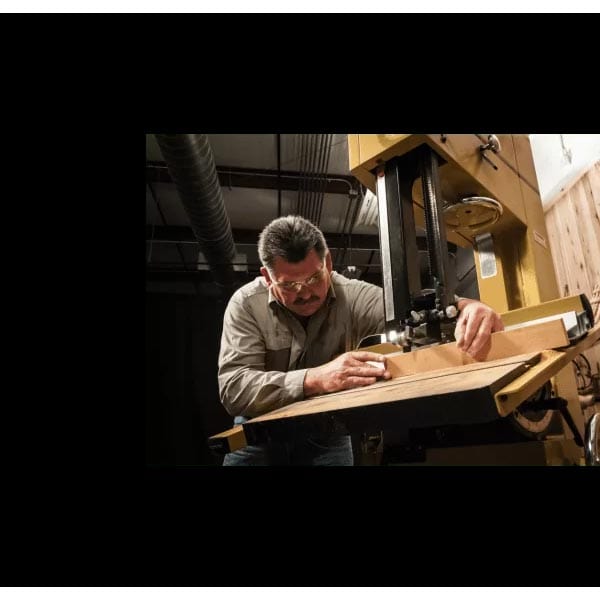

High end blade guides with tool less adjustment provide stability, increasing cut accuracy
Four sided blade guard for optimum protection
Integrated foot brake stops a coasting blade

Specifications:

Motor Power (HP) : 5
Minimum Saw Blade Width (In.) : 1/4
Motor Voltage (V.) : 230
Prewired Voltage (V.) : 230
Blade Speed (SFPM) : 2500/4800
Cutting Capacity Width (In.) : 24
Table Height from Floor (In.) : 35
Cutting Capacity Height (In.) : 15
Motor Phase : 1
Table Size with Extension (L x W) :
Table Tilt (Deg.) : 10 Left, 45 Right
Blade Length (In.) : 183
Dust Collection Minimum CFM Required (CFM) : 600
Miter Gauge Positive Stops : 45, 90
Table Size (L x W) (In.) : 24 x 34
Maximum Saw Blade Width (In.) : 1-1/2
Motor Current (Amps) : 22
Magnetic switch protects the motor from harm due to potential electrical supply issues
