Next Wave

Shark HD520 Custom Package

Item #196359 Model 10055
$ 3,899 99
$ 3,899 99 Was $3,899.99
The Shark HD520® Custom Package gives you the freedom to build a CNC machine that matches your exact needs—nothing more, nothing less. Whether you're . . . View More Details
Ships from Manufacturer Shipping Info
Items you may need

  • Shark SD100 LCD Color Touch Screen Pendant Upgrade Kit

    $ 250 00
    $ 250 00 Was $250.00
    Shark SD100 LCD Color Touch Screen Pendant Upgrade Kit

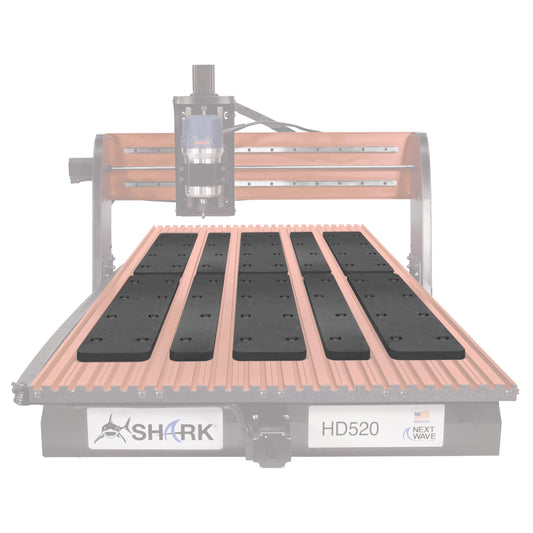

  • Spoil Board Kit for HD520 CNC Machine

    $ 139 99
    $ 139 99 Was $139.99
    HD520 SPOIL BOARD KIT alt 0

  • 10.1" Pendant Upgrade Kit

    $ 499 99
    $ 499 99 Was $499.99
    10.1" Pendant Upgrade Kit

  • 3HP Spindle Kit

    $ 1,399 99
    $ 1,399 99 Was $1,399.99
    3HP Spindle Kit alt 0

  • SHARK 2HP Spindle Kit

    $ 799 99
    $ 799 99 Was $799.99
    SHARK 2HP Spindle Kit alt 0

Details

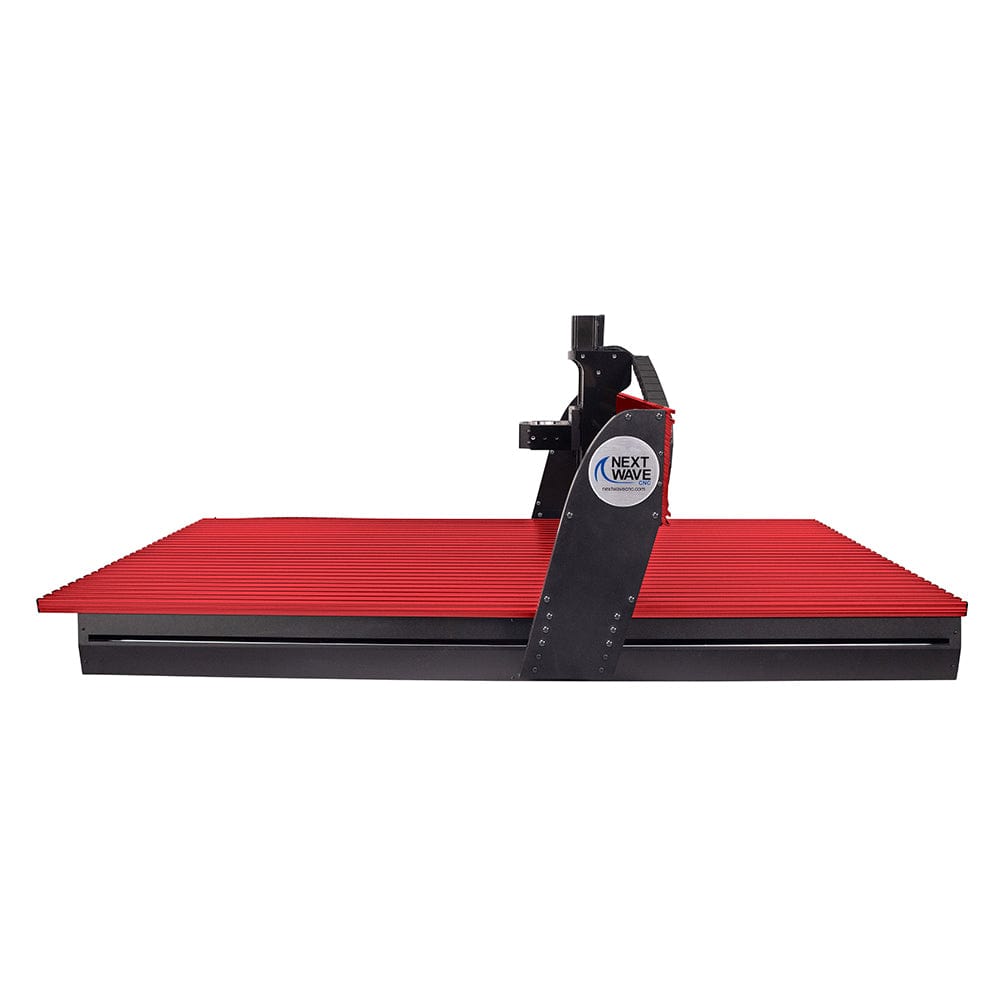

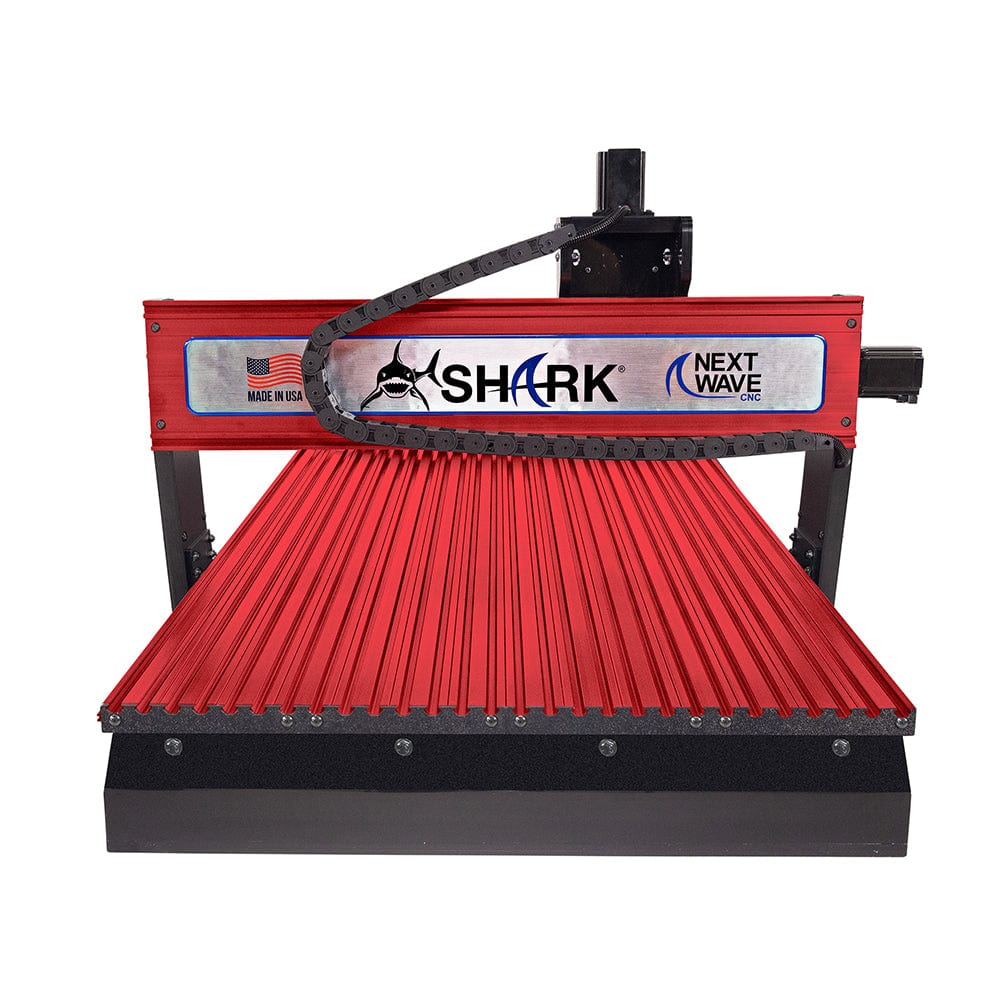

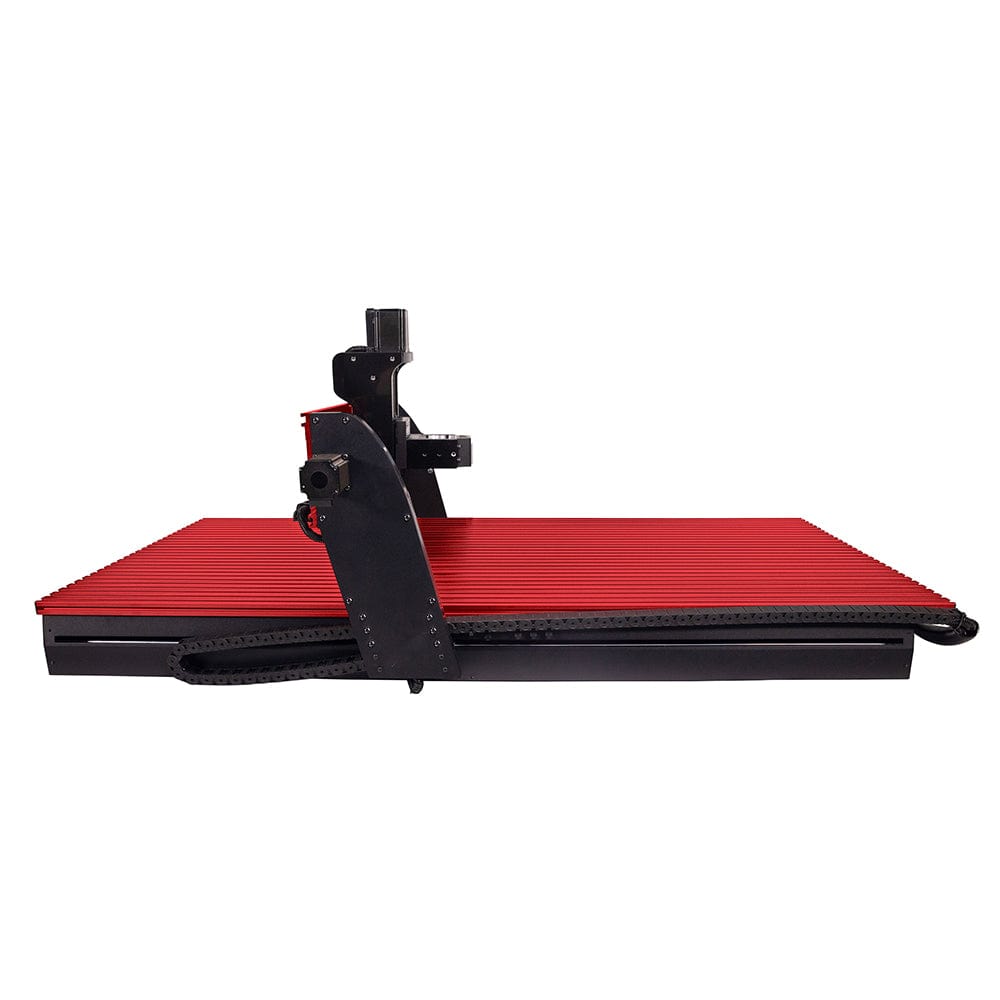

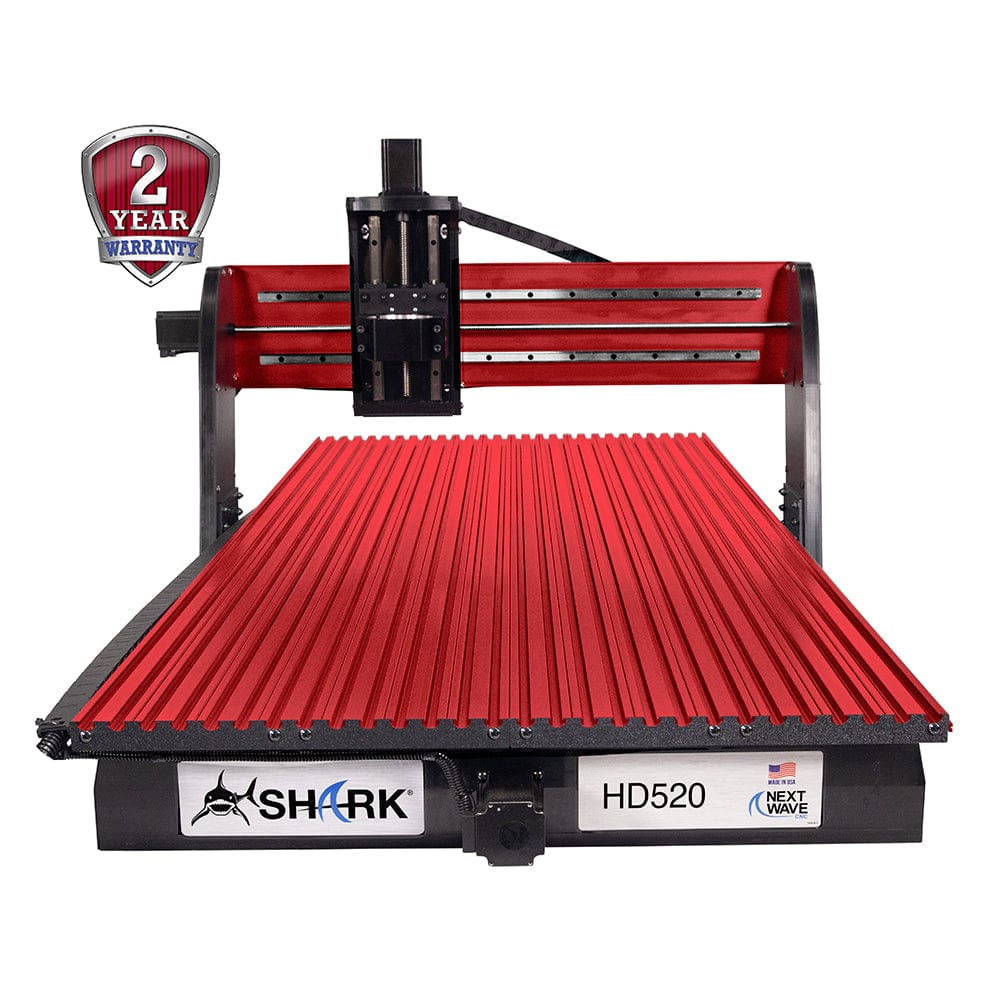

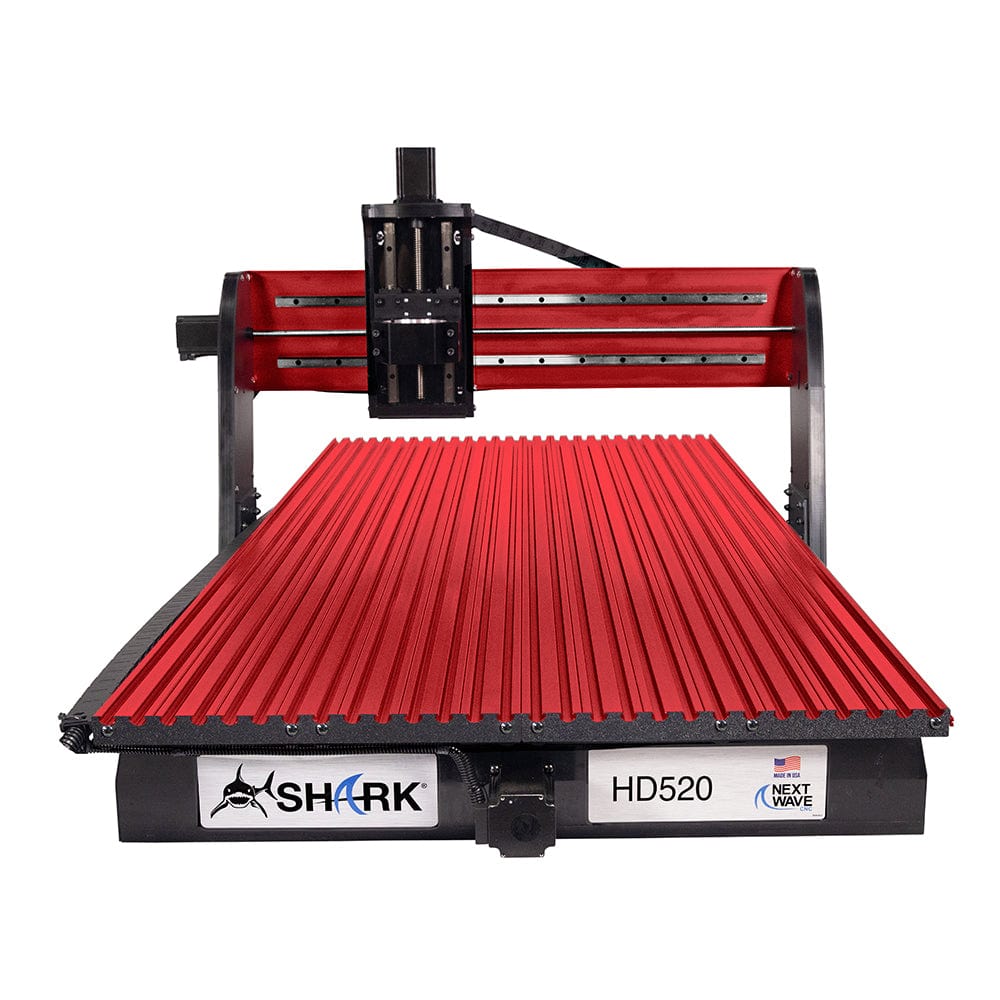

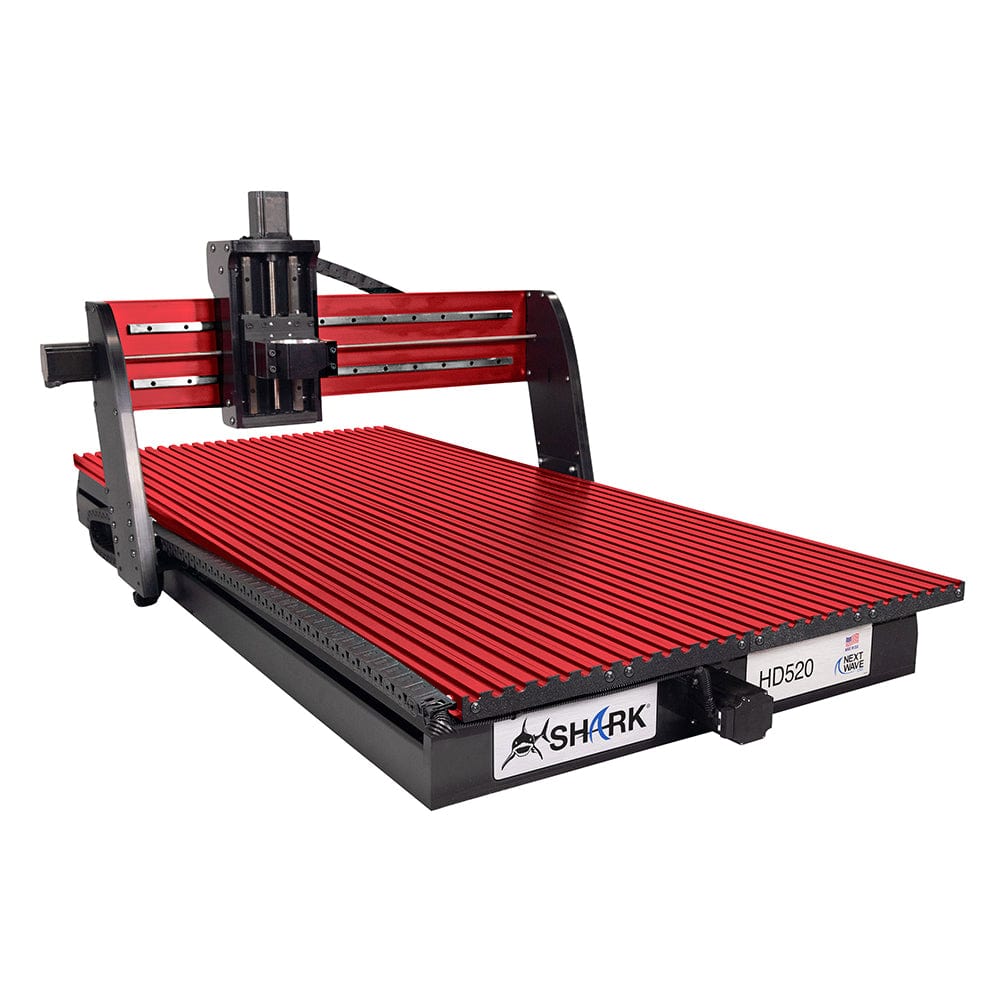

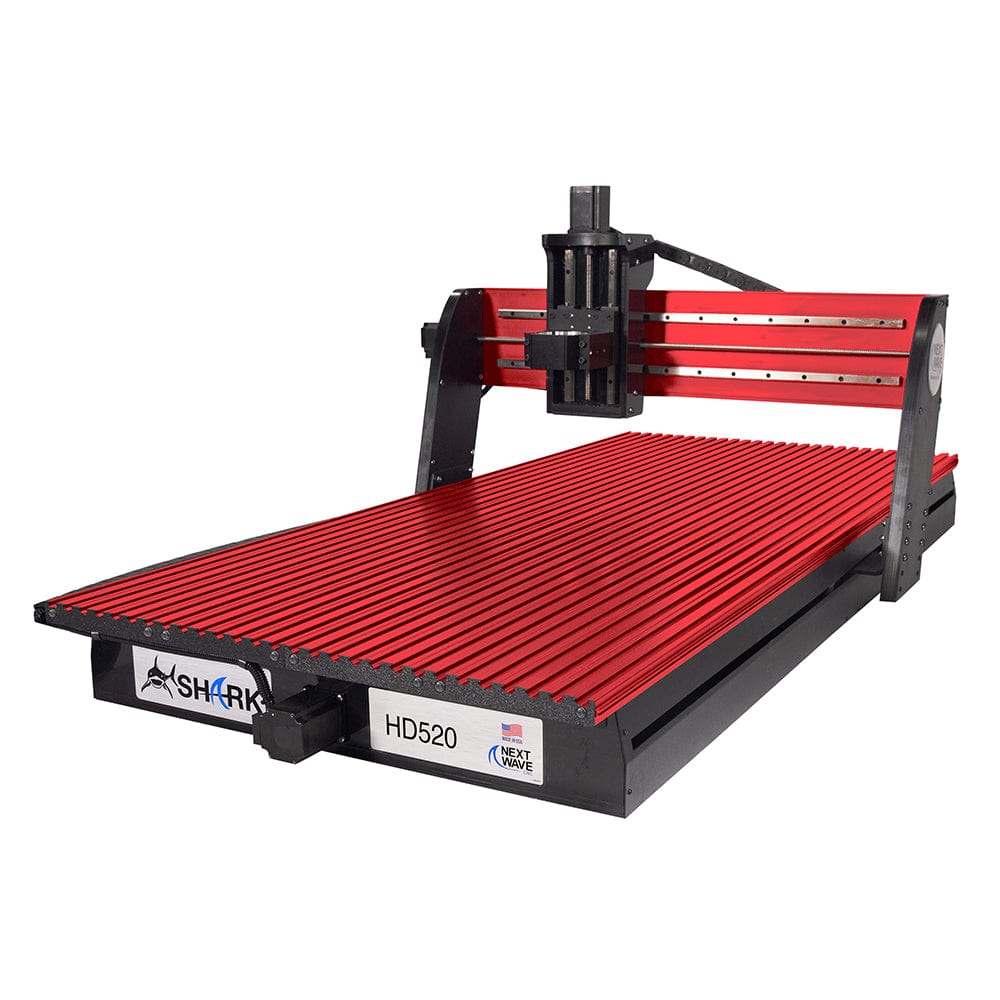

The Shark HD520® Custom Package gives you the freedom to build a CNC machine that matches your exact needs—nothing more, nothing less. Whether you're crafting in a home workshop or managing production runs in a commercial shop, this machine delivers unmatched precision and power. With a spacious cutting area and rugged construction, the HD520® is built for serious makers who demand flexibility, accuracy, and long-term performance.

Features:
  • Customizable CNC Solution – Choose only the features you need for a personalized, cost-effective setup.
  • Expansive Cutting Area – 25” x 50” x 7” dimensions handle large and complex projects with ease.
  • Heavy-Duty Table Design – 28” x 63” table with linear gantry rails ensures long-lasting stability and precision.
  • Router & Spindle Compatibility – Comes with an extruded aluminum mount for 3.5” routers and supports all Next Wave spindle systems.
  • Ready2Control Software – Ideal for carving wood, soft metals, and plastics into detailed signs, boxes, and components.
  • Pendant Options for Enhanced Control – Standard 5” color LCD pendant or optional upgrade to a 10.1” Android tablet pendant.
  • Exclusive Virtual Zero Unlimited® Technology – Automatically adjusts your toolpath for curved and uneven materials—only from Next Wave.
  • Broad Software Support – Includes Shark Wizard Basic; also compatible with VCarve Pro, Cut2D, Desktop, Aspire, Fusion 360, and more.
  • Made in the USA – Built with pride and backed by USA-based technical support for original owners.
Specifications:
  • Table dimensions: 28” x 63”
  • XYZ travel: 25” x 50” x 7”
  • Overall dimensions: 36-1/4” W x 63” L x 24-1/2” H
  • Built with industrial-grade components, the SHARK HD520® also features a heavy-duty aluminum and steel reinforced gantry, a new extruded aluminum router mount system, interlocking aluminum table, linear rails, and guides on the gantry, and anti-backlash, wear-compensated lead screws on all axis.
  • Built to handle larger 2.25 HP routers with 3.5” barrel diameter like DeWalt 610, 616, 618, PC 890 Series, Bosch 1617 or 1618 (router sold separately)
What's Included:
  • Ready2Control Software– Fully control your machine with a PC.
  • Virtual Zero Unlimited, $149 value, this patented Next Wave exclusive software allows you to map the surface of your material by taking an unlimited number of reference points. The program then uses these points to auto-adjust the G-code to conform to the actual surface of your material. This eliminates problems caused by a warped or bowed work piece and allows you to maintain a constant cutting depth on projects that other machines would not be able to handle. (Requires a PC computer with USB 2.0 port (not included))
  • Interlocking slotted rigid aluminum table allows virtually unlimited clamp positioning
  • Made in USA
  • 2 Year Warranty
  • U.S. Based Technical Support
Options Available:
  • The latest edition of Vectric Vcarve Pro design software incorporating Cut 3D functionality and Vector Art 3D Sampler Pack.
  • 2HP and 3HP spindle kits
  • Standard LCD Color Pendant or New 10.1 Android tablet with enhanced functionality.
  • 4th Axis for rotary carving
  • Laser module for engraving
  • Digital probe for duplicating 3D items
  • Drawing tool for unique artistic designs

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 5 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground or Freight to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

Next Wave products can be returned if they are in unopened, resaleable condition. You will be responsible for a 25% restocking fee. If you need help initiating a return, please contact Woodcraft Customer Service at 1-800-535-4482.
