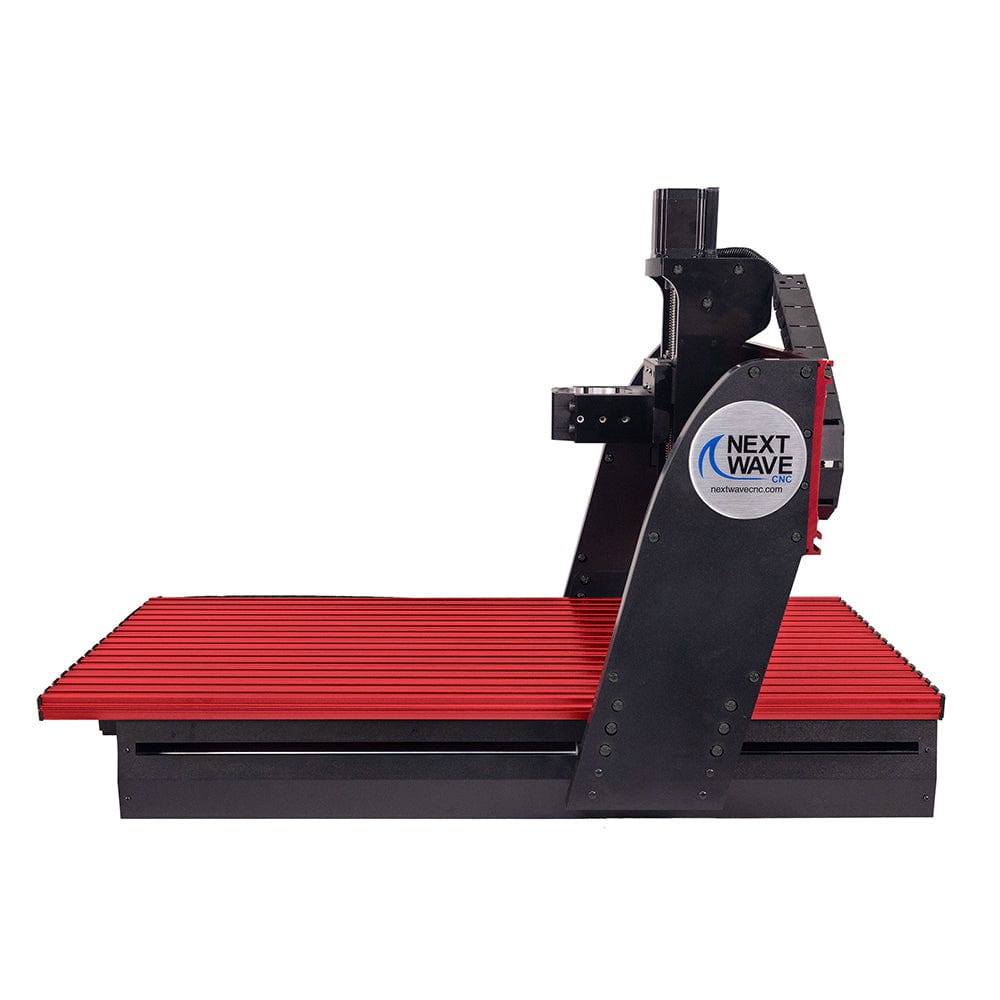

Shark HD500 Custom Package

Item #196357 Model 10065
$ 2,299 99
$ 2,299 99 Was $2,299.99
  • Shark HD500 Custom Package
  • Shark HD500 Custom Package
  • Shark HD500 Custom Package
  • Shark HD500 Custom Package
  • Shark HD500 Custom Package
  • Shark HD500 Custom Package
  • Shark HD500 Custom Package
1 7

Next Wave

Shark HD500 Custom Package

Item #196357 Model 10065
$ 2,299 99
$ 2,299 99 Was $2,299.99
The Shark HD500® Custom Package is a high-performance CNC solution built for both hobbyists and professionals. With its modular design, this system al. . . View More Details
Ships from Manufacturer Shipping Info
Items you may need

  • Shark SD100 LCD Color Touch Screen Pendant Upgrade Kit

    $ 250 00
    $ 250 00 Was $250.00

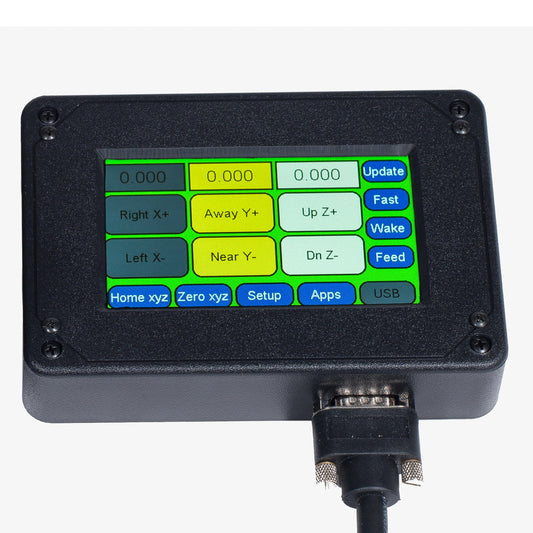

    Shark SD100 LCD Color Touch Screen Pendant Upgrade Kit

  • Vectric VCarve Desktop Software

    $ 349 00
    $ 349 00 Was $349.00
    Vectric VCarve Desktop Software alt 0

  • 10.1" Pendant Upgrade Kit

    $ 499 99
    $ 499 99 Was $499.99

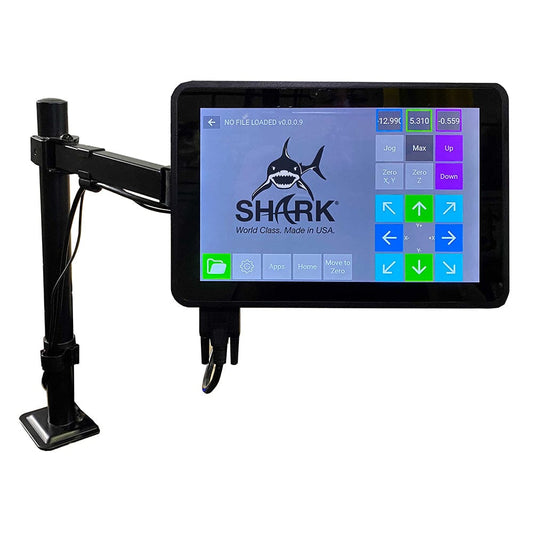

    10.1" Pendant Upgrade Kit

  • 3HP Spindle Kit

    $ 1,399 99
    $ 1,399 99 Was $1,399.99
    3HP Spindle Kit alt 0

  • SHARK 2HP Spindle Kit

    $ 799 99
    $ 799 99 Was $799.99
    SHARK 2HP Spindle Kit alt 0

Details

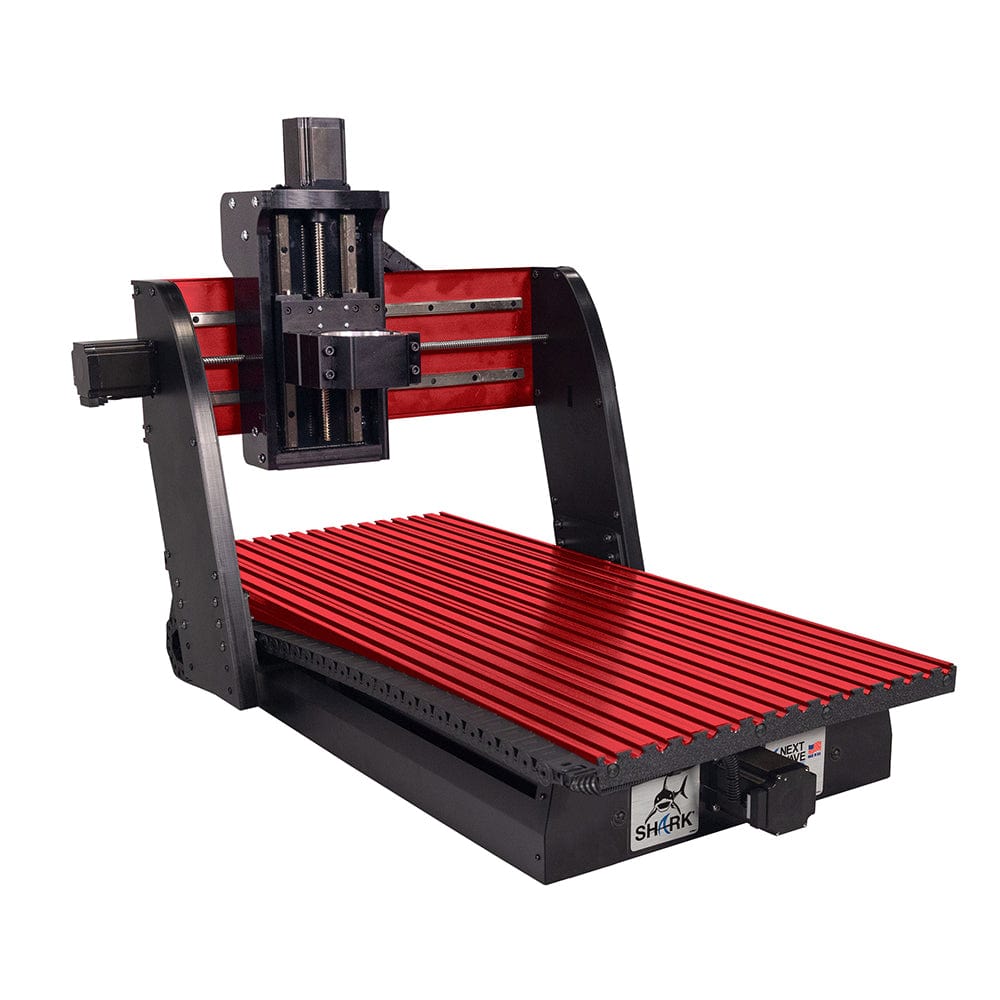

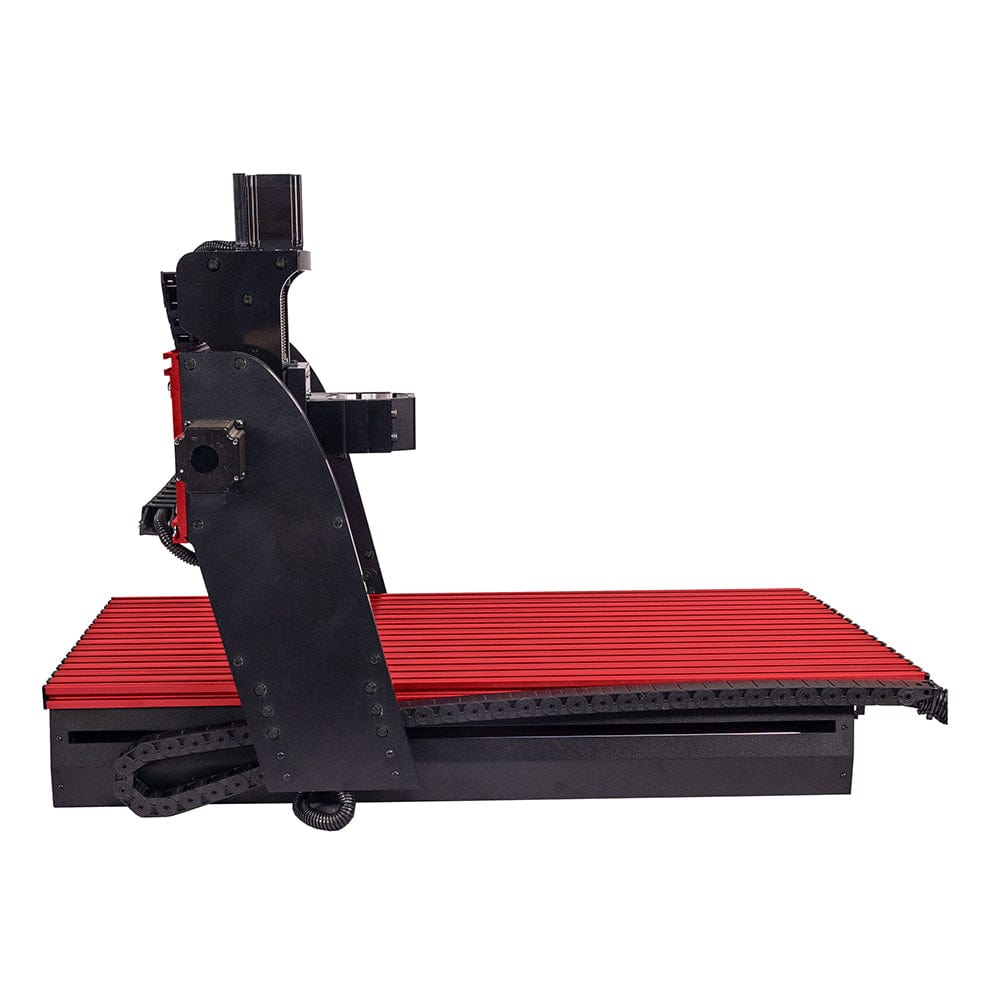

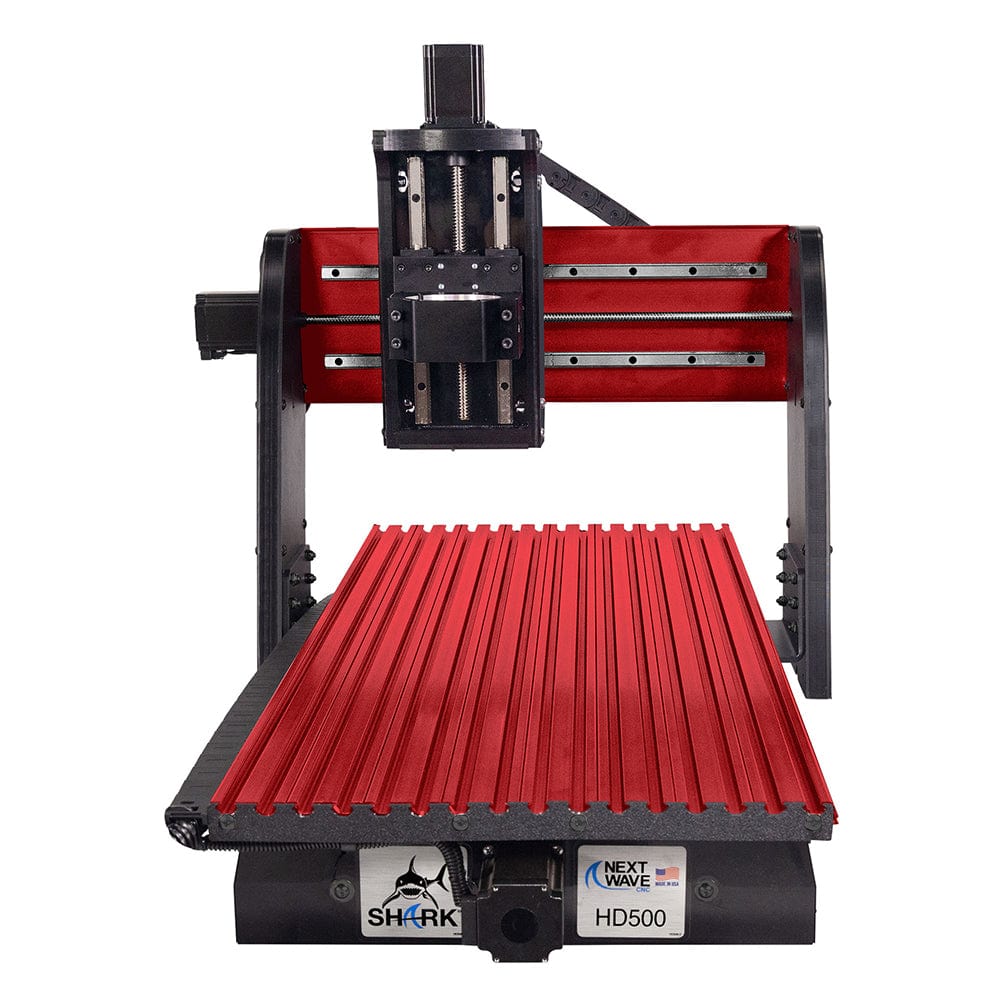

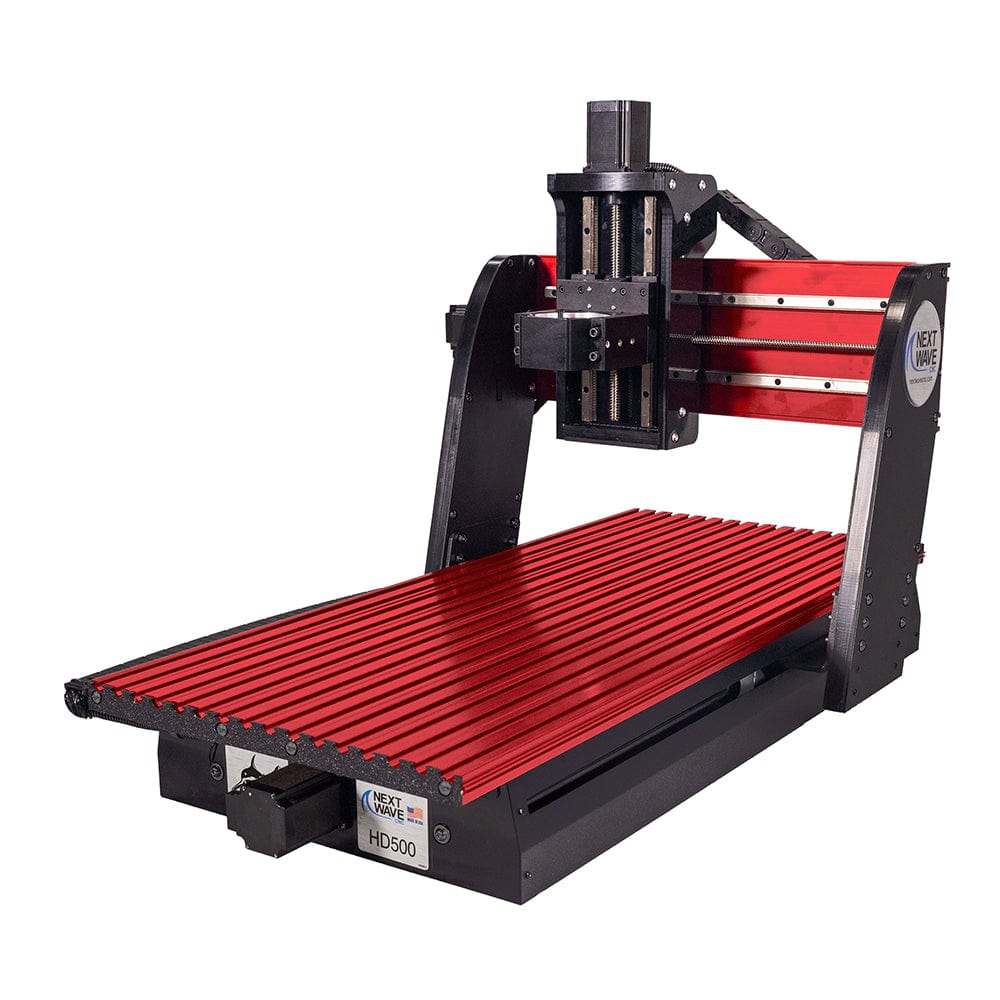

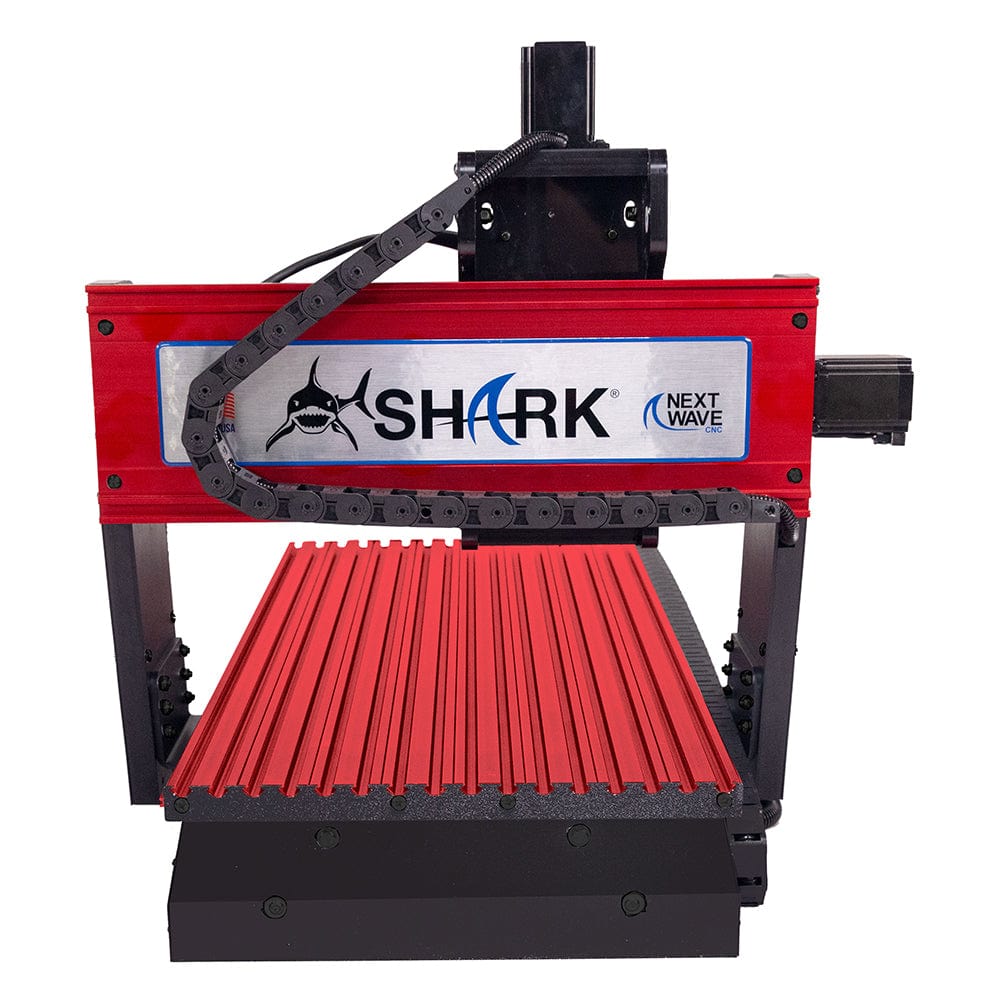

The Shark HD500® Custom Package is a high-performance CNC solution built for both hobbyists and professionals. With its modular design, this system allows you to choose only the features you need—delivering unmatched value and performance without unnecessary extras. Built in the USA and backed by expert support, the HD500® combines power, precision, and innovation to meet the demands of any workshop or production environment.

Features:
  • Customizable Package – Select only the features you need for a CNC solution tailored to your workflow.
  • Generous Cutting Area – 13” x 25” x 7” capacity lets you take on projects of all sizes.
  • Sturdy Construction – 16” x 36” table with linear gantry rails for superior stability and smooth motion.
  • Router & Spindle Ready – Includes an extruded aluminum mount for 3.5” barrel routers and compatibility with all Next Wave spindle systems.
  • Ready2Control Software – Computer-controlled software supports carving in wood, soft metals, and plastics with professional precision.
  • Pendant Control Options – Comes standard with a 5” color LCD pendant; upgrade to a 10.1” Android tablet pendant for enhanced functionality.
  • Virtual Zero Unlimited® – Patented technology automatically adjusts for uneven surfaces—exclusive to Next Wave.
  • Software Compatibility – Comes with Shark Wizard Basic; also works with VCarve Desktop, Cut2D, Aspire, Fusion 360, and more.
  • Accessory Expansion – Add-ons like a 4th axis, laser module, digital probe, and drawing tool let you unlock even more capabilities.
  • Made in the USA – Quality construction backed by U.S.-based technical support for peace of mind.
Specifications:
  • Table dimensions: 16” x 36″
  • XYZ travel: 13” x 25” x 7”
  • Overall dimensions: 24-1/4”W x 36”L x 24-1/2”H
  • Built with industrial-grade components, the SHARK HD510® also features a heavy-duty aluminum and steel reinforced gantry, a new extruded aluminum router mount system, interlocking aluminum table, linear rails, and guides on the gantry, and anti-backlash, wear-compensated lead screws on all axis.
  • Built to handle larger 2.25 HP routers with 3.5” barrel diameter like DeWalt 610, 616, 618, PC 890 Series, Bosch 1617 or 1618 (router sold separately)
What's Included:
  • Ready2Control Software– Fully control your machine with a PC.
  • Virtual Zero Unlimited, $149 value, this patented Next Wave exclusive software allows you to map the surface of your material by taking an unlimited number of reference points. The program then uses these points to auto-adjust the G-code to conform to the actual surface of your material. This eliminates problems caused by a warped or bowed work piece and allows you to maintain a constant cutting depth on projects that other machines would not be able to handle. (Requires a PC computer with USB 2.0 port (not included))
  • Interlocking slotted rigid aluminum table allows virtually unlimited clamp positioning
  • Made in USA

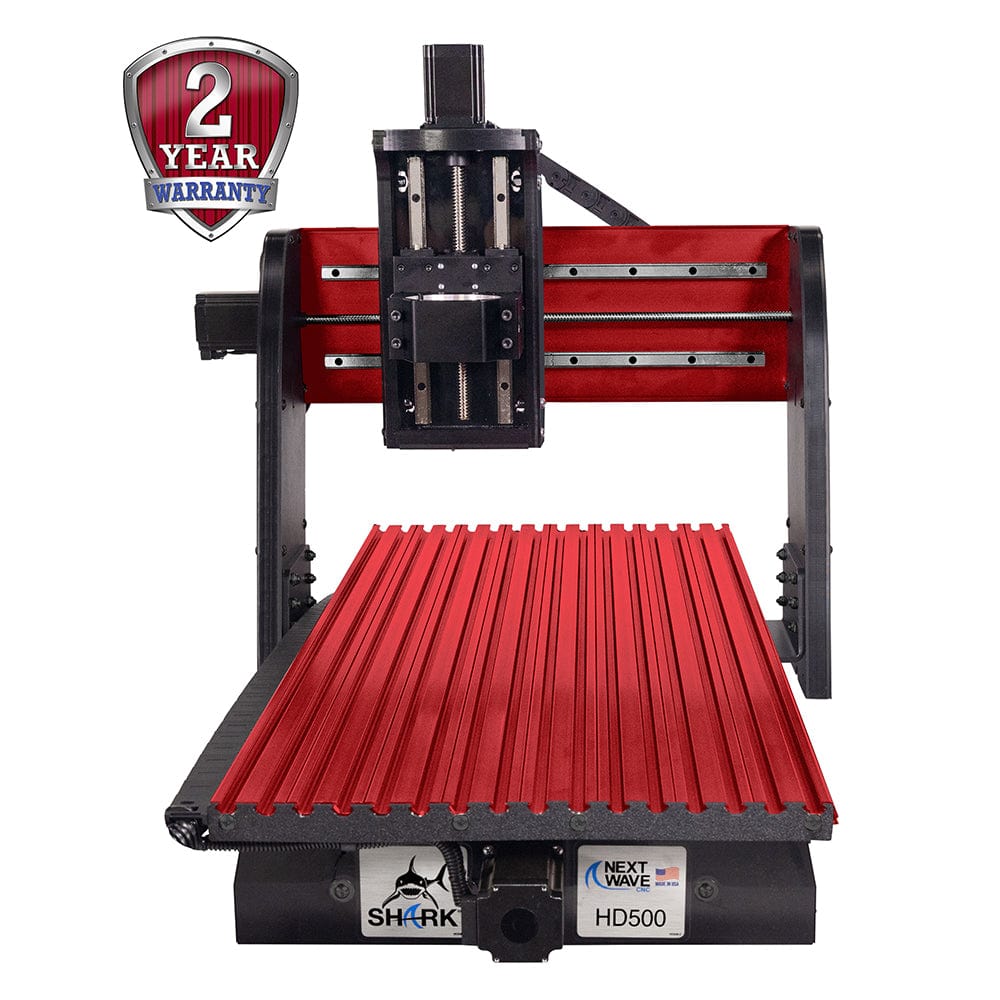

  • 2 Year Warranty
  • U.S. Based Technical Support
Options Available:
  • 2HP and 3HP spindle kits
  • Standard LCD Color Pendant or New 10.1 Android tablet with enhanced functionality.
  • 4th Axis for rotary carving
  • Laser module for engraving
  • Digital probe for duplicating 3D items
  • Drawing tool for unique artistic designs
