Next Wave

3HP Spindle Kit

Item #183451 Model 20160
$1,399.99
$1,399.99 $1,399.99
For the toughest challenges, Next Wave presents the 3HP Water Cooled Spindle System. Featuring the new e-cool, enclosed water-cooling system, digital . . . View More Details

Ships from Manufacturer

Shipping Info

Details

For the toughest challenges, Next Wave presents the 3HP Water Cooled Spindle System. Featuring the new e-cool, enclosed water-cooling system, digital control interface and Er20 collet that allows for use of both 1/4" and 1/2" shanked bits. The 3HP spindle also features long-life German engineered bearings, operates on a standard 110V shop current and is 75% quieter than a standard router. Well suited for commercial applications, this kit includes everything necessary and pre-programmed to work with the CNC Shark HD500, HD510, or HD520 machines only.

The 3HP water cooled Spindle kit features the Next Wave CNC's proprietary interface from controller to VFD. Remotely controls Spindle Power on/off via G-Code and remotely controls Spindle Speed (RPM) via G-Code


Features

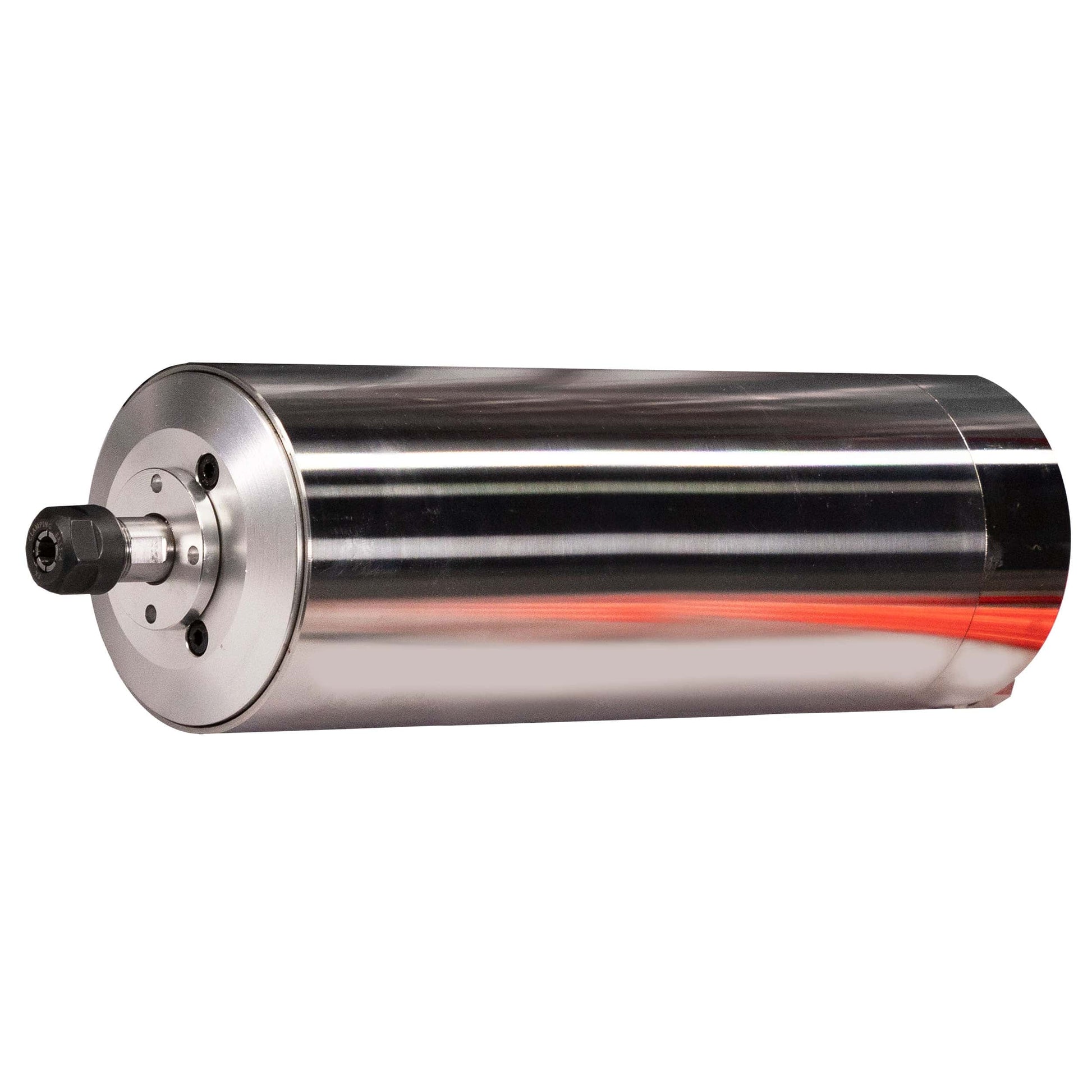

  • 3HP Liquid cooled brushless Spindle
  • 24,000 RPM max, 110V 13 amp inverter
  • Er20 Collet system including 1/4" and 1/2" shank collets
  • Exclusive new e-cool system - entirely enclosed cooling system - no need for a bucket

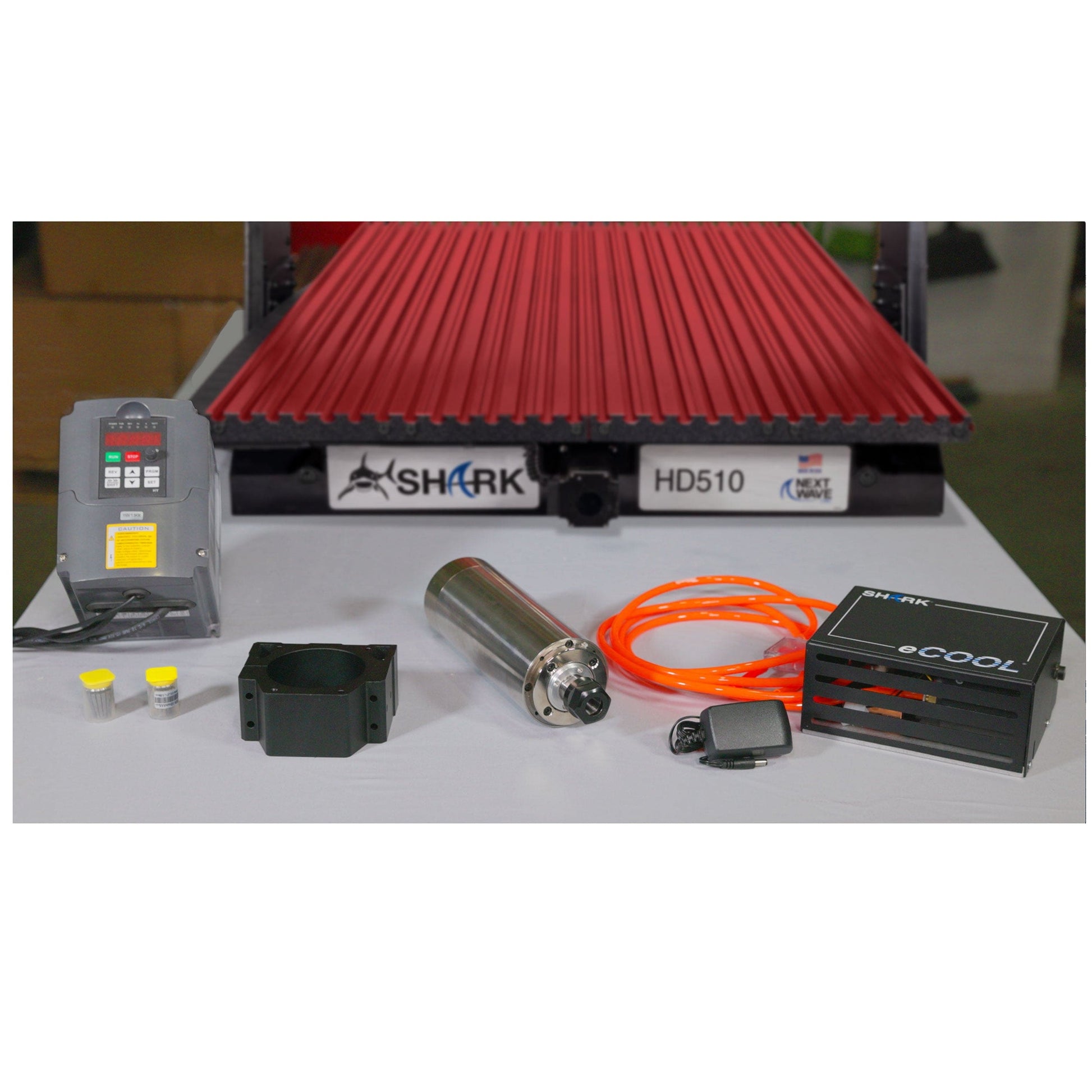

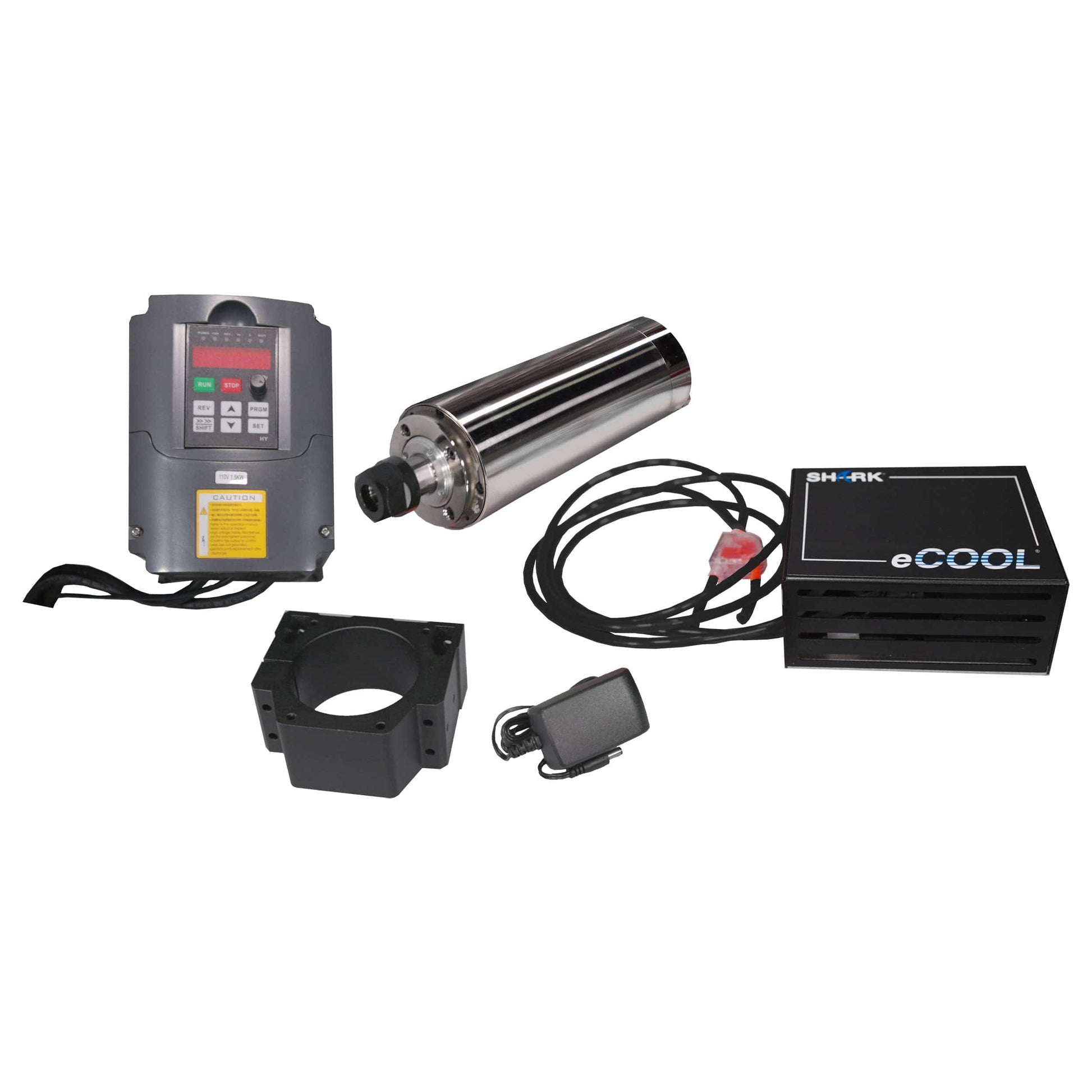

Includes



  • 21mm and 30 mm Wrenches
  • All hoses and fittings necessary for hookup
  • Flow Meter - allows monitoring of fluid flow
  • Aluminum Spindle Clamp with mounting hardware
  • USA Based Tech Support



1 Year Warranty
