MultiTool Grinders

8" Grinder, MT482 2x48 Attachment

Item #175810 Model PA482-8
$649.00
$649.00 $649.00
Multitool's PA482-8 is the 2" x 48" attachment mated with an industrial 1HP motor will extend your capabilities far beyond traditional bench grinder. . . View More Details

Ships from Manufacturer

Shipping Info

Details

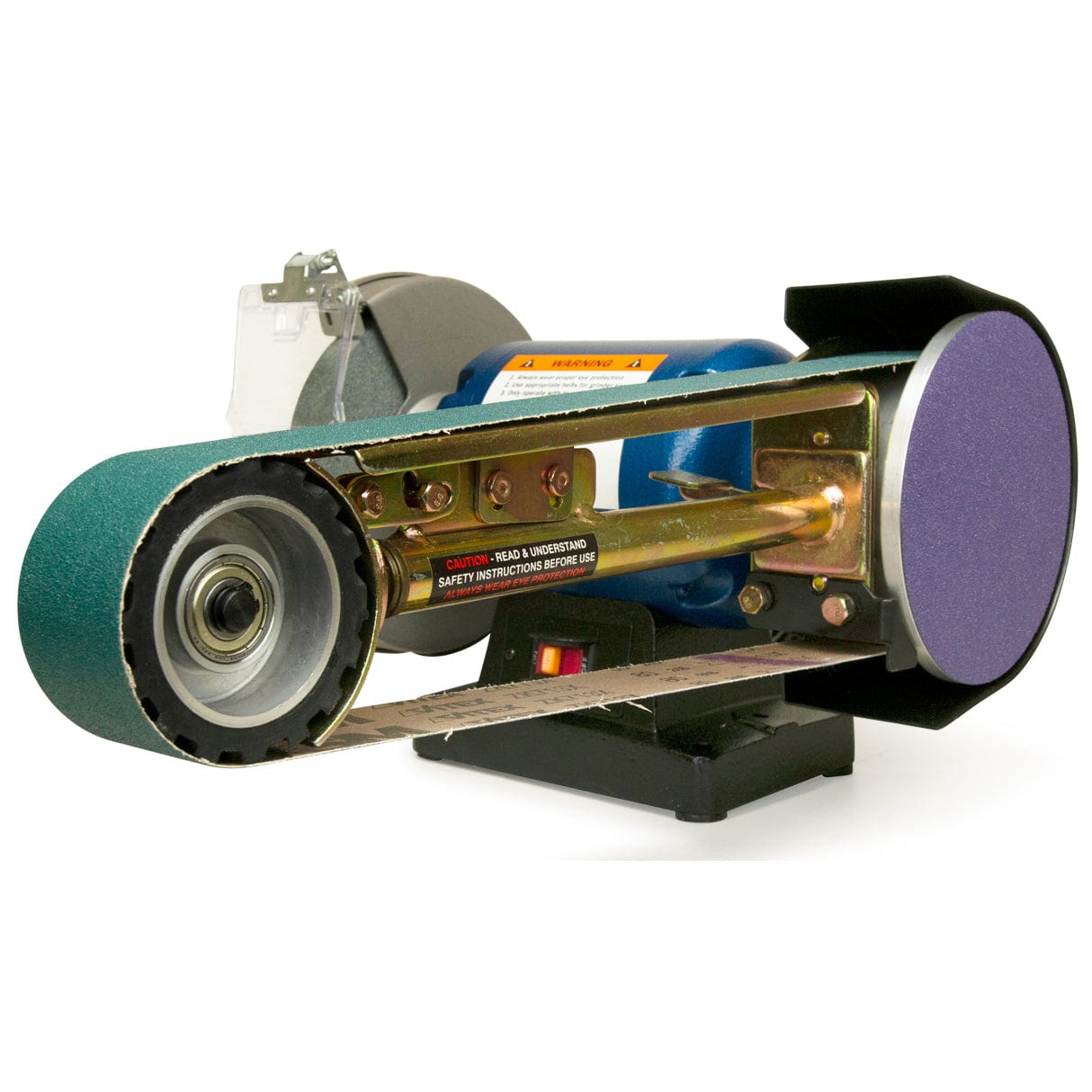

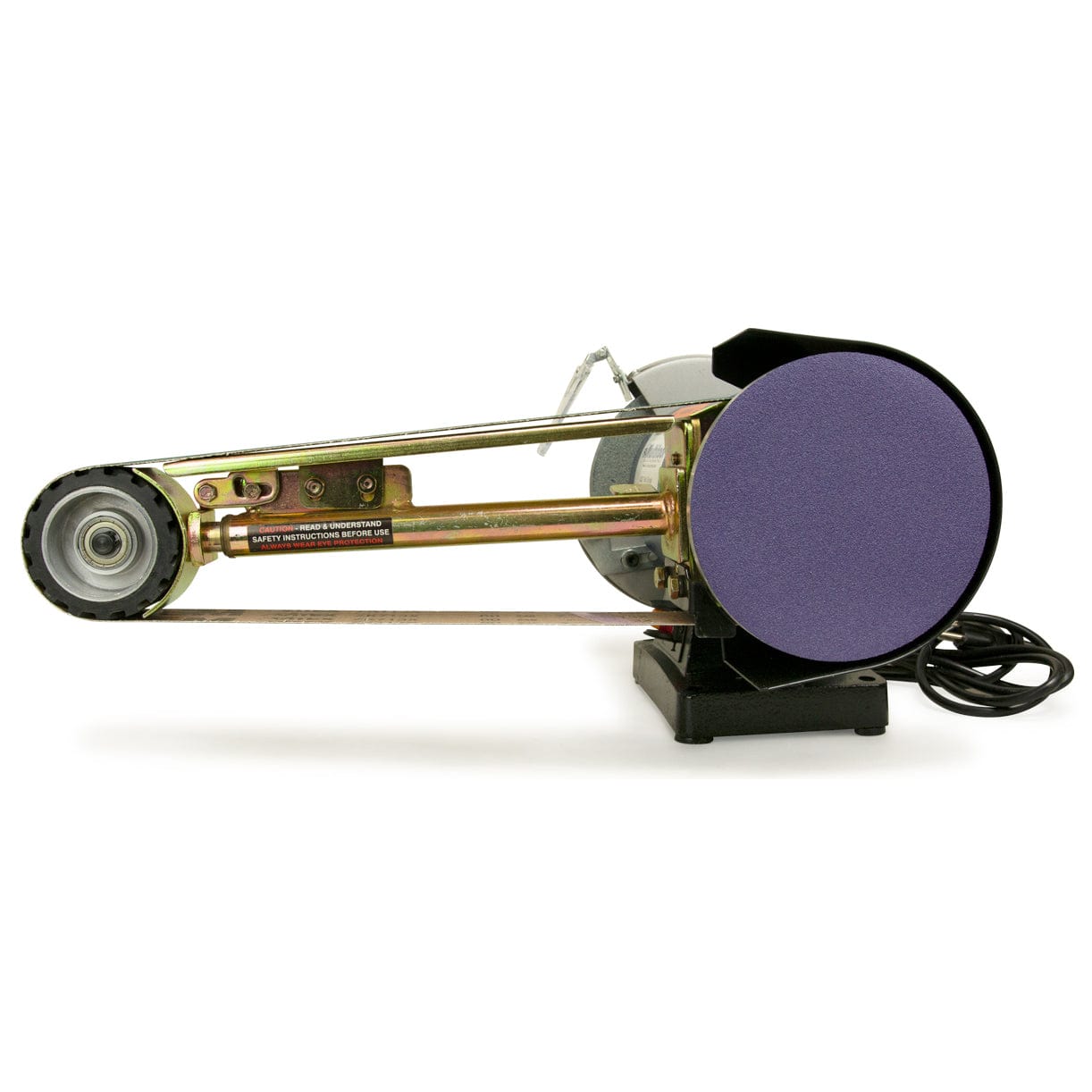

Multitool's PA482-8 is the 2" x 48" attachment mated with an industrial 1HP motor will extend your capabilities far beyond traditional bench grinders. The additional length of the 2" x 48" attachment provides an extra long precision top platen for straightening, flat finishing, or profiling longer edges. Additionally the longer belt length offers increased belt wrap on the underside slack belt surface for external contouring and blending. The front contact wheel can be used for smooth controlled grinding, contouring, or internal finishing. The large 7" disc sander on the side offers plenty of surface area to work with for beveling, deburring, squaring and general sanding. The quick change belt system allows you to change from grinding to polishing in seconds. The belt attachment can operate in a horizontal or vertical position.

Multitool's patented design is the result of years of research by engineers who have specialized in belt grinding machinery. It doesn’t matter if you are a novice or seasoned metal worker, Multitool will make all your projects look like you’re a master craftsman. The Multitool belt grinder has five different working surfaces to cover any grinding, sanding, finishing, or polishing needs. Built to industrial standards to withstand everyday manufacturing and commercial use, with more than enough power for the DIY enthusiast. Multitool grinders are a throwback to a time when tools were built with components made to last!

Features
  • 1HP Industrial motor
  • Heavy duty cast iron grinder body and base with pre-drilled mounting holes
  • Adjustable tool rest and large eye shield
  • Full OSHA approved safety guards
  • Hi-Viz on/off switch with removable safety key
  • 5 grinding positions: contact wheel, flat platen, slack belt, disc, and grinding wheel
  • Belt attachment can be operated in vertical or horizontal position
  • Precision top platen can be used for perfect flat finishing
  • Tool free quick change belt system allows the operator to go from rough grinding, to finishing and polishing in seconds
Specifications
  • Motor: 1HP, Single Phase, 1PH
  • Amps: 6
  • Shaft diameter: 5/8" or 1/2" with adapter
  • RPM: 3450
  • Disc diameter: 7"
  • Wheel diamter: 8" x 1", 36 grit
  • Contact wheel diameter: 3.5"
  • Dust port size: 1.5"
  • Belt width: 2"
  • Belt length: 48"
  • Platen Size: 2" x 11.25"
  • Belt speed: 5400
CSA/CUS and UL Certified

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 5 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

For non-defective returns, customers have 30 days from ship date to return. Customer will be responsible for return shipping and 15% restock fee. A RGA must be on all returned shipments.

Warranty Information

MultiTool Grinders are warrantied for 3 years on Belt Grinder Components and 2 years on all electrical. Contact MultiTool Grinders for all warranty issues at 1-800/660-0880
