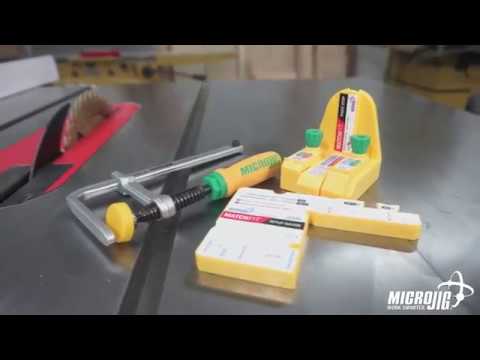

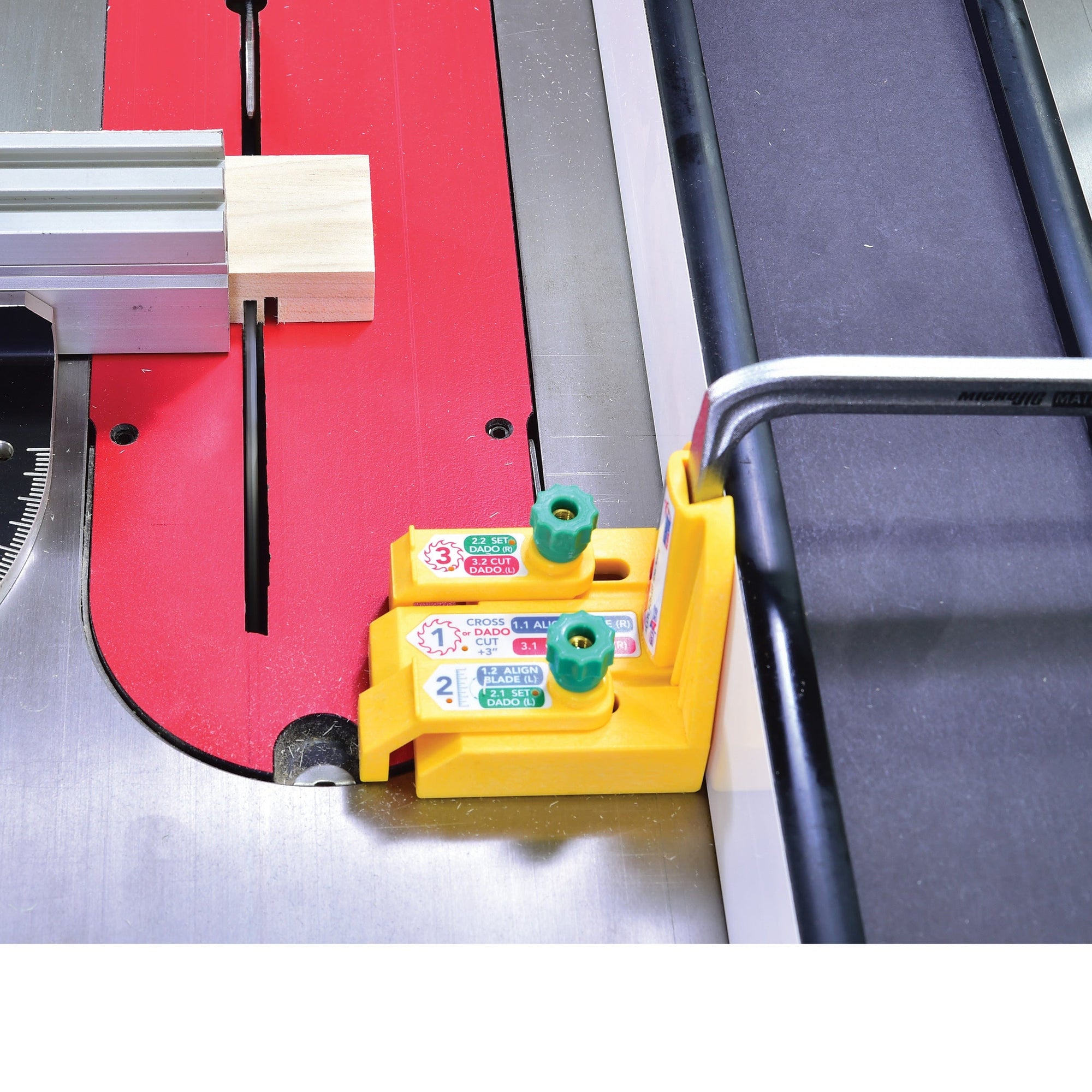

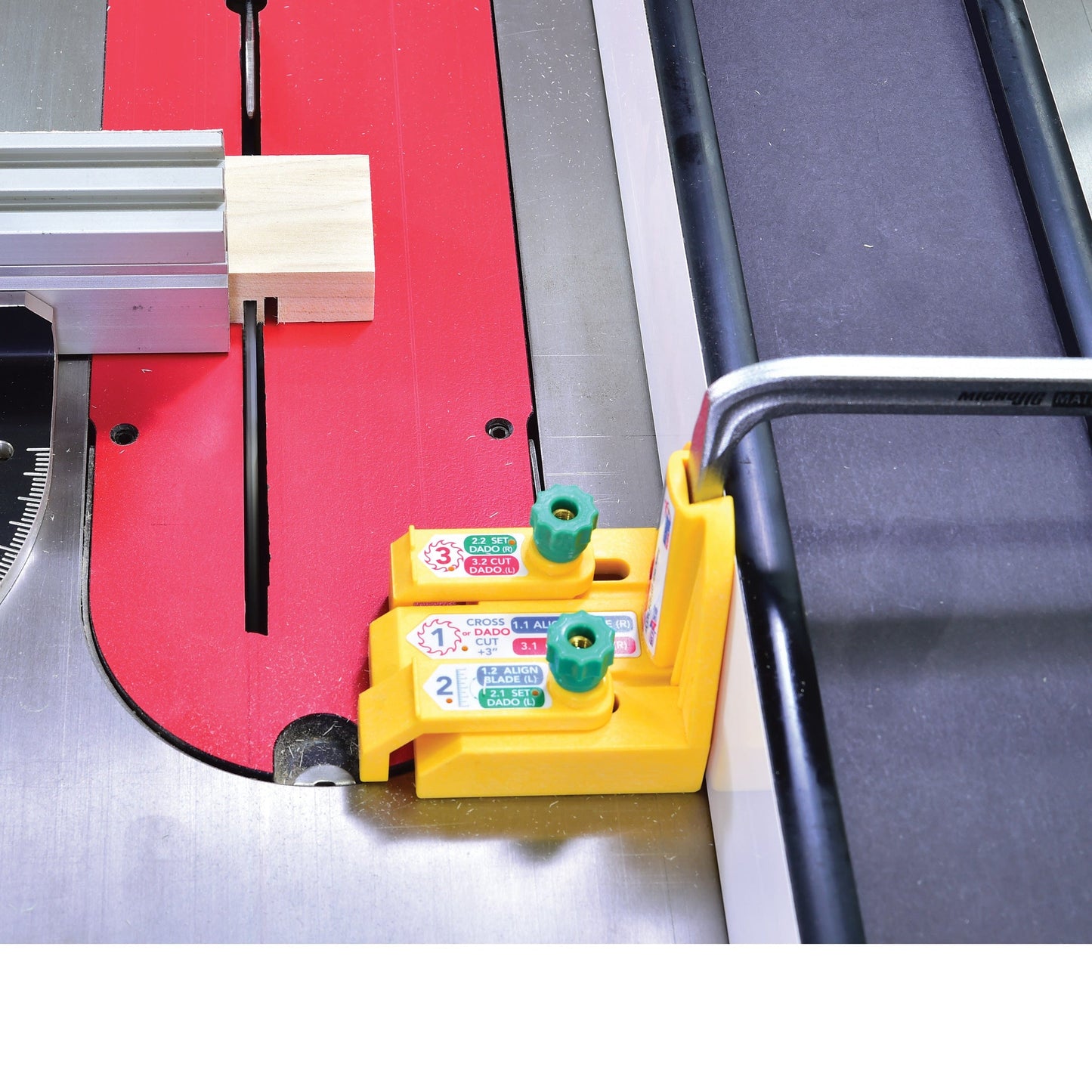

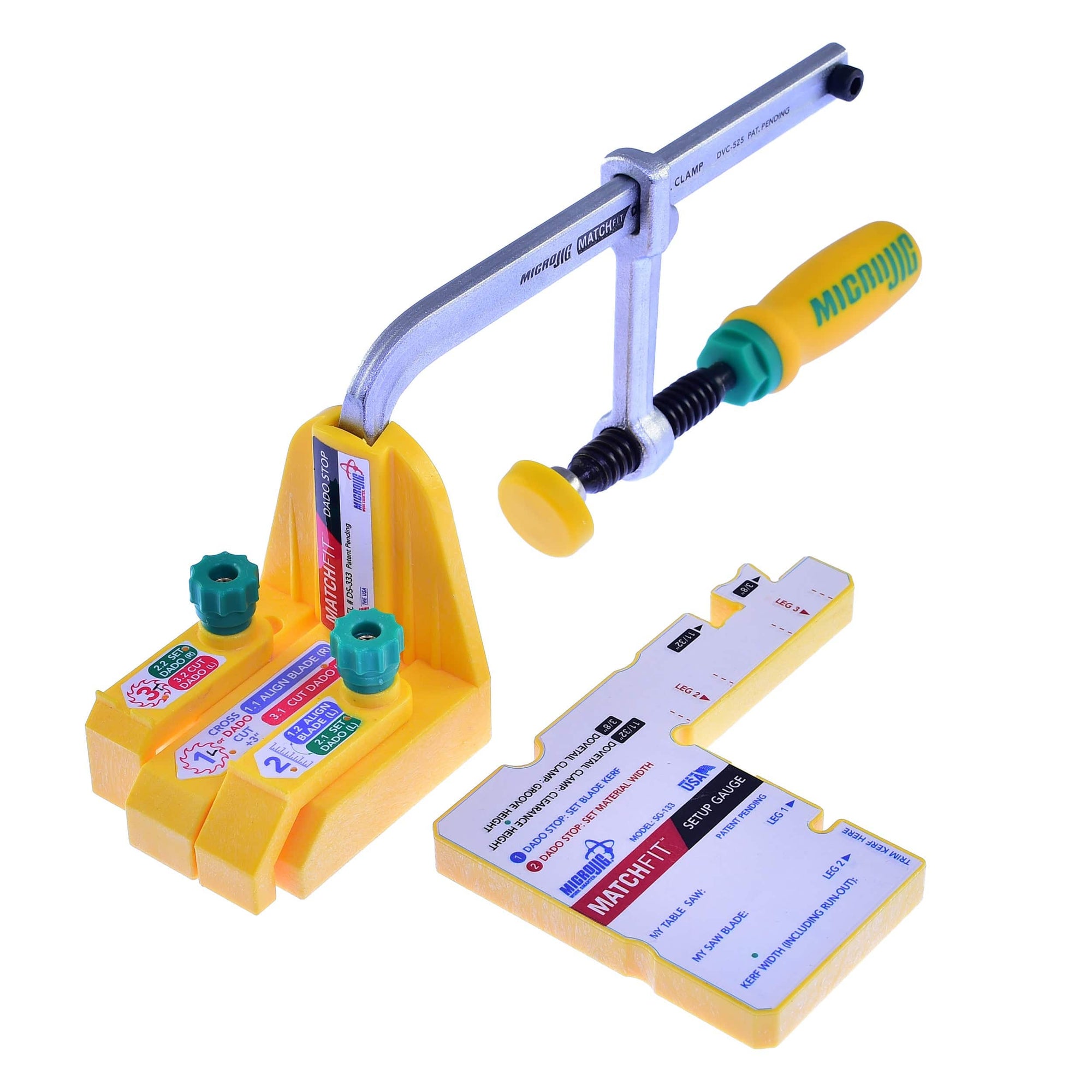

Take your woodworking projects to the next level with MicroJig's MatchFit™ Dado Stop Pro system. This innovative tool lets you create perfectly fitting lap joints, inlays, and dado cuts, all with an ordinary table saw blade - no dado stack required! With the MatchFit Dado Stop Pro, you'll achieve airtight joints effortlessly, without the need for measuring or test cuts. The legs on the jig set the location of the shoulders, and the waste in the middle is then cleared with repeated passes over the blade. Plus, the Dado Stop can also be used as a crosscut stop to prevent binding when using the fence for repetitive crosscuts. The MatchFit Setup Gauge is included, ensuring consistently fast and easy setups. With its precision engineering and versatile design, the MatchFit Dado Stop Pro is a must-have accessory for any woodworker looking to achieve professional results. Features: Specifications: What's Included:
Microjig
MATCHFIT Dado Stop Pro
Microjig
MATCHFIT Dado Stop Pro
Frequently Bought Together
-
Current product. Always included in the bundle total and cannot be deselected.
MicrojigMATCHFIT Dado Stop Pro$64.99 -
MicrojigMATCHFIT Dado Stop+$25.99

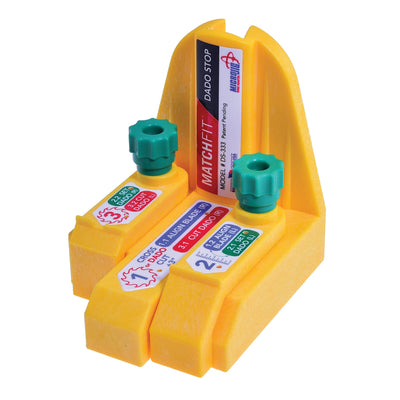

Microjig
MATCHFIT Dado Stop
Item #866264 Model DS-333Simple and easy to use, the MATCHFIT™ Dado Stop™ sets the shoulders of your cross dado using the actual part that will be fitted in the dado for a perfect fit without measuring or test cuts. No hassles, no tricky measurements, just perfect-fitting dado cuts. The Dado Stop uses adjustable legs as a stop to make your shoulder cuts then use back and forth cuts to clear the center using a regular blade. Insert the inlay material into your workpiece, for a perfect-fitting dado. Now intricate joinery at angles previously too cumbersome to perform on a table saw are possible with the Dado Stop. The Dado Stop can be used as a safe and effective crosscut stop. The precise 3” length allows you to accurately set the rip fence scale for repeatable, accurate cuts, fast. A single MicroJig MATCHFIT Dovetail Clamp is necessary to attach the Dado Stop to your table saw fence. MATCHFIT Dovetail Clamp is not included.Features:
• Perfectly-fitted dados, joinery, and inlays without measuring, marking, or test cuts
• Dado Stop makes intricate joinery at angles an easy task on a table saw
• Cross-cut stop feature uses accuracy of your rip fence scale for repeatable cuts – fast
• Just three simple steps allow you to use a regular blade instead of a dado set
• Required: MATCHFIT Dovetail Clamp not included -
MicrojigMATCHFIT SetUp Gauge+$16.99

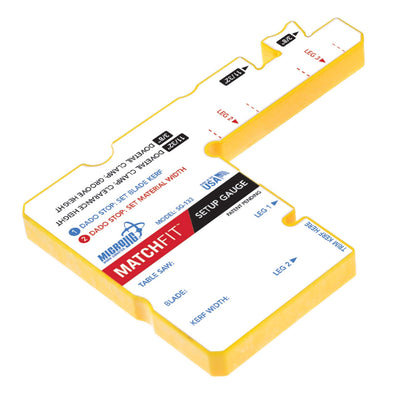

Microjig
MATCHFIT SetUp Gauge

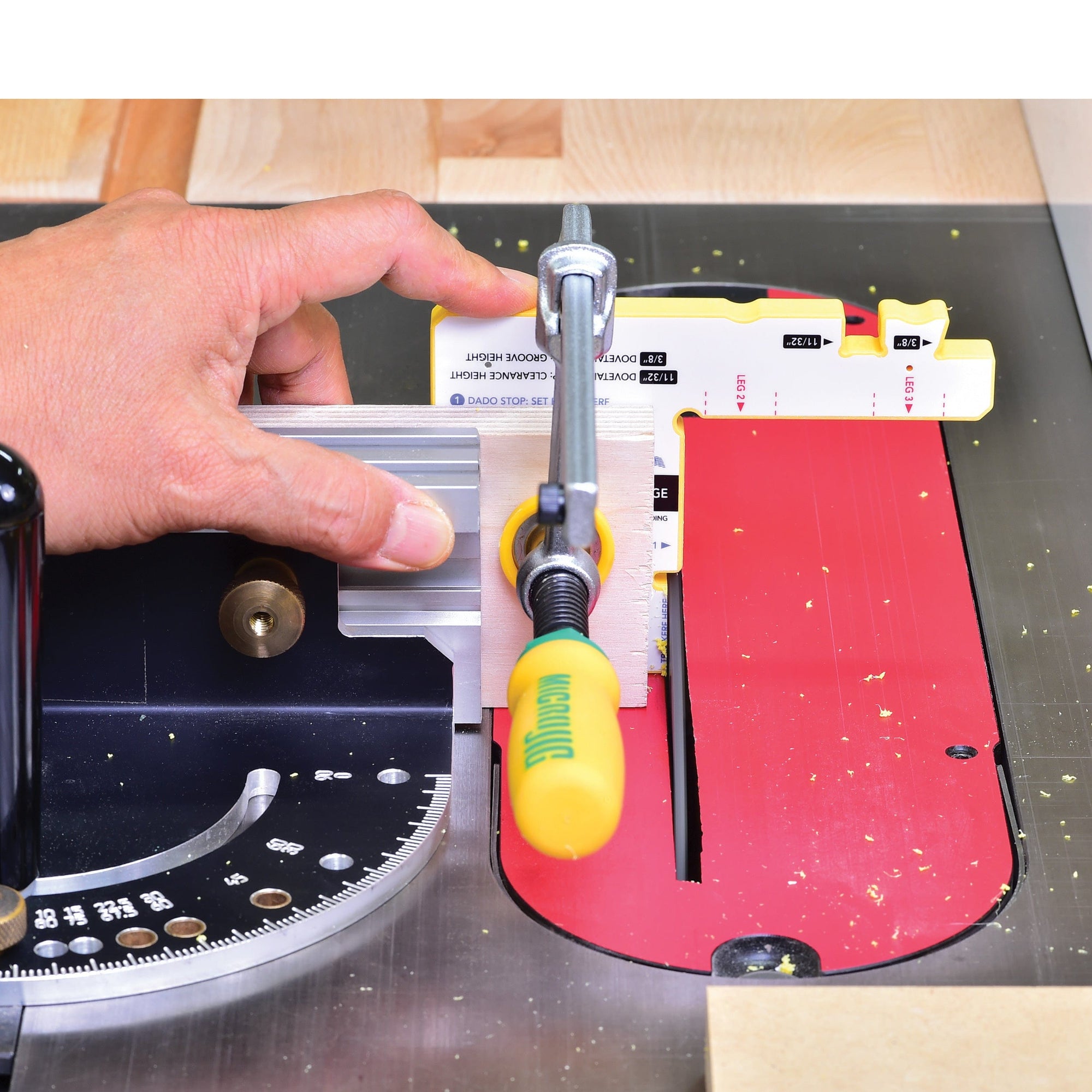

Item #870533 Model SG-133MATCHFIT Setup Gauge is an excellent reference template for setting your saw and router to create jigs that utilize the easy to use MATCHFIT Dovetail clamps. It also offers a reference gauge that can be personalized for your blade settings to be recorded for future setups.Features:
• Molded gauge with simple markings has magnets to store at hand
• Quick blade height template for clearance slots
• Convenient router bit template for Dovetail Clamp grooves
• Set precise blade kerf and dado width with your own personal template
• Record dado settings for future reference -
MicrojigMATCHFIT Dovetail Fixture and Jig Clamps - 2 Piece+$49.99

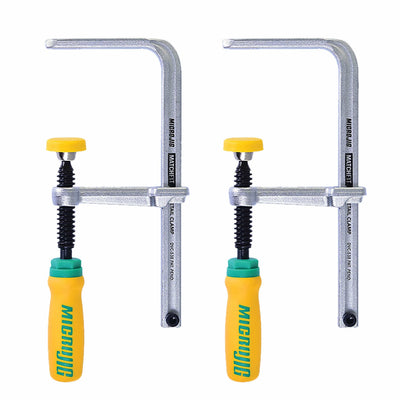

Microjig
MATCHFIT Dovetail Fixture and Jig Clamps - 2 Piece
Item #163976 Model DVC-538K2Microjig® MATCHFIT Dovetail Clamps can hold parts, jigs, and fences without obstructing the travel of your saw or router. The fixed clamp leg is contained within a dovetail groove to offer maximum versatility without interference. The dovetail design gives you the freedom to create your own track grooves, allowing you to clamp virtually anywhere! Build your own extension tables, clamping tables, and guide rails using the MATCHFIT clamps to anchor the jig or hold the workpiece.
Features:
- Easy-to-grip special resin handles
- Secure clamp at any point along your dovetail groove
- Reversible clamping leg offers versatility
- Acme clamp thread for smooth operation
- Rout a groove along the front of your workbench for an instant face vise
- Create a grid of grooves for a versatile clamping table
- Use to build a straight edge ripping guide for the table saw
- Secure shop-made straight edge guides without the clamp head obstructing the travel of your saw or router
Specifications:
- Clamp Throat Depth: 2-3/8"
- Clamp Capacity: 0 to 5-1/4"
- Clamp Pressure: 595 lb. open at 4"
- Minimum Dovetail Slot Length: 3-3/4"
- Dovetail Profile for Clamp: 1/2" x 14°
What's Included:
- (2) Microjig - MATCHFIT Dovetail Fixture and Jig Clamps
Notes:
- To use, simply rout a 3/8" deep 1/2" x 14° dovetail slot in your fence or jig for infinite work holding possibilities.
- For your biggest projects, build taller fences for table saws, bandsaws or router tables simply by routing two parallel grooves in a 1/2" or thicker panel.
-
MicrojigMATCHFIT 1/2" Dovetail Router Bit+$35.99
Microjig
MATCHFIT 1/2" Dovetail Router Bit
Item #872746 Model MB-050-0514Microjig’s exclusive MATCHFIT Dovetail Router Bit makes the MATCHFIT system faster and easier to use than ever before. The MATCHFIT Dovetail Router Bit is designed especially for the MATCHFIT Dovetail Clamps and dovetail hardware. Although it mills the same 1/2" x 14° profile as a standard dovetail bit, its unique design automatically rounds over the sharp top shoulders creating incredibly clean dovetail grooves and virtually eliminating the need for sanding. Experience the difference supreme engineering and attention to detail make.
Features:
- Perfect fit for the MATCHFIT Dovetail Clamp system
- 1/2" x 14° profile with unique rounded corners for smoother grooves
- Bit evacuates chips to reduce friction and heat, resulting in cleaner cuts
- Rout incredibly clean dovetail grooves that require less sanding
- Router collet safety line shows how deep into the collet the bit should be
Specifications:
- Shank: 1/2"
- Diameter: 1/2"
- Angle: 14°
- Cutter Type: Carbide
What's Included:
- (1) Microjig MATCHFIT 1/2" Dovetail Router Bit
-
MicrojigMATCHFIT 1/4" Relief Router Bit - 1/2" Shank+$35.99
Microjig
MATCHFIT 1/4" Relief Router Bit - 1/2" Shank
Item #168689 Model MB-050-025STThe Microjig® MATCHFIT 1/4” Relief Router Bit is specifically designed to remove 55% of waste material prior to routing dovetail grooves with the MATCHFIT Dovetail Router Bit. Starting with a relief groove improves the cut quality of dovetail grooves, and prolongs the lifespan of your MATCHFIT Dovetail Router Bit.
Features:
- Designed to be used with MATCHFIT Dovetail Router Bit
- Tear out-free 1/4” relief groove
- 11/32" laser cut depth guide router collet safety line
- 1/16” top radius, 3-degree upshear carbide
Specifications:
- Shank: 1/2"
- Top Radius: 1/16"
- Relief Groove: 1/4"
What's Included:
- (1) Microjig MATCHFIT 1/4" Relief Router Bit with 1/2" Shank
Notes:
- MATCHFIT Dovetail Router Bit sold separately
-

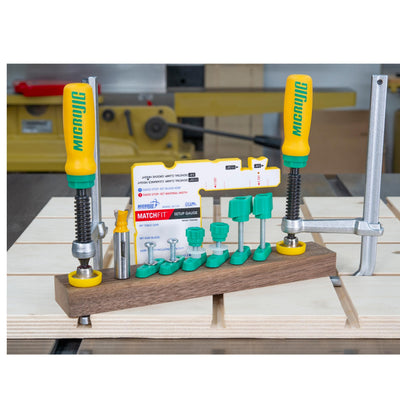

MicrojigMATCHFIT Dovetail Clamp Pro+$115.99
Microjig
MATCHFIT Dovetail Clamp Pro
Item #168690 Model DVC-1177K2Create jigs and shop fixtures with the incredibly versatile Microjig® MATCHFIT Dovetail Clamp Pro. Using included 1/2” 14-degree MATCHFIT Dovetail Router Bit, you can route your own tracks, and make every inch of your workshop more functional.
Features:
- Use the 1/2" x 14° dovetail router bit to create your own tracks, eliminating the need for expensive aluminum tracks
- Quickly dial in dovetail router bit’s cutting depth with the Setup Gauge
- Use Dovetail Hardware to make stops and hold-downs that move freely, and tighten down anywhere you can route a groove
- Track clamps can be used for jigs, fixtures, assembly, material handling and more
Specifications:
- Dovetail Bit Shank: 1/2"
- Dovetail Cutting Angle: 14°
- Clamping Pressure: 595 lb.
- Clamping Range: 5-3/8"
What's Included:
- (2) MATCHFIT Dovetail Clamps
- (1) MATCHFIT 1/2" x 14° Dovetail Router Bit
- (1) Setup Gauge
- (1) Dovetail Hardware Variety Pack (6-Pack)
-

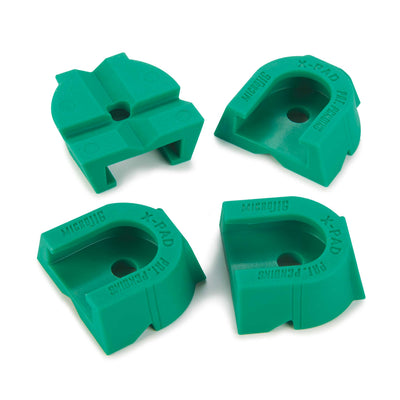

MicrojigMATCHFIT X-Pad - 4 Pack+$15.99
Microjig
MATCHFIT X-Pad - 4 Pack
Item #172556 Model X-PAD-K4Microjig® MATCHFIT X-PAD simultaneously applies hold-down and in-line pressure as your clamp tightens. The combined forces keep your workpieces flat and eliminate the need for two or more different clamps. Fits most clamps with pivoting round clamp pads.
Features:
- Applies hold-down and in-line pressure as the clamp tightens
- Turn 90º to clamp round stock with a single clamp
- Fits most clamps with pivoting round clamp pads
- Use with a spacer to secure material from a distance
What's Included:
- (4) MATCHFIT X-Pad Accessory - 4 Pack
Note:
- Dovetail Clamps sold separately.
-
MicrojigMATCHFIT 1/4” Relief Router Bit - 1/4” Shank+$29.99
Microjig
MATCHFIT 1/4” Relief Router Bit - 1/4” Shank
Item #184564The Microjig® MATCHFIT 1/4" Relief Router Bit removes 55% of waste material before routing dovetail grooves with the MATCHFIT Dovetail Router Bit. Starting with a relief groove improves the cut quality of dovetail grooves and prolongs the lifespan of your MATCHFIT Dovetail Router Bit.
Features:
- Designed to be used with MATCHFIT Dovetail Router Bit
- Tear out-free 1/4" relief groove
- 11/32" laser cut depth guide router collet safety line
- 1/16" top radius, 3-degree upshear carbide
Specifications:
- Shank: 1/4"
- Top Radius: 1/16"
- Relief Groove: 1/4"
What's Included:
- (1) Microjig MATCHFIT 1/4" Relief Router Bit with 1/4" Shank
Notes:
- MATCHFIT Dovetail Router Bit sold separately.
-
MicrojigMATCHFIT 14 Degree x 1/2” Dovetail Router Bit - 1/4” Shank+$29.99
Microjig
MATCHFIT 14 Degree x 1/2” Dovetail Router Bit - 1/4” Shank
Item #184565Microjig's exclusive MATCHFIT Dovetail Router Bit makes the MATCHFIT system faster and easier to use. The MATCHFIT Dovetail Router Bit is designed especially for the MATCHFIT Dovetail Clamps and dovetail hardware. Although it mills the same 1/2" x 14° profile as a standard dovetail bit, its unique design automatically rounds over the sharp top shoulders, creating incredibly clean dovetail grooves and virtually eliminating the need for sanding. Experience the difference supreme engineering and attention to detail make.
Features:
- Perfect fit for the MATCHFIT Dovetail Clamp system
- 1/2" x 14° profile with unique rounded corners for smoother grooves
- Bit evacuates chips to reduce friction and heat, resulting in cleaner cuts
- Rout incredibly clean dovetail grooves that require less sanding
- Router collet safety line shows how deep into the collet the bit should be
Specifications:
- Shank: 1/4"
- Diameter: 1/2"
- Angle: 14°
- Cutter Type: Carbide
What's Included:
- (1) Microjig MATCHFIT 14° x 1/2” Dovetail Router Bit - 1/4” Shank
-
MicrojigMATCHFIT Dovetail Track Hardware Variety Pack 2.0+$19.99

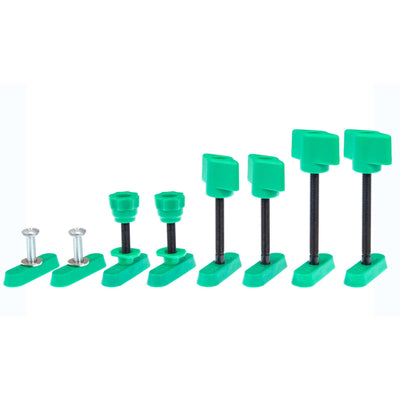

Microjig
MATCHFIT Dovetail Track Hardware Variety Pack 2.0
Item #187651 Model DV-HK4.5K2-VPMicroJig's MATCHFIT® Dovetail Track Hardware Variety Pack 2.0 is now even better before. The upgraded pack offers even more benefits than the original, with new components and improved quality. The addition of a 2” long Track Screw means better reach when working with thicker materials or in hard-to-reach areas, and comes with a convenient wing knob for easy tightening. The hardware packs have also been upgraded to sets of eight parts, with two of each component included in the variety pack. Create a variety of jigs that move freely and tighten down anywhere you can route a groove. Compatible with any standard 1/2" 14° dovetail router bit profile. Each eight-pack includes two of each MATCHFIT dovetail hardware style.Features:
- Compatible with standard 1/2" 14° dovetail router bit profile
- Stronger, more durable material
- Allows for a 360° range of motion with dovetail grooves in a grid layout
- Build versatile fences, stops, hold-downs for your MATCHFIT jigs, fixtures, sleds, and work benches
- Fully compatible with the MATCHFIT system of clamps, router bits, and accessories using the 14° by 1/2" dovetail router bit profile
Specifications:- Color: Green/Black
- Material: Plastic
What’s Included:- (2) #10-32 1" Track screws
- (2) # 10-32 1-1/2" Track screws
- (2) #10-32 2" Track screws
- (2) Track nuts with screws and washers
- (2) Round knobs
- (4) Wing knobs
- (2) Shoulder washers (compatible with GRR-RIPPER system)
-

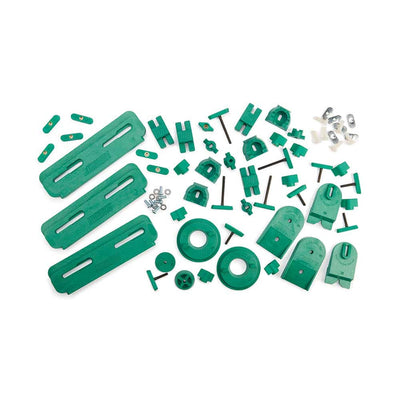

MicrojigMATCHFIT CNC Workholding Kit+$119.99
Microjig
MATCHFIT CNC Workholding Kit
Item #192460 Model CN-P1234K11Successful milling with a benchtop CNC machine requires securely holding parts from above and at the edge of a workpiece. Cutting parts from a larger blank is best accomplished with overhead clamps holding stock to the machine bed. Work completed across the part surface must be held by the edges to prevent damage to the clamps and bits. Microjig's CNC Workholding Kit utilizes the MATCHFIT Dovetail hardware to provide a secure workholding solution under both conditions, with no tools needed for most setups.
The MATCHFIT CNC clamping kit is a versatile tool that empowers you to secure your workpieces in various ways. The Edge Guides, for instance, locate along the spoilboard to provide an accurate, low-profile Origin Point for easy setups, especially when repeating programs. The Ring Clamps™ can quickly lock and unlock parts anywhere along the work table, giving you full control. The Ramp Clamps use ramps to hold parts, applying force in and down to prevent movement and lifting. The U-Pad™ top clamps hold parts from the top edge, preventing lifting and sliding for a superior hold on parts from 1/32" to 1-1/8" thick. With this kit, you're in the driver's seat of your work-holding techniques.
NOTE: This kit works seamlessly with a spoilboard (not included) that protects your machine bed and provides the MATCHFIT Dovetail Grooves for the clamping tools. Full instructions for making your own spoilboard are included with this kit.Features:
- Designed for CNC use, however, the system works with most MATCHFIT sleds, jigs and tables
- Provides both vertical and horizontal work holding support
What's Included:
- (3) Edge Guides with Track Nuts and screws
- (2) Ring Clamps with 1" Track Screws and wing knobs
- (2) Ramp Clamps with 1" Track Screws and wing knobs
- (4) U-Pads plus 2" Track Screws with wing knobs and spacer blocks
- (1) Full user manual and instructions for making a MATCHFIT spoilboard
Notes:
- This kit works seamlessly with a spoilboard (not included) that protects your machine bed and provides the MATCHFIT Dovetail Grooves for the clamping tools. Full instructions for making your own spoilboard are included with this kit.
- When moving from one cut to the next (rapid travel), predicting where the head might move can be difficult. Microjig recommends setting the Z-Clearance for fast travel to 2" (50 mm) when there is any chance of the head moving over a clamp position, especially with machines that return to X0, Y0 when a program finishes. This precaution ensures a smooth and safe operation while lessening the chance of causing inadvertent damage to your clamping parts.
