Microjig

MATCHFIT Dovetail Fixture and Jig Clamps - 2 Piece

Item #163976 Model DVC-538K2
Regular price $45.00
Sale price $45.00 Regular price $45.00
Skip to product information
1 of 4

Microjig

MATCHFIT Dovetail Fixture and Jig Clamps - 2 Piece

Item #163976 Model DVC-538K2
Regular price $45.00
Sale price $45.00 Regular price $45.00
Microjig® MATCHFIT Dovetail Clamps can hold parts, jigs, and fences without obstructing the travel of your saw or router. The fixed clamp leg is c. . . View More Details

In Stock

Shipping Info

Items you may need

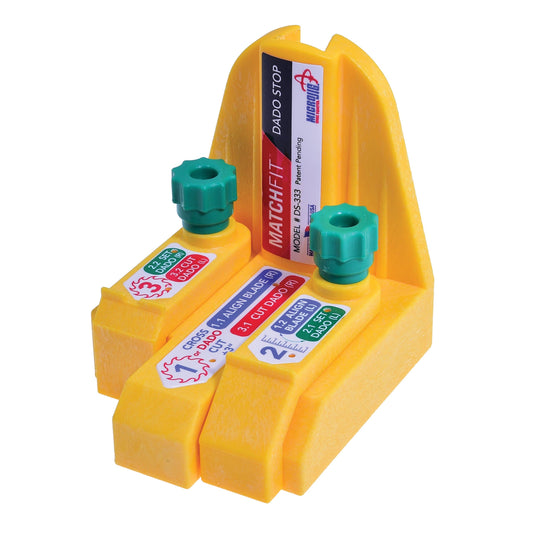

  • MATCHFIT Dado Stop

    Regular price $25.99
    Sale price $25.99 Regular price $25.99
    Matchfit Dado Stop alt 0

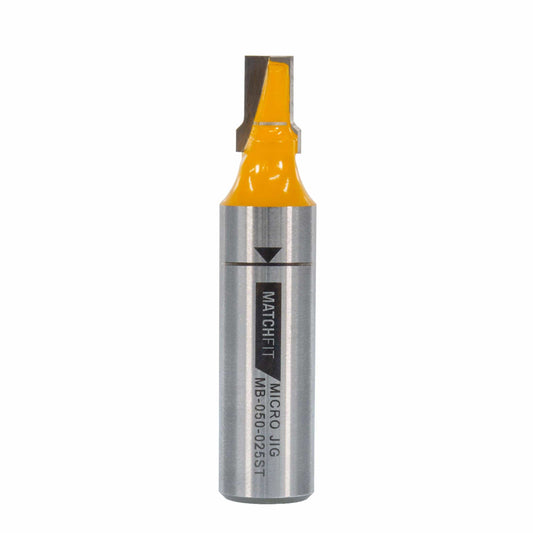

  • MATCHFIT 1/4" Relief Router Bit - 1/2" Shank

    Regular price $28.99
    Sale price $28.99 Regular price $28.99
    MATCHFIT 1/4" Relief Router Bit - 1/2" Shank alt 0

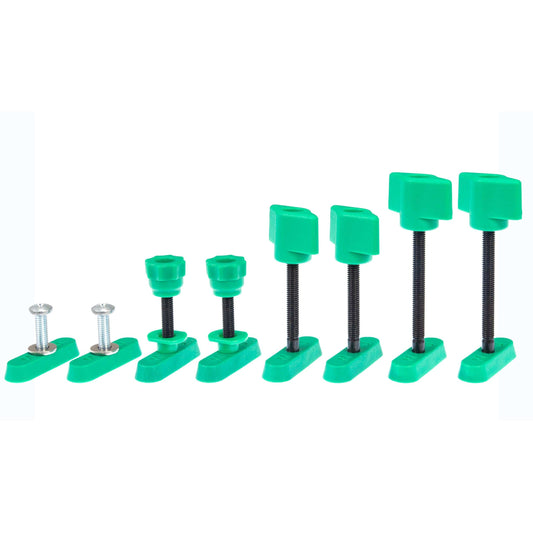

  • MATCHFIT Dovetail Track Hardware Variety Pack 2.0

    Regular price $16.99
    Sale price $16.99 Regular price $16.99
    MATCHFIT Dovetail Track Hardware Variety Pack 2.0 alt 0

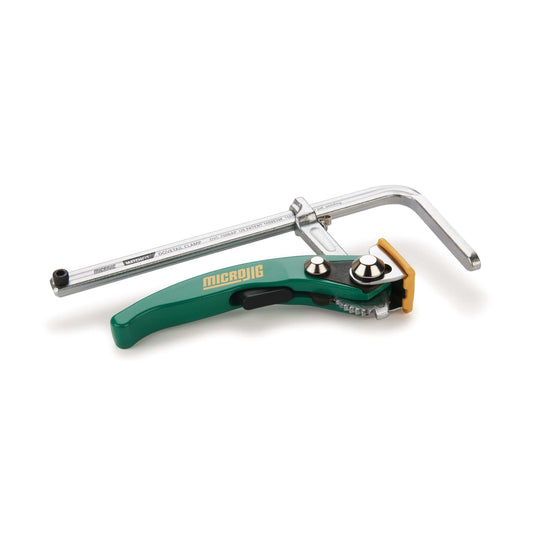

  • MATCHFIT Dovetail Ratchet Clamp

    Regular price $44.99
    Sale price $44.99 Regular price $44.99
    MATCHFIT Dovetail Ratchet Clamp alt 0
  • MATCHFIT Dovetail Clamp Pro

    Regular price $89.99
    Sale price $89.99 Regular price $89.99
    MATCHFIT Dovetail Clamp Pro alt 0

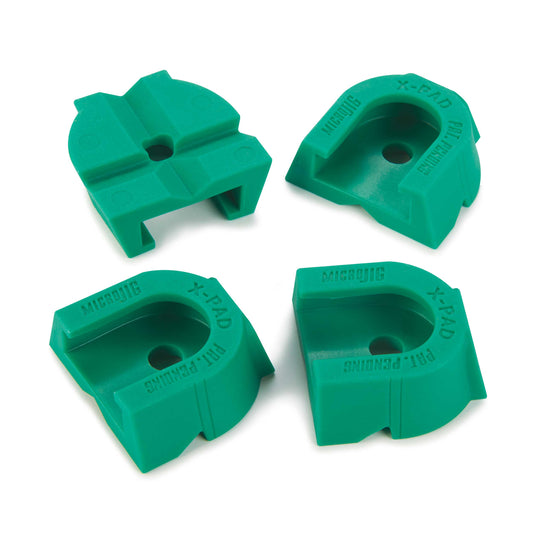

  • MATCHFIT X-Pad - 4 Pack

    Regular price $13.99
    Sale price $13.99 Regular price $13.99
    MATCHFIT X-Pad - 4 Pack alt 0
  • MATCHFIT Dovetail Clamp AP - Single Clamp

    Regular price $31.99
    Sale price $31.99 Regular price $31.99
    MATCHFIT Dovetail Clamp AP - Single Clamp alt 0

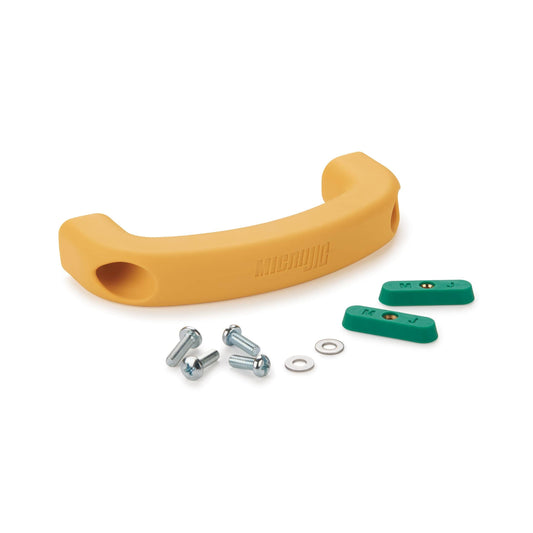

  • MATCHFIT Jig Handle

    Regular price $11.99
    Sale price $11.99 Regular price $11.99
    MATCHFIT Jig Handle alt 0

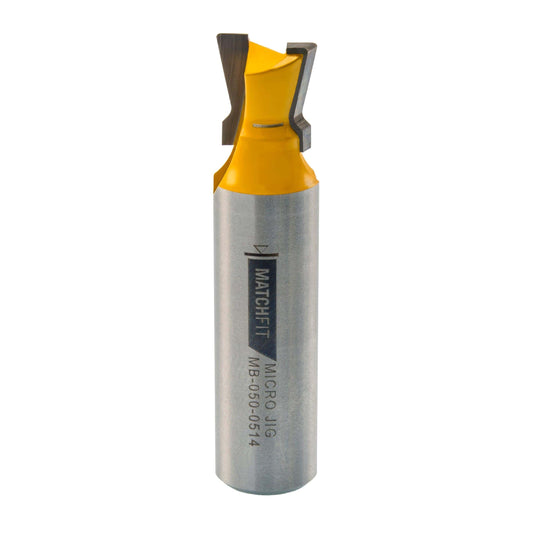

  • MATCHFIT 1/2" Dovetail Router Bit

    Regular price $32.99
    Sale price $32.99 Regular price $32.99
    MATCHFIT 1/2" Dovetail Router Bit alt 0
  • MATCHFIT Dado Stop Pro

    Regular price $59.99
    Sale price $59.99 Regular price $59.99
    Matchfit Dado Stop Pro alt 0

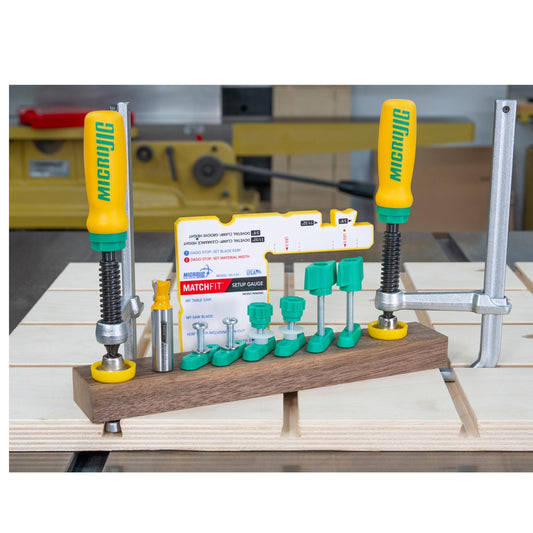

  • MATCHFIT SetUp Gauge

    Regular price $16.99
    Sale price $16.99 Regular price $16.99
    Matchfit SetUp Gauge alt 0
  • MATCHFIT CNC Workholding Kit

    Regular price $119.99
    Sale price $119.99 Regular price $119.99
    MATCHFIT CNC Workholding Kit

Details

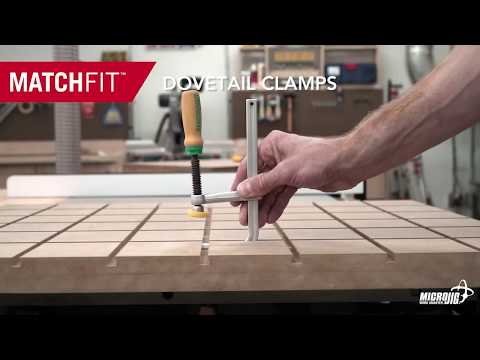

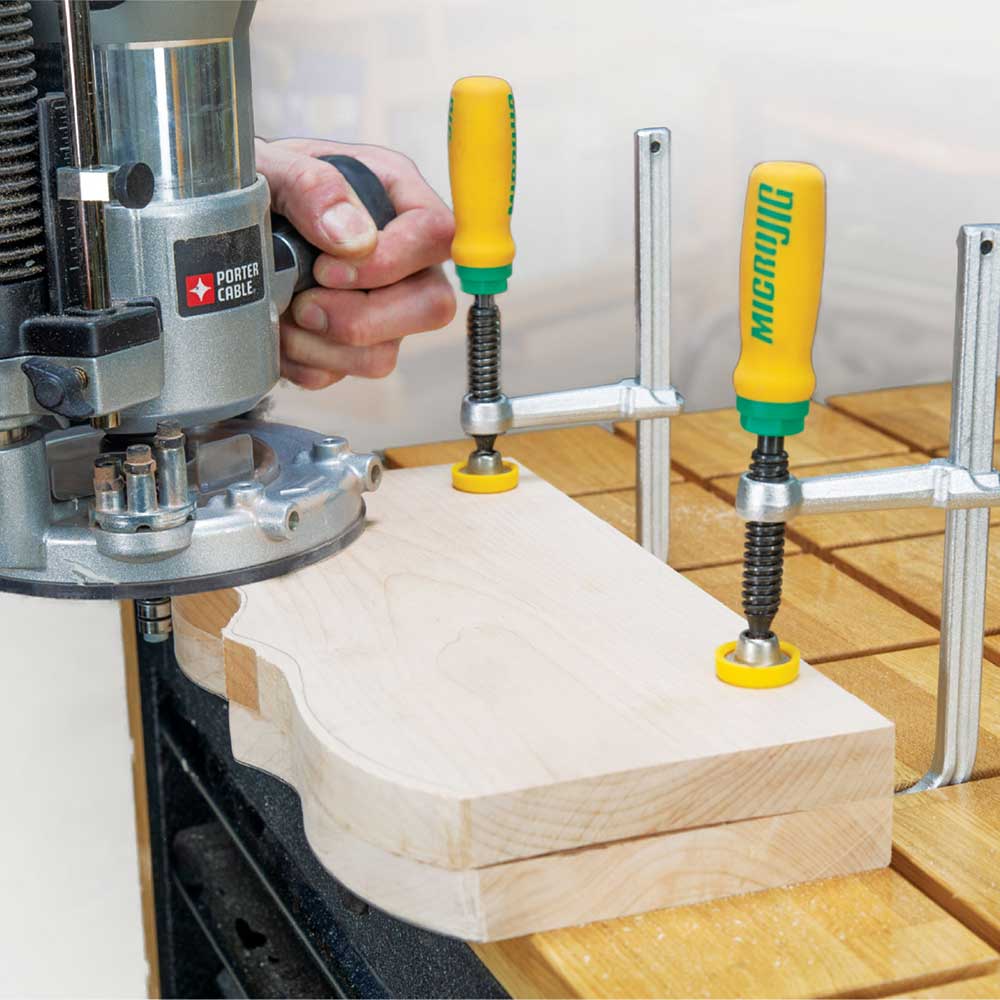

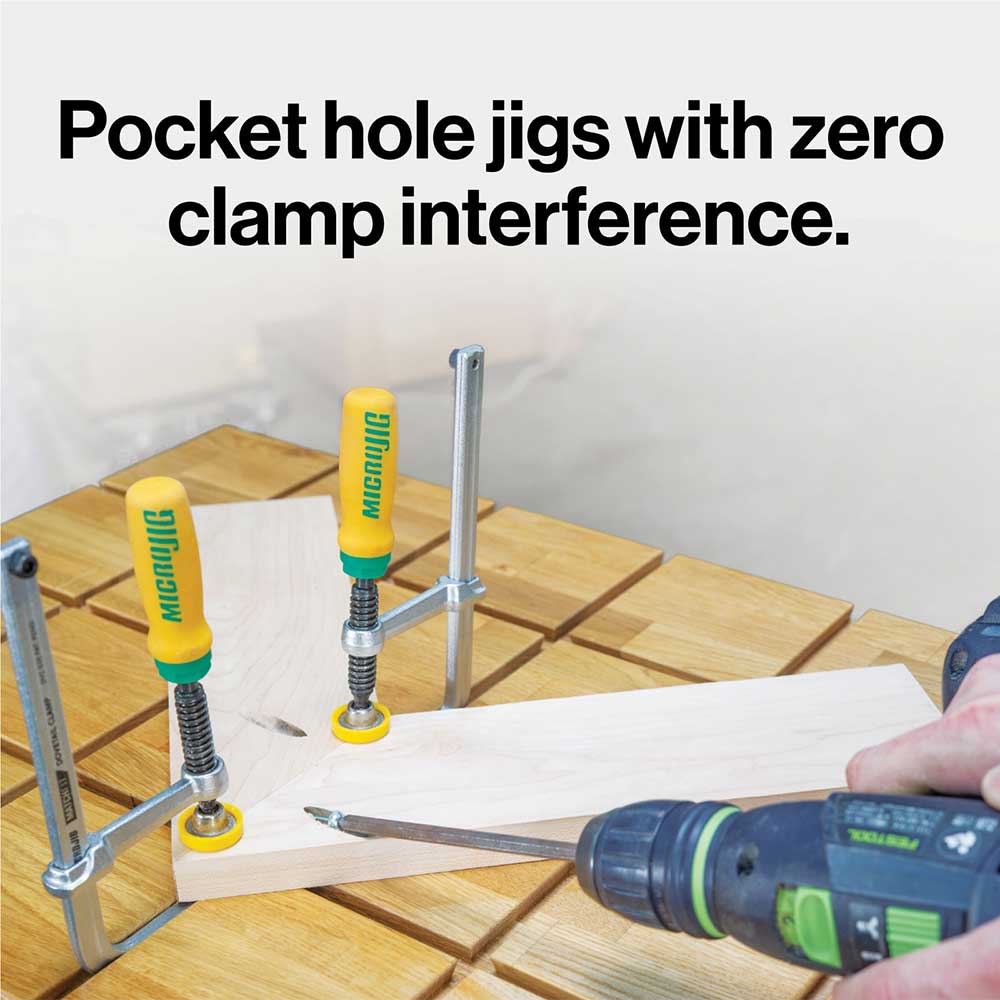

Microjig® MATCHFIT Dovetail Clamps can hold parts, jigs, and fences without obstructing the travel of your saw or router. The fixed clamp leg is contained within a dovetail groove to offer maximum versatility without interference. The dovetail design gives you the freedom to create your own track grooves, allowing you to clamp virtually anywhere! Build your own extension tables, clamping tables, and guide rails using the MATCHFIT clamps to anchor the jig or hold the workpiece.

Features:


  • Easy-to-grip special resin handles
  • Secure clamp at any point along your dovetail groove
  • Reversible clamping leg offers versatility
  • Acme clamp thread for smooth operation
  • Rout a groove along the front of your workbench for an instant face vise

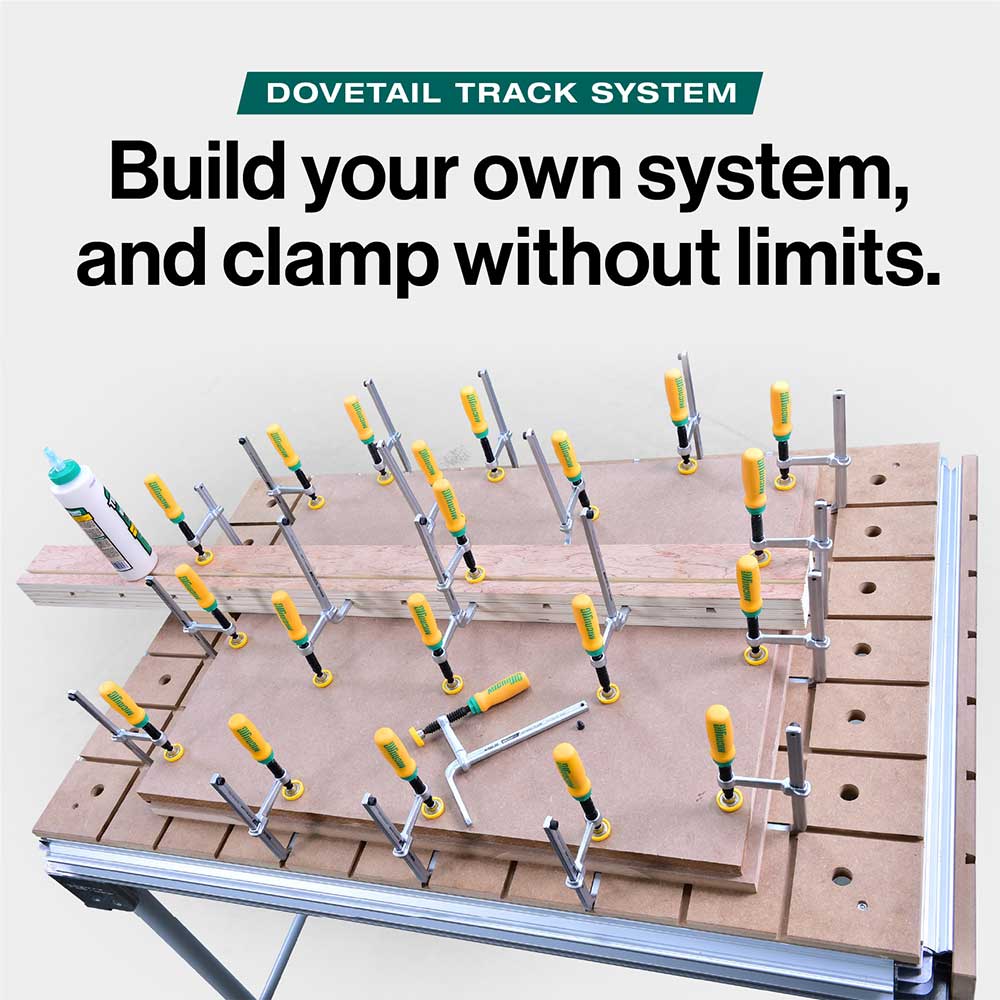

  • Create a grid of grooves for a versatile clamping table

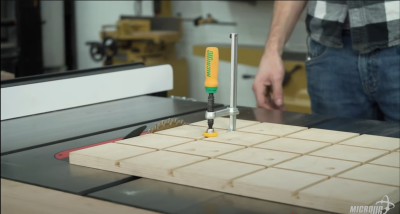

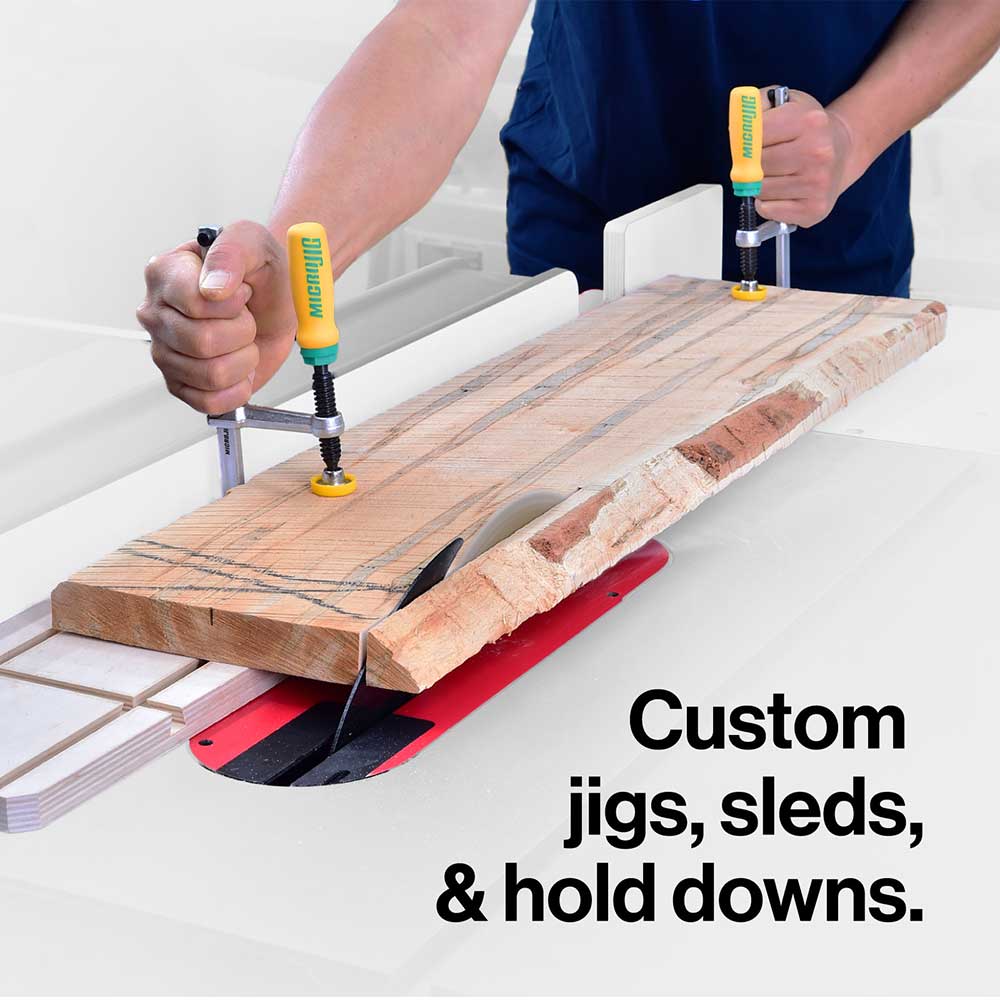

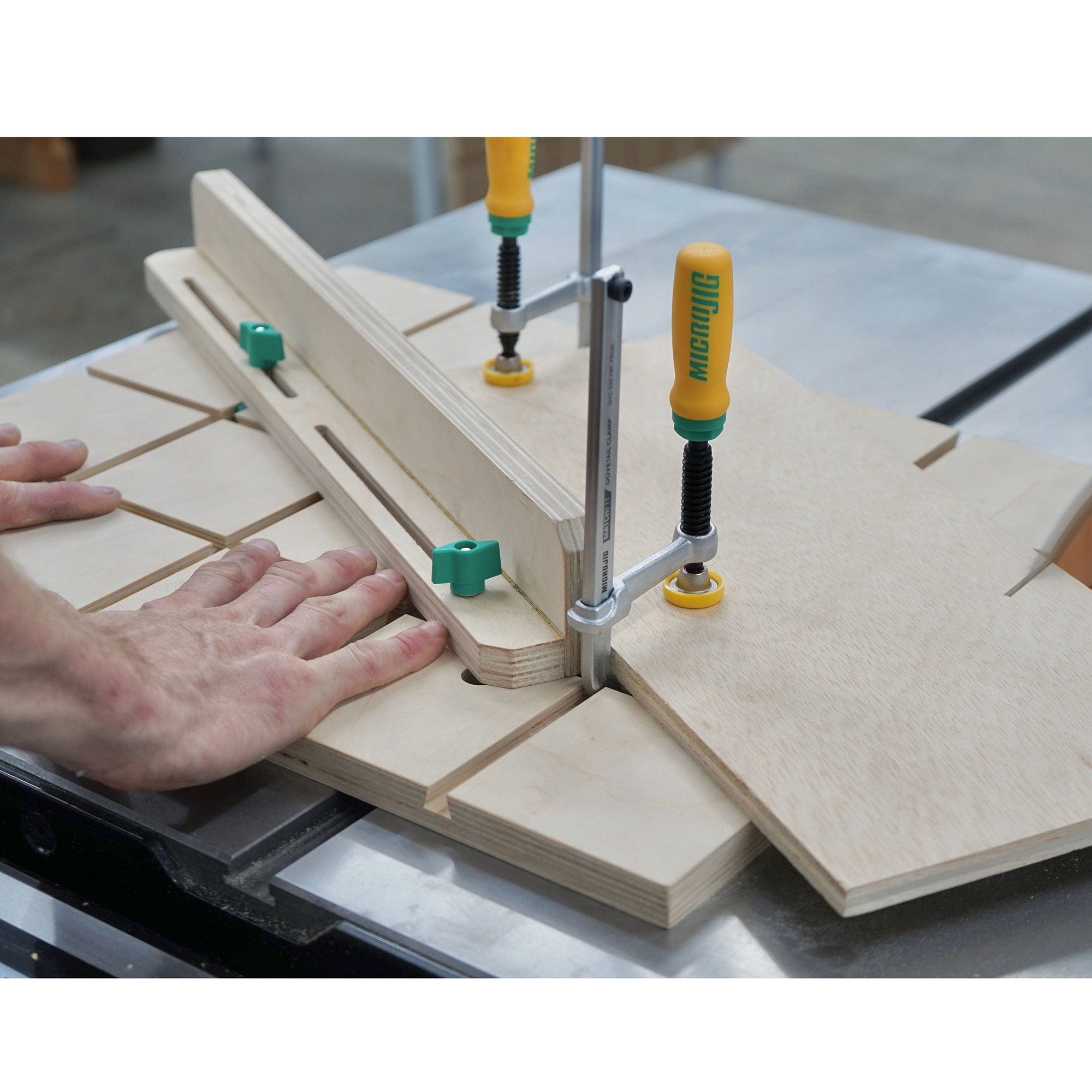

  • Use to build a straight edge ripping guide for the table saw

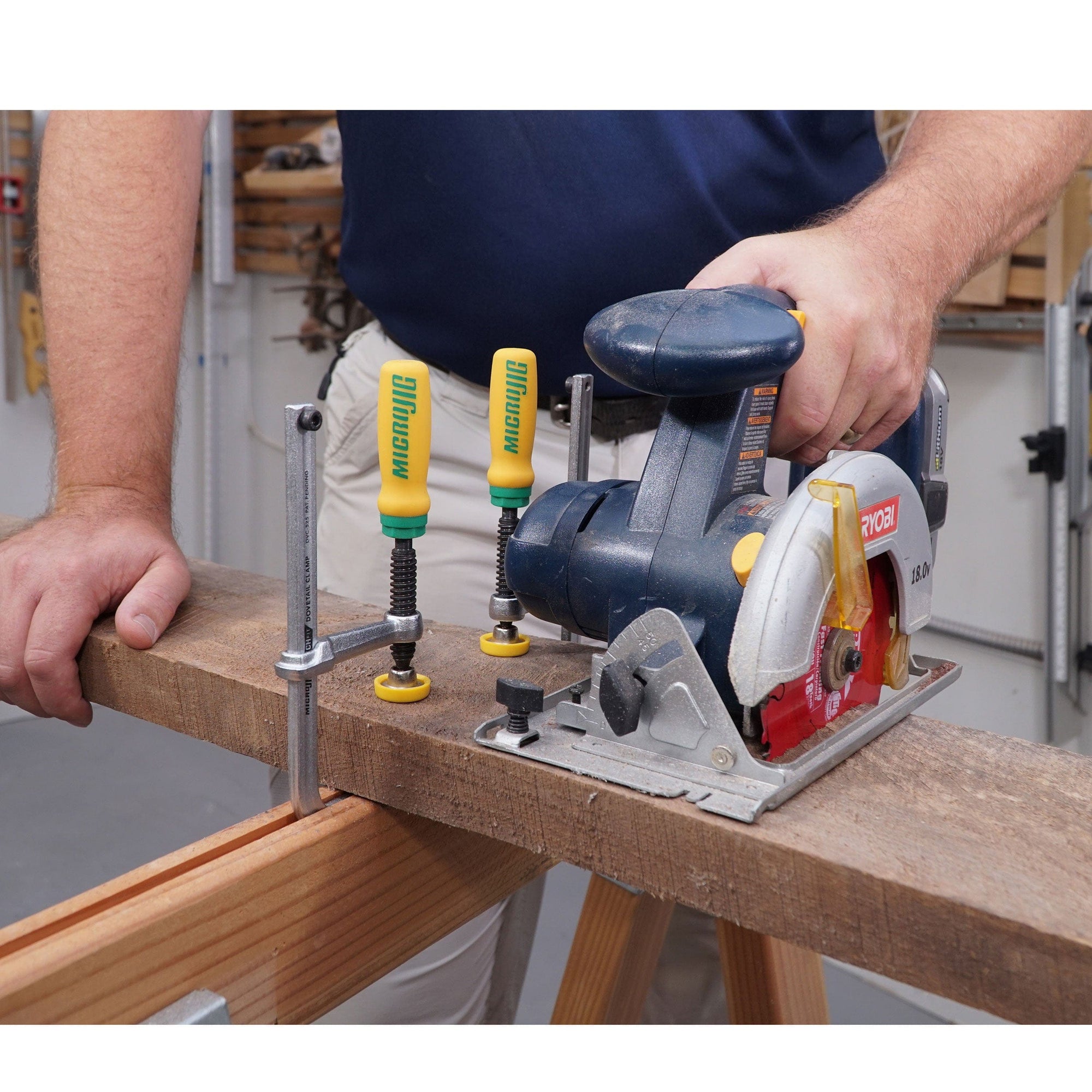

  • Secure shop-made straight edge guides without the clamp head obstructing the travel of your saw or router

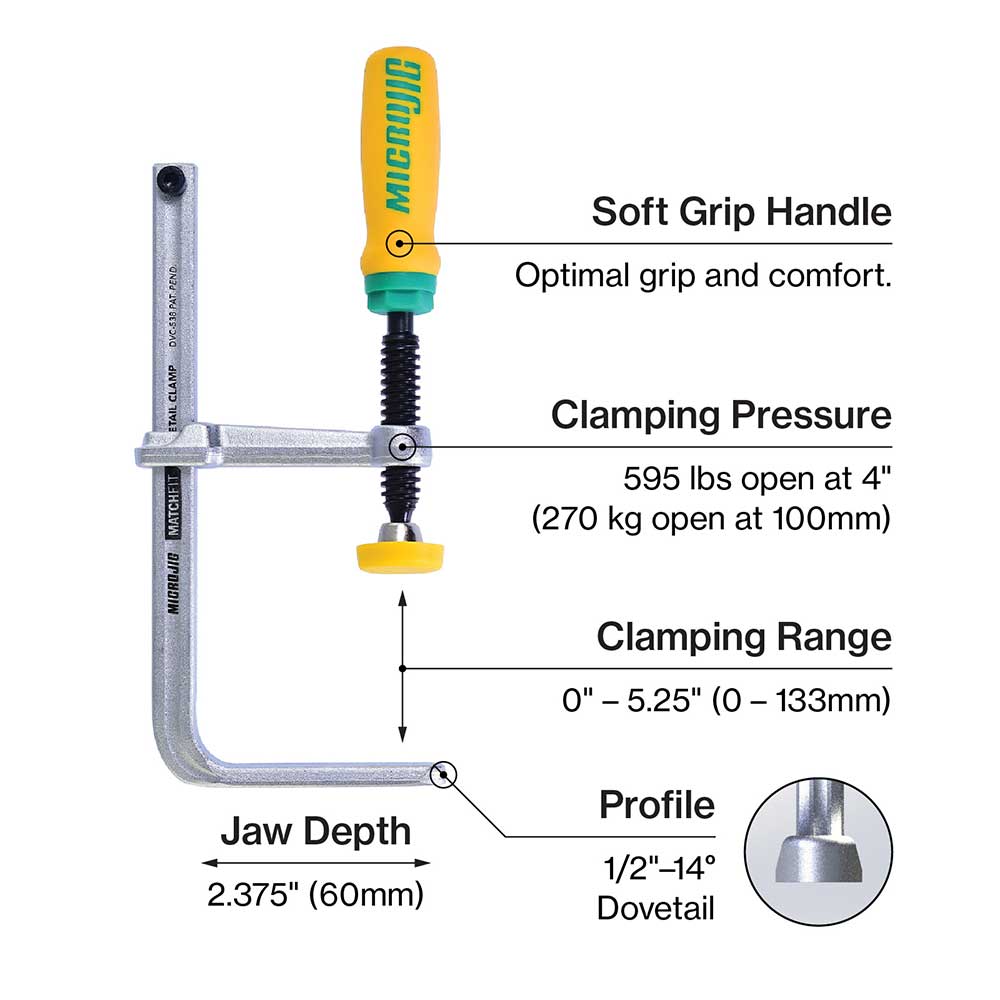

Specifications:

  • Clamp Throat Depth: 2-3/8"
  • Clamp Capacity: 0 to 5-1/4"
  • Clamp Pressure: 595 lb. open at 4"
  • Minimum Dovetail Slot Length: 3-3/4"
  • Dovetail Profile for Clamp: 1/2" x 14°

What's Included:

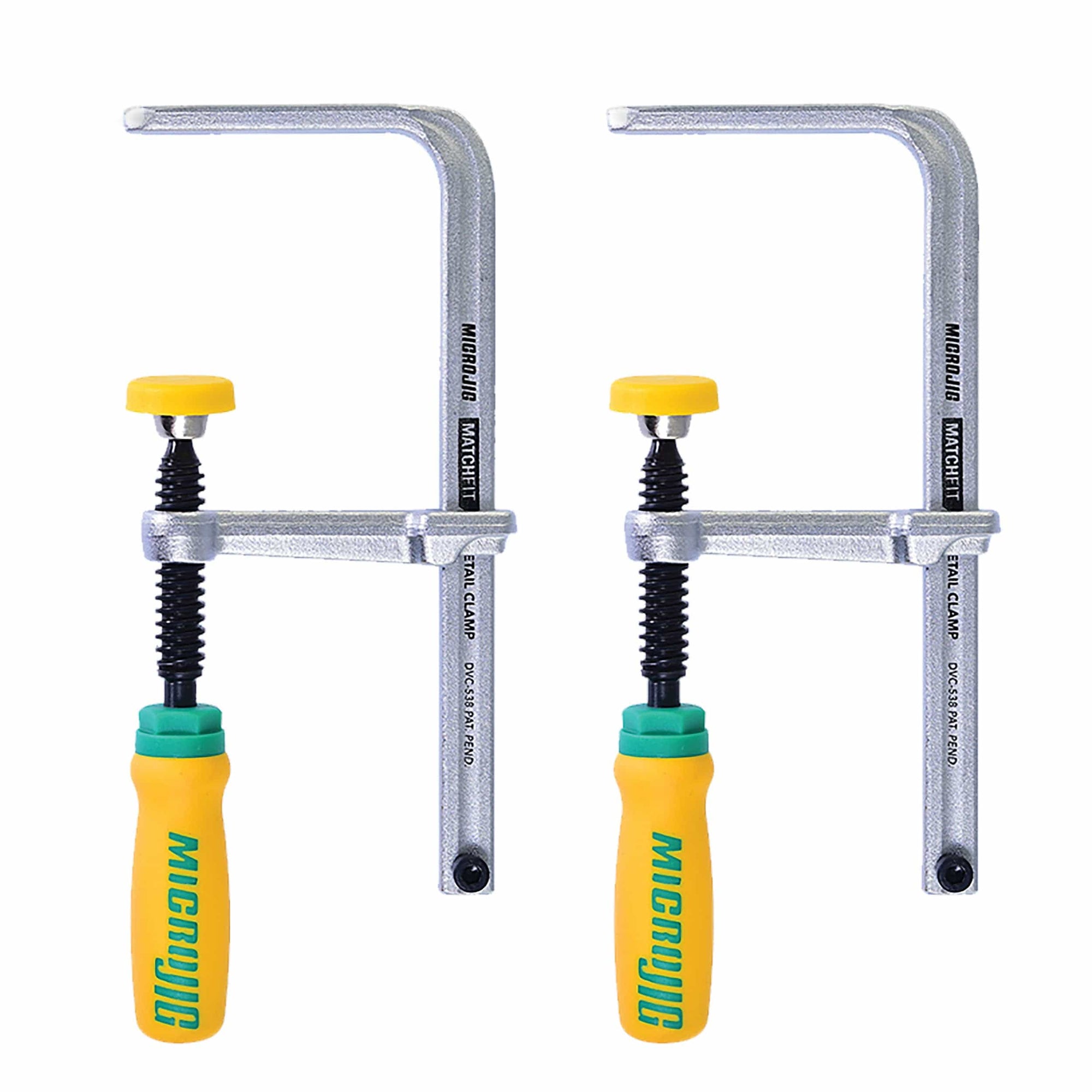

  • (2) Microjig - MATCHFIT Dovetail Fixture and Jig Clamps

Notes:

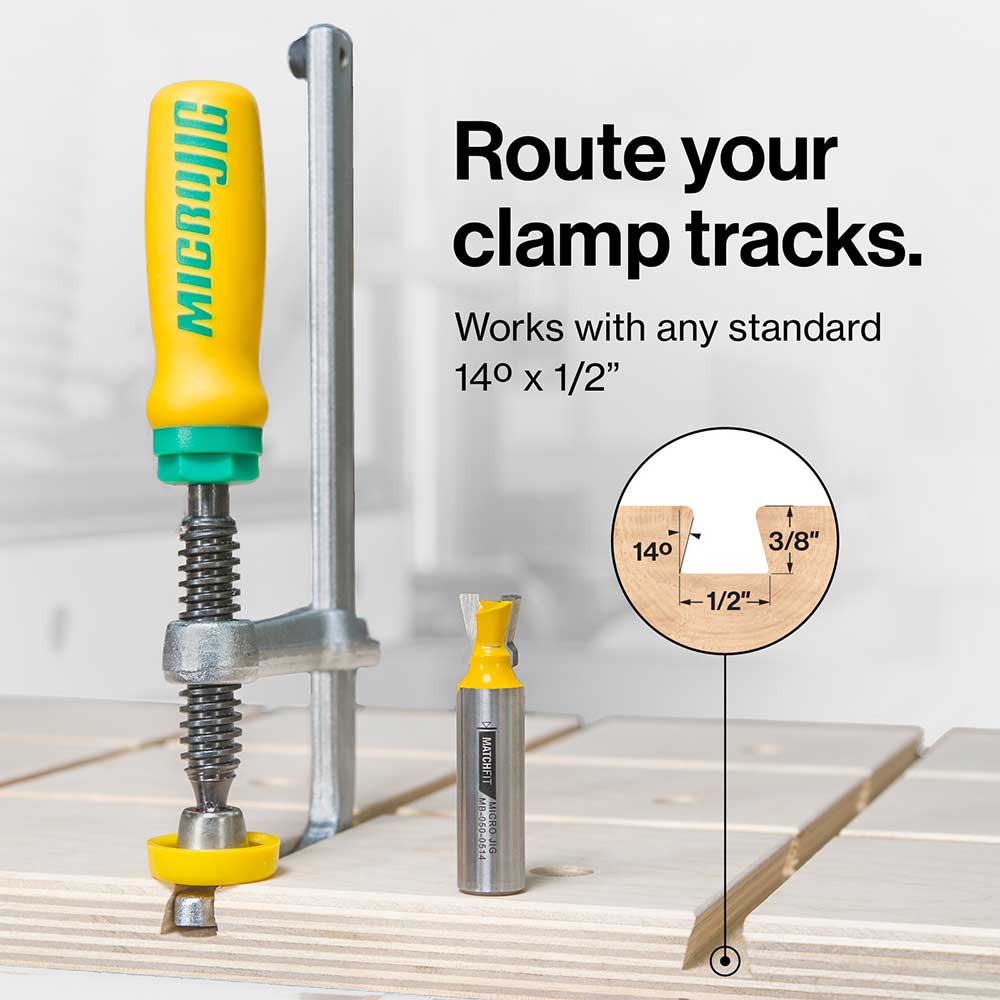

  • To use, simply rout a 3/8" deep 1/2" x 14° dovetail slot in your fence or jig for infinite work holding possibilities.
  • For your biggest projects, build taller fences for table saws, bandsaws or router tables simply by routing two parallel grooves in a 1/2" or thicker panel.
