Microjig

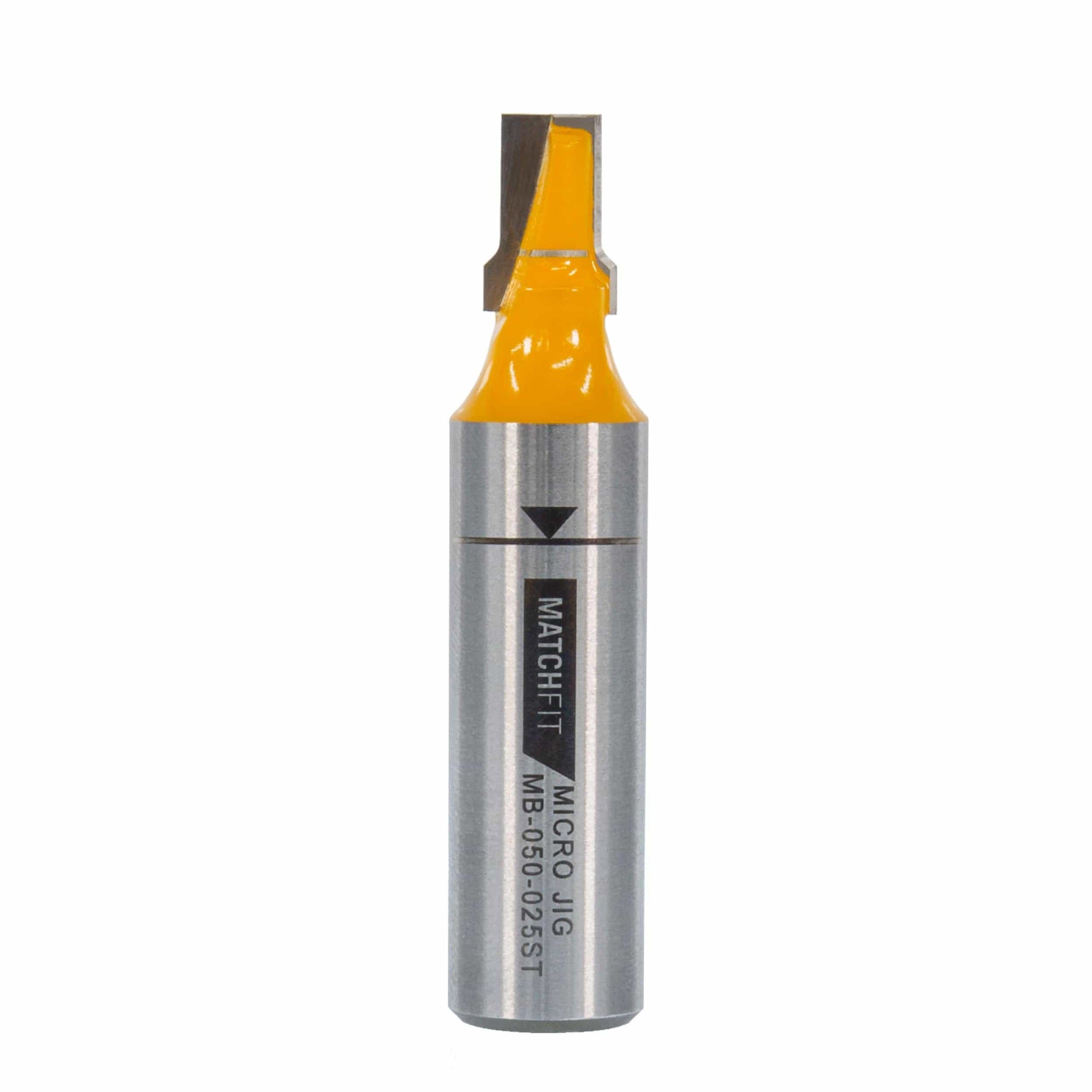

MATCHFIT 1/4" Relief Router Bit - 1/2" Shank

Item #168689 Model MB-050-025ST
Regular price $28.99
Sale price $28.99 Regular price $28.99
Skip to product information
1 of 5

Microjig

MATCHFIT 1/4" Relief Router Bit - 1/2" Shank

Item #168689 Model MB-050-025ST
Regular price $28.99
Sale price $28.99 Regular price $28.99
The Microjig® MATCHFIT 1/4” Relief Router Bit is specifically designed to remove 55% of waste material prior to routing dovetail grooves wit. . . View More Details

In Stock

Shipping Info

Items you may need

  • MATCHFIT CNC Workholding Kit

    Regular price $119.99
    Sale price $119.99 Regular price $119.99
    MATCHFIT CNC Workholding Kit
  • MATCHFIT Dovetail Ratchet Clamp

    Regular price $44.99
    Sale price $44.99 Regular price $44.99
    MATCHFIT Dovetail Ratchet Clamp alt 0
  • MATCHFIT Jig Handle

    Regular price $11.99
    Sale price $11.99 Regular price $11.99
    MATCHFIT Jig Handle alt 0
  • MATCHFIT Dovetail Track Hardware Variety Pack 2.0

    Regular price $16.99
    Sale price $16.99 Regular price $16.99
    MATCHFIT Dovetail Track Hardware Variety Pack 2.0 alt 0
  • MATCHFIT 1/2" Dovetail Router Bit

    Regular price $32.99
    Sale price $32.99 Regular price $32.99
    MATCHFIT 1/2" Dovetail Router Bit alt 0
  • MATCHFIT Dovetail Fixture and Jig Clamps - 2 Piece

    Regular price $45.00
    Sale price $45.00 Regular price $45.00
    MATCHFIT Dovetail Fixture and Jig Clamps - 2 Piece alt 0
  • MATCHFIT Dovetail Clamp Pro

    Regular price $89.99
    Sale price $89.99 Regular price $89.99
    MATCHFIT Dovetail Clamp Pro alt 0
  • MATCHFIT SetUp Gauge

    Regular price $16.99
    Sale price $16.99 Regular price $16.99
    Matchfit SetUp Gauge alt 0
  • MATCHFIT Dado Stop Pro

    Regular price $59.99
    Sale price $59.99 Regular price $59.99
    Matchfit Dado Stop Pro alt 0
  • MATCHFIT Dado Stop

    Regular price $25.99
    Sale price $25.99 Regular price $25.99
    Matchfit Dado Stop alt 0
  • MATCHFIT X-Pad - 4 Pack

    Regular price $13.99
    Sale price $13.99 Regular price $13.99
    MATCHFIT X-Pad - 4 Pack alt 0
  • MATCHFIT Dovetail Clamp AP - Single Clamp

    Regular price $31.99
    Sale price $31.99 Regular price $31.99
    MATCHFIT Dovetail Clamp AP - Single Clamp alt 0

Details

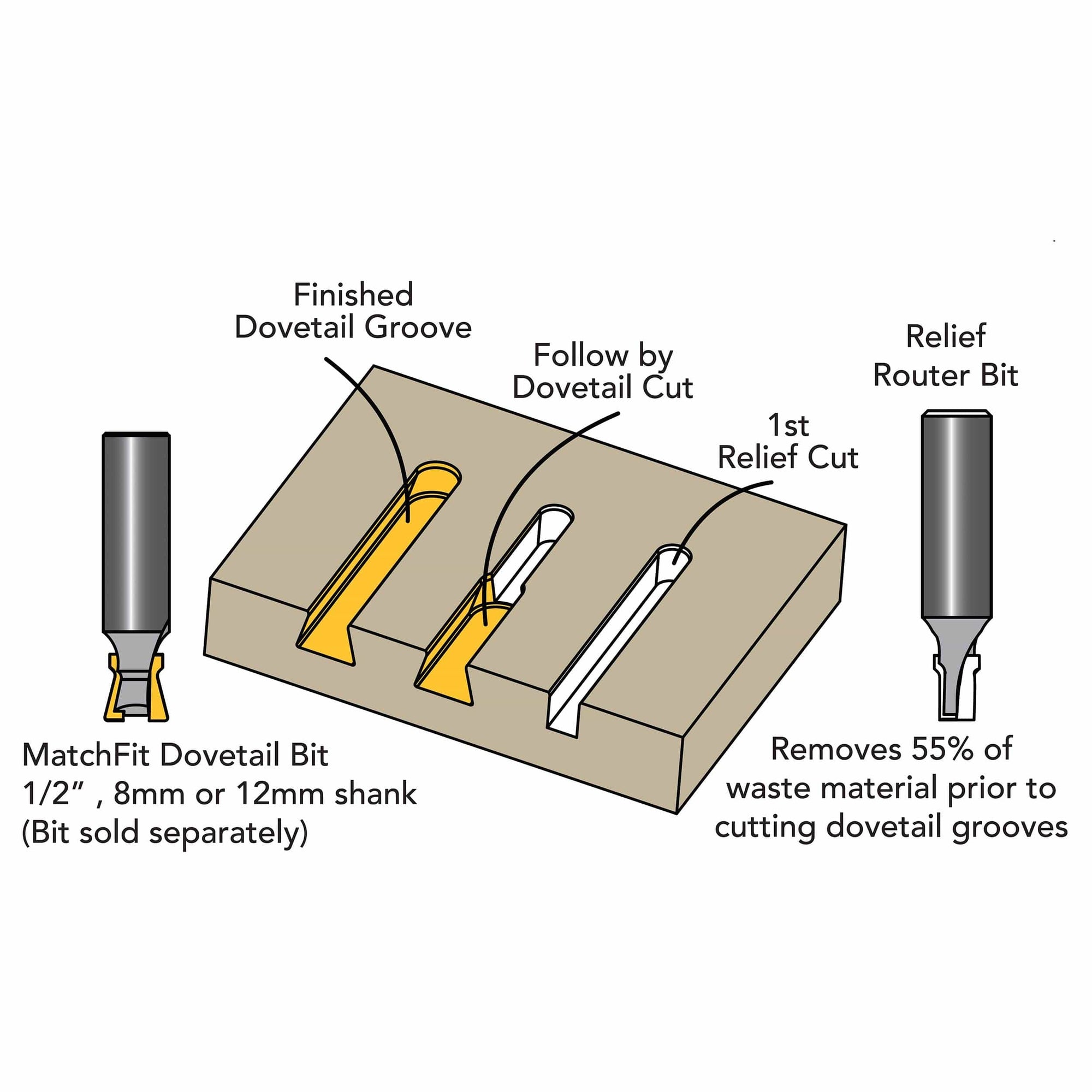

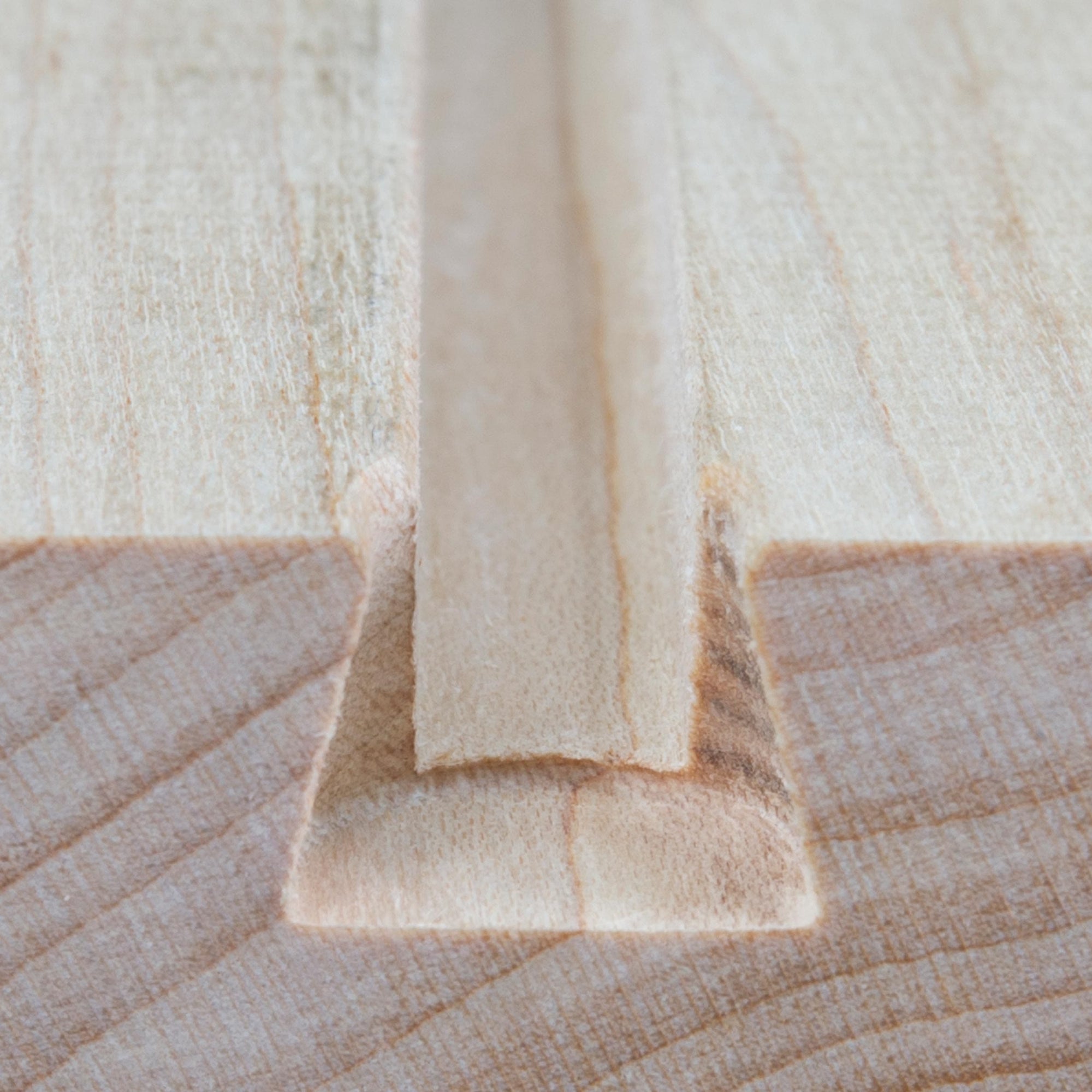

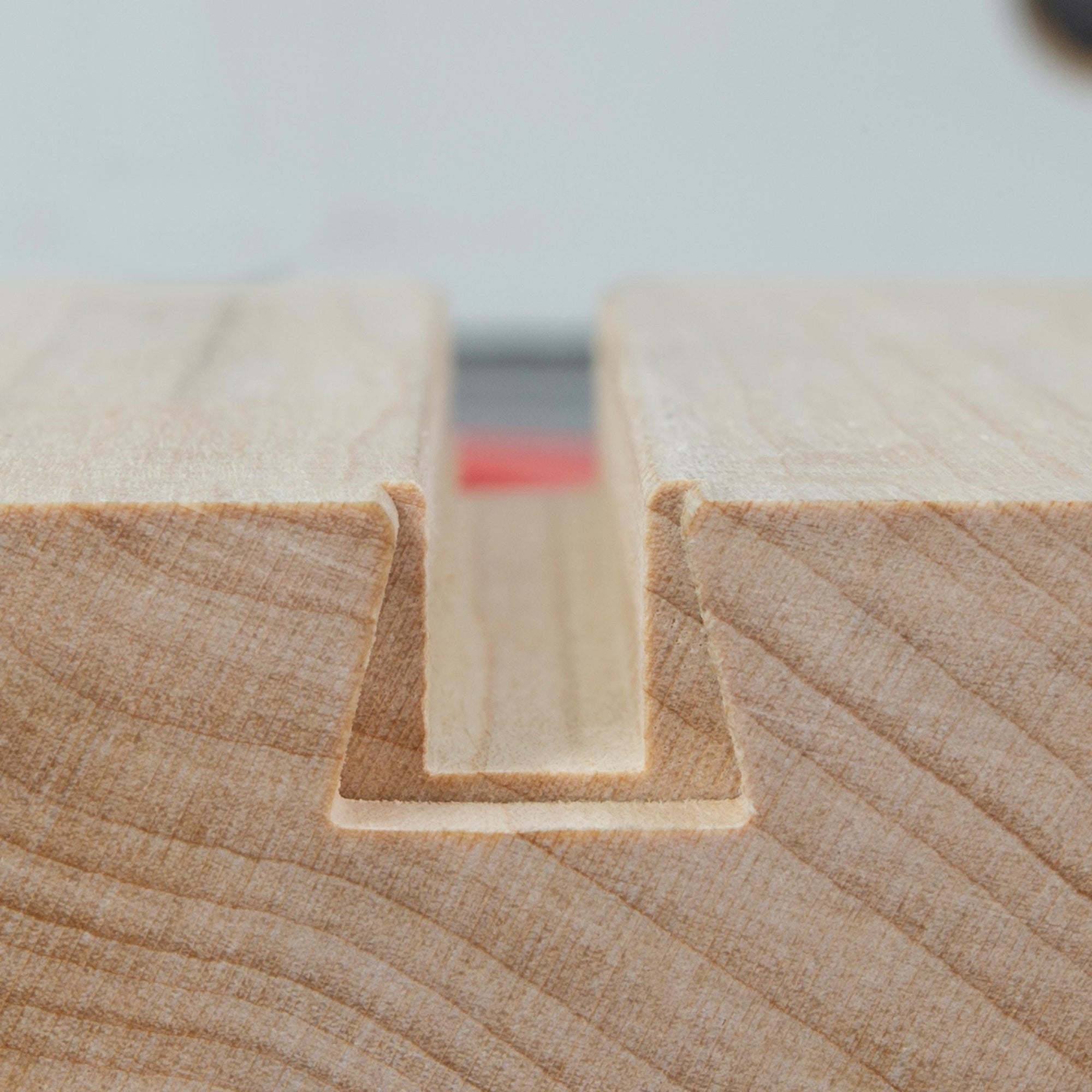

The Microjig® MATCHFIT 1/4” Relief Router Bit is specifically designed to remove 55% of waste material prior to routing dovetail grooves with the MATCHFIT Dovetail Router Bit. Starting with a relief groove improves the cut quality of dovetail grooves, and prolongs the lifespan of your MATCHFIT Dovetail Router Bit.

Features:


  • Designed to be used with MATCHFIT Dovetail Router Bit

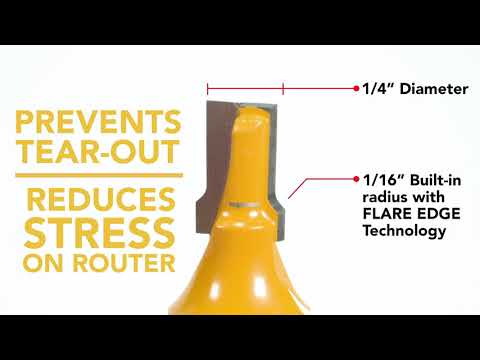

  • Tear out-free 1/4” relief groove

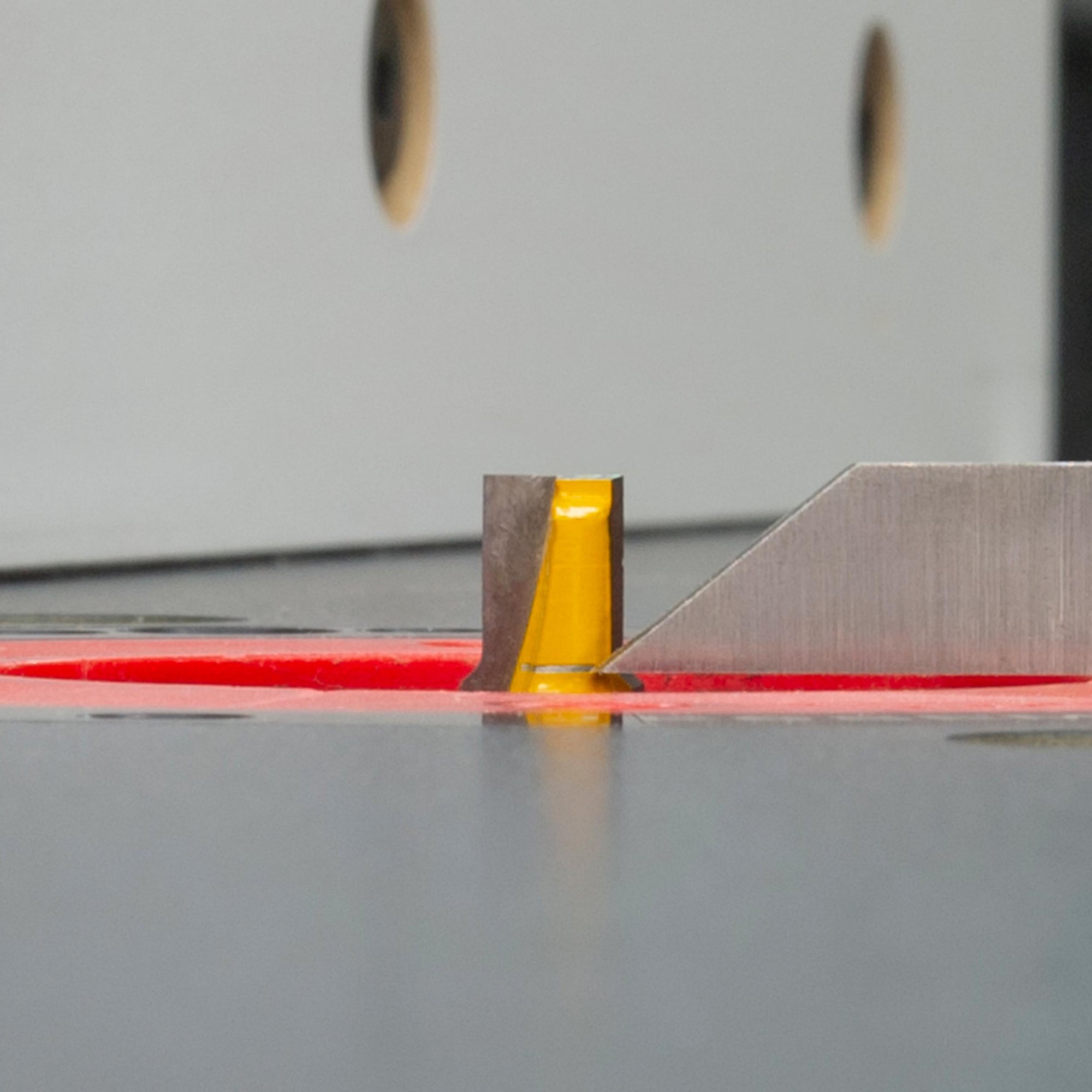

  • 11/32" laser cut depth guide router collet safety line
  • 1/16” top radius, 3-degree upshear carbide

Specifications:

  • Shank: 1/2"
  • Top Radius: 1/16"
  • Relief Groove: 1/4"

What's Included:

  • (1) Microjig MATCHFIT 1/4" Relief Router Bit with 1/2" Shank

Notes:

  • MATCHFIT Dovetail Router Bit sold separately
