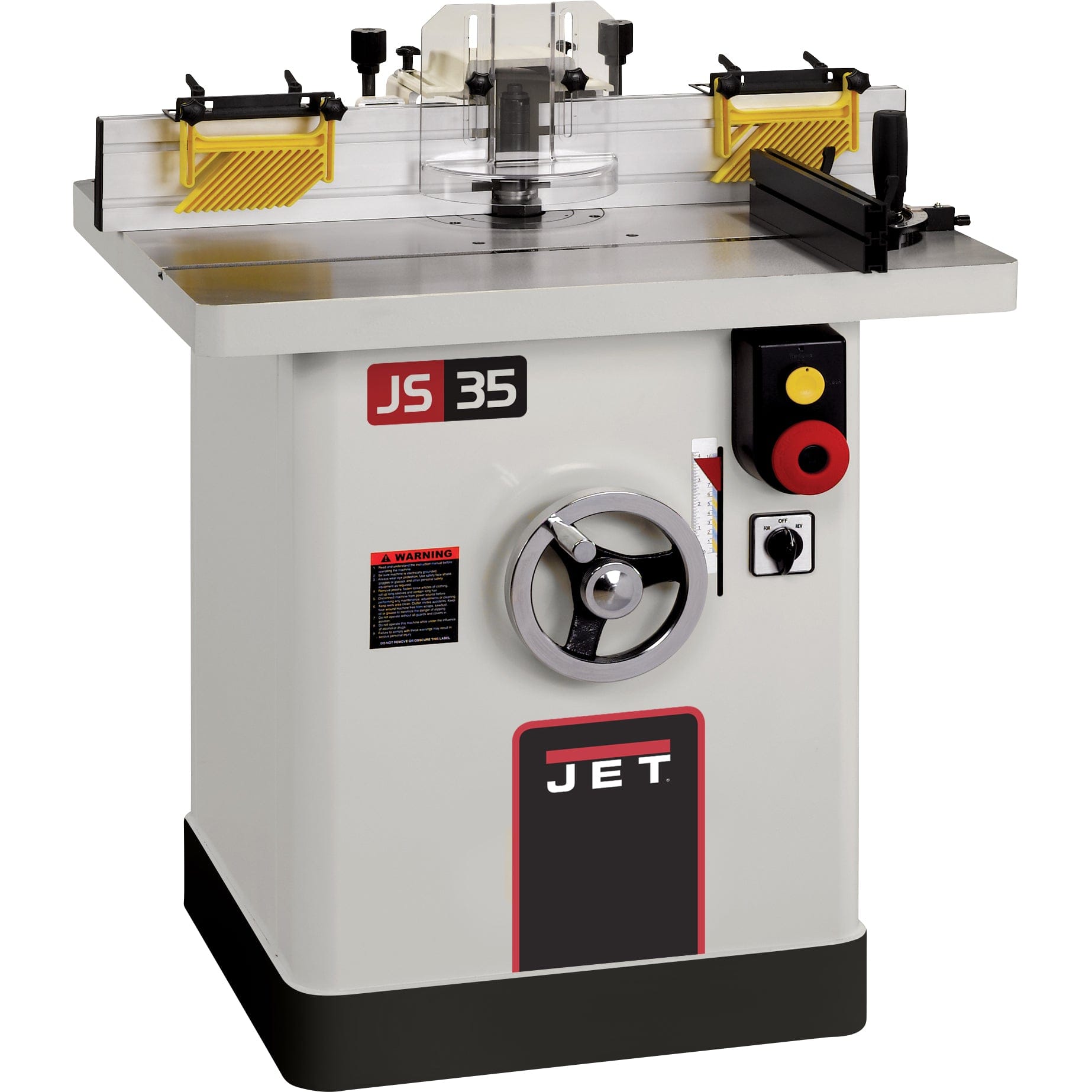

View a Larger Image of Shaper 3HP, 1Ph, Model JWS-35X3-1

Jet

Shaper 3HP, 1Ph, Model JWS-35X3-1

Item 840924
Model 708323
Write a Review

$3,499.99

Shipping Fee of $99.00

Estimated Ship Date February 14, 2023
Shipping Info
Check Local Store for Immediate Availability
  • Contiguous 48 States Shipping Only
  • Ships from Manufacturer, Expedited Shipping Unavailable
  • Freight Shipments Deliver to Curbside Only
  • Not Available for Express and Overnight Shipping.
  • Ships in Approximately 7-10 Business Days

    • Four-speeds (4000, 6000, 8000, 10000 RPM) let you select the best speed and torque for different cutter diametersMagnetic controlsIndependently adjustable left and right fences, standard with a micro adjust control for precise positioningLarge 26-3/4" X 32-1/4" precision ground cast...

    More Details

    Details

    • Four-speeds (4000, 6000, 8000, 10000 RPM) let you select the best speed and torque for different cutter diameters
    • Magnetic controls
    • Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
    • Large 26-3/4" X 32-1/4" precision ground cast iron table provides a durable work area, predrilled for power feeder
    • Poly-V-belt transfers maximum power to the spindle
    • Starting Pins for irregular shaping
    • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
    • Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
    • Reversible spindle speeds for diverse shaping jobs
    • 4" Dust port built into fence for convenient hookup to any dust collection system
    • Spindle lock for safe and easy cutter set-up
    • Spindle height scale
    • Amps : 14
    • Dust Collection Minimum CFM Required : 400
    • Dust Port Diameter (OD/in) : 4
    • Electrical Controls - Magnetic Starter : Magnetic Starter
    • Fence Size (L x H/in) : 4-3/4 X 16
    • Fence Travel (Major and Minor/in) : 4,1
    • Height (in): 41
    • Length : 30 (in)
    • Maximum Diameter Cutter Above Table (in) : 7-1/2
    • Maximum Diameter Cutter Below Table (in) : 6
    • Motor HP : 3
    • Motor Phase : 1
    • Motor Voltage : 220
    • Net Weight (lb): 473
    • Part Number : 708323
    • Prewired : 220
    • Reversable : Yes
    • Router Bit Collet Diameter (in) : 1/4, 1/2 (optional)
    • Ship Weight : 550 pound
    • Spindle Diameter (in) : 1-1/4
    • Spindle Size Under Nut (in) : 4
    • Spindle Speed (RPM) : 4000, 6000, 8000, 10000
    • Spindle Travel (in) : 4"
    • Table Height From Floor (in) : 33-1/4
    • Table Insert Opening Diameter (in) : 2-5/8, 4-7/8
    • Table Inserts : 2
    • Table Opening Diameter (in) : 7-1/4
    • Table Size (in) : 26-3/4 X 32-1/4
    • Table T-Slot (in) : Yes
    • Width (in): 40
    • Four-speeds (4000, 6000, 8000, 10000 RPM) let you select the best speed and torque for different cutter diameters
    • Magnetic controls
    • Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
    • Large 26-3/4" X 32-1/4" precision ground cast iron table provides a durable work area, predrilled for power feeder
    • Poly-V-belt transfers maximum power to the spindle
    • Starting Pins for irregular shaping
    • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
    • Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
    • Reversible spindle speeds for diverse shaping jobs
    • 4" Dust port built into fence for convenient hookup to any dust collection system
    • Spindle lock for safe and easy cutter set-up
    • Spindle height scale
    • Amps : 14
    • Dust Collection Minimum CFM Required : 400
    • Dust Port Diameter (OD/in) : 4
    • Electrical Controls - Magnetic Starter : Magnetic Starter
    • Fence Size (L x H/in) : 4-3/4 X 16
    • Fence Travel (Major and Minor/in) : 4,1
    • Height (in): 41
    • Length : 30 (in)
    • Maximum Diameter Cutter Above Table (in) : 7-1/2
    • Maximum Diameter Cutter Below Table (in) : 6
    • Motor HP : 3
    • Motor Phase : 1
    • Motor Voltage : 220
    • Net Weight (lb): 473
    • Part Number : 708323
    • Prewired : 220
    • Reversable : Yes
    • Router Bit Collet Diameter (in) : 1/4, 1/2 (optional)
    • Ship Weight : 550 pound
    • Spindle Diameter (in) : 1-1/4
    • Spindle Size Under Nut (in) : 4
    • Spindle Speed (RPM) : 4000, 6000, 8000, 10000
    • Spindle Travel (in) : 4"
    • Table Height From Floor (in) : 33-1/4
    • Table Insert Opening Diameter (in) : 2-5/8, 4-7/8
    • Table Inserts : 2
    • Table Opening Diameter (in) : 7-1/4
    • Table Size (in) : 26-3/4 X 32-1/4
    • Table T-Slot (in) : Yes
    • Width (in): 40
