Jet

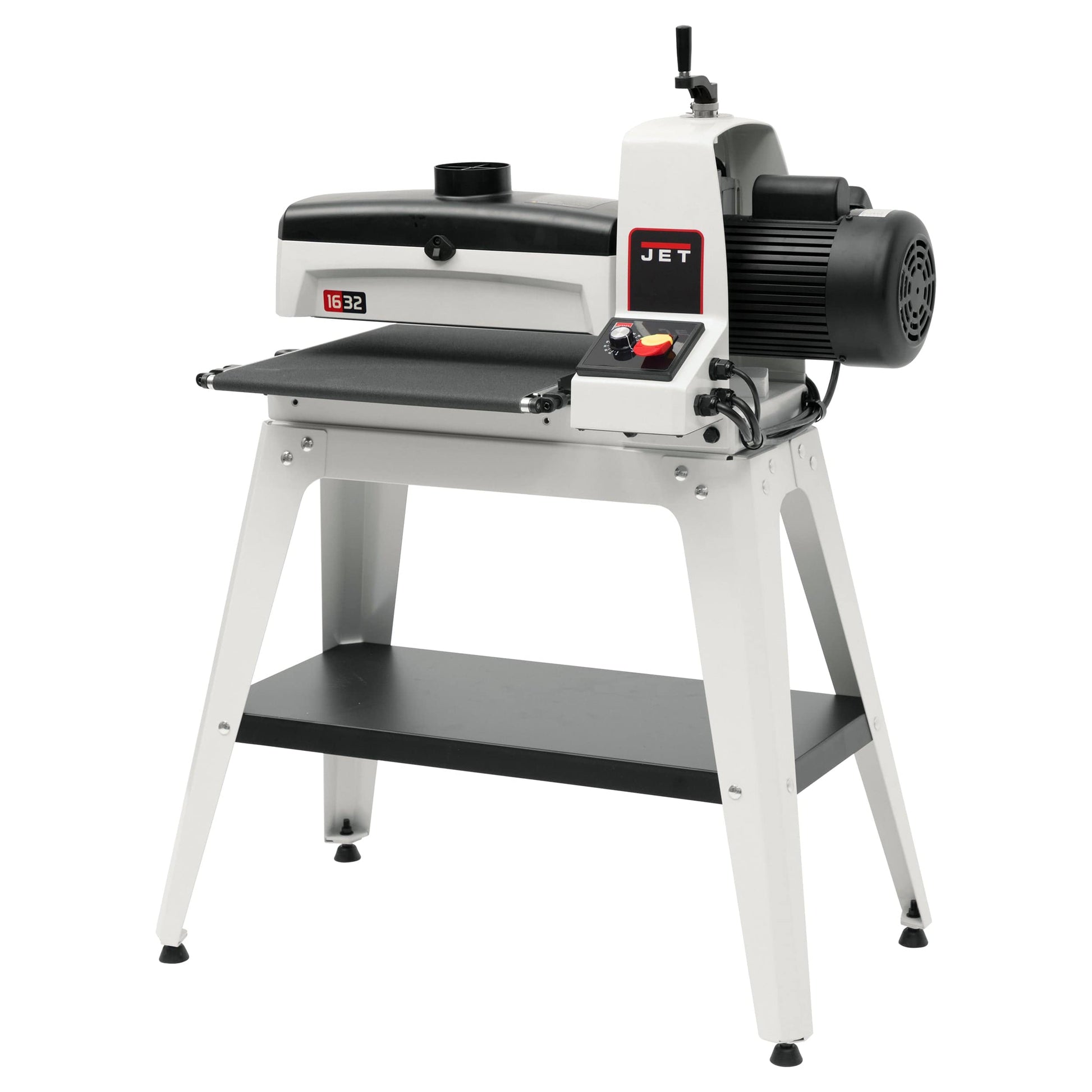

16" Drum Sander with Open Stand - 1-1/2 HP 1 Ph 115V - JWDS-1632

Item #868060 Model JT9-723520K
$ 1,399 99
$ 1,399 99 Was $1,399.99
1 13

Jet

16" Drum Sander with Open Stand - 1-1/2 HP 1 Ph 115V - JWDS-1632

Item #868060 Model JT9-723520K
$ 1,399 99
$ 1,399 99 Was $1,399.99
The Jet® 16-32 Drum Sander with Open Stand - 1-1/2 HP 1 Ph 115V - JWDS-1632 is a powerful and versatile sanding machine that delivers exceptional . . . View More Details
Ships from Manufacturer Shipping Info
Items you may need

  • 3" HD Caster - Double Locking - Swiveling - 1/2" Threaded Spindle

    $ 13 99
    $ 13 99 Was $13.99
    3" HD Caster - Double Locking - Swiveling - 1/2" Threaded Spindle alt 0

  • Utility Cart, Model PUC-3725

    $ 219 99
    $ 219 99 Was $219.99
    Utility Cart, Model PUC-3725 alt 0

  • 19-38 Drum Sander

    $ 2,099 00
    $ 2,099 00 Was $2,099.00
    19-38 Drum Sander alt 0

  • Pre-Cut Sandpaper Wrap for 16-32 Drum Sander - 4 Pack

    $ 46 75
    $ 46 75 Was $46.75
    36G SandWrap for 16-32 4pk alt 0

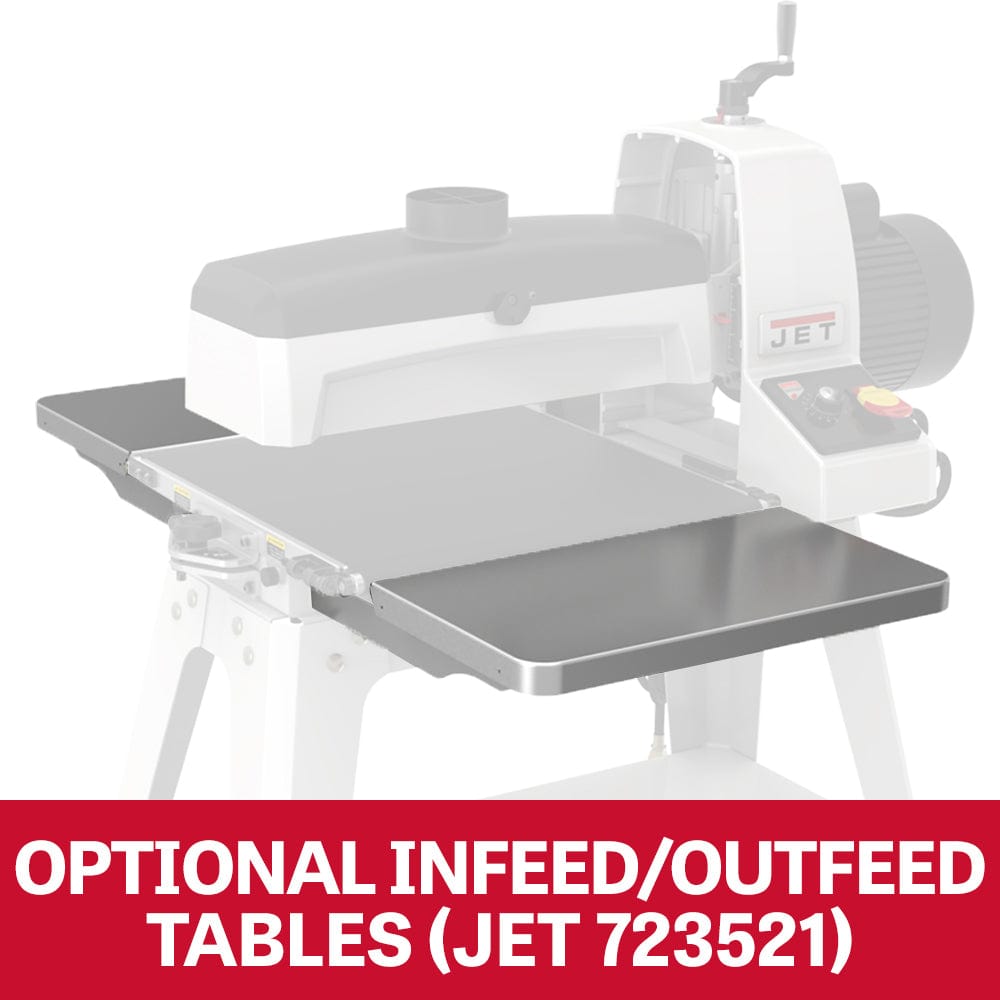

  • Infeed/Outfeed Tables for Jet JWDS-1632 and 1836 Drum Sanders

    $ 164 99
    $ 164 99 Was $164.99
    Infeed/Outfeed Tables for Jet JWDS-1632 and 1836 Drum Sanders alt 0

  • 16-32 Drum Sander

    $ 1,499 00
    $ 1,499 00 Was $1,499.00
    16-32 Drum Sander alt 0

Details

The Jet® 16-32 Drum Sander with Open Stand - 1-1/2 HP 1 Ph 115V - JWDS-1632 is a powerful and versatile sanding machine that delivers exceptional results for woodworking professionals and serious DIY enthusiasts alike. With its 1-1/2 horsepower motor and 16" x 32" sanding capacity, this drum sander has the power and capacity to handle even the toughest sanding tasks with ease. Its patented conveyor belt TRACKERS™ system ensures that the conveyor belt stays centered during operation, resulting in optimal sanding results. The adjustable drum height and depth gauge allow you to set the sanding depth for the perfect finish every time.

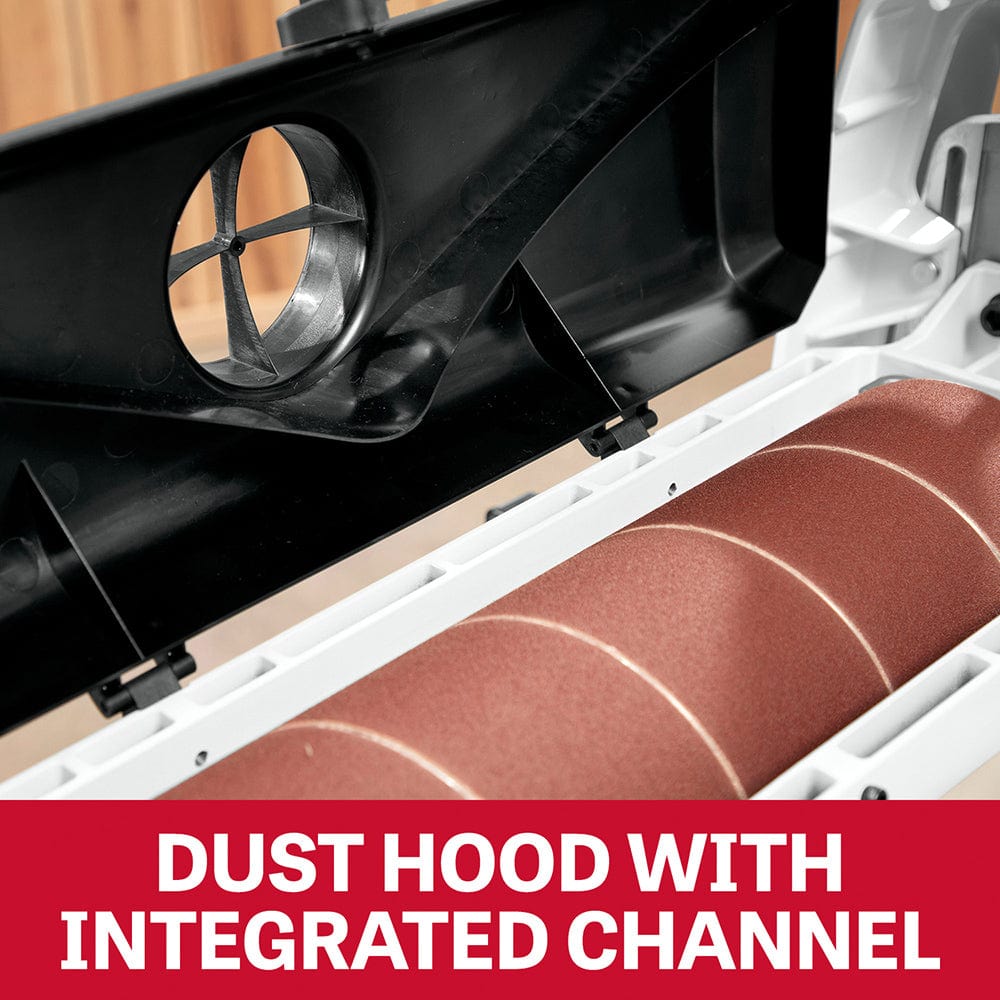

Designed with user comfort and safety in mind, the Jet® 16-32 Drum Sander features an open stand that provides easy access to the sanding drum and conveyor belt for quick and easy adjustments. The machine's integrated dust hood and 4" dust port ensure that your workspace stays clean and free from dust and debris. Whether you're a professional woodworker or a serious DIY enthusiast, the Jet® 16-32 Drum Sander with Open Stand is an excellent choice for anyone who demands the best in performance, precision, and safety.

Features:

  • Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
  • Self-Cooling Drum
  • Drum utilizes sealed and permanently lubricated ball bearings for longer life
  • Separate feed and drum motors provide independent control, optimizing the performance of the sander
  • Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
  • Precision-flattened reinforced steel conveyor bed
  • Drum is easily removable

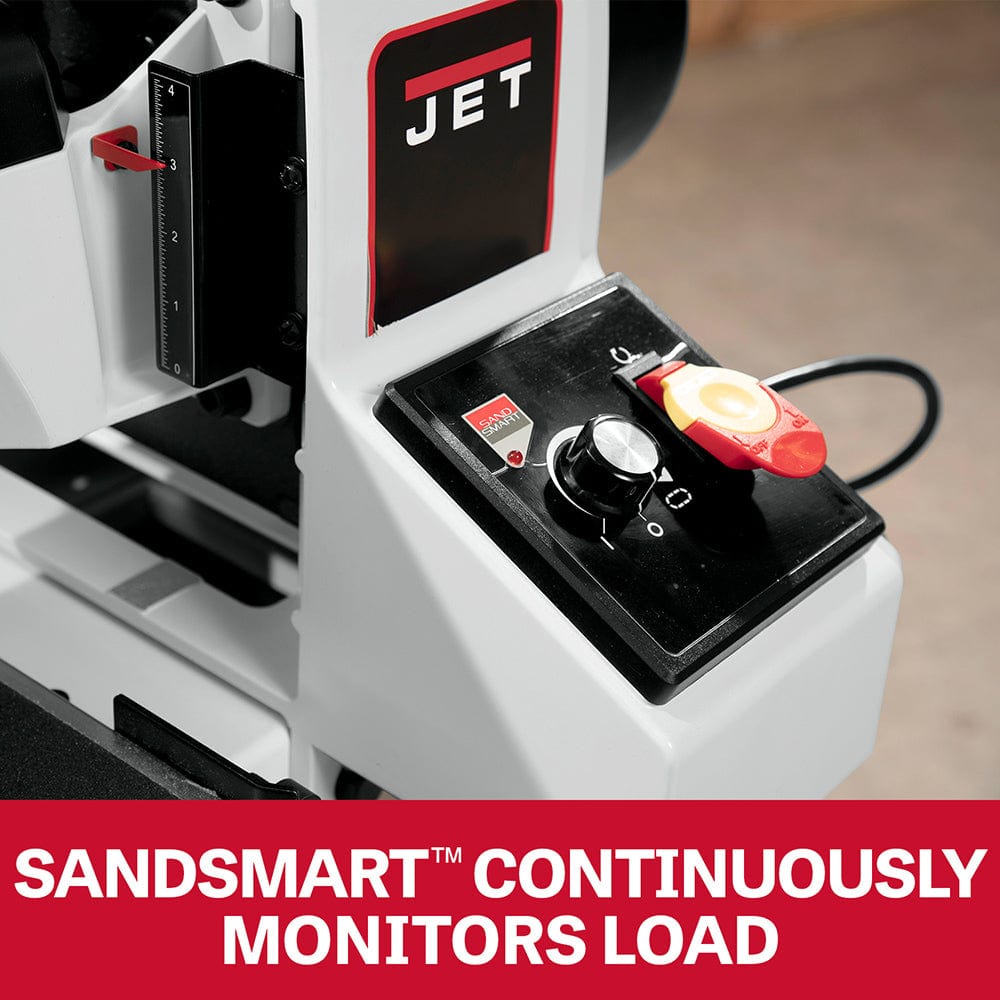

  • Integrated on/off switch and variable speed control knob are conveniently located

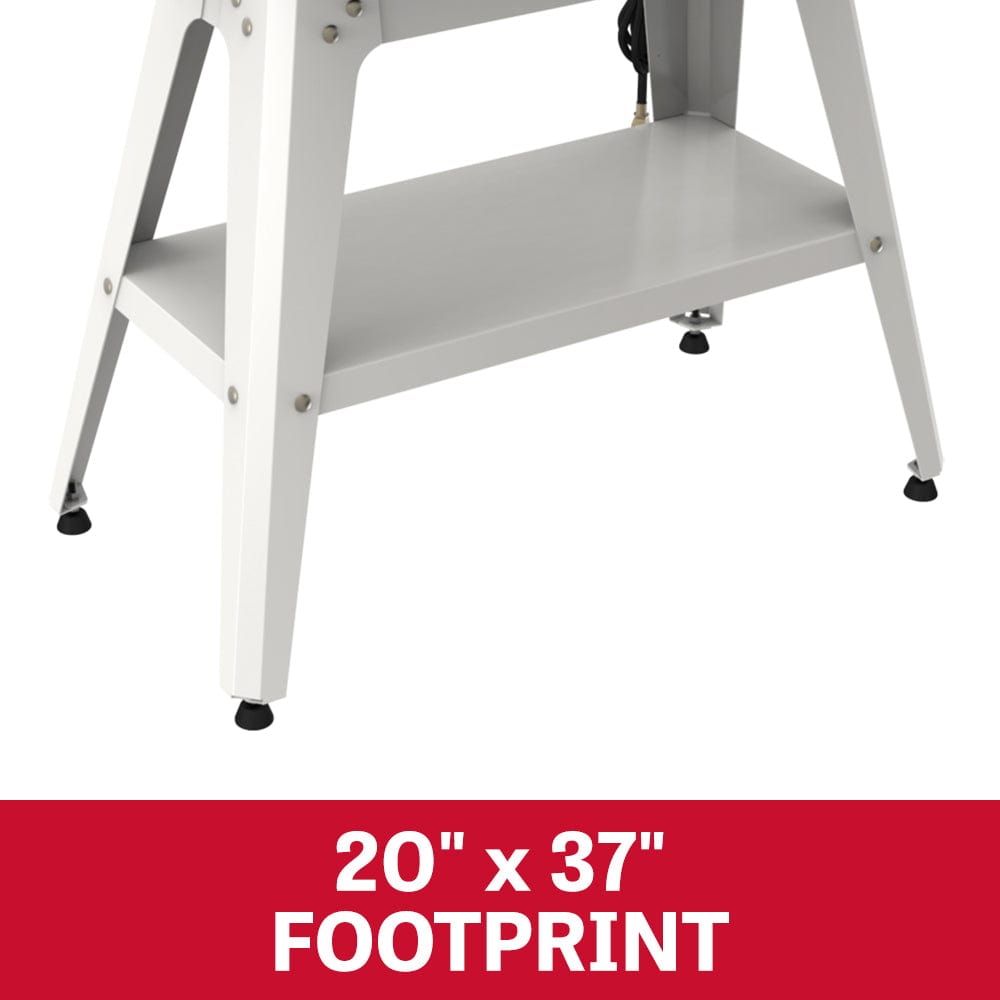

  • Stand features a 20" x 37" footprint to increase stability and has a storage shelf and pre-drilled holes for casters

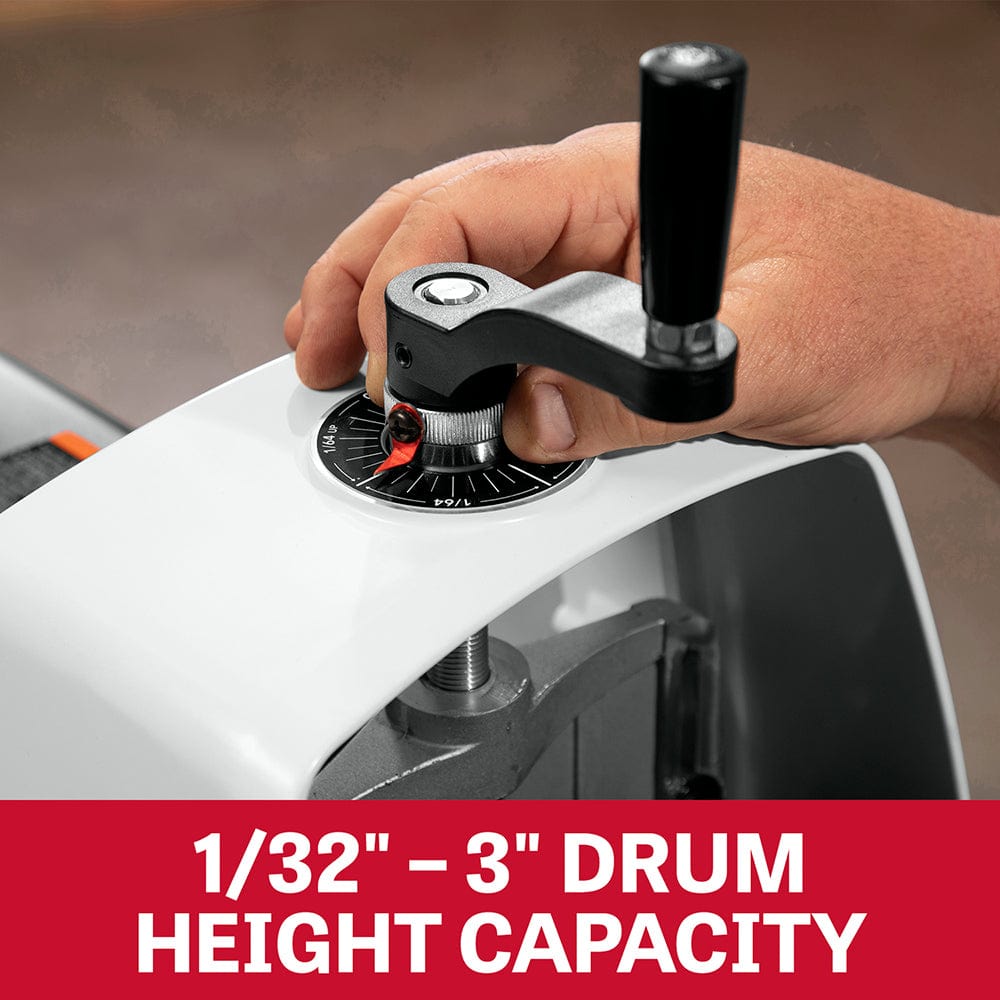

  • The relative depth scale on the handwheel allows the user to reset and measure the depth for every project

Specifications:

  • Motor: 1-1/2HP, 1Ph, 14A, 115V 60Hz
  • Drum speed (rpm): 1725
  • Drum Length: 32"
  • Drum Diameter: 5”
  • Abrasive installed: 80 Grit
  • Dust Port Diameter: 4”
  • Maximum Board Thickness: 3”
  • Minimum Board Length: 2-3/8”
  • Minimum Board Thickness: 1/32”
  • Maximum Board Width: 16" with one pass
  • Maximum board Width: 32” with 2 passes
  • Conveyor Seed: 0-10 FPM
  • Conveyor Table Size: 16" x 39-3/4"
  • Net Weight: 187 lb - machine only

What's Included:

  • (1) Jet® 16-32 Drum Sander with Open Stand - 1-1/2 HP 1 Ph 115V - JWDS-1632

FAQs

How to use a drum sander?
Adjust the drum sander to match the thickness of your wood, feed the piece slowly, and sand in light passes until it’s smooth and flat. Always use a dust collector and make slight depth adjustments to avoid burning or overloading the machine.


Do I need a drum sander for my woodworking projects?
A drum sander is ideal if you build cabinets, tabletops, or other projects that require smooth, uniform surfaces. It saves time and delivers precision finishes that are hard to achieve with hand sanders or a planer.


How much sandpaper for drum sander?
Drum sanders use rolls of sandpaper, and the length depends on the model and drum size, but typically 3 to 4 yards per roll. Choose the grit based on your project, starting with coarse (80-120) and finishing with finer grits (150-220).
