OF 1010 REBQ-Plus-LM Router

Improved visibility for precise cutting results. Extremely versatile. Extremely precise. Extremely easy to handle. Whether used on the guide rail or off, the OF 1010 R router is the ideal tool for fine routing work. The LED light with two brightness levels is integrated into the base panel and provides lighting directly on the workpiece. The light’s battery unit is removable and can be recharged via the USB-C interface. Thanks to its size and low weight, the OF 1010 R can be accurately guided along edges, lines, or curves. For routing profiles, grooves, rabbets, and dovetail joints—the OF 1010 R impresses with a wide variety of possible applications.

• Compact design and light weight
• Clear view of the routing area
• Rechargeable LED work light in the base panel.
• Quick and easy bit changes
• Routing depth adjustment to 1/256" (1/10 mm)
• Torsionally rigid plunging action due to guide columns on both sides
• MMC (Multiple Material Control) electronics for adaptation to the working material and temperature monitoring
• Chip extraction system integrated into the router base for hose diameters D 27 and D 36

• Power consumption: 1010 watt
• Idle engine speed: 6500 - 26000 RPM
• Collet Diameter.: 1/4" - 5/16" (6 – 8 mm)
• Routing stroke: 2-1/8" (55 mm)
• Routing depth fine adjustment range: 5/16" (8 mm)
• Dust extraction connection dia.: 1-1/16" (27 mm) / 1-13/32" (36 mm)
• Weight: 6.61 lbs (3 kg)

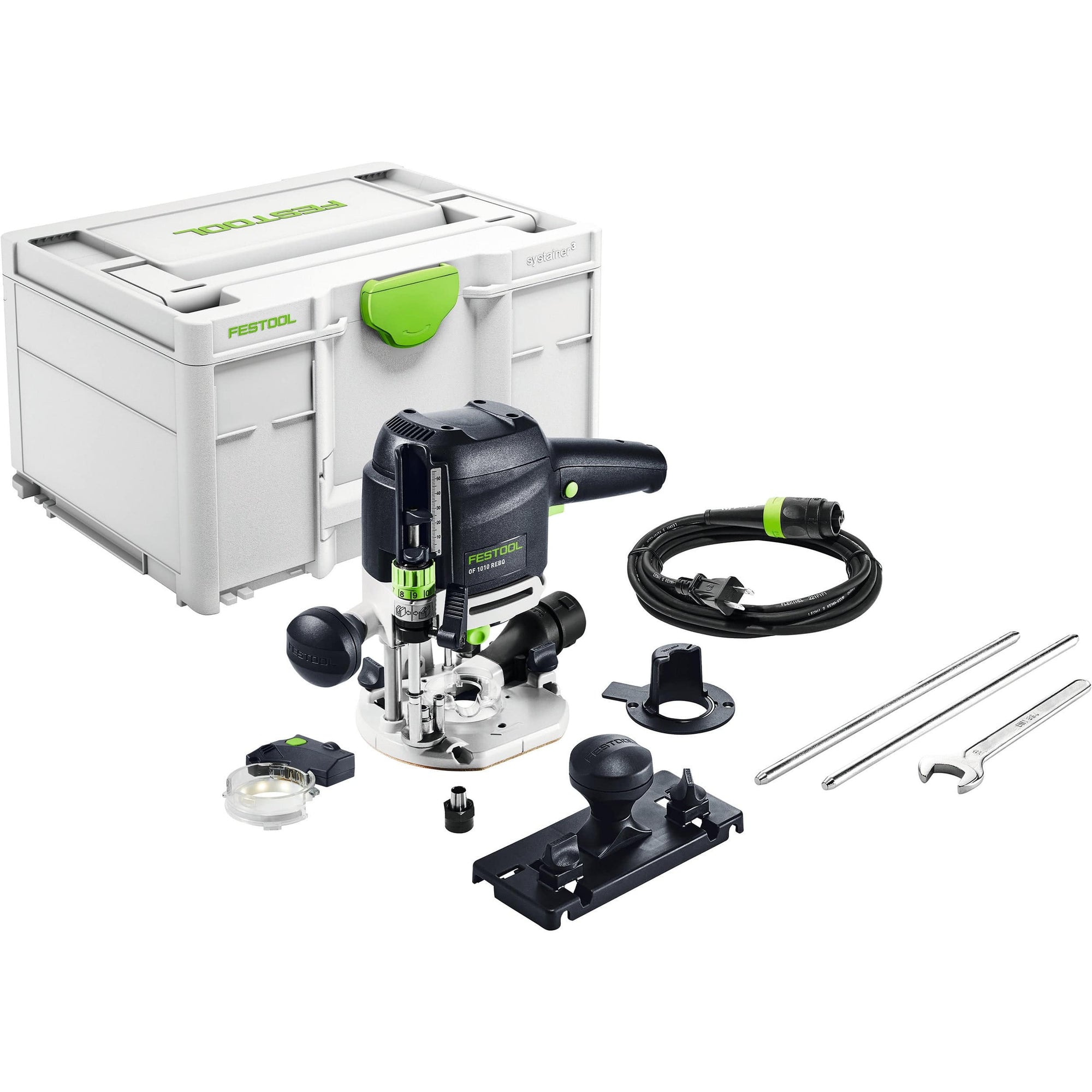

• (1) Festool OF 1010 REBQ-Plus-LM Router
• (1) Light module
• (2) Guide rods
• (1) Chip Catcher
• (1) ¼” (6.35 mm) Collet
• (1) 5/16” (8 mm) Collet
• (1) Collet wrench
• (1) Systainer SYS M 237
