TrueTrac

48" x 96" Threaded Slab Flattening Router Mill

Item 187360
Model RGS4896T

$1,049.99

This item has an additional shipping charge

  • Contiguous 48 States Shipping Only
  • Ships from Manufacturer, Expedited Shipping Unavailable
  • - Ships in approximately 5-8 business days
  • The TrueTrac 48" x 96" Threaded Slab Flattening Router Mill is designed specifically to be able to handle large area planing operations. Easily flatten large slabs, table top glue-ups, epoxy resin counter or table tops, or other large projects that don't easily fit into standard floor...

    Items You May Need

    Details

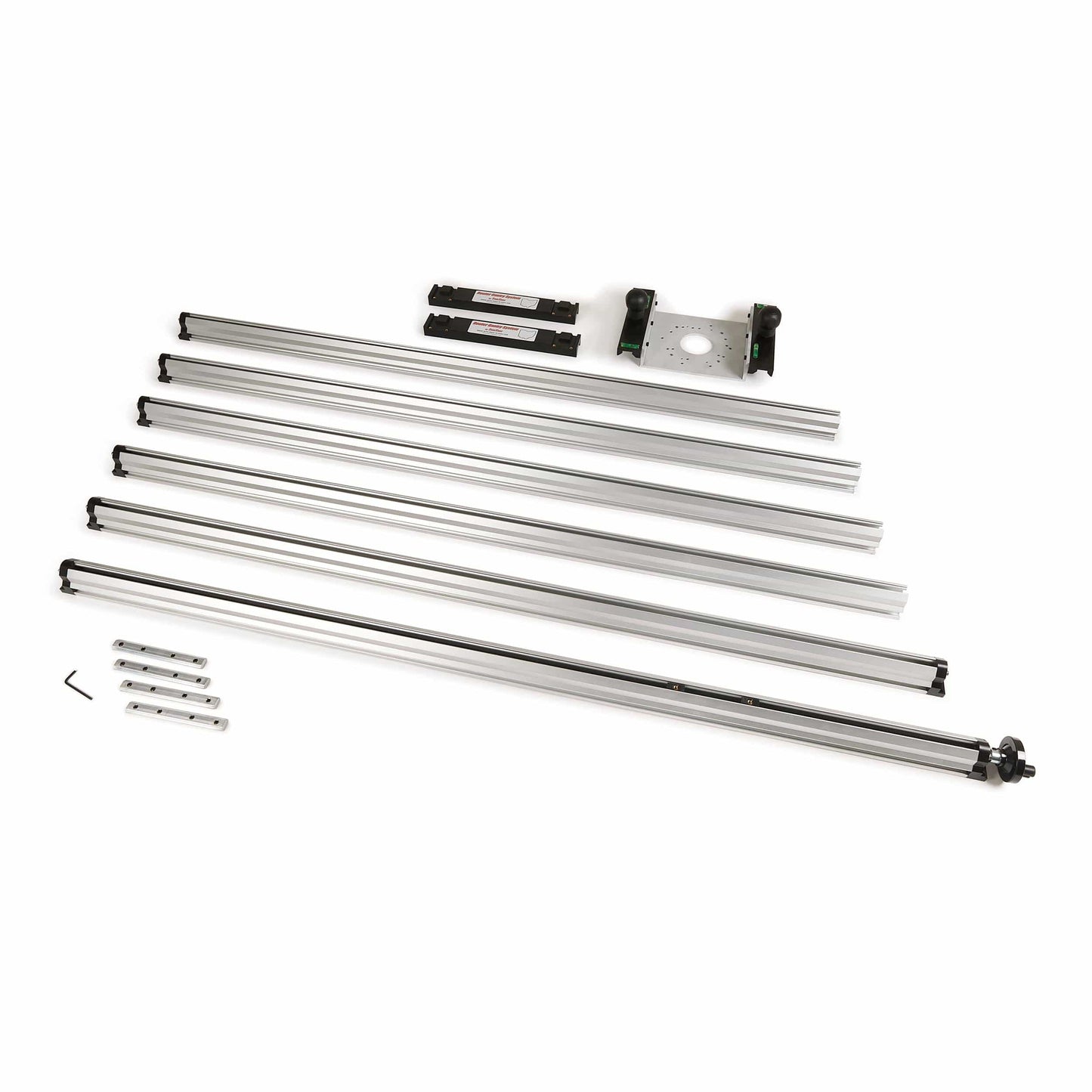

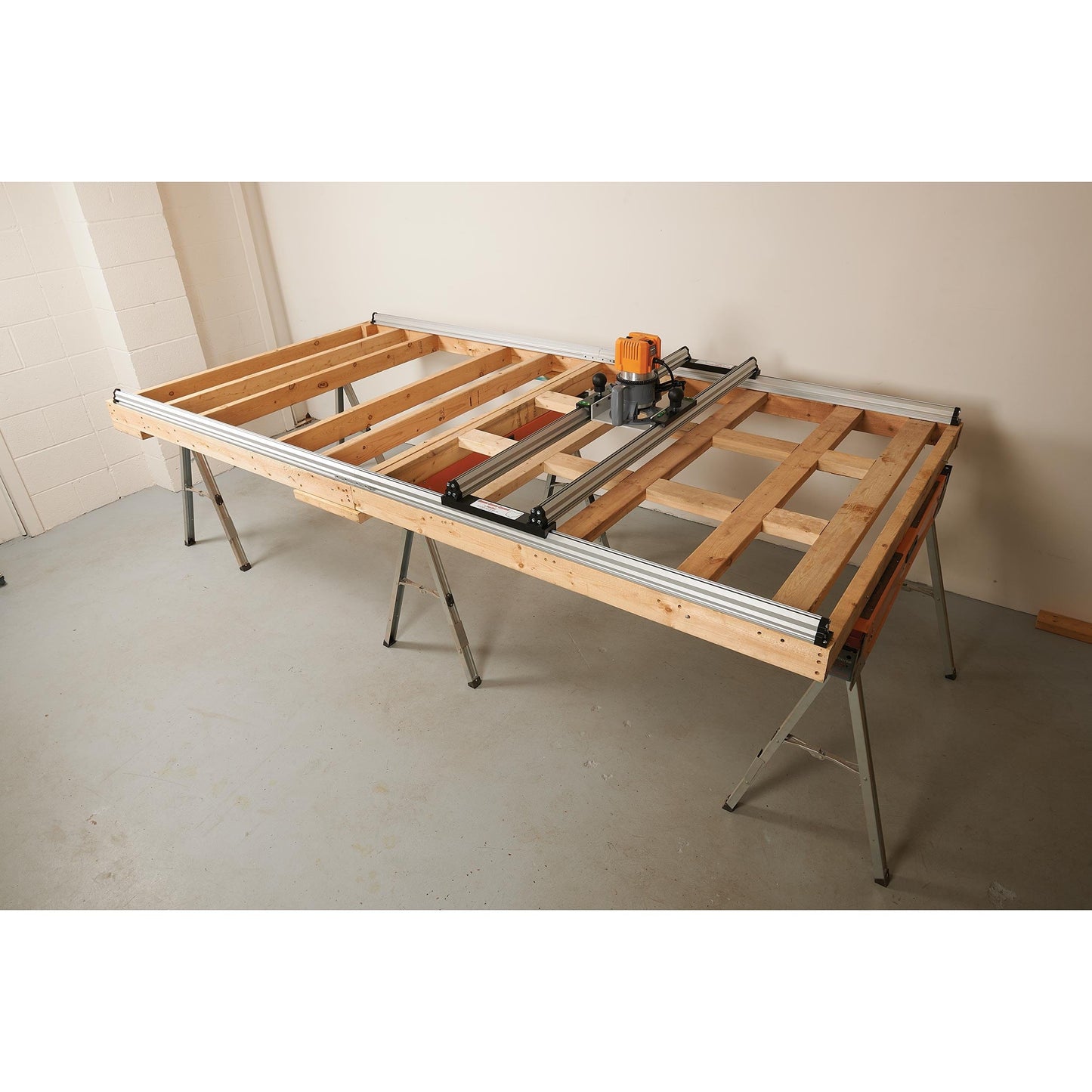

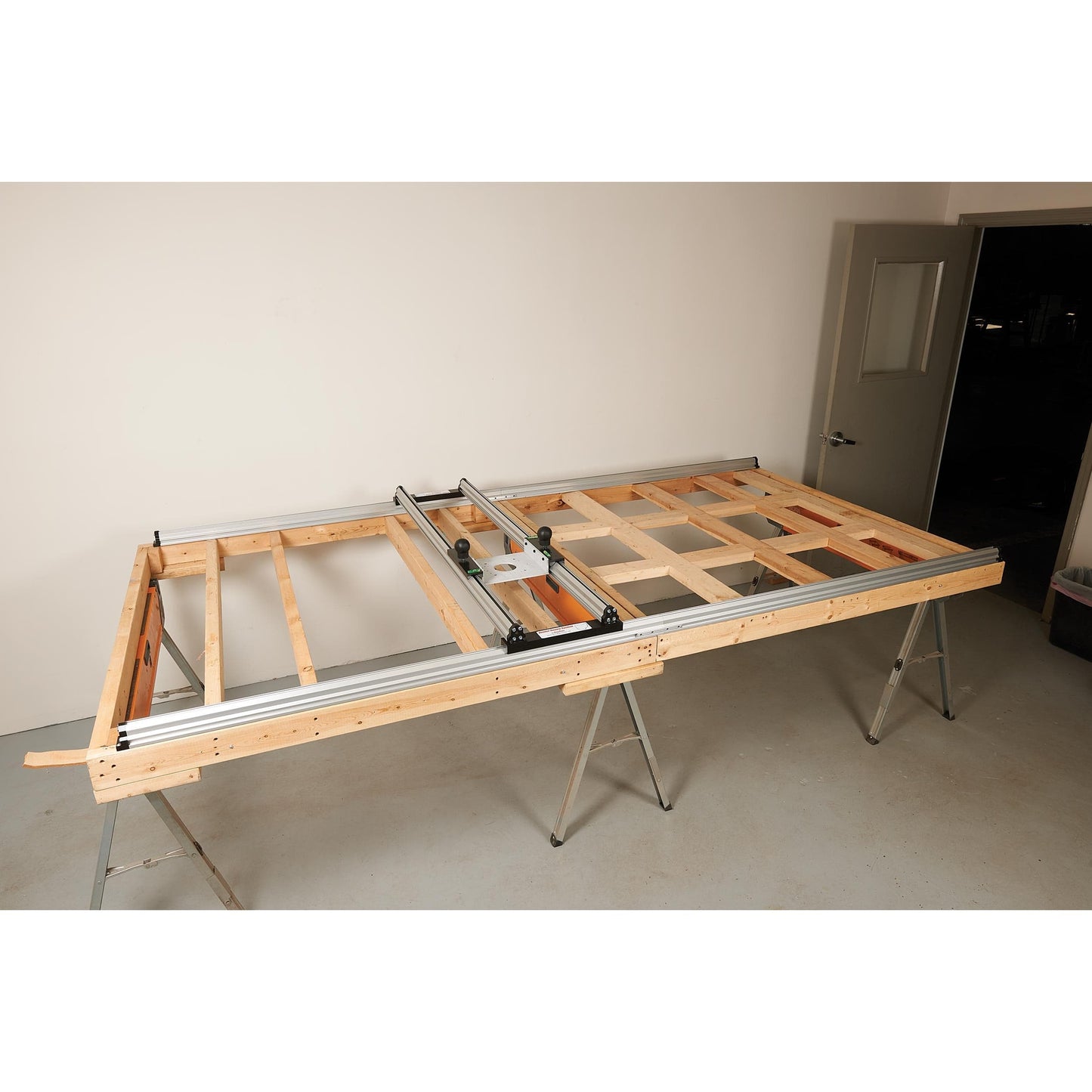

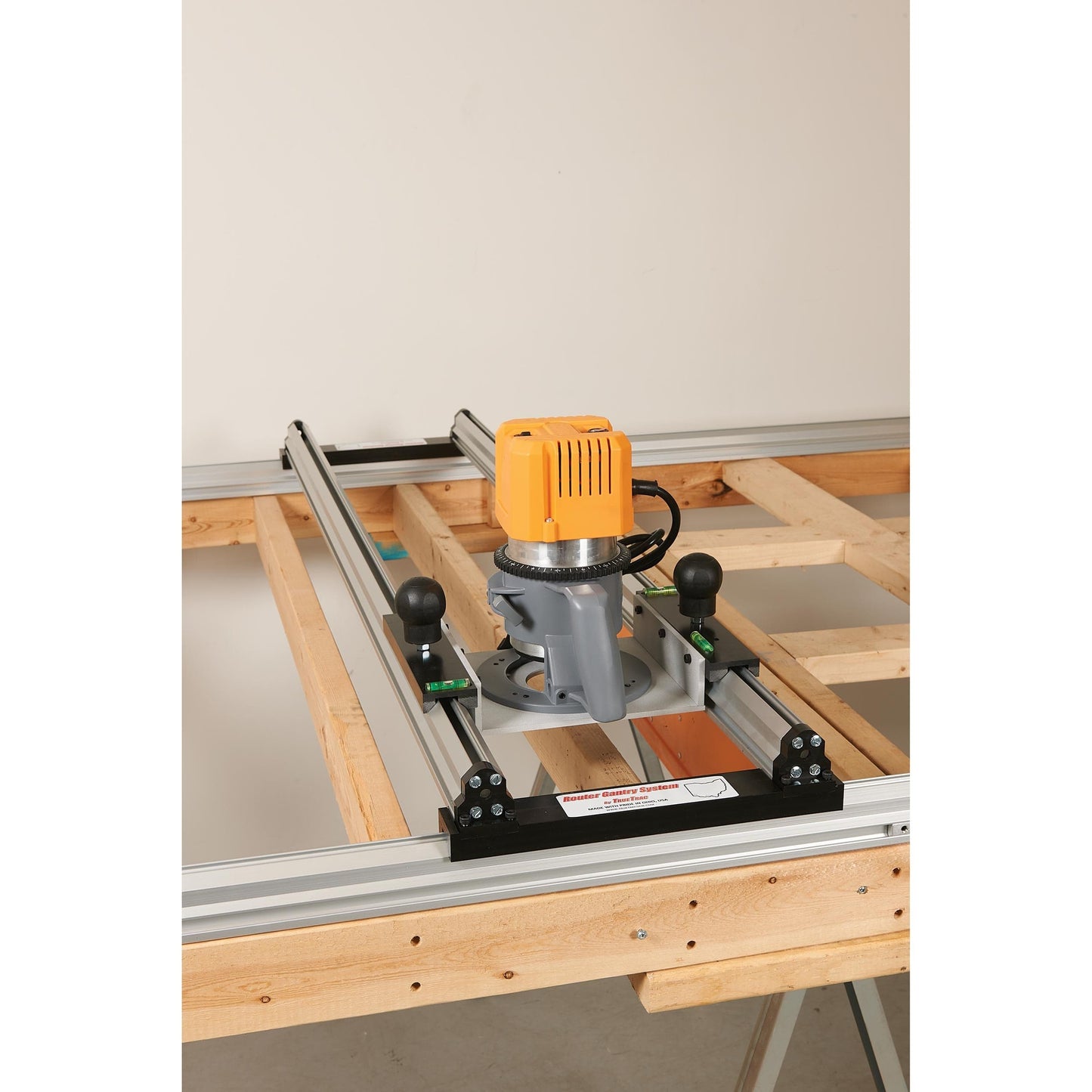

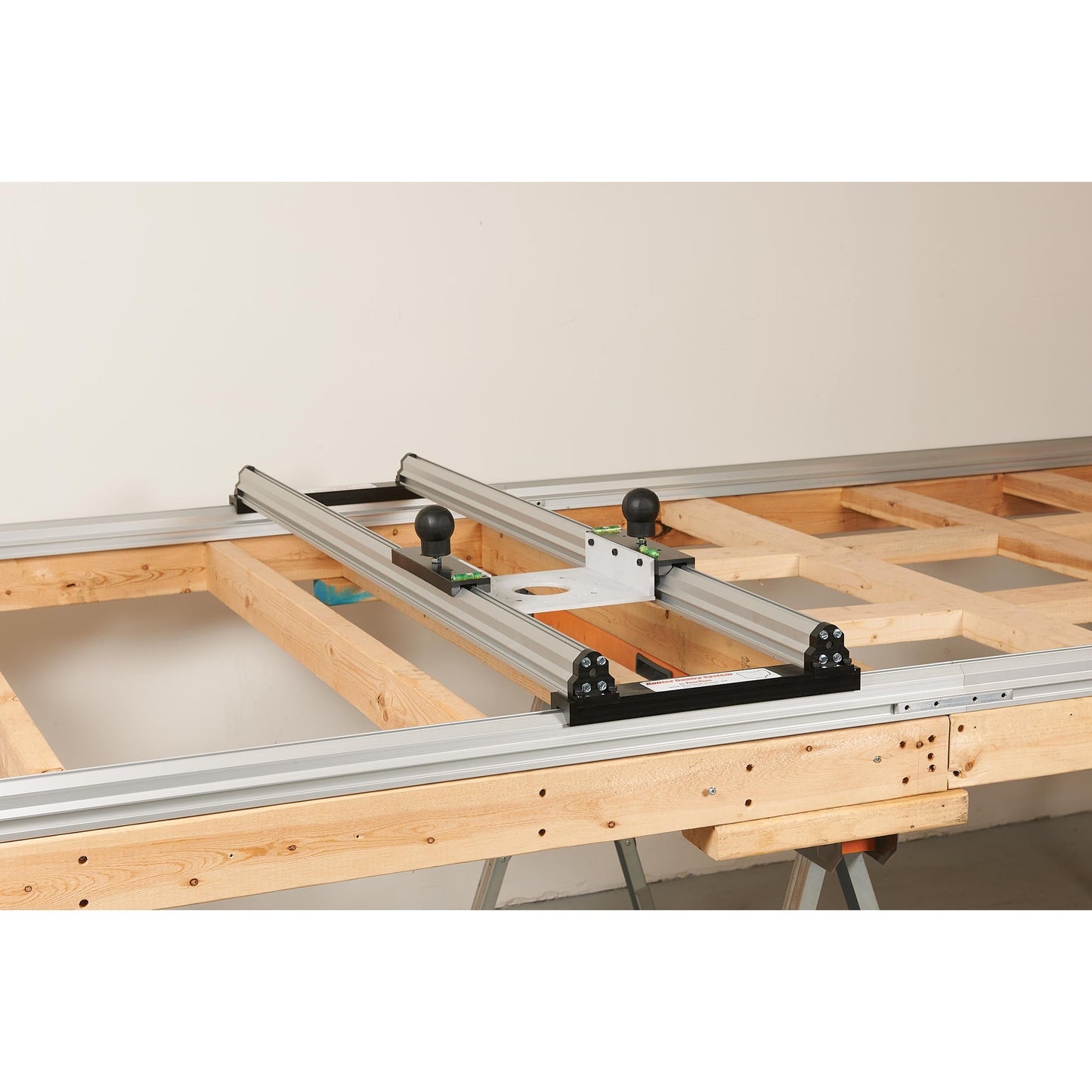

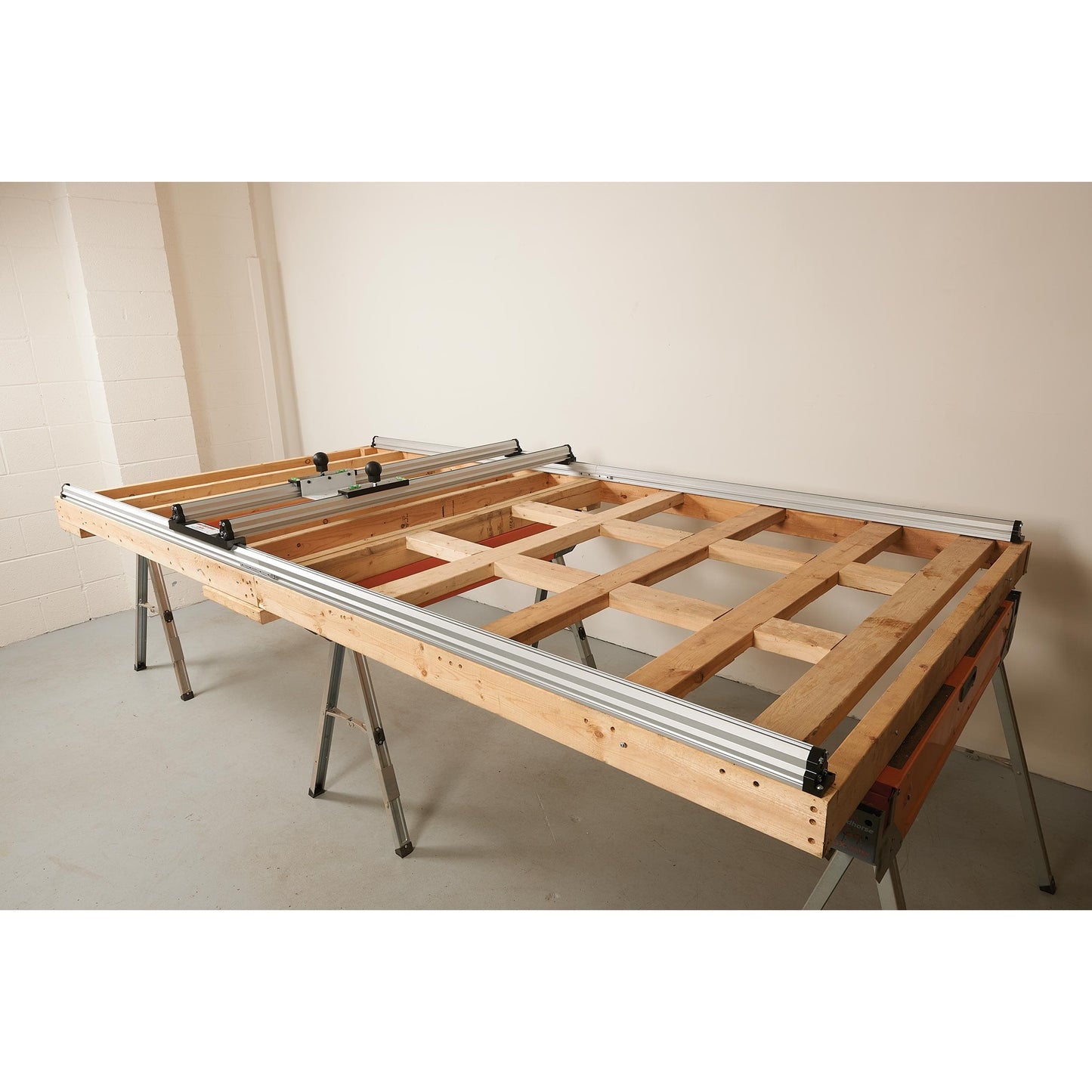

    The TrueTrac 48" x 96" Threaded Slab Flattening Router Mill is designed specifically to be able to handle large area planing operations. Easily flatten large slabs, table top glue-ups, epoxy resin counter or table tops, or other large projects that don't easily fit into standard floor model equipment for a much lower cost. The Manual Feed allows the user to directly push the router back and forth across and down the length of the slab, providing more movement control. For use with a standard 2-1/2 to 3-1/2 HP router and a 1" to 3" diameter router bit, not included. With the addition of the Threaded Cross Feed to the base system you now have the ability to easily index your router across the bridge, which allows you the unique ability to pin the router in place and cut with the grain of the project rather than going cross-grain. Doing it in this manner drastically reduces the number of passes required to complete a project and results in a much more consistent surface, requiring less finish sanding. This has the added benefit of also allowing easy edge jointing, rabbits, dado grooves, and other linear routing operations requiring the router to be moved a specific amount consistently. 10 turns of the hand crank equals 1 inch of movement.


    Features



    • Threaded Rod Index: 10 turns, 1 inch of travel
    • Pre-drilled for over 20 routers
    • Fully CNC machined Delrin linear slides
    • 1/4" Thick 6061 Aluminum Router Base Plate
    • Quick-reference bubble levels
    • Expandable with 27-1/2" or 55" Rail Extension Kits, sold separately


    Specifications



    • Capacity: 48" W x 96" L
    • 2-1/4" Thickness capacity without raising bottom rails
    • Less than 0.005" of deflection
    • Outer Dimensions: 57" W x 112" L
    • Accepts up to a 3" Diameter router bit
    • Includes detailed support structure drawing (support structure materials not included)
    • All major components manufactured in Ohio, USA


    Shipping / Billing Information

    This product ships direct from the manufacturer:
    • Your order will ship in approximately 5-8 business days.
    • This product is considered special order. Your account will be charged when you place your order.
    • Express or overnight shipping is not available for this product.
    • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

    Return Information

    Insight Toolworks accepts returns within 60 days of receipt with prior authorization. Subject to restocking fee. Customer responsible for return freight. Item must be in new, resaleable condition. Contact Woodcraft Customer Service at 800-535-4482 for return assistance.

    Warranty Information

    Insight Toolworks (TrueTrac) warranties their products for 5 years against manufacturer's defects. Contact Woodcraft Customer Service at 800-535-4482 for warranty assistance.
