Achieve drill press precision with the portability of a hand drill using the WoodRiver® Drill Guide. Engineered for smooth, precise operation with. . . View More Details
In Stock Online Shipping Info

Details

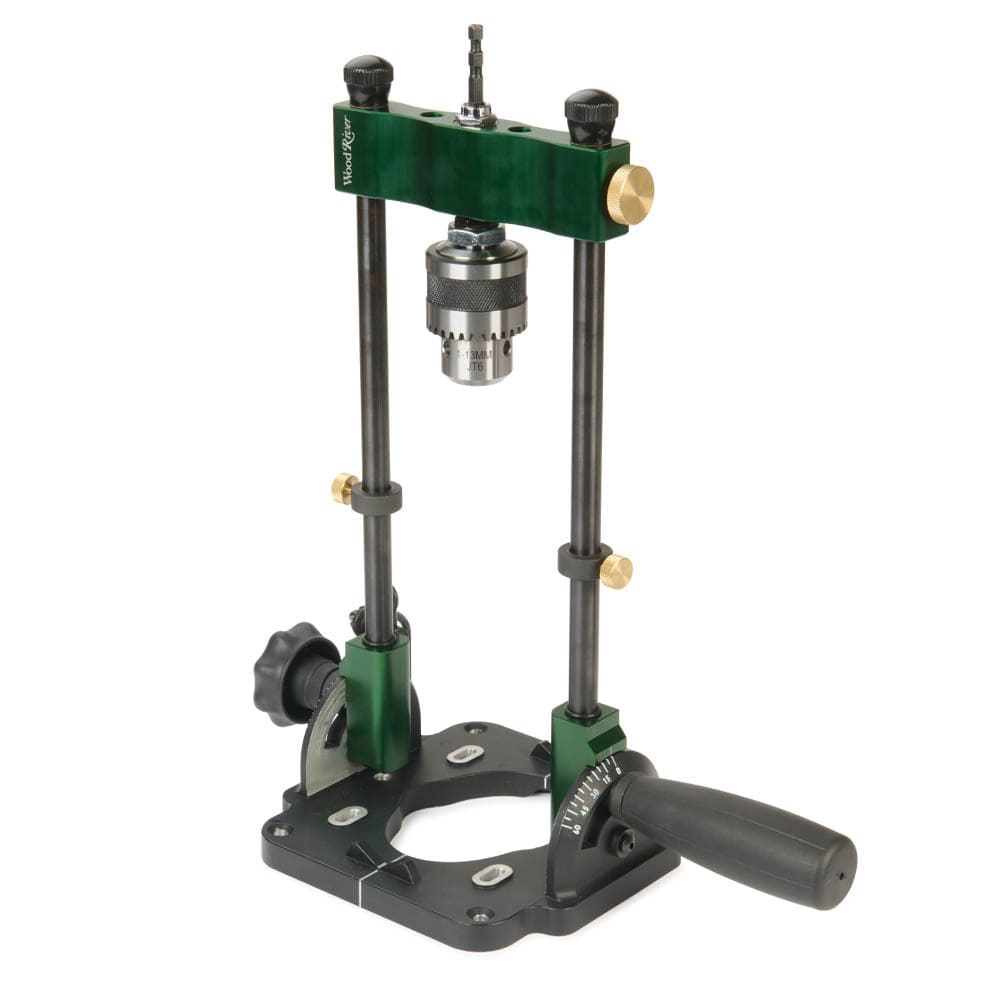

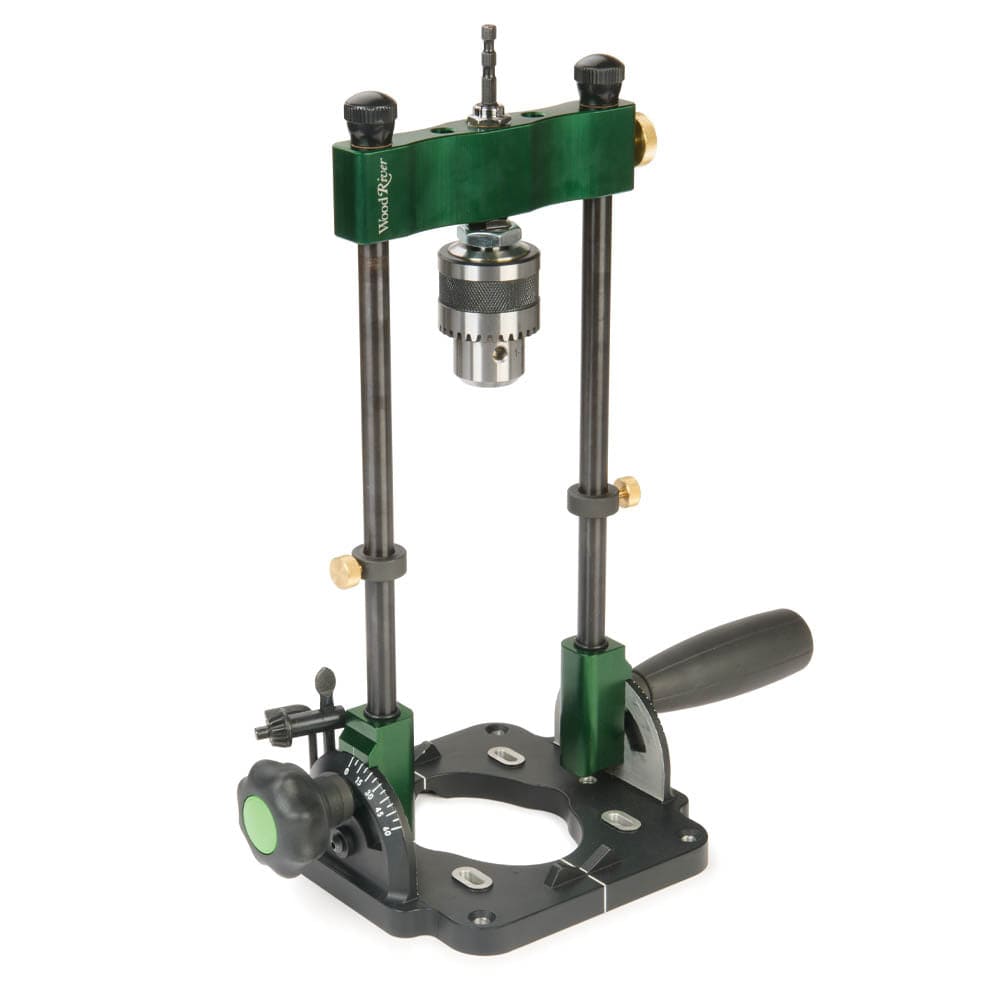

Achieve drill press precision with the portability of a hand drill using the WoodRiver® Drill Guide. Engineered for smooth, precise operation with virtually zero play, this versatile tool delivers exceptional accuracy and control. Simply attach your drill to the 1/4'' hex shank, and you're ready to tackle any project.

The robust handle, with a comfortable rubber casing, provides a substantial feel, while the heavy-duty 1/2'' chuck securely grips large bits with ease. The WoodRiver® Drill Guide delivers unmatched versatility, allowing you to drill at any angle from 0° to 60° with the help of its easy-to-read protractor scale—setting a new standard for precision and control.


For repetitive tasks like shelf pin installation, the built-in depth stop guarantees consistent drilling depth every time. The base features mounting holes for shop-made jigs, and the V-notches make it easy to drill perfectly centered holes in dowels and other round stock.


Features:



  • Smooth sliding plunge action with virtually zero play
  • Smooth ball bearings in chuck housing for efficient transfer of power
  • Large capacity: 9-5/16'' from chuck tip to bottom of base

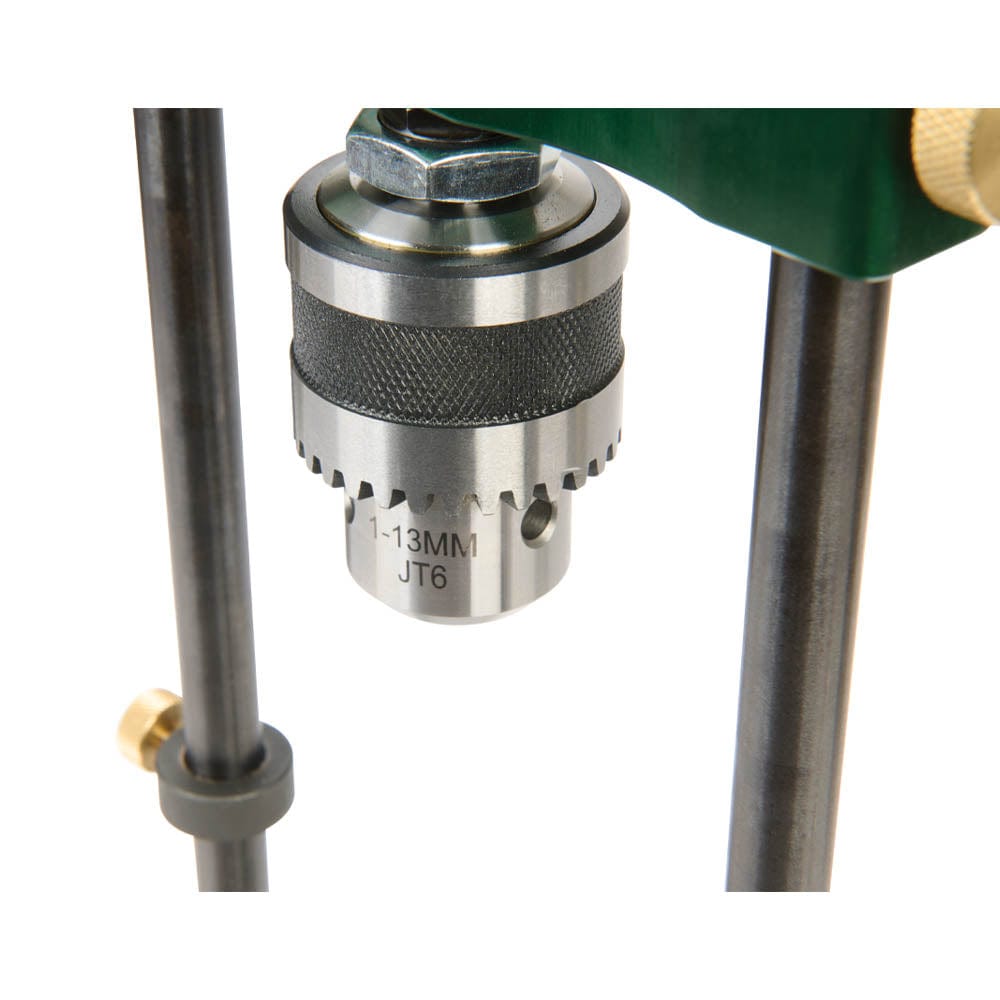

  • Sturdy 1/2'' Jacobs-style chuck—works with bits up to 2-7/8'' in diameter
  • Drill attaches to the quick-change compatible 1/4'' hex shank on top

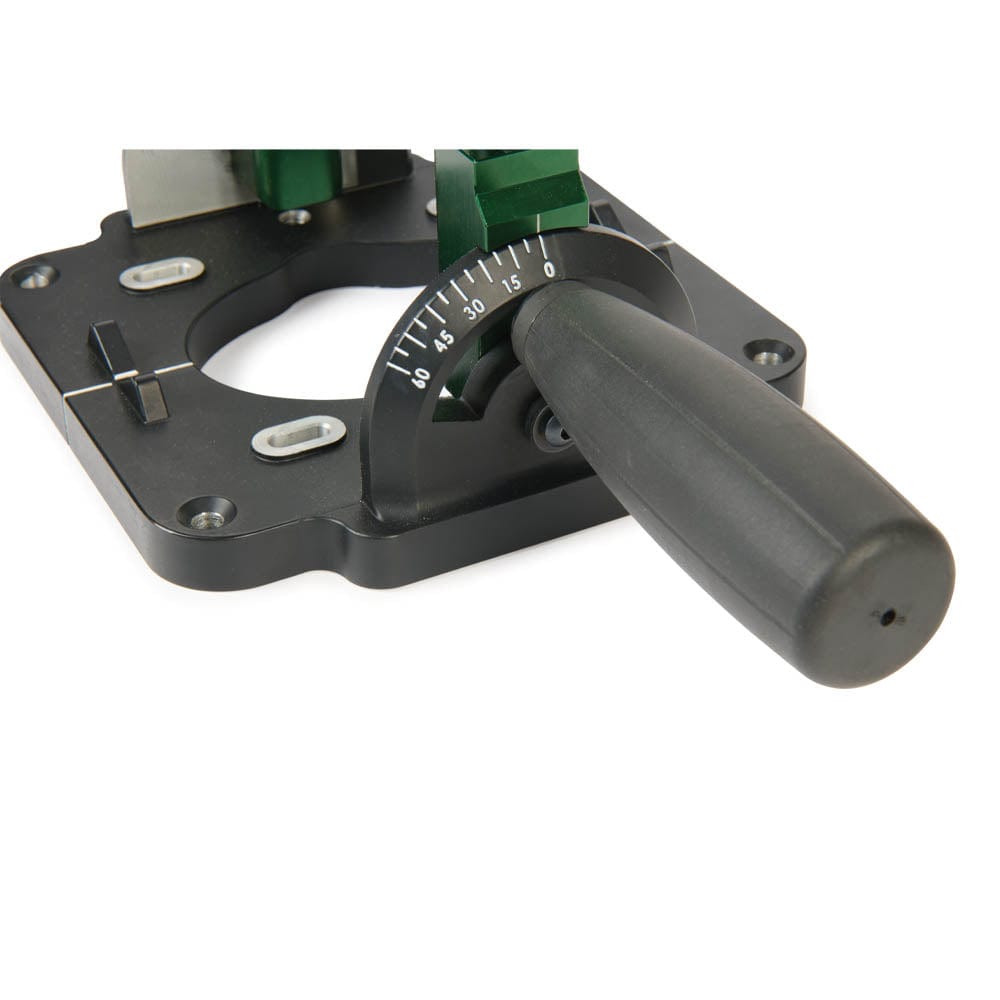

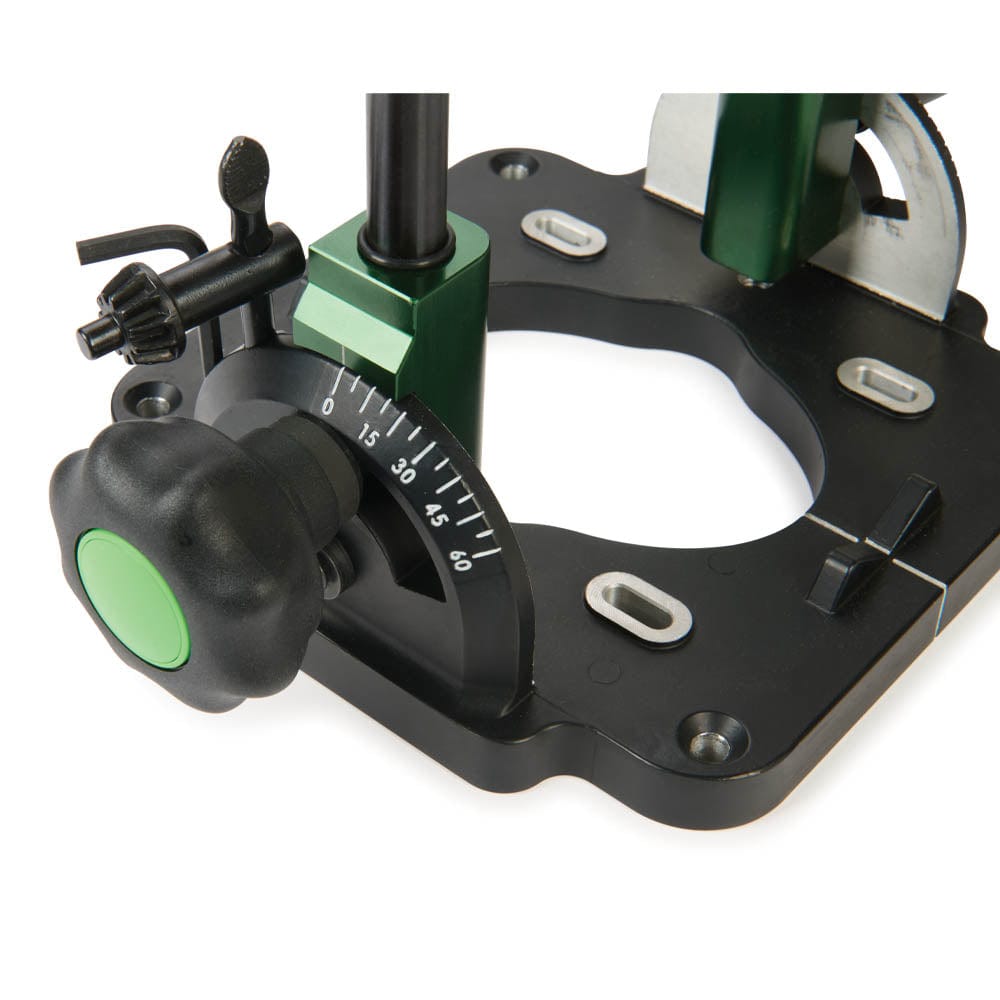

  • Engraved protractor scale for angled drilling from 0° to 60°
  • Integral depth stop for repeatable drilling at a set depth
  • V-notches for drilling center holes in dowels and other round stock
  • Included metal pins attach to base so the Drill Guide can be centered on board edges
  • Mounting holes on base accept a range of shop-made jigs

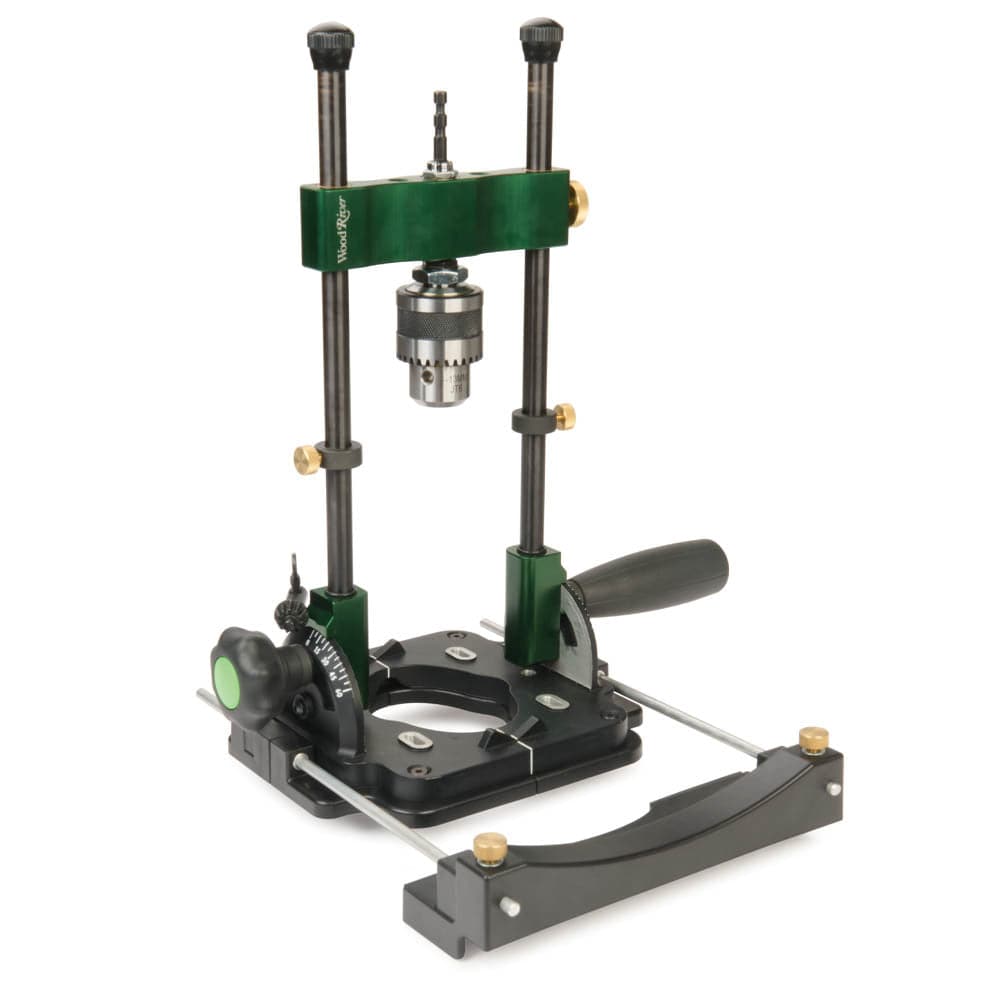

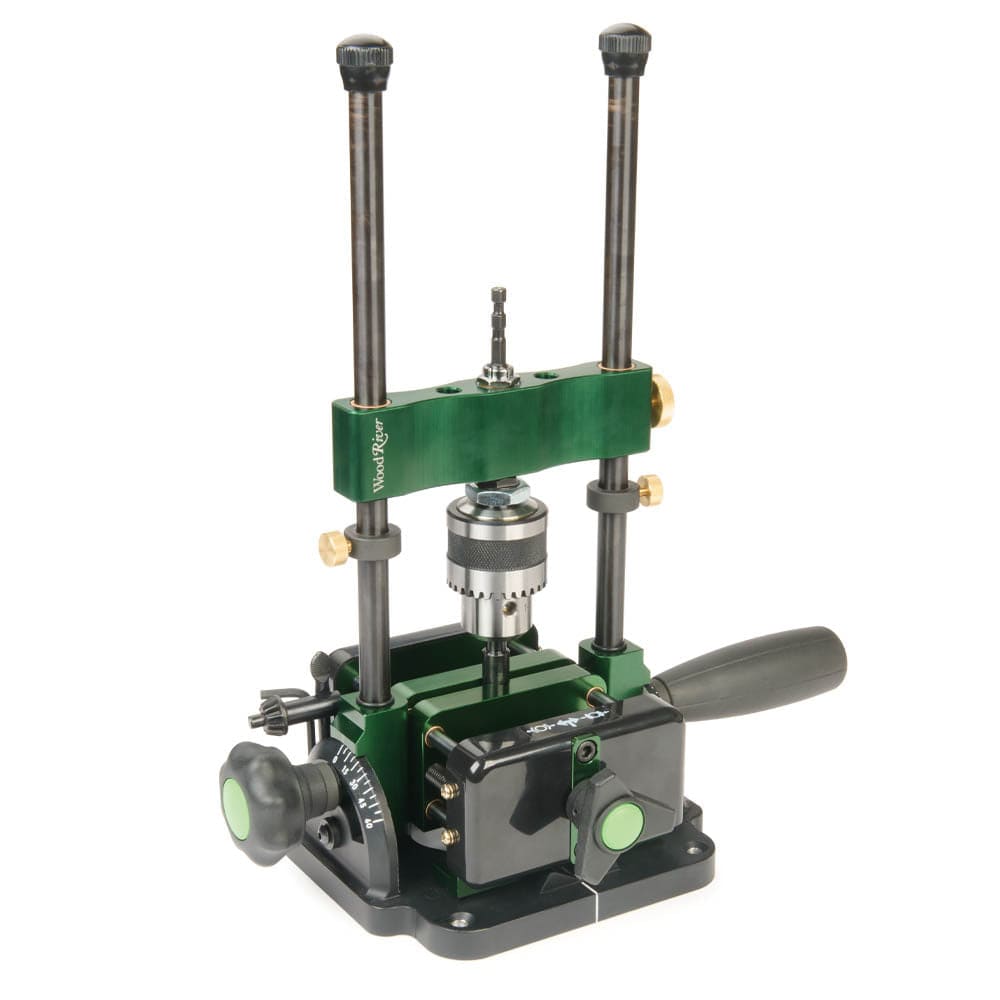

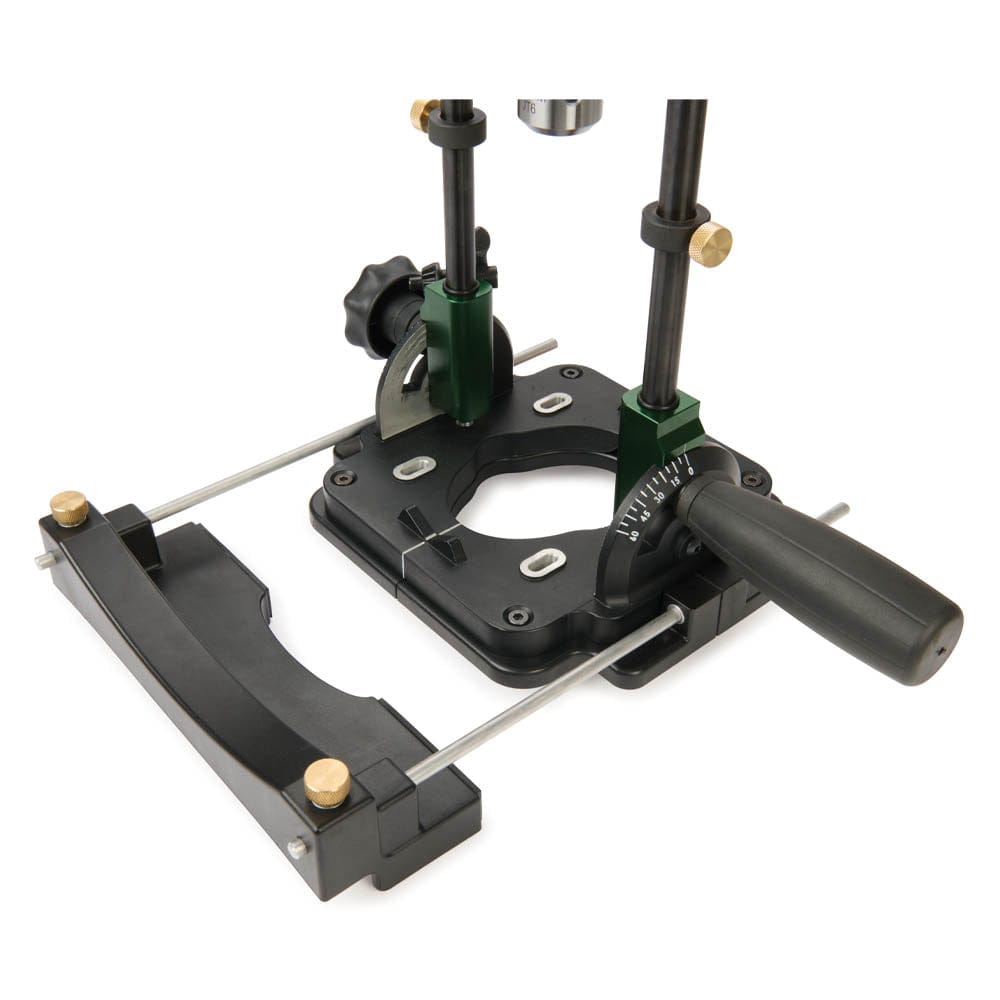

  • Accepts the optional Self-Centering Drill Vise (#195000) and the Edge Guide (#195001)


Specifications:


  • Distance From Chuck Tip to Bottom: 9-5/16''
  • Maximum Drill Shank Diameter: 1/2''
  • Maximum Drill Bit Diameter: 2-7/8''
  • Chuck Type: Jacobs-style 3-jaw
  • Dimensions of Opening in Base: 3'' x 4'' oval


What's Included:


  • (1) WoodRiver Drill Guide
  • (1) Chuck Key
  • (2) Centering Pins

Note:

  • Hex wrench shown in pictures is not included.
