WoodRiver

Edge Guide for Portable Drill Guide

Item #195001 Model 650001-0001-A080
Regular price $ 39 . 99
Sale price $ 39 . 99 Was $39.99
Skip to product information
New
1 of 3

WoodRiver

Edge Guide for Portable Drill Guide

Item #195001 Model 650001-0001-A080
Regular price $ 39 . 99
Sale price $ 39 . 99 Was $39.99
The Edge Guide works in combination with the WoodRiver® Drill Guide (#194499, sold separately) to create a row of holes. It sets the distance from. . . View More Details
In Stock Online Shipping Info
Items you may need

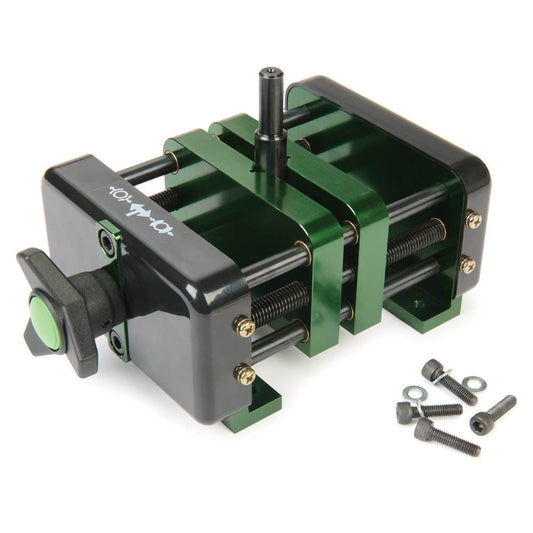

  • Self-Centering Vise for Drill Guide

    Regular price $ 149 . 99
    Sale price $ 149 . 99 Was $149.99
    Self-Centering Vise for Drill Guide

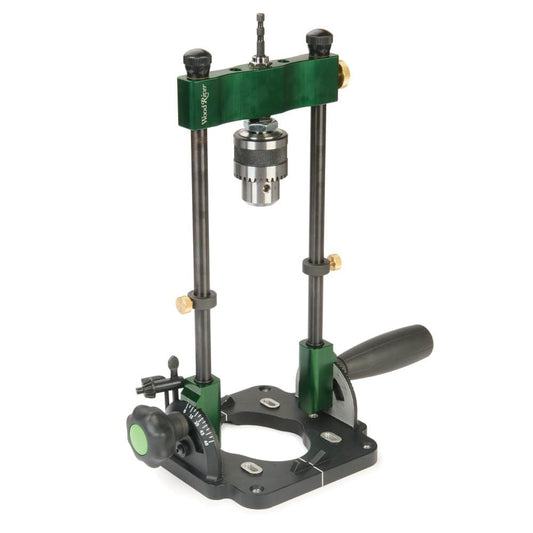

  • Portable Drill Guide

    Regular price $ 199 . 99
    Sale price $ 199 . 99 Was $199.99
    Portable Drill Guide

Details

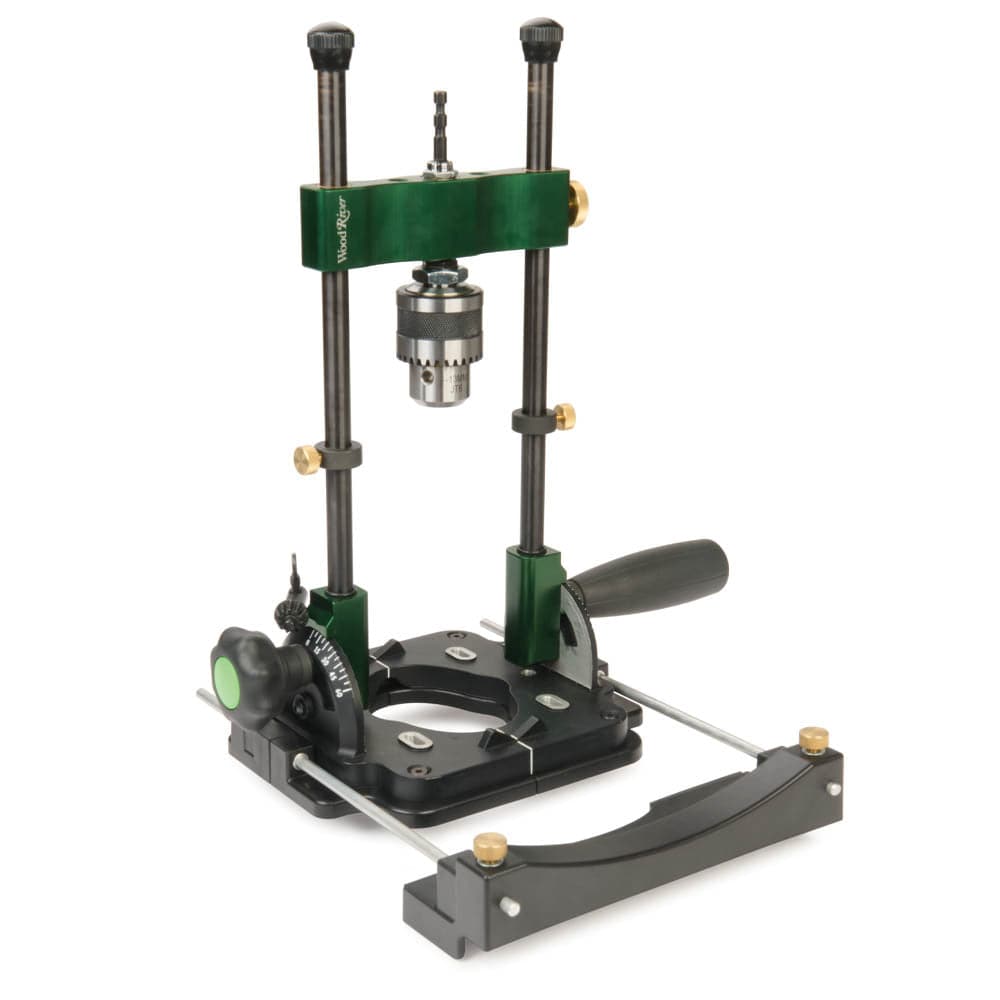

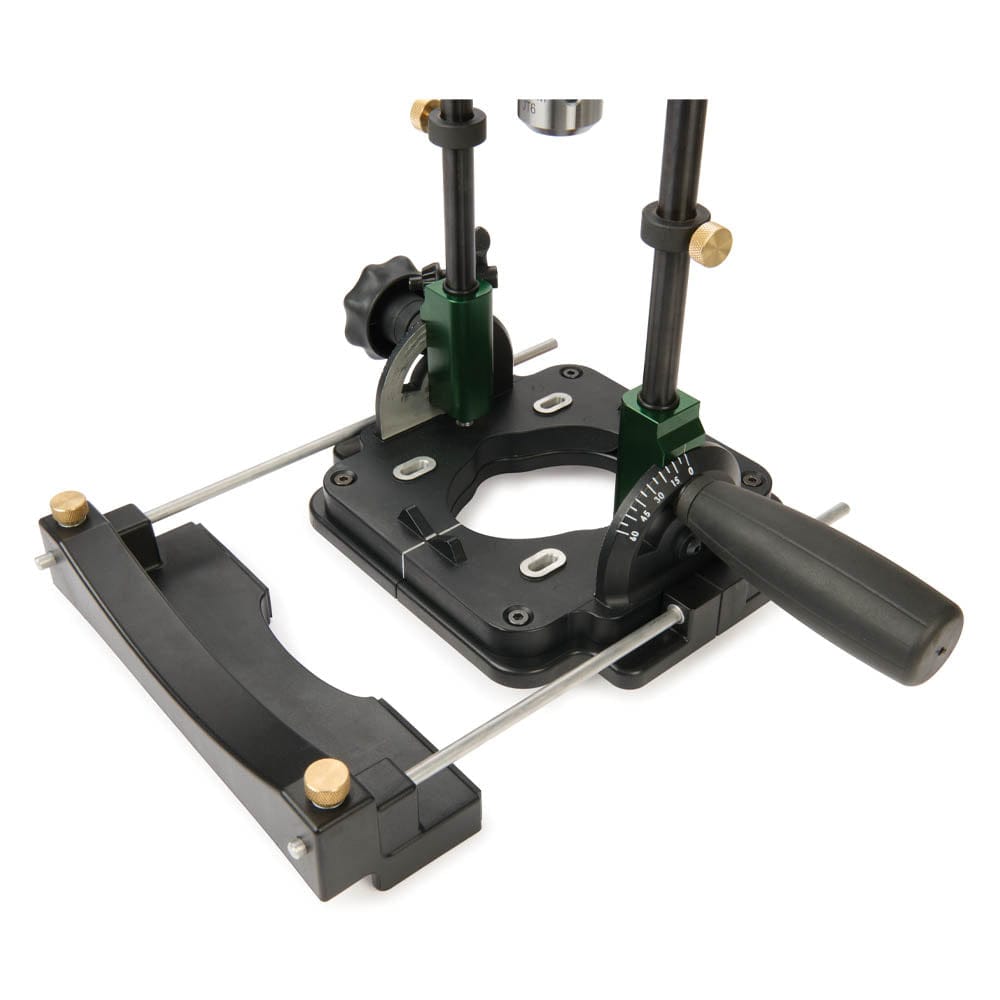

The Edge Guide works in combination with the WoodRiver® Drill Guide (#194499, sold separately) to create a row of holes. It sets the distance from the edge of your work, so you’re assured of consistent hole placement. Whether you're drilling dog holes in a new workbench, shelf pin holes in a cabinet or peg holes for a Shaker coat rack, you'll love the precision it brings to your project. Includes two 1/4'' x 12'' aluminum guide bars for drilling 1-3/4'' to 8'' from the edge, but with some simple substitutions, you can increase or decrease the distance.

Features:



  • Designed specifically for the WoodRiver Drill Guide (#194999, sold separately)
  • Ensures consistent hole placement from the edge of your workpiece
  • Made of durable plastic with structural ribbing for strength
  • Rubber pads on underside of base and edge of guide protect workpiece and provide a non-slip grip
  • Brass thumbscrews make it easy to lock in desired drilling distance
  • Included 1/4'' x 12'' aluminum guide bars allow drilling 1-3/4'' to 8'' from edge

    • If more distance is needed from the edge, use wooden dowels or commonly available 1/4'' metal rods in whatever length you need

    • If less distance is needed from the edge, pre-drilled holes in the guide let you mount a spacer strip for closer spacing



Specifications:


  • Material: Polymer with structural ribbing
  • Distance Range from Edge (with included 12'' rails): 1-3/4'' to 8''

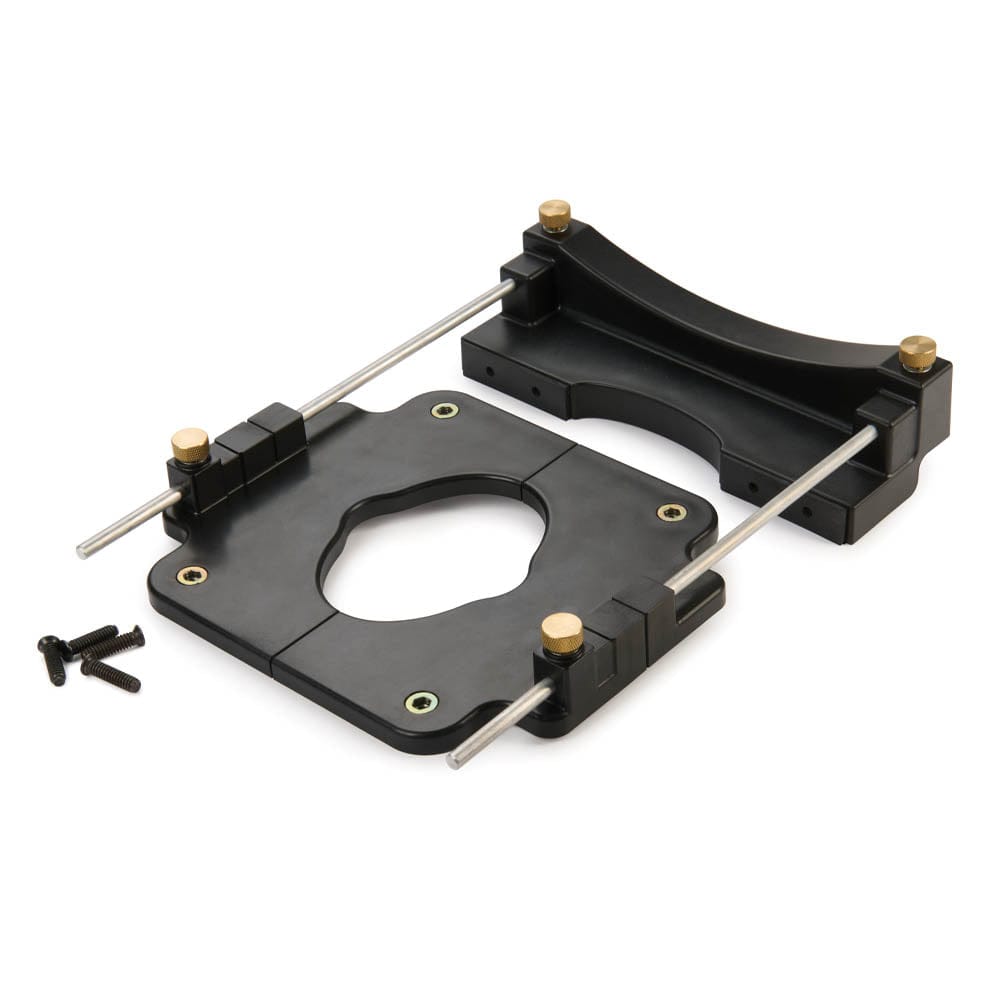

What's Included:


  • (1) WoodRiver Edge Guide for the WoodRiver Drill Guide (#199499- sold separately)
  • (2) 1/4" x 12" Aluminum Guide Bars
  • (4) Mounting screws
