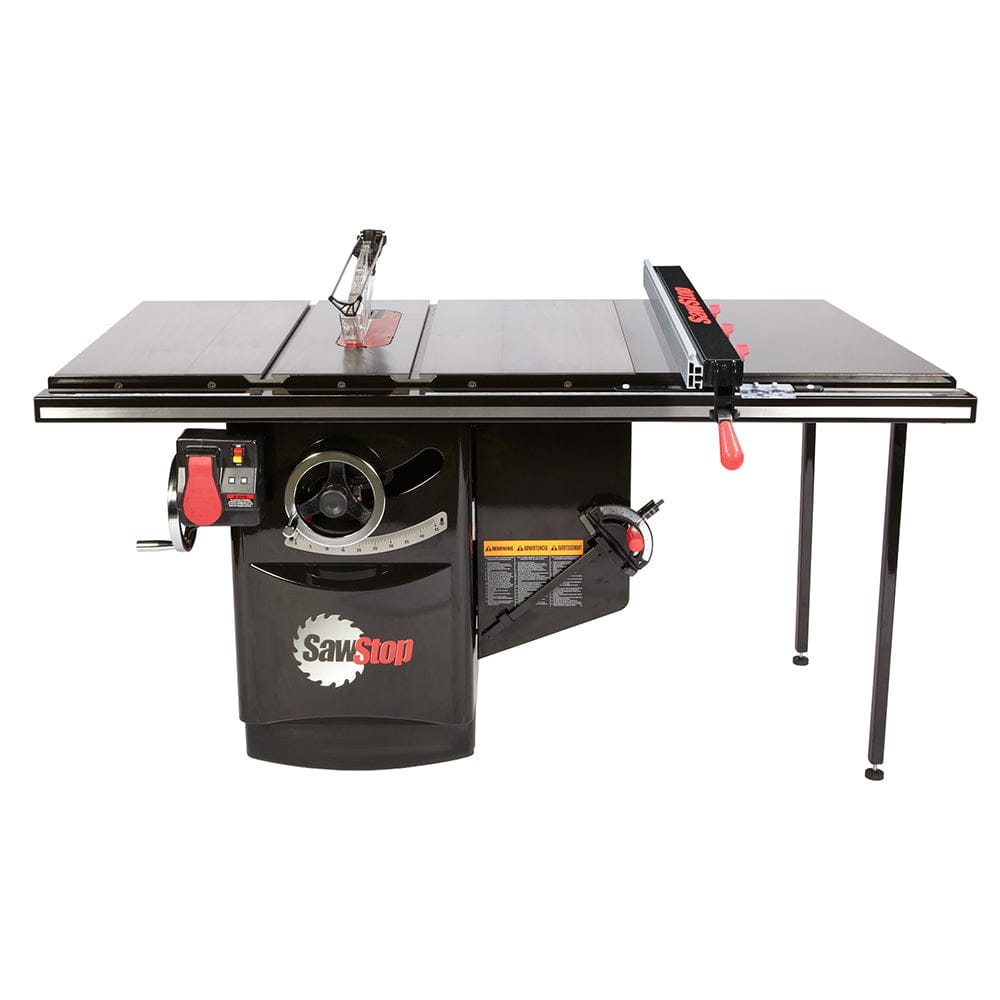

The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet saw available. The 5HP, 3ph, 480v configuration with an upgraded 36" Industrial T-Glide Advance Rip Fence System offers the durability, versatility, and the peace of mind only SawStop's revolutionary safety system can provide.
Features:
- Revolutionary SawStop Safety System stops on contact with skin.
- Durable craftmanship of almost 700lbs of iron and steel and thoughtful details combine for consistent, reliable performance in the most demanding industrial environments.
- Provides outstanding dust collection both above the table via the included dust collection blade guard and below the table with advanced shrouding around the blade.
- The ICS has an integrated Lock-Out Tag-Out switch for additional safety to ensure that only authorized operators can use the saw.
- The 36" Industrial T-Glide Advance Rip Fence delivers accuracy, versatility, ease of use, and safety like no other rip fence on the market.
- 69 1/4" w, 36 1/2" d, 34" h
- Cast Iron Table: 24" W x 30" D
- Motor: 5HP - 3 PH Electric, 480V, 5.8A
- Extension Wings: 10" W x 30" D each
- Extension Table: 24" W x 30" D
- Cabinet footprint: 20' W x 25" D
- Weight: 635 lbs. Fence included
- Blade size: 5/8" arbor 10" Diameter
- Left Tilt
- Blade kerf: 0.118" (3 mm)
- Blade Plate Thickness: 0.078" (2 mm)
- Max depth of cut: 2-1/4"
- Max rip right of blade: 36-1/2"
- Max rip left of blade: 12-1/2"
- Dado Diameter: 8" and requires separate brake cartridge and insert
- Dado max width: 13/16"
- (1) SawStop Industrial Cabinet Saw with 36" Industrial T-Glide Advance Rip Fence System - 5HP - 3PH - 480V
- Owner's Manual
