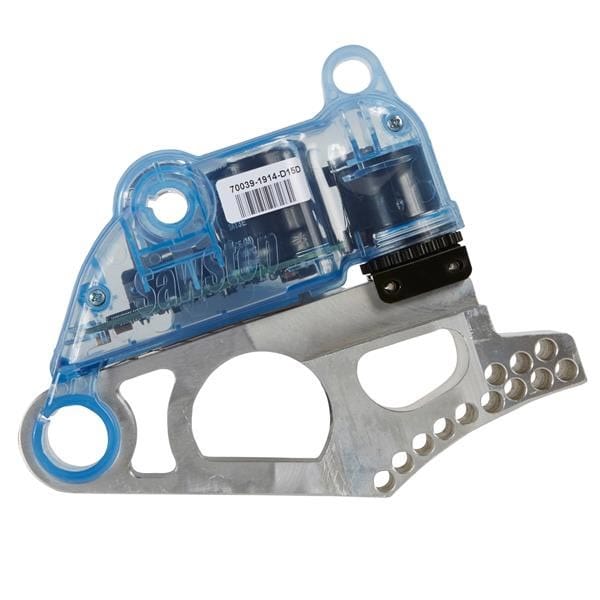

The revolutionary SawStop protection starts here! This SawStop Brake Cartridge for 8" dado blades fits all models of SawStop table saws, except older industrial models. Current SawStop models use cartridges with blue tinted plastic cases and 9-pin connectors. If you have an older model with a clear case and a 15-pin connector, you will need a different cartridge; please call SawStop for details. Features: What’s Included: FAQs Does this cartridge work with all 8" dado stacks?
Yes. It is compatible with standard 8‑inch dado stacks up to 13/16" wide on compatible SawStop saws.
Does the blade have to be completely dry/clean for the brake to function?
No. The brake still works with a normal amount of dust or pitch, but excessive moisture, wet lumber, or heavy buildup can cause false activation, so clean and dry blades are recommended.
Sawstop
Dado Brake Cartridge - 8"
Sawstop
Dado Brake Cartridge - 8"
Frequently Bought Together
-
Current product. Always included in the bundle total and cannot be deselected.
SawstopDado Brake Cartridge - 8"$139.00 -
WoodRiverStacked Dado Set - 8" x 5/8" Bore x 24T - Hi ATB+$157.98 -$209.99 Save $52.01
WoodRiver
Stacked Dado Set - 8" x 5/8" Bore x 24T - Hi ATB
Item #171605 Model 90000951Accurate, precise, consistent, reliable – these are words that one associates with a quality saw blade. Now, you can add WoodRiver® to that list. High grade German steel and premium grade Ceratizit™ carbide are combined by top-notch Israeli manufacturing to make this WoodRiver® Stacked Dado Blade Set that delivers a superior cut on an edge that will stay sharper longer than other blades on the market. One cut, and WoodRiver® will be the last saw blade brand you buy. High Alternate Top Bevel tooth configuration set with a negative 6° hook angle scores both edges of a dado before cleaning out the bulk leaving clean 1/4" to 61/64" grooves. Dado cuts across the grain or grooves with the grain.
Features:
- 8" Stacked Dado Blade Set
- 24T High Alternate Top Bevel tooth configuration set with a negative 6° hook angle scores both edges of a dado before cleaning out the bulk leaving clean 1/4" to 61/64" grooves
- Cut widths from 13/16" max width without shims, to 61/64" max width with shims
- Dado cuts across the grain or grooves with the grain
- Accurate, precise, consistent, reliable
- Blades will stay sharper longer than other blades on the market
- High grade German steel with premium grade Ceratizit™ carbide tips
Specifications:
- Blade Diameter: 8"
- Number of Teeth: 24
- Arbor Size (Bore): 5/8"
- Tooth Style: High Alternate Top Bevel (Hi ATB)
- Maximum Cut Width (Without Shims): 13/16"
- Maximum Cut Width (With Shims): 61/64"
- Hook Angle: -6°
- Blade Construction: German Steel with premium grade Ceratizit™ carbide tips
What's Included:
- (1) WoodRiver® - 8" Stacked Dado Set includes the following:
- (2) 24T Outside blades with a Hi ATB tooth grind
- (5) Chippers (four 1/8" and one 1/16")
- (14) shims (5-0.002", 1-0.005", 4-0.01", and 4-0.02")
-
SawstopStandard 10" Brake Cartridge+$119.00
Sawstop
Standard 10" Brake Cartridge
Item #181404 Model TSBC-10R3This is the standard SawStop brake cartridge for 10" saw blades. It replaces the TSBC-10R2 and is compatible will all models of SawStop except the CB Model Saws that use TSBC-10L.
Features:
- Standard SawStop brake cartridge for 10" saw blades
- Fits all models of SawStop table saws (except for older CB models)
- ICS, PCS & CNS Saws
What's Included:
- (1) Standard 10" Brake Cartridge
FAQs
Can this cartridge be reused after it’s activated?
No, the brake cartridge is single-use and must be replaced after activation. Once triggered, it cannot be reset or reused.
How do I know when the brake cartridge needs replacing?
The cartridge should be replaced after any activation or if it shows signs of damage or wear. It’s also good practice to check expiration guidelines if provided by the manufacturer.
How do I install a new brake cartridge safely?
Always disconnect power before installation and follow the manufacturer’s step-by-step instructions. Proper installation ensures the safety system functions correctly when needed. -
SawstopPremium Dado Set - 8"+$319.00
Sawstop
Premium Dado Set - 8"
Item #183665 Model BTS-DS8-2402This SawStop Premium 8" Dado Blade Set is suited for cutting hardwoods and softwoods with minimal tear-out. It is compatible with all SawStop Table Saws, including: ICS, PCS, CNS, and JSS models.
Features:
- Suited for cutting hardwoods and softwoods
- Minimal tear out
- Compatible with all SawStop Table Saws
Specifications:
- Blade Diameter: 8"
- Number of Teeth: 24
- Arbor Size (Bore): 5/8"
- Maximum Cut Width: 29/32"
- Minimum Cut Width 1/4"
- Hook Angle: -5°
What’s Included:
- (1) SawStop 8" Premium Dado Blade Set that includes:
- (2) 24T Outside Blades
- (5) Chippers – (1) 1/4", (2) 1/8", (1) 1/16" and (1) 3/32")
- (6) Shims
- (1) Plastic Case
