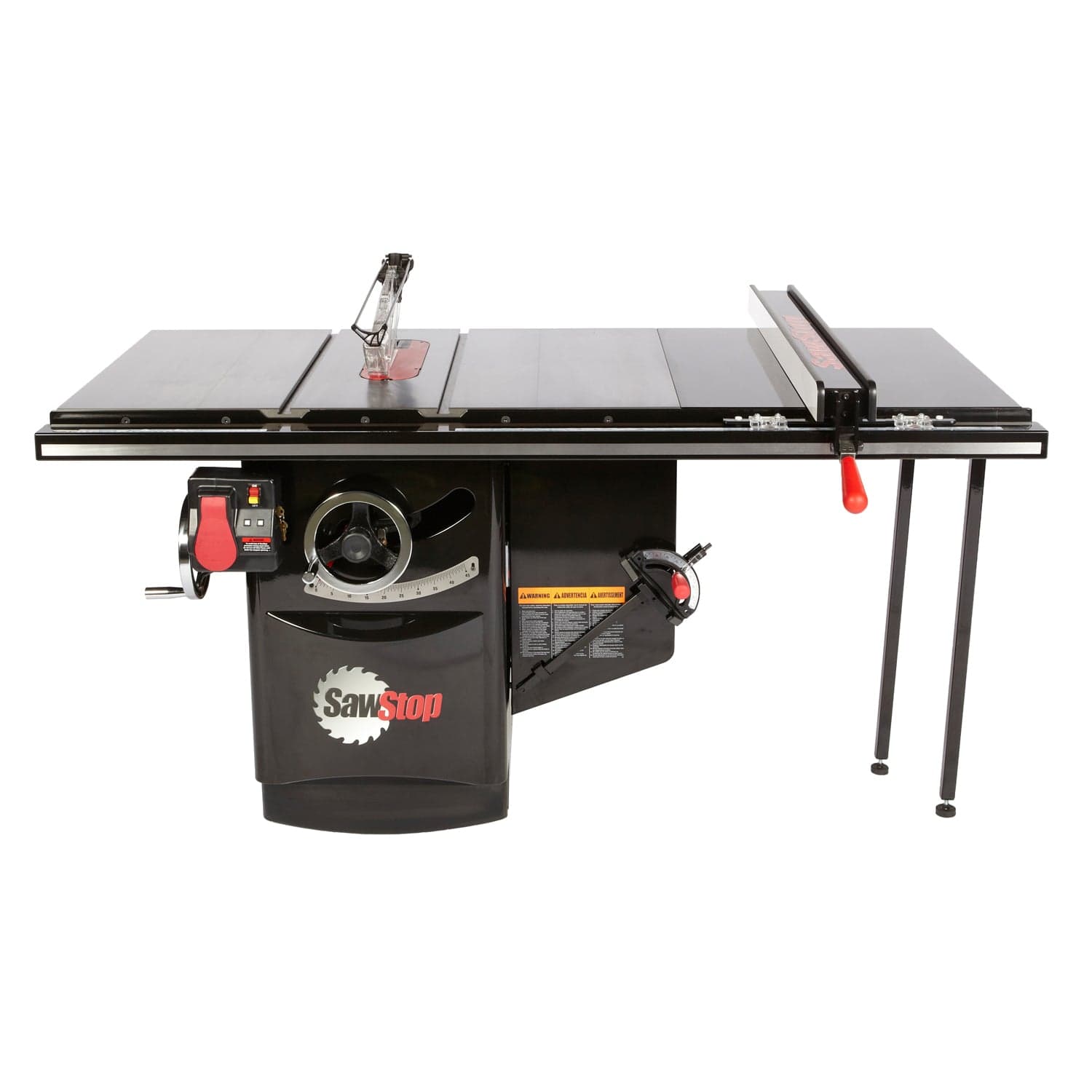

Sawstop

7.5 HP 3 PH 480V Industrial Cabinet Saw with 36" Industrial T-Glide Fence System

Item #420946 Model ICS73480-36
$ 6,129 00
$ 6,129 00 Was $6,129.00
1 2

Sawstop

7.5 HP 3 PH 480V Industrial Cabinet Saw with 36" Industrial T-Glide Fence System

Item #420946 Model ICS73480-36
$ 6,129 00
$ 6,129 00 Was $6,129.00
The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet . . . View More Details
Ships from Manufacturer Shipping Info

Purchase Note: This machine requires 3-phase power.  Most residential power is single or 1-phase.  Verify your power requirements before ordering.

Items you may need

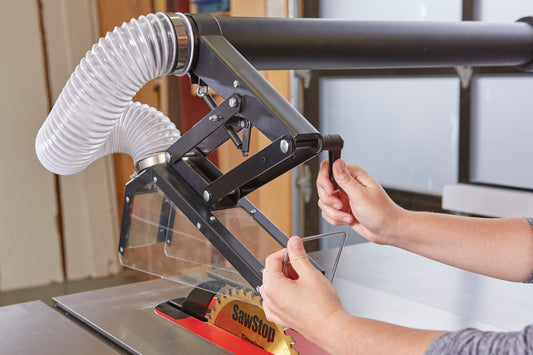

  • Floating Overarm Dust Collection Guard

    $ 579 00
    $ 579 00 Was $579.00
    Floating Overarm Dust Collection Guard alt 0

  • Sliding CrossCut Table

    $ 1,399 00
    $ 1,399 00 Was $1,399.00
    Sliding CrossCut Table alt 0

  • Industrial Cabinet Saw Mobile Base

    $ 449 00
    $ 449 00 Was $449.00
    Industrial Cabinet Saw Mobile Base alt 0

  • Standard Lock Down Insert

    $ 69 00
    $ 69 00 Was $69.00
    Standard Lock Down Insert alt 0

  • 40T Combination Blade

    $ 49 00
    $ 49 00 Was $49.00
    40T Combination Blade alt 0

  • Thin Rip Guide

    $ 179 99
    $ 179 99 Was $179.99
    Thin Rip Guide

  • Spline Jig

    $ 164 99
    $ 164 99 Was $164.99
    Spline Jig

  • Align-A-Saw Plate

    $ 164 99
    $ 164 99 Was $164.99
    Align-A-Saw Plate

  • Align-A-Saw Gauge & Base

    $ 94 99
    $ 94 99 Was $94.99
    Align-A-Saw Gauge & Base

  • Saw Gauge with Dial Indicator

    $ 109 99
    $ 109 99 Was $109.99
    Saw Gauge with Dial Indicator

  • Super Stack Dado Set - 8" x 5/8" Bore x 24T

    $ 295 99
    $ 295 99 Was $295.99
    Super Stack Dado Set - 8" x 5/8" Bore x 24T

  • Heavy Duty TS2000 Super Rip Saw Blade - 10" x 5/8" Bore x 24T - STR - Full Kerf

    $ 139 99
    $ 139 99 Was $139.99
    Heavy Duty TS2000 Super Rip Saw Blade - 10" x 5/8" Bore x 24T - STR - Full Kerf

  • TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 30T - AR - Full Kerf

    $ 129 99
    $ 129 99 Was $129.99
    TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 30T - AR - Full Kerf

  • TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Full Kerf

    $ 149 99
    $ 149 99 Was $149.99
    TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Full Kerf

  • TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Thin Kerf

    $ 159 99
    $ 159 99 Was $159.99
    TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Thin Kerf

  • TS2000 Flat Top Box Joint Blade - 10" x 5/8" Bore x 40T - STR - Full Kerf

    $ 149 99
    $ 149 99 Was $149.99
    TS2000 Flat Top Box Joint Blade - 10" x 5/8" Bore x 40T - STR - Full Kerf

  • TS2000 Ultra Combo Saw Blade - 10" x 5/8" Bore x 48T - ATB - Full Kerf

    $ 159 99
    $ 159 99 Was $159.99
    TS2000 Ultra Combo Saw Blade - 10" x 5/8" Bore x 48T - ATB - Full Kerf

  • Melacrafter Saw Blade - 10" x 5/8" Bore x 80T - ATB - Full Kerf

    $ 159 99
    $ 159 99 Was $159.99
    Melacrafter Saw Blade - 10" x 5/8" Bore x 80T - ATB - Full Kerf

  • Box & Finger Joint Blade Set (1/4" - 3/8") - 2 Piece - 8" x 5/8" Bore x 30T

    $ 179 99
    $ 179 99 Was $179.99
    Box & Finger Joint Blade Set (1/4" - 3/8") - 2 Piece - 8" x 5/8" Bore x 30T

Details

The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet saw available. The 7.5 HP, 3 PH, 480V configuration with a 36" Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop’s patented safety system can provide.
Features



  • SawStop’s patented safety system

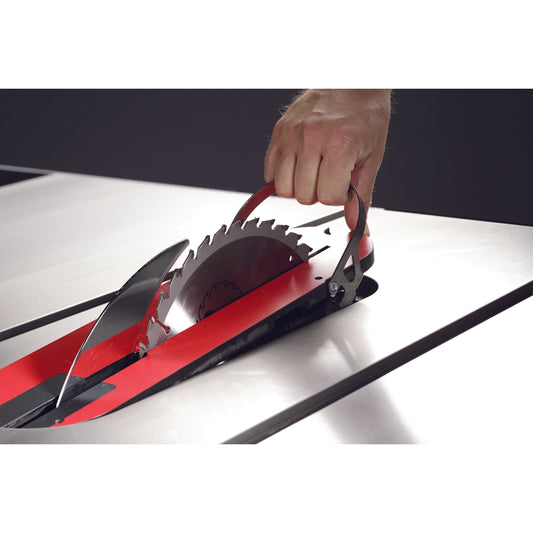

  • Riving knife reduces the risk of kickback
  • Tool-free quick-change blade guard mount
  • Diagnostic system ensures the saw is ready to respond
  • Dust-Collection Blade Guard
  • 36" Industrial T-Glide Fence System



Specifications


  • Motor: 7.5 HP, 3-Phase, 480V 60 HZ
  • Overall saw dimensions: 69-1/4" W x 36-1/2" D x 34" H
  • Cabinet footprint: 20" x 25"
  • Cast-iron table: 24" W x 30" D
  • Cast-iron table size with extension wings: 44" W x 30" D
  • Blade: 60-tooth, professional grade, 5/8" arbor
  • Blade diameter: 10"
  • Blade tilt: left
  • Blade kerf: 0.118" (3 mm)
  • Blade plate thickness: 0.078"
  • Max. depth of cut, blade at 0º: 3-1/8"
  • Max. depth of cut, blade at 45º: 2-1/4"
  • Max. rip, left of blade: 12-1/2"
  • Dado diameter: 8" (requires a separate brake cartridge and table insert)
  • Dado max. width: 13/16"
  • Arbor diameter at blade: 5/8"
  • Table in front of blade (max. elevation): 11"
  • Table behind blade (max. elevation): 9-3/4"
  • Table flatness measured diagonally: 0.010" maximum gap
  • Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
  • Dust-collection port diameter: 4"
  • Riving knife/splitter thickness: 0.090" (2.3 mm)
  • Insert: zero clearance, phenolic core, melamine surfaces
  • Belts: 2 V-ribbed belts
  • Weight: 635 lbs.



Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 5 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Inspect all freight shipments at time of delivery. If damage or missing pieces, are suspected, please note on driver paperwork.

Return Information

SawStop does not accept returns. If your shipment was damaged, please refuse shipment and call SawStop's customer service department at 503-595-2665.

Warranty Information

SawStop warrants that their saws are free from defects in materials and workmanship for a period of two years from the purchase date, and covers their motors for a period of 5 years. If you have a warranty question, please contact SawStop customer service @ 503-582-9934.
