Sawstop

Industrial Cabinet Saw with 36" Industrial T-Glide Fence System - 5HP - 3PH - 230V

Item #856294 Model ICS53230-36
$ 5,822 00
$ 5,822 00 Was $5,822.00
1 2

Sawstop

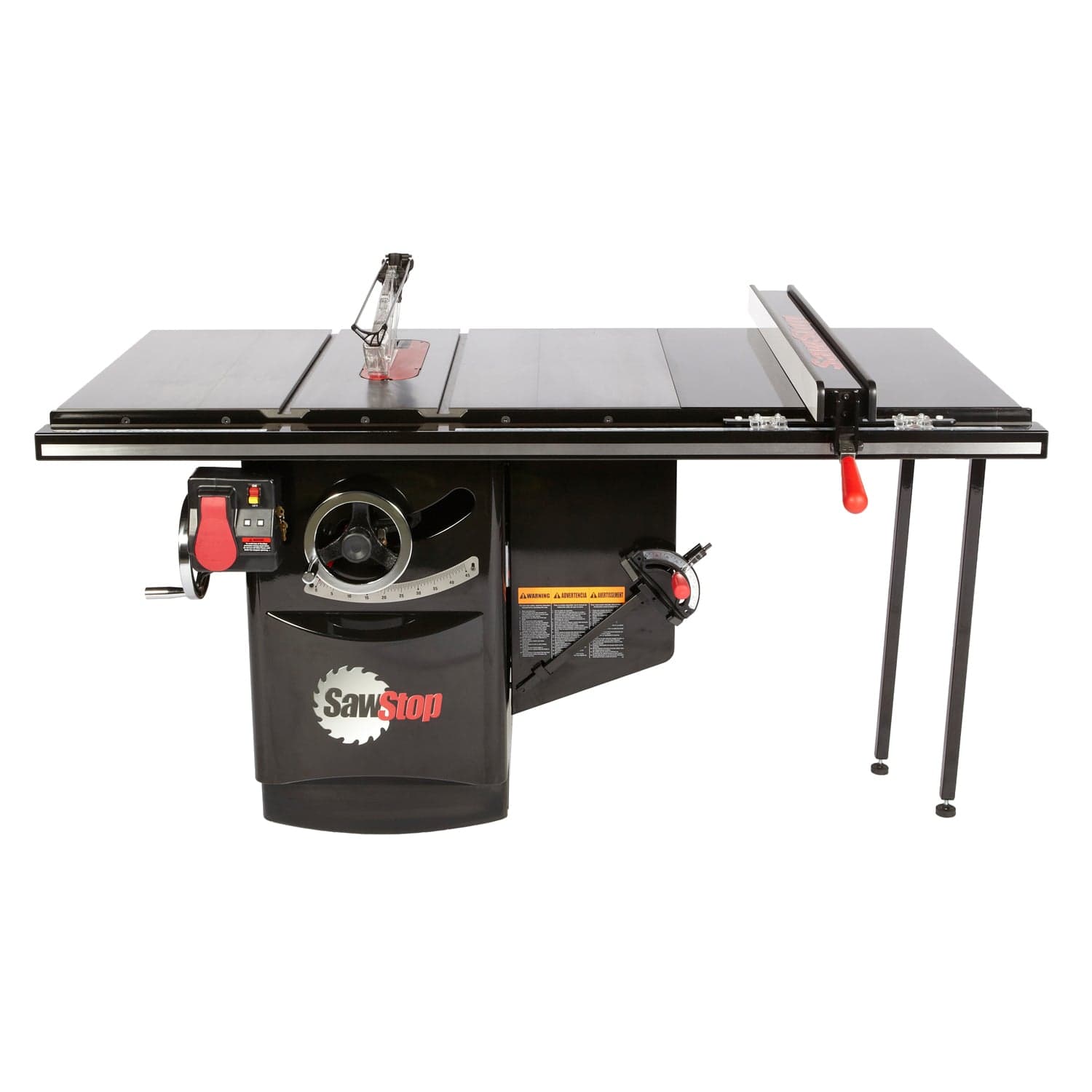

Industrial Cabinet Saw with 36" Industrial T-Glide Fence System - 5HP - 3PH - 230V

Item #856294 Model ICS53230-36
$ 5,822 00
$ 5,822 00 Was $5,822.00
Features:SawStop’s patented safety systemRiving knife reduces the risk of kickbackTool-free quick-change blade guard mountDiagnostic system ensu. . . View More Details
Backordered Online Shipping Info

Purchase Note: This machine requires 3-phase power.  Most residential power is single or 1-phase.  Verify your power requirements before ordering.

Items you may need

  • Saw Gauge with Dial Indicator

    $ 109 99
    $ 109 99 Was $109.99
    Saw Gauge with Dial Indicator

  • Sliding CrossCut Table

    $ 1,485 00
    $ 1,485 00 Was $1,485.00
    Sliding CrossCut Table alt 0

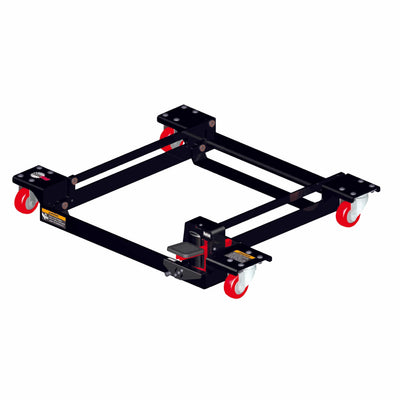

  • Industrial Cabinet Saw Mobile Base

    $ 475 00
    $ 475 00 Was $475.00
    Industrial Cabinet Saw Mobile Base alt 0

  • Glue Line Rip Saw Blade - 10" x 5/8" Bore x 30T - TCG

    $ 86 99
    $ 86 99 Was $86.99
    Glue Line Rip Saw Blade - 10" x 5/8" Bore x 30T - TCG alt 0

  • Stacked Dado Set - 8" x 5/8" Bore x 24T - Hi ATB

    $ 209 99
    $ 209 99 Was $209.99
    Stacked Dado Set - 8" x 5/8" Bore x 24T - Hi ATB alt 0

  • Heavy Duty TS2000 Super Rip Saw Blade - 10" x 5/8" Bore x 24T - STR - Full Kerf

    $ 139 99
    $ 139 99 Was $139.99
    Heavy Duty TS2000 Super Rip Saw Blade - 10" x 5/8" Bore x 24T - STR - Full Kerf

  • TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Thin Kerf

    $ 159 99
    $ 159 99 Was $159.99
    TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Thin Kerf

  • TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Full Kerf

    $ 149 99
    $ 149 99 Was $149.99
    TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Full Kerf

  • TS2000 Flat Top Box Joint Blade - 10" x 5/8" Bore x 40T - STR - Full Kerf

    $ 149 99
    $ 149 99 Was $149.99
    TS2000 Flat Top Box Joint Blade - 10" x 5/8" Bore x 40T - STR - Full Kerf

  • TS2000 Ultra Combo Saw Blade - 10" x 5/8" Bore x 48T - ATB - Full Kerf

    $ 159 99
    $ 159 99 Was $159.99
    TS2000 Ultra Combo Saw Blade - 10" x 5/8" Bore x 48T - ATB - Full Kerf

  • Melacrafter Saw Blade - 10" x 5/8" Bore x 80T - ATB - Full Kerf

    $ 159 99
    $ 159 99 Was $159.99
    Melacrafter Saw Blade - 10" x 5/8" Bore x 80T - ATB - Full Kerf

  • Super Stack Dado Set - 8" x 5/8" Bore x 24T

    $ 295 99
    $ 295 99 Was $295.99
    Super Stack Dado Set - 8" x 5/8" Bore x 24T

  • Box & Finger Joint Blade Set (1/4" - 3/8") - 2 Piece - 8" x 5/8" Bore x 30T

    $ 179 99
    $ 179 99 Was $179.99
    Box & Finger Joint Blade Set (1/4" - 3/8") - 2 Piece - 8" x 5/8" Bore x 30T

  • TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 30T - AR - Full Kerf

    $ 129 99
    $ 129 99 Was $129.99
    TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 30T - AR - Full Kerf

  • Spline Jig

    $ 164 99
    $ 164 99 Was $164.99
    Spline Jig

  • Thin Rip Guide

    $ 159 99
    $ 159 99 Was $179.99 Save $20.00 (11% off)
    Thin Rip Guide

  • Dado Nut for SawStop Table Saws

    $ 49 99
    $ 49 99 Was $49.99
    Dado Nut for SawStop Table Saws

Details


Features:


  • SawStop’s patented safety system
    Riving knife reduces the risk of kickback
  • Tool-free quick-change blade guard mount
    Diagnostic system ensures the saw is ready to respond
  • Dust-Collection Blade Guard
    36" Industrial T-Glide Fence System
  • 5 HP motor 3-phase, 230V 60 HZ

Specifications:

  • Overall saw dimensions: 69-1/4" wide x 36-1/2" deep x 34" high
  • Cabinet footprint: 20" x 25"
  • Cast-iron table: 24" w x 30" d
  • Cast-iron table size with extension wings: 44" w x 30" d
  • Motor: 5 HP, 3-Phase, 230V 60 HZ
  • Weight: 635 lbs.
  • Blade: 60-tooth, professional grade, 5/8" arbor
  • Blade diameter: 10"
  • Blade tilt: left
  • Blade kerf: 0.118" (3mm)
  • Blade plate thickness: 0.078"
  • Max. depth of cut, blade at 0º: 3-1/8"
  • Max. depth of cut, blade at 45º: 2-1/4"
  • Max. rip, left of blade: 12-1/2"
  • Dado diameter: 8" (requires a separate brake cartridge and table insert)
  • Dado max. width: 13/16"
  • Arbor diameter at blade: 5/8"
  • Table in front of blade (max. elevation): 11"
  • Table behind blade (max. elevation): 9-3/4"
  • Table flatness measured diagonally: 0.010" maximum gap
  • Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
  • Dust-collection port diameter: 4"
  • Riving knife/splitter thickness: 0.090" (2.3mm)
  • Insert: zero clearance, phenolic core, melamine surfaces
  • Belts: 2 V-ribbed belts

What's Included:

  • (1) SawStop Industrial Cabinet Saw with 36" Industrial T-Glide Fence System - 5HP - 3PH - 230V
