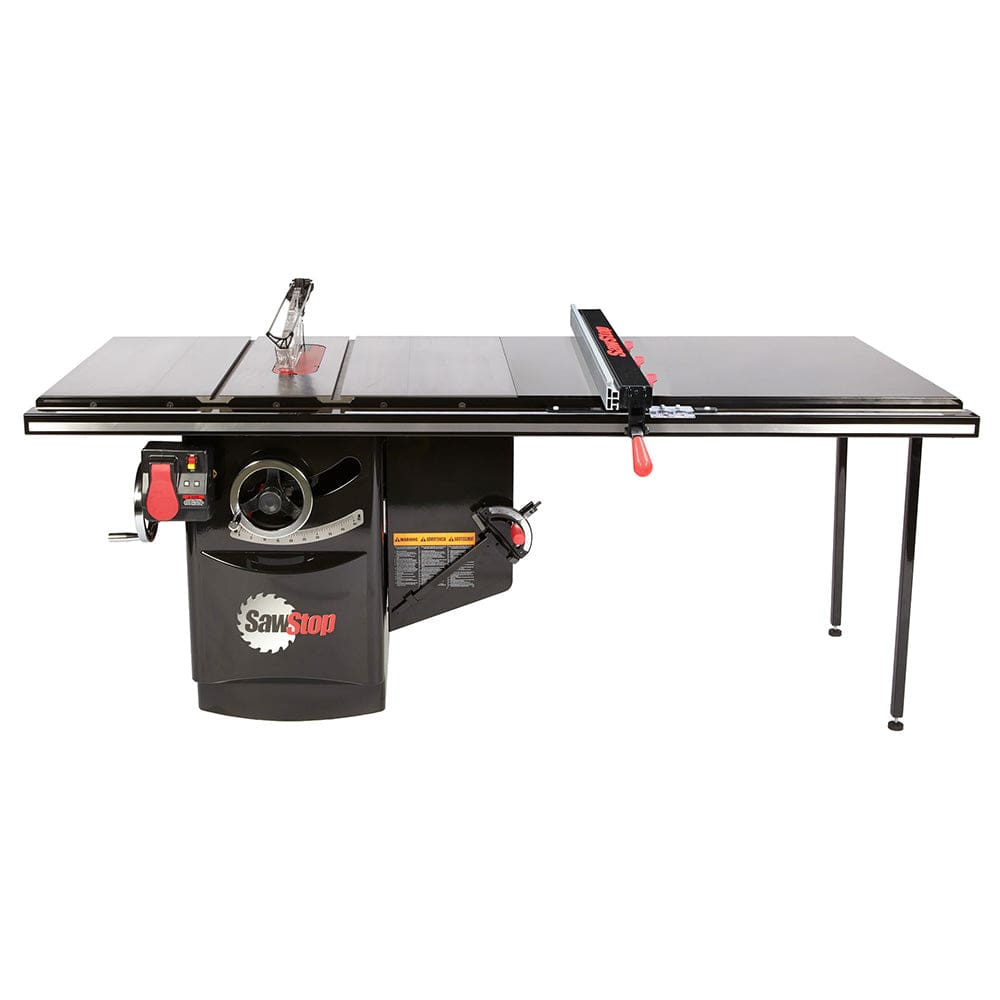

Power, precision, and protection—SawStop's 5 HP Industrial Cabinet Saw with 52" Industrial T-Glide Advance Fence System is built for high-performance, high-volume environments. Whether in a professional cabinet shop or commercial facility, this saw delivers reliable results with serious safety technology at its core.
A powerful 5 HP motor running on 230V three-phase power delivers consistent torque, even through dense hardwoods and long cuts. The 52" Industrial T-Glide Advance Fence System ensures smooth operation and exacting accuracy with every pass. A heavy cast-iron table and trunnion system reduce vibration, enhancing cut quality and long-term durability.
What truly sets this saw apart is the SawStop safety system. The blade stops in less than 5 milliseconds upon skin contact, minimizing injury and setting the industry standard for workplace safety.
Features:
- SawStop’s patented safety system
- Riving knife reduces the risk of kickback
- Tool-free quick-change blade guard mount
- Diagnostic system ensures the saw is ready to respond
- Dust-Collection Blade Guard
- 52" Industrial T-Glide Advance Fence System
Specifications:
- Overall saw dimensions: 85-1/4" wide x 36-1/2" deep x 34" high
- Cabinet footprint: 20" x 25"
- Cast-iron table: 24" w x 30" d
- Cast-iron table size with extension wings: 44" w x 30" d
- Motor: 5 HP, 3-Phase, 230V 60 HZ
- Weight: 685 lbs.
- Blade: 60-tooth, professional grade, 5/8" arbor
- Blade diameter: 10"
- Blade tilt: left
- Blade kerf: 0.118" (3 mm)
- Blade plate thickness: 0.078"
- Max. depth of cut, blade at 0º: 3-1/8"
- Max. depth of cut, blade at 45º: 2-1/4"
- Max. rip, left of blade: 12-1/2"
- Dado diameter: 8" (requires a separate brake cartridge and table insert)
- Dado max. width: 13/16"
- Arbor diameter at blade: 5/8"
- Table in front of blade (max. elevation): 11"
- Table behind blade (max. elevation): 9-3/4"
- Table flatness measured diagonally: 0.010" maximum gap
- Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
- Dust-collection port diameter: 4"
- Riving knife/splitter thickness: 0.090" (2.3 mm)
- Insert: zero clearance, phenolic core, melamine surfaces
- Belts: 2 V-ribbed belts
What's Included:
- (1) SawStop® Industrial Cabinet Saw with 52" Industrial T-Glide Advance Fence System - 5 HP - 3PH - 230V
