Sawstop

5HP 3PH 230V Industrial Cabinet Saw with 36" Industrial T-Glide Fence System

Item 856294
Model ICS53230-36

$5,245.00

Shipping Fee of $425.00

Purchase Note: This machine requires 3-phase power.  Most residential power is single or 1-phase.  Verify your power requirements before ordering.

Ships Next Business Day!Only a Few Left!
  • Will Only Ship to the Contiguous 48 States
  • Freight Shipments Deliver to Curbside Only
  • Not Available for Express and Overnight Shipping.
  • The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet saw available. The 5 HP, 3 ph, 230V configuration with a 36" Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace...

    This kit includes the following items:

    • 5HP, 3ph ICS Base Saw
    • T-Glide Ind 36 in Rails
    • Sawstop Industrial Series 36" Extension Table
    • T-Glide Industrial Fence

    Woodcraft Protection Program

    Learn More

    Details

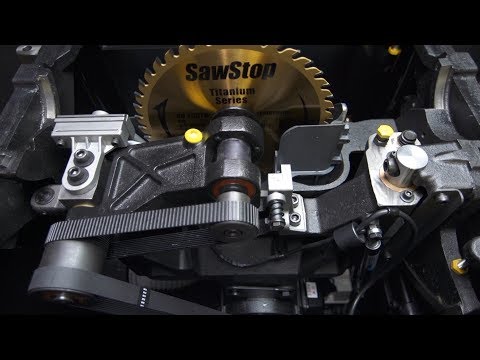

    The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet saw available. The 5 HP, 3 ph, 230V configuration with a 36" Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop’s patented safety system can provide.
    Features:

    • SawStop’s patented safety system
    • Riving knife reduces the risk of kickback
    • Tool-free quick-change blade guard mount
    • Diagnostic system ensures the saw is ready to respond
    • Dust-Collection Blade Guard
    • 36" Industrial T-Glide Fence System
    • 5 HP motor 3-phase, 230V 60 HZ

    Table Saw Specs:
    • Overall saw dimensions: 69-1/4" wide x 36-1/2" deep x 34" high
    • Cabinet footprint: 20" x 25"
    • Cast-iron table: 24" w x 30" d
    • Cast-iron table size with extension wings: 44" w x 30" d
    • Motor: 5 HP, 3-Phase, 230V 60 HZ
    • Weight: 635 lbs.
    • Blade: 60-tooth, professional grade, 5/8" arbor
    • Blade diameter: 10"
    • Blade tilt: left
    • Blade kerf: 0.118" (3mm)
    • Blade plate thickness: 0.078"
    • Max. depth of cut, blade at 0º: 3-1/8"
    • Max. depth of cut, blade at 45º: 2-1/4"
    • Max. rip, left of blade: 12-1/2"
    • Dado diameter: 8" (requires a separate brake cartridge and table insert)
    • Dado max. width: 13/16"
    • Arbor diameter at blade: 5/8"
    • Table in front of blade (max. elevation): 11"
    • Table behind blade (max. elevation): 9-3/4"
    • Table flatness measured diagonally: 0.010" maximum gap
    • Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
    • Dust-collection port diameter: 4"
    • Riving knife/splitter thickness: 0.090" (2.3mm)
    • Insert: zero clearance, phenolic core, melamine surfaces
    • Belts: 2 V-ribbed belts
    Additional $350 Freight Charge
