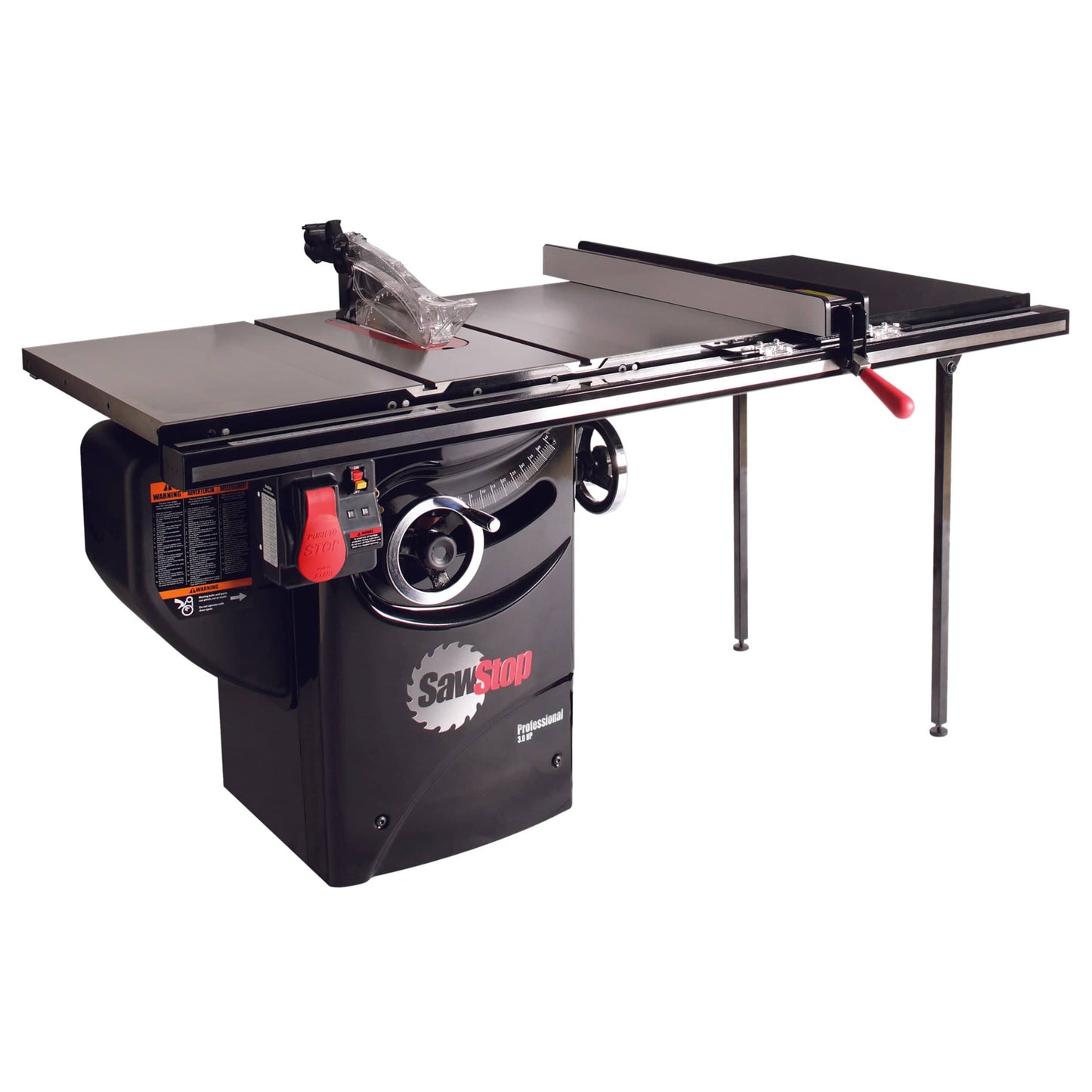

Sawstop - 3 HP Professional Cabinet Saw with 36" Professional T-Glide Fence System PCS31230-TGP236
Flat Shipping Fee of $250.00
Rebate Available! Learn More
Buy A New 3HP or 1.75HP Professional Cabinet And Receive A FREE Overarm Dust Collection Or Integrated Mobile Base Now Through April 30, 2019 Through A Manufacturer's Mail-In Offer
This kit includes the following items:
- PCS - Saw Body 3 HP
- T-Glide Pro 36" Rails
- Professional Series 36" Extension Table
- T-Glide Pro Fence
Items You May Need
Item 856540Model MB-PCS-IND
Item 852368Model MJOIN8012-0130
Item 163949Model RT-ICW
Item 847463Model PCS31230-TGP252
Item 846919Model PCS175-TGP236
Item 852094Model PCS31230-PFA30
Item 846918Model PCS175-PFA30
Item 840938Model CNS175-TGP236
Item 840937Model CNS175-SFA30
Item 857876Model 1791000K
Item 856540Model MB-PCS-IND
Item 856290Model ICS31230-36
Item 846920Model PCS175-TGP252
Item 424387Model PM23130K
Item 856291Model ICS31230-52
Item 849675Model 02310
• SawStop’s patented safety system
• Riving knife reduces the risk of kickback
• Tool-free quick-change blade guard mount
• Diagnostic system ensures the saw is ready to respond
• Dust-Collection Blade Guard
• 36" Professional T-style Fence system
• 3 HP motor 1-phase, 230V 13A
Table Saw Specifications:
Overall saw dimensions: 69-1/8" x 33" x 34"
Cabinet footprint: 19-3/8" x 19-3/8"
Cast-iron table: 20" w x 27" d
Cast-iron table size with extension wings: 44" w x 27" d
Motor: 3 HP, 1-Phase, 230V, 13A
Weight: 426 lbs.
Blade: 40-tooth, professional grade, 5/8" arbor
Blade diameter: 10"
Blade tilt: left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078"
Max. depth of cut, blade at 0º: 3-1/8"
Max. depth of cut, blade at 45º: 2-1/4"
Max. rip, left of blade: 12"
Dado diameter: 8" (requires a separate brake cartridge and table insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Table in front of blade (max. elevation): 10-1/4"
Table behind blade (max. elevation): 7-1/2"
Table flatness measured diagonally: 0.010" maximum gap
Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
Dust-collection port diameter: 4"
Riving knife/splitter thickness: 0.078" (2mm)
Blade guard: polycarbonate, extends only 5/8" to right of blade
Insert: zero clearance, steel core, ABS surfaces
Belts: 2 V-ribbed belts – arbor belt is static dissipative
Instructions / MSDS
Best saw I ever bought
Must have saw. Quality is great. Tech support is great
Superior engineering and packaging
I purchased the SawStop PCS as a beginner because a 66 year old beginner needs all the advantages possible. Unpacking and assembling this tool was one of the more enjoyable experiences I have had. The thoughtful engineering in the saw, in the assembly instructions, and in the packaging gives me great confidence that superior saw performance will be no issue. In a 700 pound tool that came in 4 boxes, there were only 7 pieces of high quality styrofoam. I was able to unpack and assemble the saw by myself; although, SawStop recommends two people. The thoughtfully engineered packaging and clearly written assembly instructions make that possible. There was only one glitch: the front tube for the T-glide system had been repackaged by Woodcraft after being damaged in shipment to Woodcraft and then sent to me. Woodcraft and SawStop replaced the front tube with no hassle.
very happy with this product
I use this saw in my garage workshop and it is a well built powerful saw. I got it for the safty features 1st but am very pleased with the over all quality of the saw.
